Synth Unit - MIDI synthesiser - SAM2695 - expansion Unit for M5Stack development modules - M5Stack U178
Synth Unit is an audio module from M5Stack, created specifically for MIDI sound systems . Equipped with the SAM2695 chip and a built-in NS4150B class D amplifier , it offers a wide range of sound synthesis, effects processing and sound parameter adjustment possibilities.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Synth Unit - MIDI synthesizer - SAM2695 - Unit expansion module for M5Stack development modules - M5Stack U178
Synth Unit is a versatile audio module , dedicated to MIDI sound systems . The heart of the device is the SAM2695 chip, which supports standard MIDI signals via serial communication. Synth Unit allows you to create complex musical arrangements thanks to the ability to generate multi-channel instrument sounds and precise adjustments of sound parameters, such as a four-stage equalizer (EQ) and reverb . Adapted to demanding applications such as live performances, music production in recording studios, electronic music stages and STEAM education. Thanks to the built-in NS4150B class D amplifier , Synth Unit provides a clean and clear sound, necessary both during concerts and in the process of creating music. The module is in the form of a Unit type extension , which can be used with development modules from M5Stack .
Also check out the user guide prepared by the manufacturer!
Synth Unit - MIDI synthesizer - SAM2695 - Unit expansion module for M5Stack development modules - M5Stack U178.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
Provides various audio synthesis and processing capabilities.
Special Features of Synth Unit
- SAM2695 chip : advanced sound synthesis compliant with the MIDI protocol.
- Class D amplifier NS4150B : guarantees high sound quality.
- Audio controls : four-stage EQ, reverb and the ability to configure multi-channel output.
- Serial communication : supports MIDI standard.
- Programming : compatible with Arduino, UIFlow and other development environments.
You can find more Unit expansion devices here!
Synth Unit Module Connection
The Synth Unit can be easily connected to MIDI devices using a standard UART port and MIDI connector . The attached diagram shows how to connect the unit to a 5-pin DIN connector (used for MIDI).

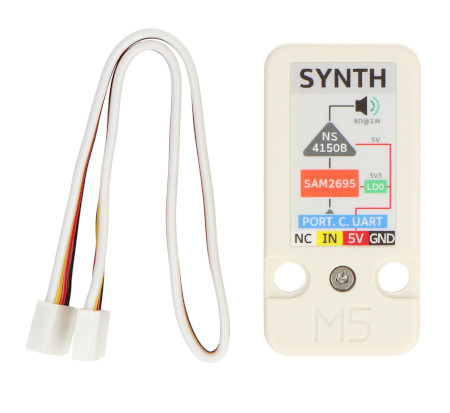

- Module Connectors : The Synth Unit module has four main pins: GND, 5V, IN and NC. The GND and 5V connectors supply power to the module. The IN pin is used to receive the MIDI signal.
- Power supply : connect the 5V pin from the module to the TIP pin in the MIDI connector and the GND pin to the SLEEVE pin. This will provide the correct power supply.
- Data transmission : the MIDI signal is transmitted via the IN pin, which must be connected to the RING pin in the MIDI connector.
This connection allows the Synth Unit to seamlessly integrate with other MIDI devices, enabling sound generation and audio processing effects in real time. This makes the module an ideal solution for both amateurs and professionals involved in electronic music who need a reliable tool for their projects.
Diagram of connecting the Synth Unit to a 5-pin DIN connector.
The Synth Unit is equipped with the efficient NS4150B Class D amplifier chip.
Module Applications
Synth Unit is perfect for:
- live performances
- music production in recording studios
- electronic music scenes
- STEAM education, where it is used to learn programming and create music
Technical specification of the module
- Sound Synthesizer Chip: SAM2695
- Amplifier: NS4150B (Class D)
- Sound protocol: MIDI
- Speaker: 8Ω at 1W
- Operating temperature: 0°C to 40°C
- Dimensions: 48 x 24 x 16 mm
- Weight: 10 g
Kit Contents

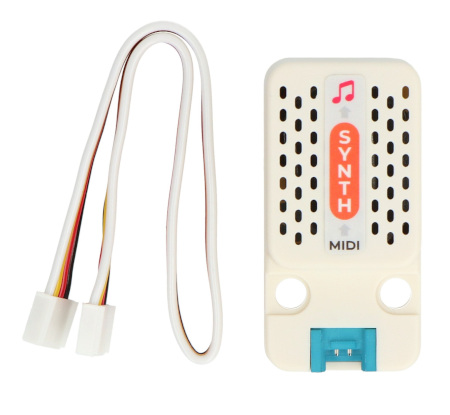

- 1x Synth Unit
- 1x Grove Cable (20cm)
The set includes a 20 cm Grove cable.
Useful links
| Name | Value |
|---|---|
| Width | 9.5 cm |
| Height | 13.5 cm |
| Depth | 1.8 cm |
| Weight | 0.015 kg |
