Solid State Relay SSR - BT136S - Unit extension module for M5Stack development modules
SSR solid staterelay in the form of Unit type extension for M5Stack development modules. The module can be used as an electrically controlled switch. The device is controlled by a single bus and the contact load is 2 A / 220 V to 250 V AC. It supports popular programming platforms such as Arduino and UIFlow. It is used in lighting control, CNC machine tools and anywhere where frequent on/off and maximum fast response is required.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Solid State Relay SSR - BT136S - Unit extension module for M5Stack development modules
Solid staterelay SSR in the form of Unit extension for M5Stack development modules. The module can be used as an electrically controlled switch. The unit is controlled by a single bus and the contact rating is 2 A / 220 V to 250 V AC. It supports popular programming platforms such as Arduino and UlFlow. It is used in lighting control, CNC machine tools and wherever frequent on/off switching and maximum fast response is required.
Solid state relay SSR.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
Set contents.
What distinguishes SSR relays
SSR relays differ from traditional relays in the fact that their switching lifespan is much longer than that of electromagnetic relays. They have an integrated MOC3043M optocoupler isolation circuit and a zero-crossing detector. A number of advantages over mechanical relays certainly include:
- Faster on/off speed and no physical contacts
- No noise during operation
- No electrical sparks, making it suitable for use in complex environments
- More durable than standard relays
- Compact
Module features
- SSR relay and zero-crossing detector
- Built-in overcurrent protection
- Increased speed, low noise, long life, high reliability, high sensitivity
- More convenient access with Grove interface
- Supports UIFlow and Arduino graphical programming
Technical specification of the relay module

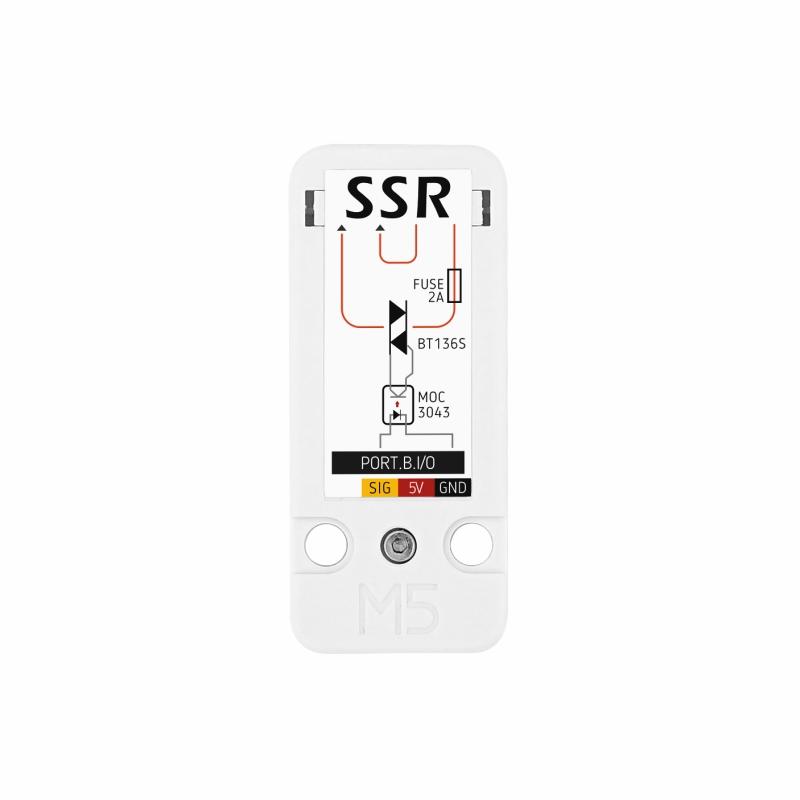

- SCR chip: BT136S
- Optocoupler isolation circuit: MOC3043
- Control voltage: 3.3 V to 5 V DC
- Switching voltage: 220 V to 250 V AC
- Maximum current: 2 A
- Number of channels: 1
- Overcurrent protection: 2 A fuse
- Operating temperature range: from -10°C to +80°C
- Module weight: 52 g

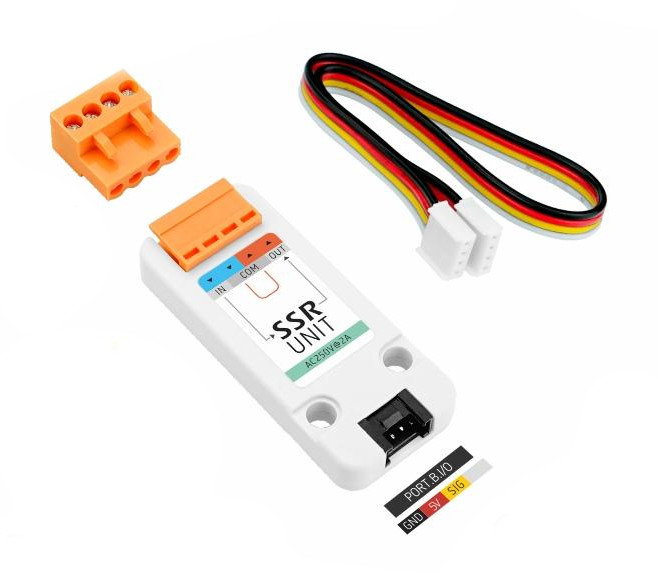

Set contents
- Solid State Relay SSR - BT136S - Unit extension module for M5Stack development modules
- Connection cable with Grove connector
- Screw connector

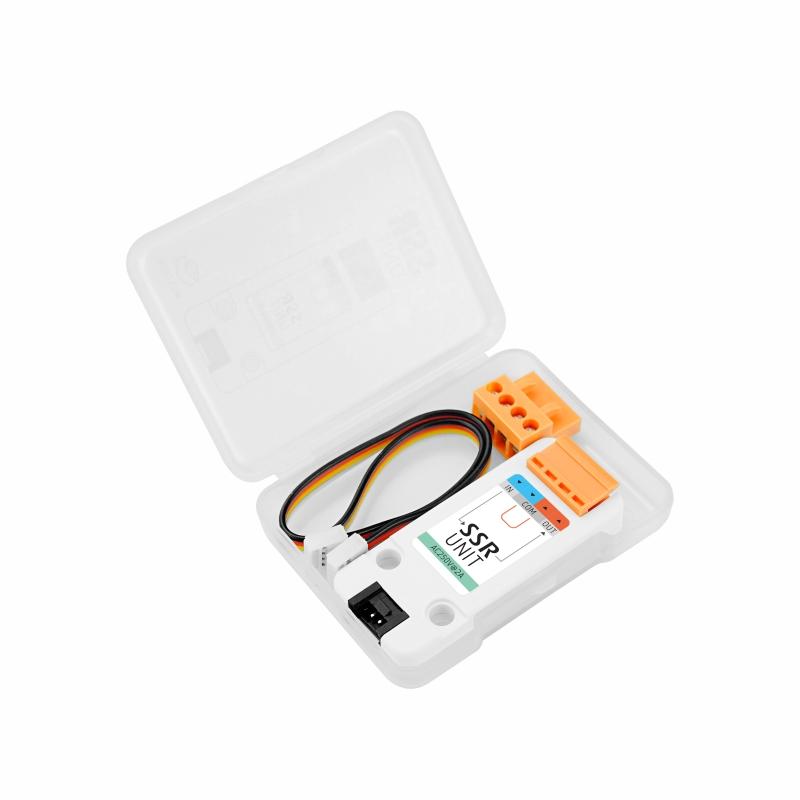

The whole set was placed in a convenient package.
Useful links
| Name | Value |
|---|---|
| Width | 5.3 cm |
| Height | 6.8 cm |
| Depth | 0.8 cm |
| Weight | 0.023 kg |
