MIDI - control and sound synthesis module - SAM2695 - expansion Unit - M5Stack U187
MIDI Unit is a module for controlling MIDI channels and sound synthesis , based on the SAM2695 chip. It supports the MIDI 1.0 standard , offers 64-voice polyphony, and also has an opto-isolated MIDI input and output in the form of 5-pin DIN sockets and a 3.5 mm jack . Bypass mode connects MIDI ports, and Separate allows them to be separated. Communication takes place via the UART interface (31520 bps). It is equipped with optical isolation and a Grove port for integration with M5Stack development modules. It is ideal for creating electronic music and interactive installations.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: MIDI - control and sound synthesis module - SAM2695 - Unit expansion module - M5Stack U187
MIDI Unit is a versatile MIDI control and sound synthesis module designed for integration with M5Stack systems. Equipped with the SAM2695 chip, supporting the MIDI 1.0 standard (16 channels), which supports 64-voice polyphony (without effects) or 38-voice (with effects), enabling realistic reproduction of MIDI instruments. It has two 5-pin DIN ports and three 3.5 mm audio jack outputs , which allows flexible connection of MIDI instruments and controllers. The mode switch allows you to choose between direct (Bypass) and independent (Separate) connection. Communication via UART (31520 bps) and optical isolation ensure stable signal transmission. The module works with the M5Stack ecosystem via the Grove port and is compatible with Arduino IDE and UIFlow 2.0. It is perfect for music production, on stage and in interactive sound installations.
MIDI - control and sound synthesis module - SAM2695 - Unit expansion module - M5Stack U187.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
The module provides various possibilities for audio synthesis and processing.
MIDI Unit Main Features
- SAM2695 chip : built-in digital synthesizer supporting 16 MIDI channels and up to 64 voices of polyphony (without effects)
- UART communication (31520 bps) : compatible with microprocessor controllers and systems
- MIDI 1.0 standard : supports a wide range of MIDI devices
- 5-pin DIN and 3.5mm jack ports : allow you to connect both classic MIDI devices and modern audio interfaces

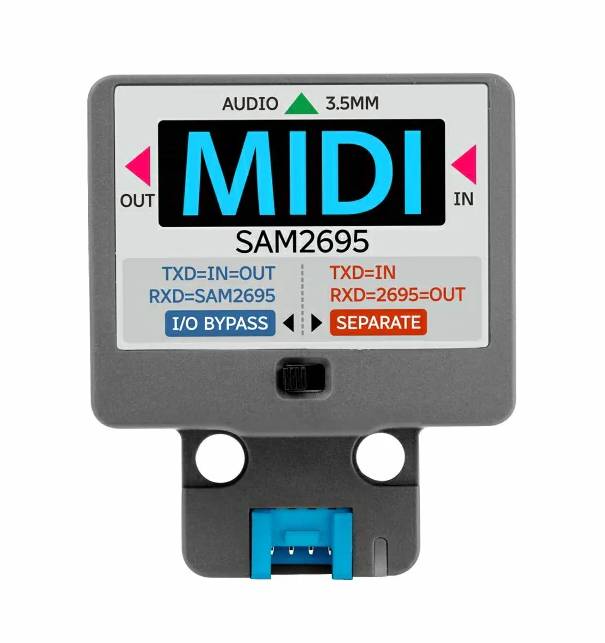

- Operation modes (Bypass / Separate) : adaptable to different MIDI configurations
- Optical isolation : stable signal transmission without interference
- Compact dimensions : 48 x 40 x 25 mm, easy integration with control systems
- M5Stack, Arduino IDE, UIFlow 2.0 support : support for popular programming environments
Compatibility and programming
MIDI Unit is compatible with M5Stack controllers such as Core , Core2 , CoreS3 , Atom and StickC . It uses the Grove (UART) port for communication, requiring pin numbering adjustments in the code. It supports programming in Arduino IDE and UIFlow 2.0 environments, and the available libraries facilitate the implementation of MIDI functions, such as instrument control or sound synthesis.
Example communication pins for M5Stack development modules:
- Core Basic: TX - G17, RX - G16
- Core2: TX-G14, RX-G13
- CoreS3: TX-G17, RX-G18

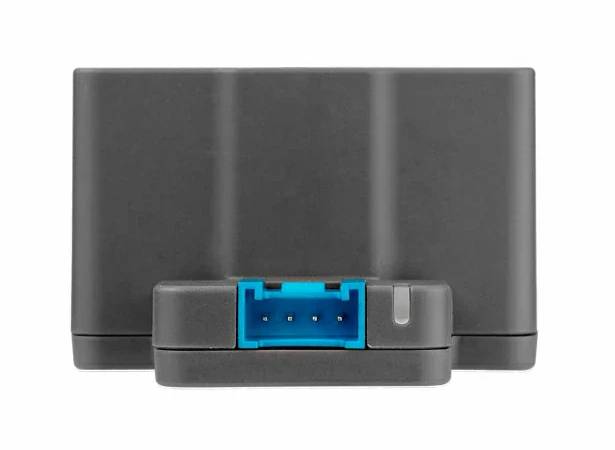

The MIDI Unit communicates via the Grove interface.

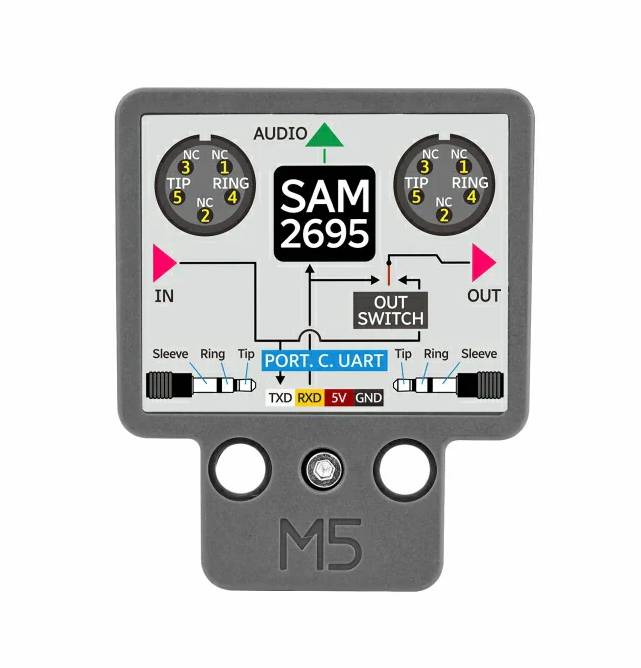

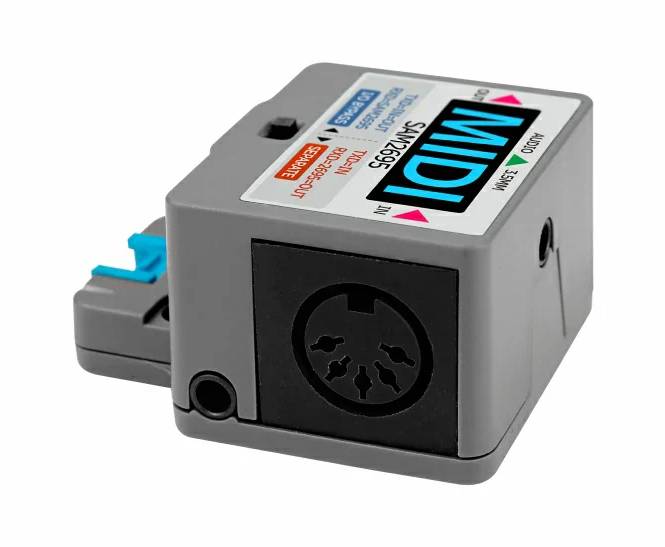

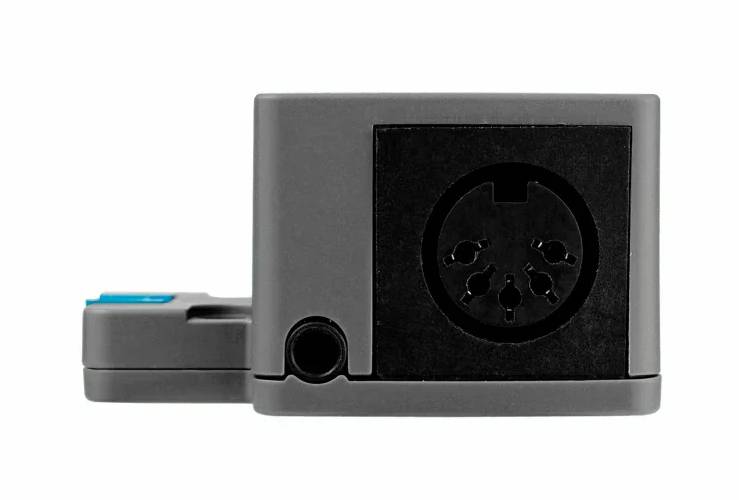

It is equipped with two 5-pin DIN ports and three 3.5mm audio jack outputs.
Practical applications
MIDI Unit is used in music production, electronic instrument control, interactive installations and music education. It can be used in DJ controllers, live sound systems and multimedia projects . Thanks to optical isolation and wide compatibility, it will work well in professional and amateur sound applications.
Technical specification of the module
- Chip: SAM2695
- Protocol: MIDI 1.0 standard (16 channels)
- Polyphony: 64 voices (without effects) / 38 voices (with effects)
- Communication: UART (31520 bps)
- MIDI ports: 2x 5-pin DIN, 3x 3.5 mm stereo jack
- Isolation: optical
- Power supply: DC 5 V (consumption 18.59 mA)
- Operating temperature: 0°C to 40°C
- Dimensions: 48 x 40 x 25 mm
- Weight: 28.2 g
Kit Contents
- 1x MIDI Unit
- 1x Grove cable 4-pin with 2 mm pitch (20 cm)
A Grove cable is included in the set.
