Digital-to-analog signal converter based on the GP8413 circuit.
Product description: DAC2 converter - GP8413 - Unit expansion module for M5Stack development modules - M5Stack U012-B
DAC2 Unit is a digital-to-analog signal converter based on GP8413 , which offers exceptional precision and accuracy. The device converts a 15-bit digital value into two independent analog voltages ranging from 0 V to 5 V or from 0 V to 10 V. With a low voltage error of only 0.2% and linearity of up to 0.01%, DAC2 Unit provides high quality output signals. The module supports I2C communication with the default address 0x59 and allows parallel connection of up to 8 devices thanks to 3-bit hardware addressing. Additionally, the converter is equipped with a short-circuit protection function, which automatically deactivates the outputs in the event of a short circuit between the output pins and ground, thus preventing damage. DAC2 Unit finds application in many fields and is compatible with a series of development modules from M5Stack .

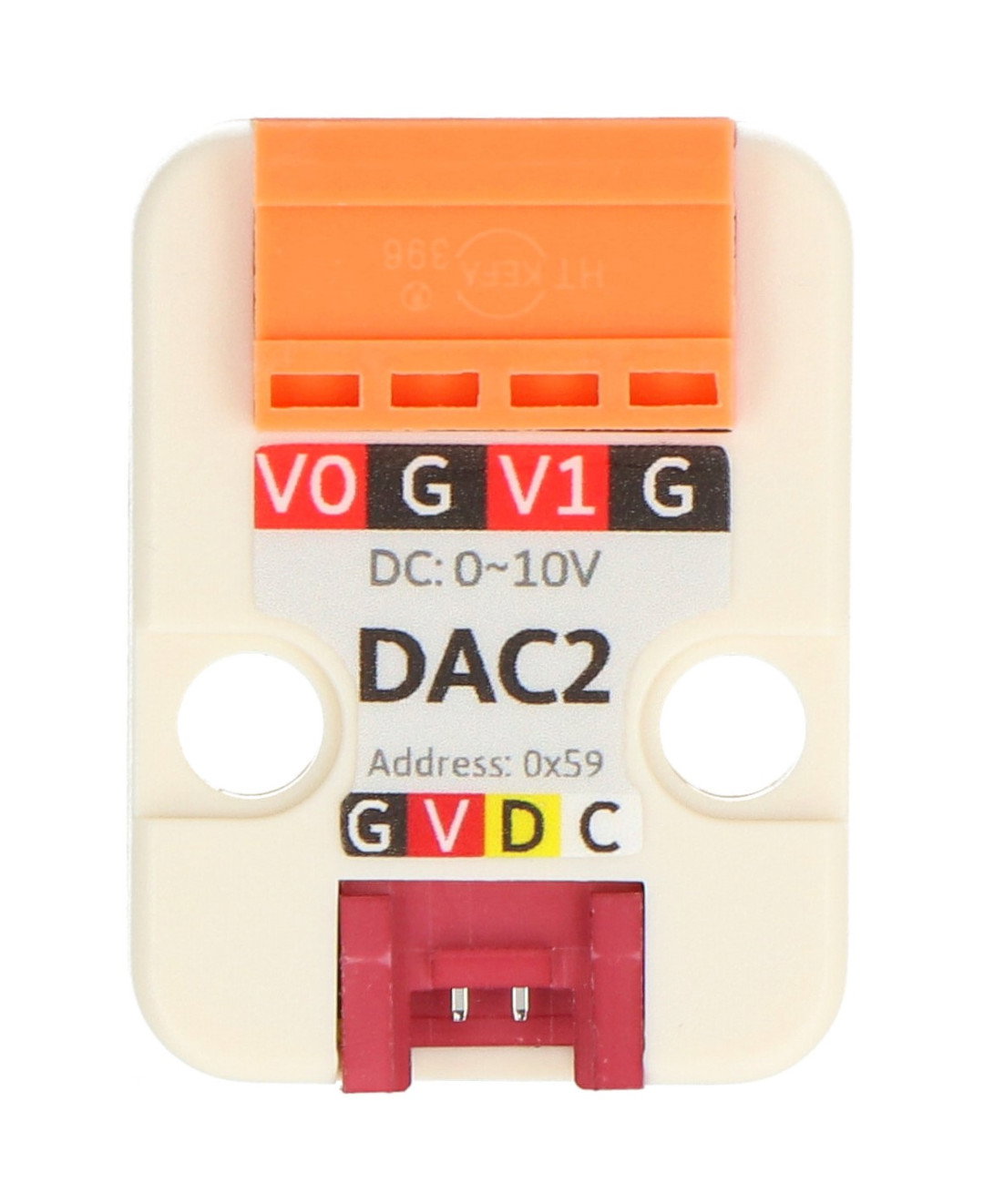

DAC2 converter - GP8413 - Unit expansion module for M5Stack development modules - M5Stack U012-B.

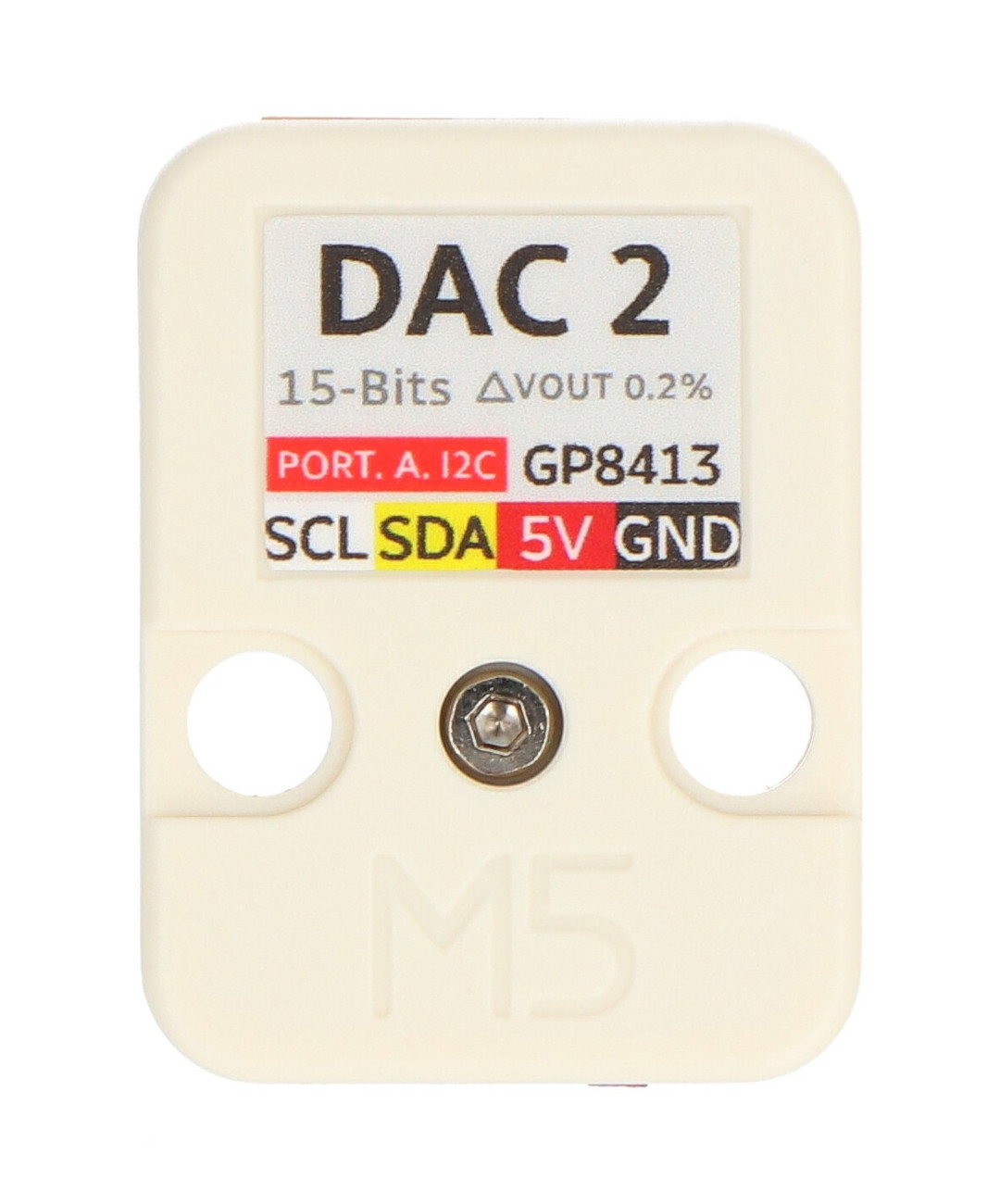

The module supports I2C communication.
Special Features of the DAC2 Converter
- I2C communication : allows you to easily connect and control the converter using standard I2C communication. The default address is 0x59, with the possibility of changing it thanks to 3-bit hardware addressing.
- High Precision : offers 15-bit resolution, which ensures highly accurate conversion of digital signals to analog, with a minimum voltage error of less than 0.2% and a linearity of 0.01%.
- Adjustable Output Voltage : can generate two independent voltages ranging from 0V to 5V and 0V to 10V, which increases flexibility in various applications requiring precise voltage adjustment.
- Short Circuit Protection : Built-in automatic short circuit protection function. In the event of a short circuit between the output pins and ground, the converter enters protection mode, interrupting the output to prevent damage to the device.
- Scalability : Supports up to 8 devices operating in parallel with 3-bit hardware addressing, making it easy to expand systems and integrate into larger projects.
DAC2 Applications
DAC2 Unit is the perfect solution for:
- Signal conversion : accurate conversion of digital signals to analog in a variety of applications.
- Motor speed control : precise speed control of electric motors.
- LED dimmers : adjust the brightness of LEDs .
- Inverters and power supplies : voltage stabilization and control in power supply systems.
- Analog signal isolation in industry : separating analog signals to ensure safety and accuracy.
In our store you will also find other Unit extensions that will allow you to expand each project according to your individual needs.
Digital-to-analog signal converter based on the GP8413 circuit.
Items included in the set.
Technical specifications of the converter
- Model: DAC2
- DAC Chip: GP8413
- Resolution: up to 15-bit
- I2C communication: 0x59 (default)
- Maximum output voltage: up to 10 V
- Output voltage error: < 0.2%
- Output voltage linearity error: 0.01%
- Operating temperature: 0°C to 40°C
- Dimensions: 32 x 24 x 10.2 mm
- Weight: 5 g

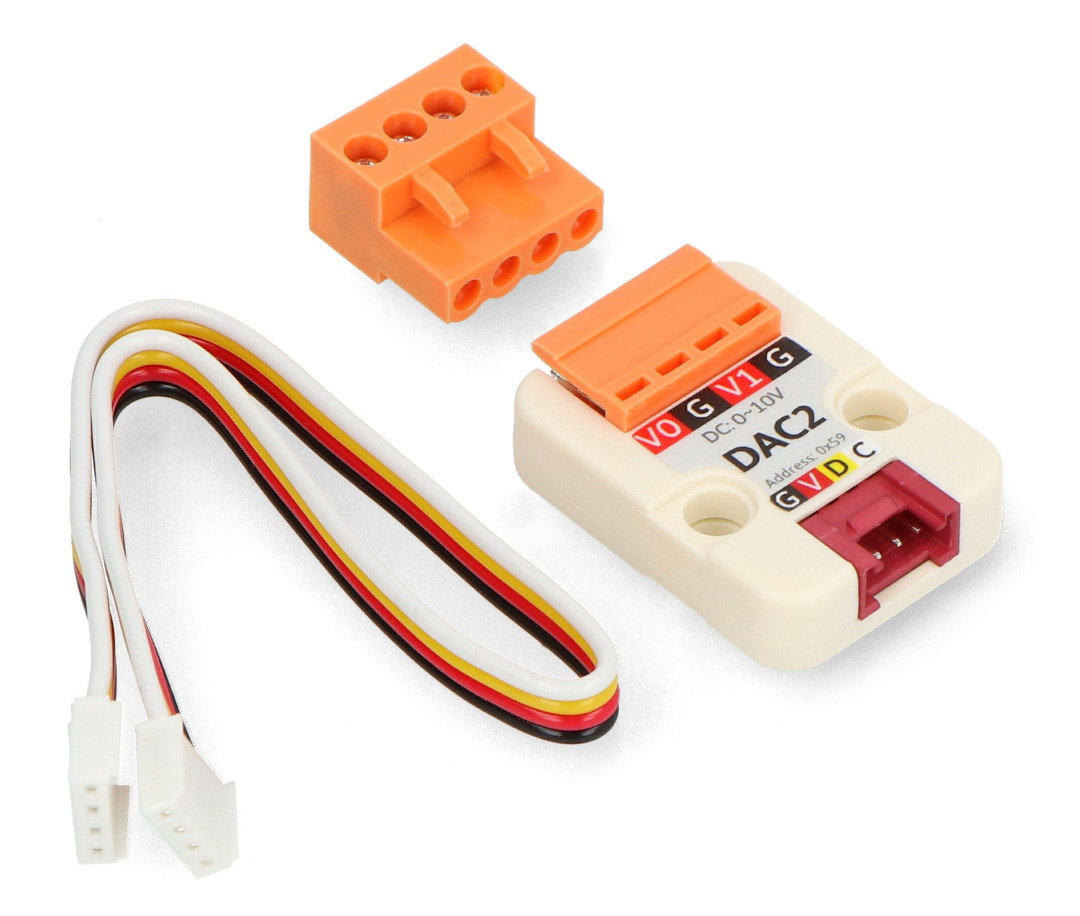

Kit Contents
- 1x DAC2 Converter Module
- 1x Grove Connecting Cable - 20cm
- 1x 4-pin mounting connector - 3.96 mm pitch
