Product description: M5Stack Ext Encoder Unit - STM32F030 - Unit expansion module for M5Stack development modules - M5Stack U161
The Ext Encoder Unit from M5Stack is an advanced Unit expansion module for data acquisition , which has been designed to work with rotary encoders used for precise tracking and control of rotational movements in various applications. It is equipped with the ability to handle AB / ABZ signals and has an STM32F030F4P6 chip with integrated software for efficient acquisition and decoding of encoder signals. The integration process is simplified by the ability to easily read encoded values via the I2C communication protocol . The Ext Encoder Unit has a wide range of applications, including in robotic arm management and industrial automation.
Check out other M5Stack products in our offer!
M5Stack Ext Encoder Unit - STM32F030 - Unit expansion module for M5Stack development modules - M5Stack U161.
The module is designed to acquire AB and ABZ signals.
Characteristic features of the module
- Supports signal acquisition from external rotary encoders
- It allows reading encoded data using the I2C communication protocol
- It has a built-in STM32F030 microcontroller that integrates firmware for acquiring and decoding encoder signals
- Supports AB/ABZ input signals for precise motion and position tracking
- Ideally suited for applications in industrial automation and robotics
- It has compact dimensions and low weight, which facilitates the installation of the device
M5Stack Ext Encoder
M5Stack Ext Encoder is an advanced Unit expansion module that enables precise coding of rotational movements . With support for AB/ABZ signals, this module ensures accuracy and reliability in converting mechanical motion into an electrical signal. This enables users to accurately track and control movements in various types of measurements.
I2C communication
I2C communication in the M5Stack Ext Encoder Unit is a key element enabling easy integration of the device with various systems. By using the I2C interface, encoded data from the encoder can be easily read by controllers or processors. This makes it easier for users to access precise position or motion data needed in many technical applications, including robotics and automation. The I2C interface is widely used due to its simplicity, reliability and low cost, making it an ideal solution for efficient data communication.
All key information about this product can be found in the documentation on the manufacturer's website.
The device communicates using the I2C protocol.
The product has a built-in STM32F030 microcontroller.
Set contents

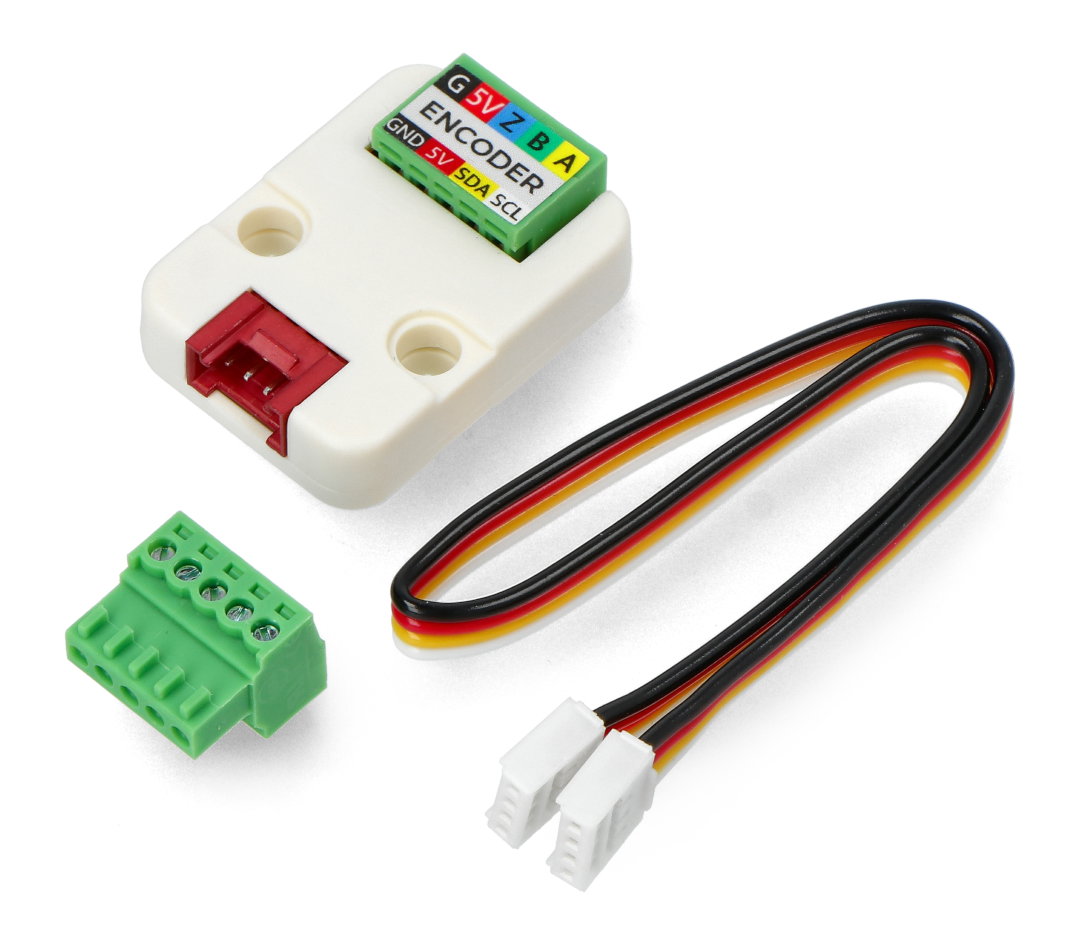

- 1x M5Stack Ext Encoder Unit
- 1x Grove cable - 20 cm
- 1x VH2.54-5P
Technical specifications of the module
- Manufacturer: M5Stack
- Model: Ext Encoder Unit
- Microcontroller: STM32F030
- Signal compatibility: AB / ABZ
- Communication method: I2C
- I2C address: 0x59
- Sampling accuracy: 12-bit
- Compatibility: external rotary encoders
- Application: robotics, industrial automation, measurement systems
- Dimensions: 40 x 24 x 14 mm
- Weight: 8 g
