Product description: Unit Step16 - 16-position rotary encoder - M5Stack U198
The Unit Step16 is a compact control module equipped with a 16-position BCD rotary encoder, designed for precise parameter adjustment and clear real-time value presentation . Based on the STM32G031G8U6 microcontroller, the unit allows for encoder position reading as a hexadecimal value from 0 to F , displayed directly on the integrated 7-segment display . The module communicates via an I2C interface , offering configurable addresses, allowing for simultaneous use of multiple Step16 modules on a single bus. Users can adjust the rotation counting direction, operating mode, and display brightness, as well as the color and brightness of the built-in RGB LED . This allows the Unit Step16 to provide not only precise control but also immediate, clear feedback.

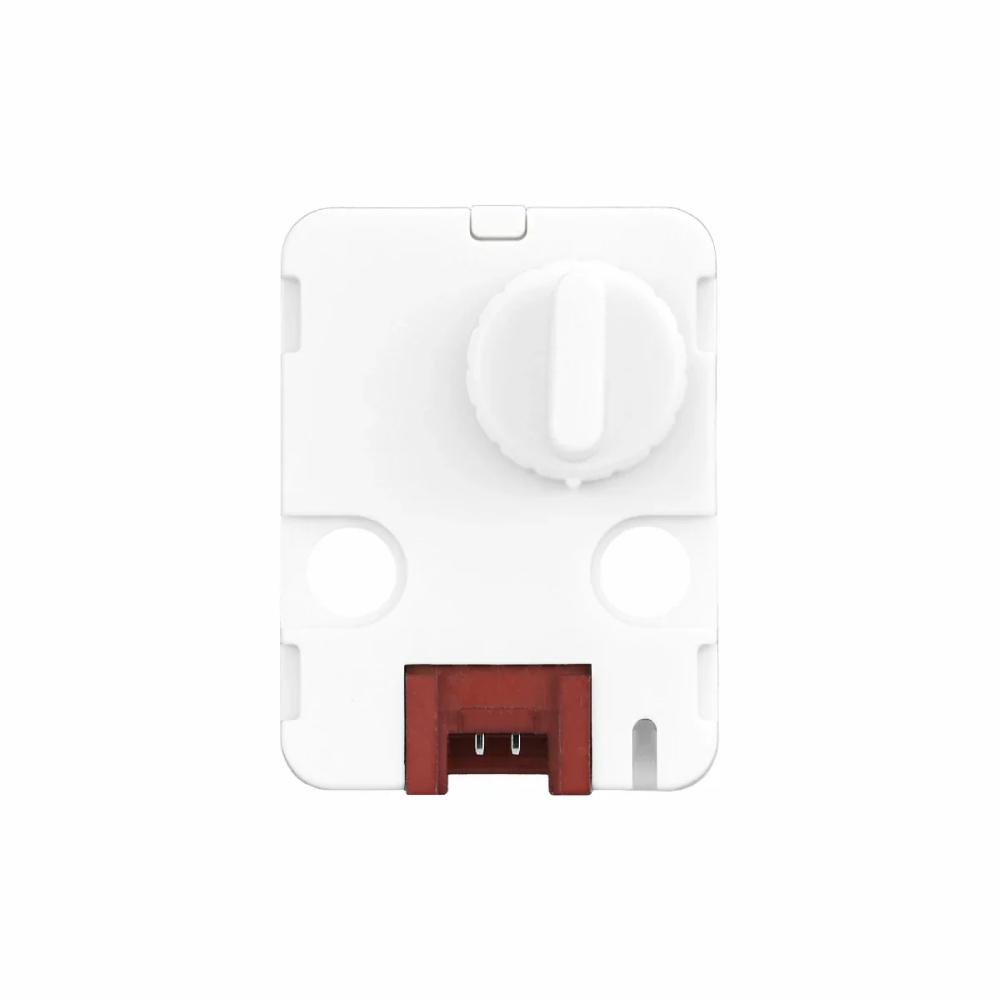

Unit Step16 - 16-position rotary encoder - M5Stack U198.

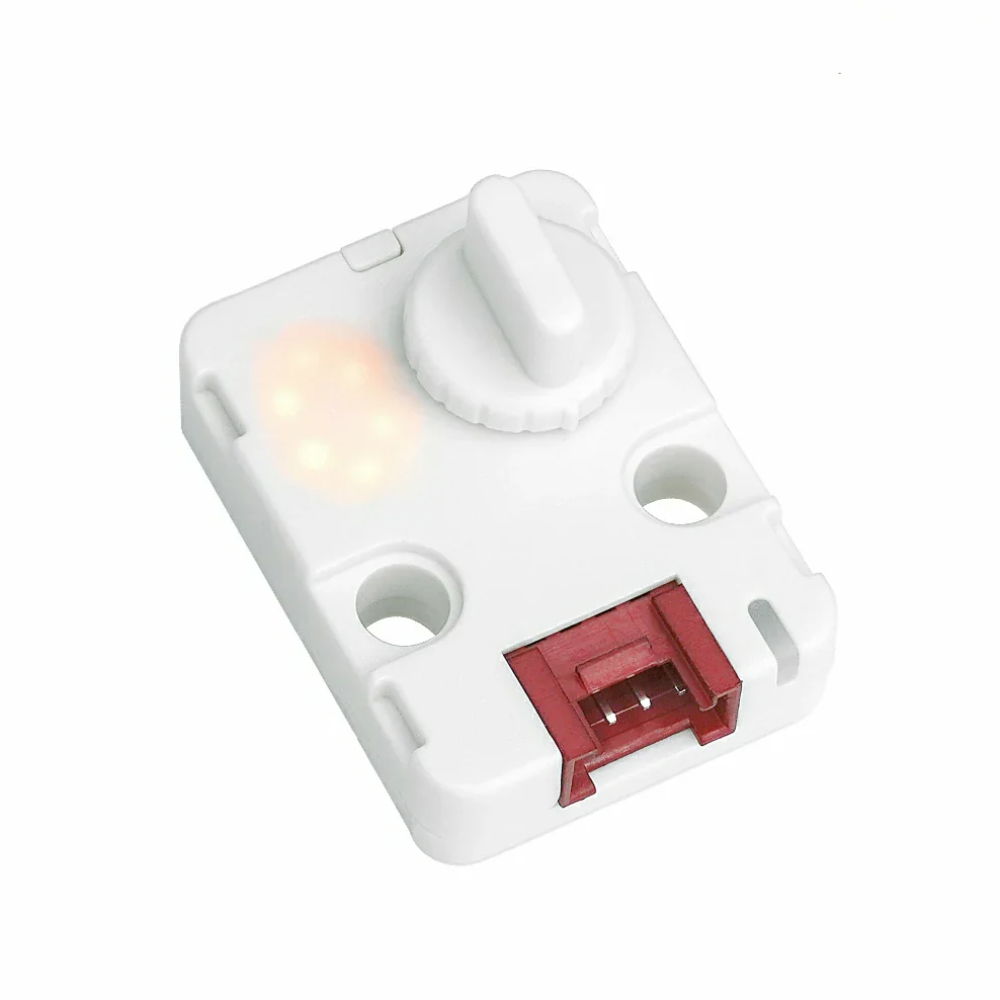

Unit Step16 is a compact control module equipped with a 16-position BCD rotary encoder.
Special features
- 16-position BCD rotary encoder (8421) with unambiguous steps
- 7-segment display showing the current value from 0 to F
- Adjustable display brightness and mode
- Configurable rotation direction (CW/CCW)
- Programmable WS2812 RGB LED with color and brightness adjustment
- I2C interface with the ability to change the address and operate multiple modules on one bus
- Maintaining configuration after power off
- Compact format ideal for embedded projects
Practical applications
The Step16 unit is ideal as a physical controller in smart home control panels, for example, to adjust volume, lighting brightness, or device operating parameters. It can be used in motor control systems, RGB controllers, and in STEAM and educational projects where clear visualization and intuitive operation are essential.

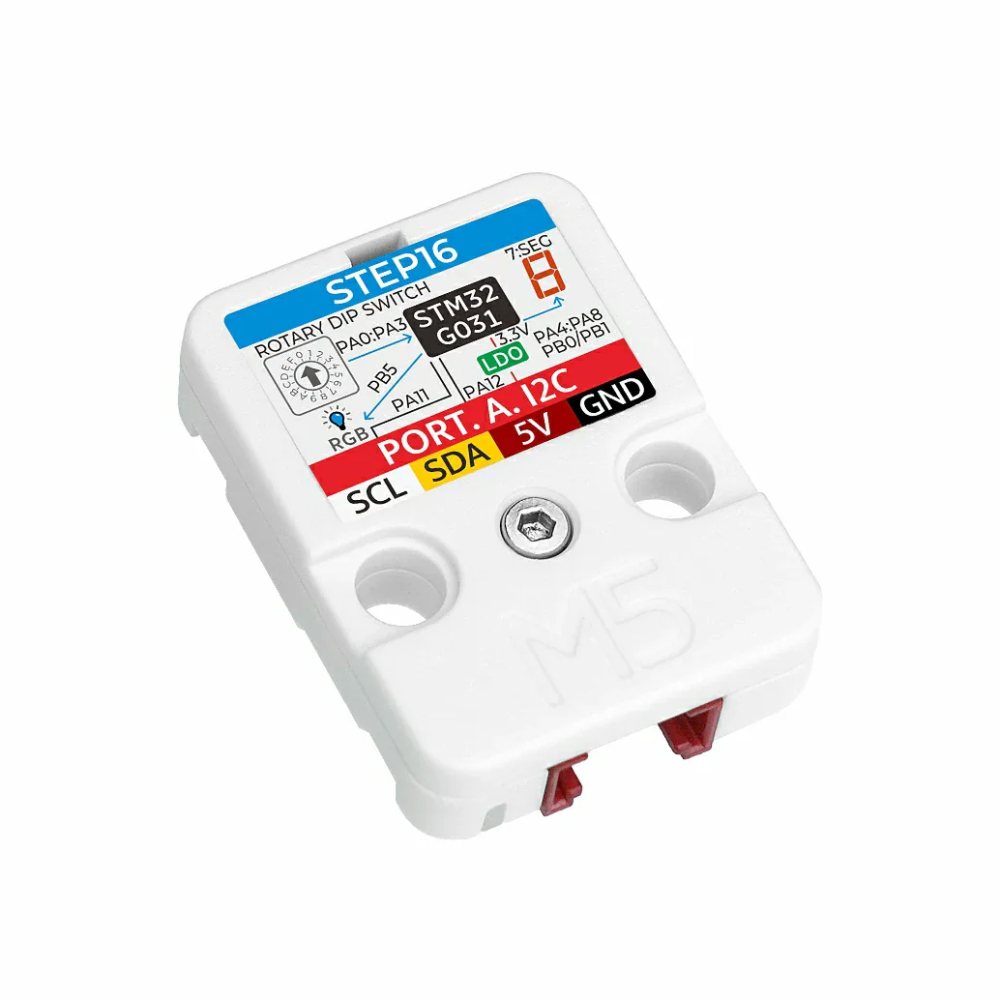

Encoder technical specifications
- Microcontroller: STM32G031G8U6, 32-bit ARM Cortex-M0+, 64 MHz
- Encoder: 16 positions, BCD code 8421
- Display: 7-segment
- RGB diode: 1x WS2812
- Interface: I2C (default 0x48, address range 0x08 to 0x77)
- Value update cycle: 100 ms
- Power consumption (standby): DC 5 V @ 5.85 mA
- Current consumption (60% display): DC 5 V @ 14.76 mA
- Current consumption (100% display): DC 5 V @ 24.13 mA
- Current consumption (RGB LED 100%): DC 5 V @ 18.9 mA
- Current consumption (display + RGB): DC 5 V @ 29.91 mA

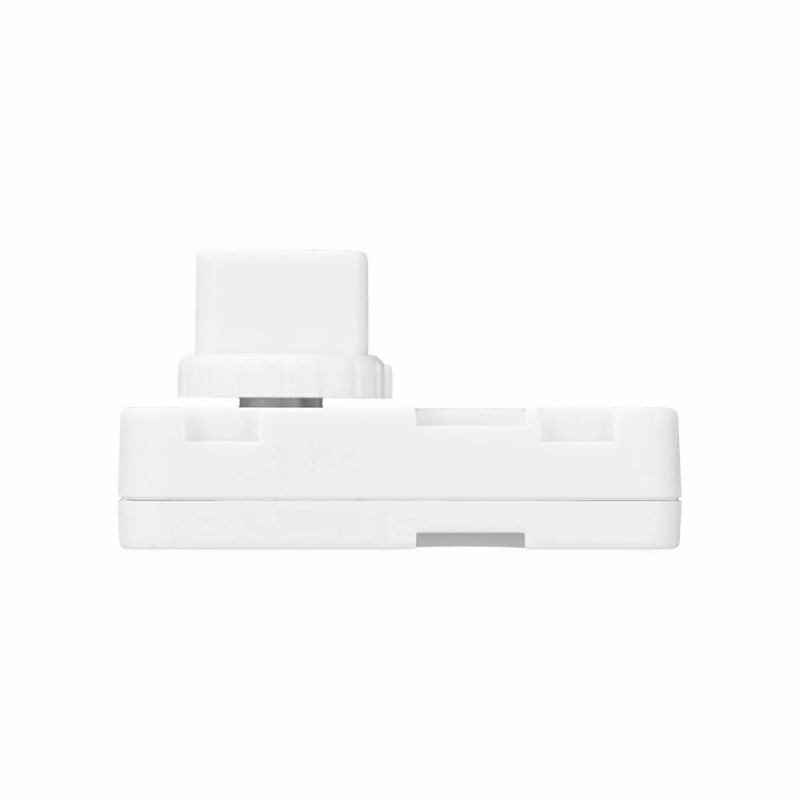

- Dimensions: 32.0 x 24.0 x 16.9 mm
- Weight: 5.5 g
Contents of the set
- 1x Unit Step16
- 1x Grove HY2.0-4P Cable (20cm)
The Step16 unit provides not only precise control, but also immediate, clear feedback.
