Product description: RCA Audio / Video Composite - Unit expansion module for M5Stack development modules
A module produced by M5Stack in the form of a Unit type extension. It is equipped with an RCA connector that enables the transmission of audio and video signals. The RCA connector is one of the most common A/V connectors that transfer audio and video signals from a component device to an output device (such as a display or speaker).
Also check the manufacturer's user guide . In it you will find, among others, sample program code and a layout diagram that will help you start working with the module.

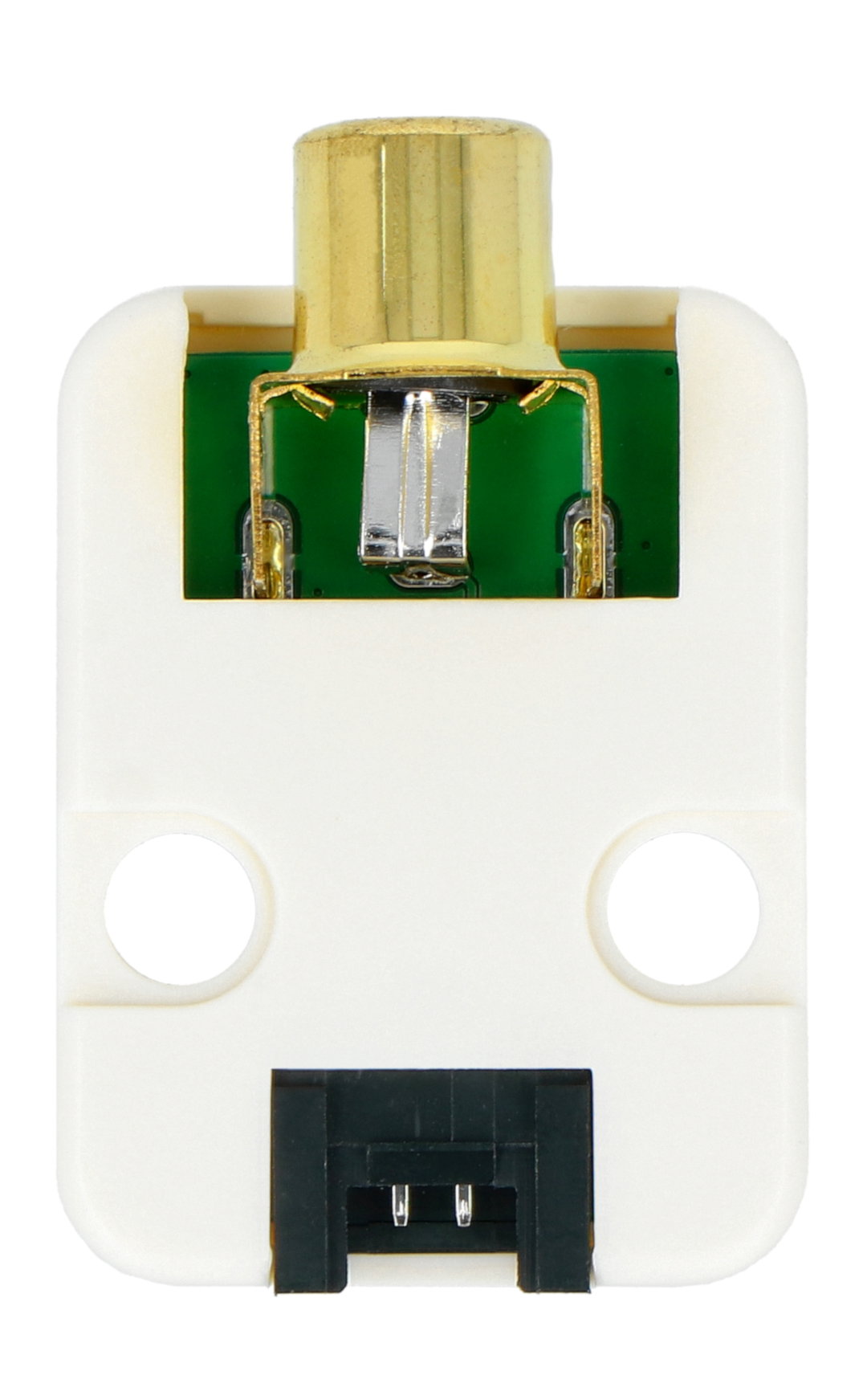

RCA Audio / Video Composite - Unit expansion module for M5Stack development modules.

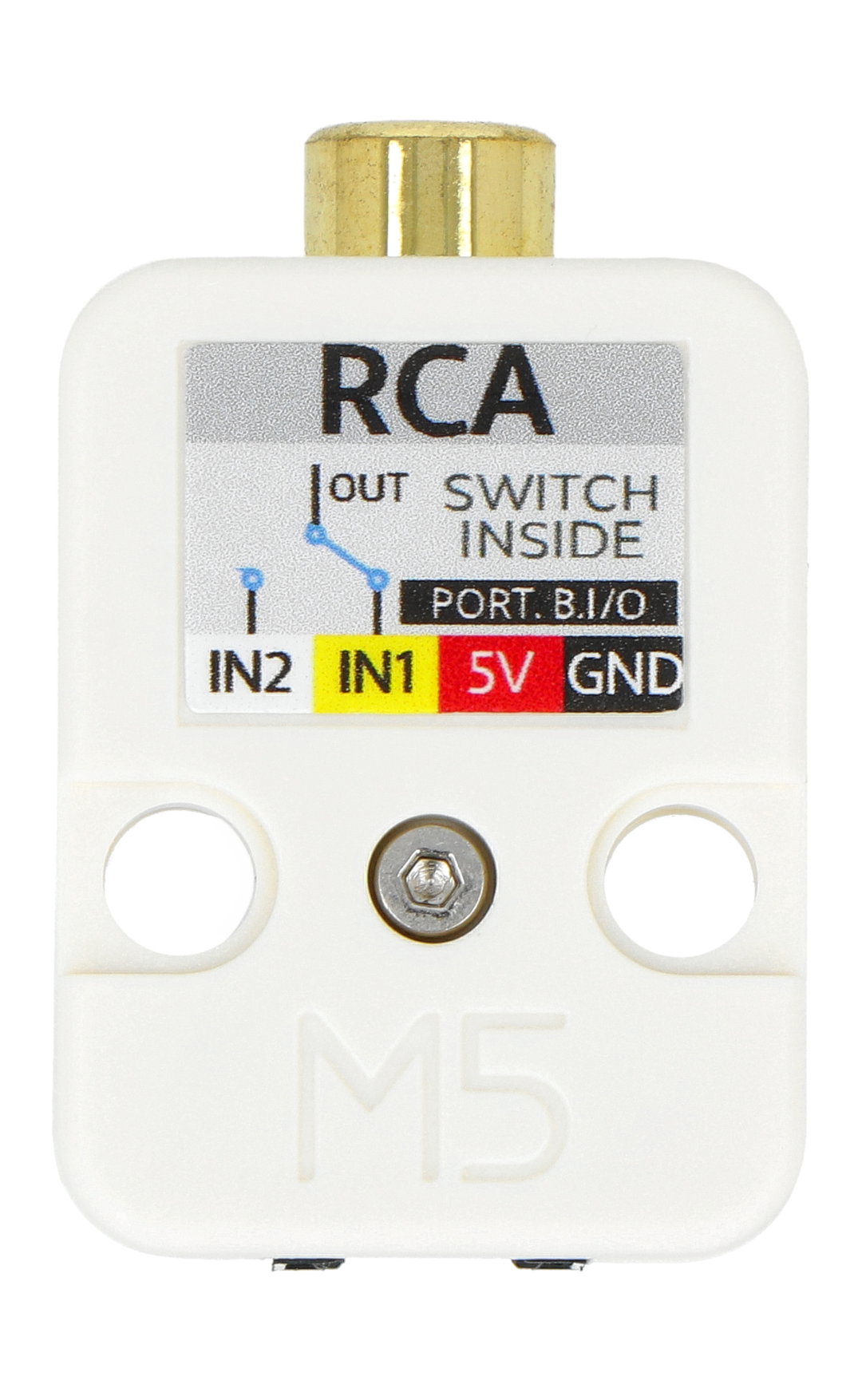

Unit extension module for M5Stack development modules.
Special features of the RCA Audio / Video Composite module
- It allows video and audio transmission
- Built-in RCA Audio / Video Composite jack
- A/V connector and 4-pin Grove connector (2 mm pitch)
- Two holes compatible with the LEGO standard
- Built-in two-channel switch
Module technical specification
- Interface: RCA female connector
- Switch: built-in, two-channel
- Module dimensions: 37 x 24 x 8 mm
- Module weight: 5.4 g
Kit contents
- RCA Audio / Video Composite - Unit expansion module for M5Stack development modules - 1 piece
- Connection cable with Grove connector - 4-pin - pitch 2 mm - 1 piece

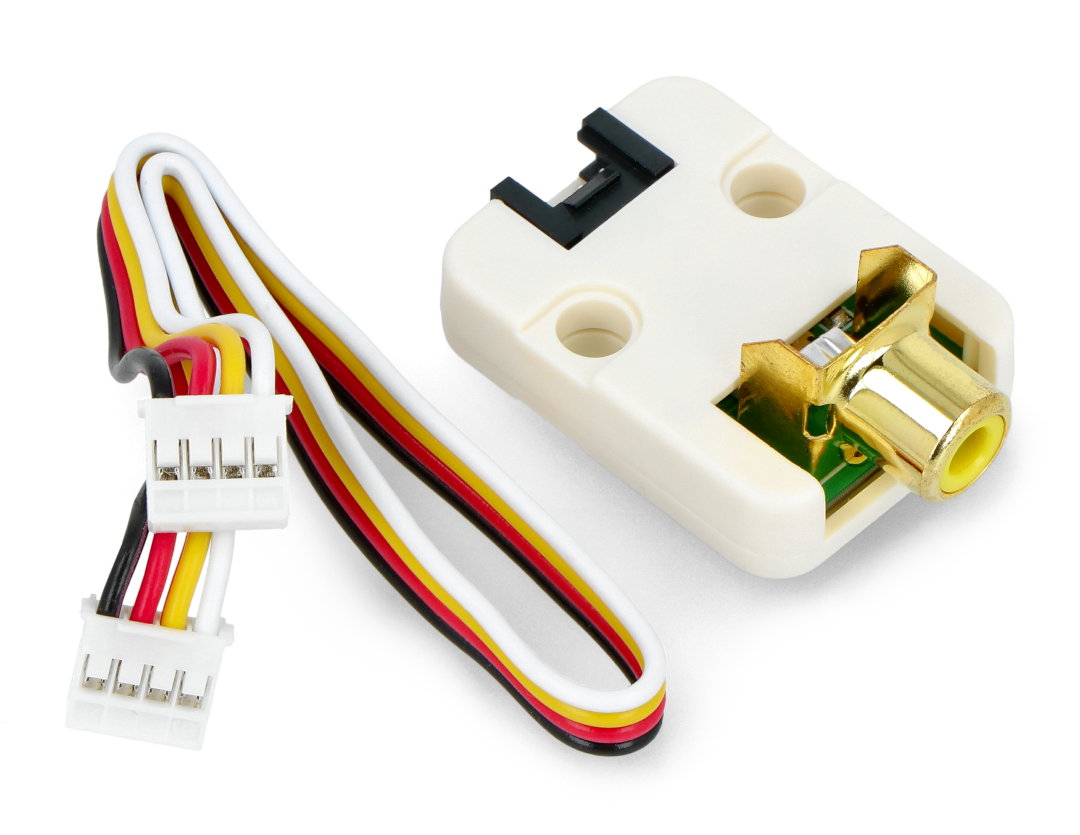

Components included in the set.
