Product description: UnitV K210 AI M12 - AI recognition module with OV7740 camera - M5Stack U078-V-M12
UnitV is an AI recognition module equipped with an OV7740 camera with a wide-angle M12 lens and a dual-core 64-bit RISC-V K210 processor and an Edge Computing system-on-chip neural network processor. The components used in the module enable smooth execution of complex algorithms and advanced applications, as well as the ability to perform convolutional neural network calculations. It has been designed to suit both enthusiasts and professionals alike.
A detailed user guide is available on the manufacturer's website. Contains necessary information and instructions that make it easier to start working with the module.

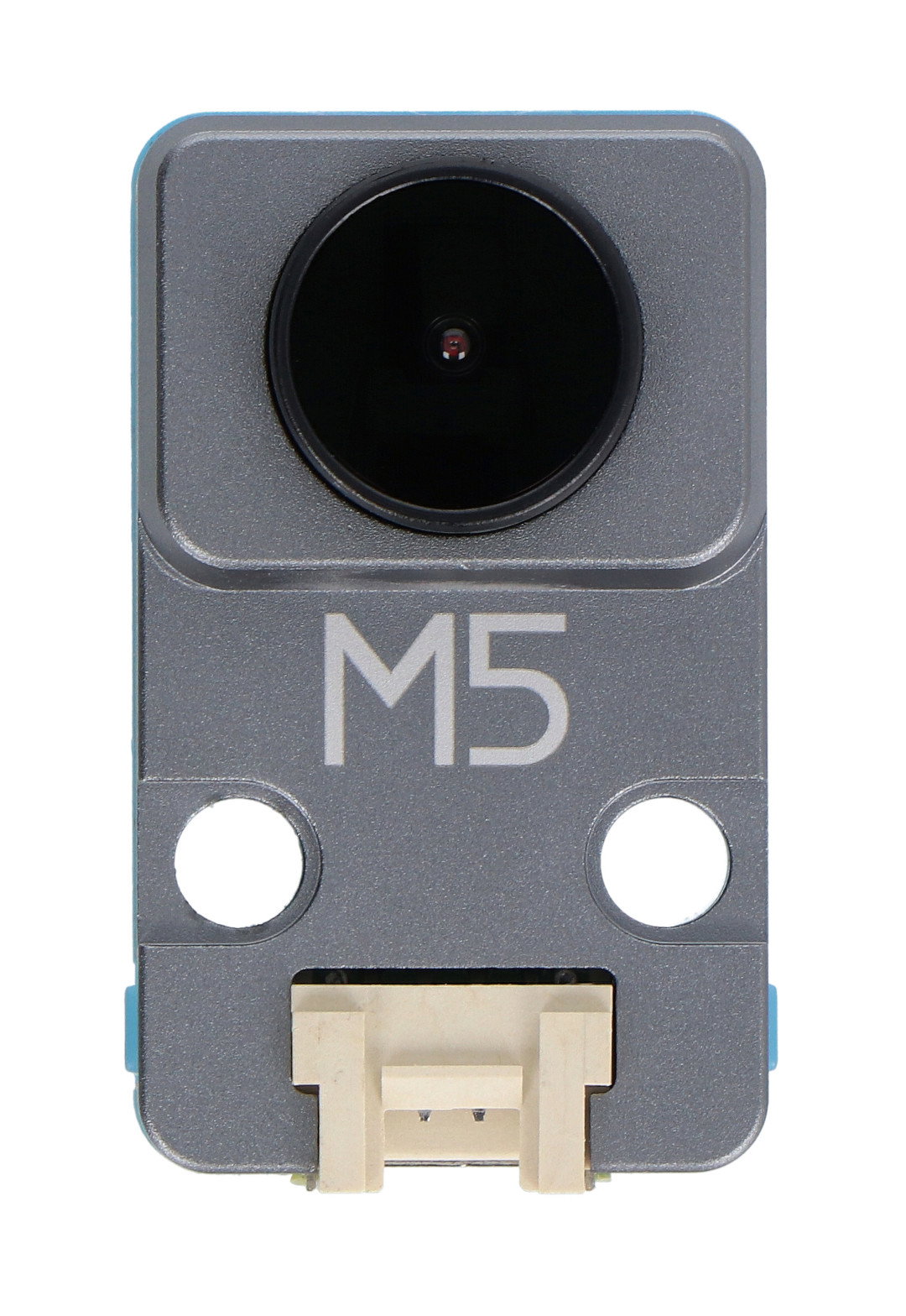

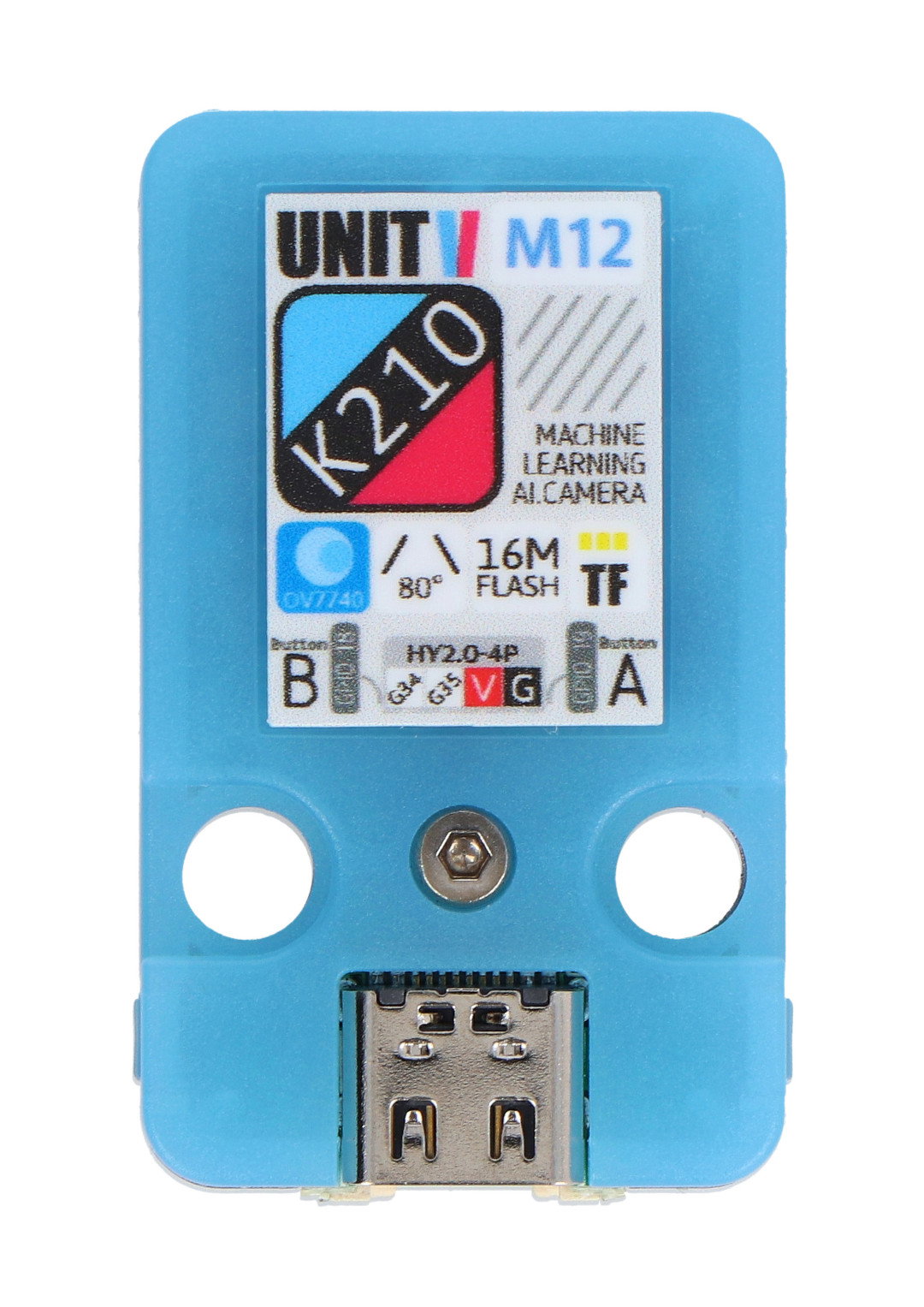

UnitV K210 AI M12 - AI recognition module with OV7740 camera - M5Stack U078-V-M12.
OV7740 camera.Special features of UnitV K210 AI M12
- Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) / 400MHz processor
- Independent double precision FPU
- Built-in SRAM 8 MB and Flash 16 MB
- Neural Network Processor (KPU) / 0.8 Tops
- Programmable I/O Array (FPIOA)
- AES accelerator, SHA256
- Direct Memory Access Controller (DMAC)
- Firmware encryption support
- OV7740 camera
- Two utility buttons
- External memory in the form of a TF / microSD card slot
The use of AI cameras
AI cameras are revolutionizing many sectors as they offer advanced monitoring and deep analysis capabilities. They are used in areas such as:
- Public and private security - they are used to automatically detect dangerous behavior or unauthorized access.
- General monitoring - they are an executive element of the facial recognition system, which enables quick identification of people based on unique features.
- Transport - by analyzing road traffic, they contribute to improving safety and traffic flow, as well as optimizing traffic lights.
- Retail - they facilitate the analysis of customer behavior, which ultimately leads to better store management and allows the offer to be tailored to consumer needs.
The module from M5Stack is an excellent choice for professionals and enthusiasts looking for efficient solutions.
The compact dimensions of the module allow it to be discreetly placed in the project.
Technical specifications of the module
- Type: AI recognition module
- Processor: Kendryte K210, dual-core, 64-bit RISC-V RV64IMAFDC (RV64GC) / 400 MHz
- SRAM memory: 8 MB
- Flash memory: 16 MB
- External memory: TF/microSD card slot
- Camera: OV7740
- Lens: M12 wide angle
- Field of view: 80°
- Transfer speed: VGA (640 x 480 px) 60 fps, QVGA (320 x 240 px) 120 fps
- Sensitivity: 6800 mV / (lx-s)
- Input voltage: 5V at 500mA
- KPU: from 5.5 MB to 5.9 MB
- Interfaces: USB Type C, Grove
- Material: Plastic (PC) + CNC (Aluminum)
- Module dimensions: 40 x 24 x 16.4 mm
- Weight: 13.9 g
Set contents
- UnitV K210 AI M12 - AI recognition module with OV7740 camera - 1 piece
- Grove 4-pin cable - length 20 cm - 1 piece
- USB Type C cable - length 100 cm - 1 piece

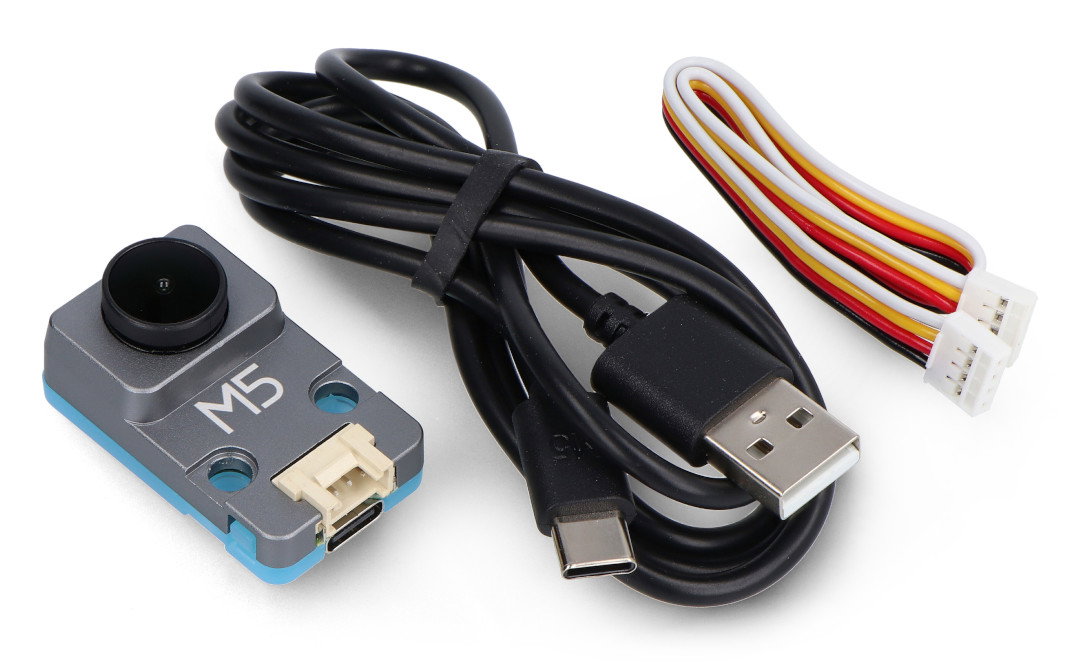

Elements included in the set.
