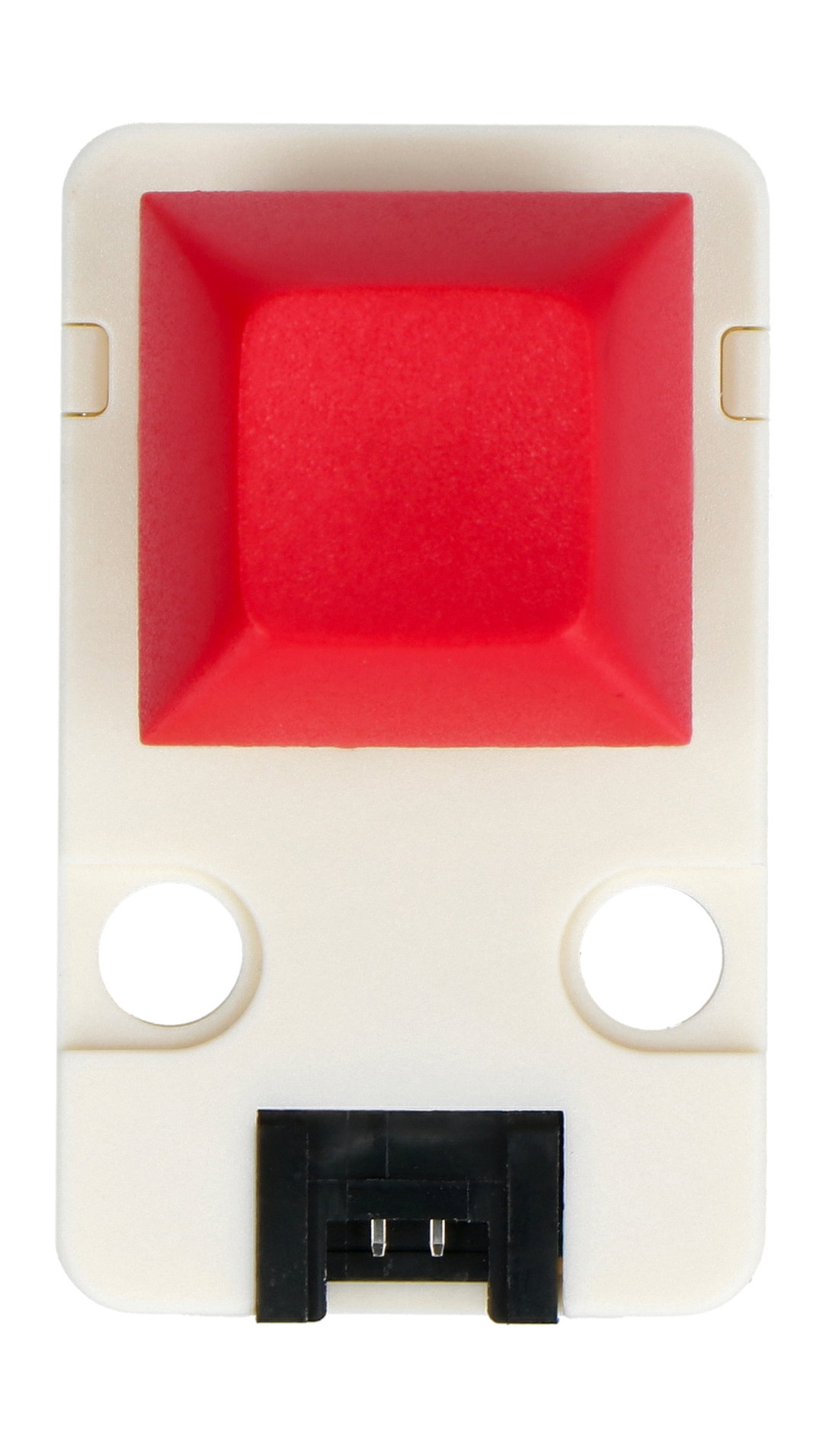

Mechanical Key Button - red mechanical key unit for M5Stack developer modules - U144
Another extension of the Unit type produced by M5Stack intended for the expansion of sandwich modules with further functionalities. The Mechanical Key Button is a mechanical button that generates an audible click when pressed. It has been equipped with a replaceable red overlay, it also has a programmable RGB LED SK6812 , which supports 256 levels of brightness and lights up when pressing the overlay.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Mechanical Key Button - red mechanical button Unit for M5Stack development modules - U144
Another extension of the Unit type produced by M5Stack intended for the expansion of sandwich modules with further functionalities. The Mechanical Key Button is a mechanical button that generates an audible click when pressed. It has been equipped with a replaceable red overlay, it also has a programmable RGB LED SK6812 , which supports 256 levels of brightness and lights up when pressing the overlay.
The manufacturer has also prepared a detailed user's guide , which includes a circuit diagram, libraries and sample program code - check it out!
Mechanical Key Button - mechanical button Unit with a red overlay designed for M5Stack development modules.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
Components included in the set.
Button technical specification
- Button type: mechanical, generates an audible click when pressed
- Supply voltage: 5V DC
- Logic output: 3.3V DC
- Current consumption in standby mode: 2 mA / 5 V DC
- Current consumption during operation: 13 mA / 5 V DC
- Button overlay color: red
- Built-in LED:
- LED type: programmable RGB
- LED standard: SK6812, support 256 levels of brightness
- Functionality: light effect when pressing a button
- Dimensions: 40 x 24 x 22.6mm
- Weight: 7.6g

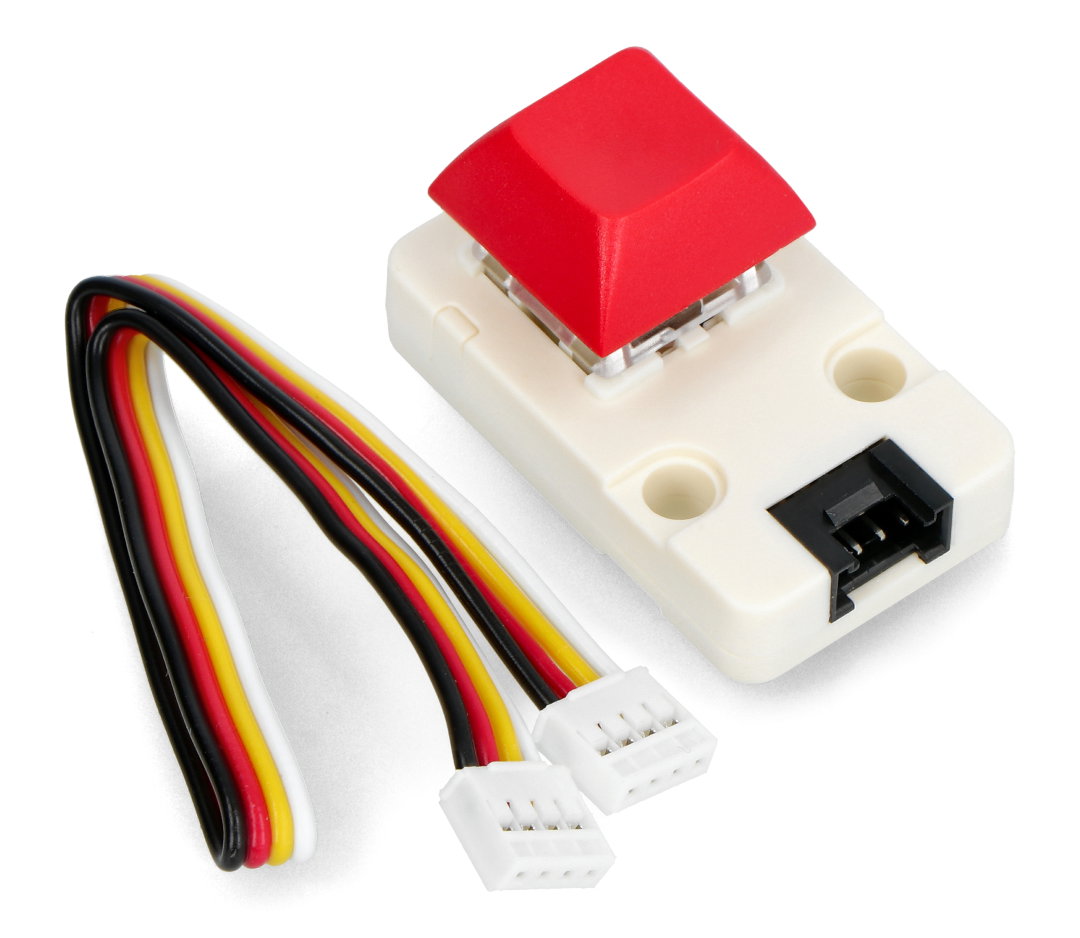

Kit contents
- Mechanical Key Button - red mechanical button Unit for M5Stack development modules
- Connection cable with Grove connector - 20 cm long
Useful links
| Name | Value |
|---|---|
| Width | 9.5 cm |
| Height | 10 cm |
| Depth | 2 cm |
| Weight | 0.013 kg |
