Product description: Unit Interface Adapter for Module Expansion - Grove 2-to-1 Converter with USB Type-C - M5Stack A162
A practical Unit Interface Adapter, designed for flexible connection of controllers and expansion modules within the M5Stack ecosystem. The device features two male HY2.0-4P connectors and one female HY2.0-4P connector, which are internally connected. This allows for simultaneous connection of multiple Unit modules to a single controller or for branching within the system . It also features a USB Type-C power connector that provides a stable 5V supply to connected devices. Built-in overcurrent protection with a self-reset function increases operational safety and protects the modules from damage. The design is also adapted for easy assembly – the bottom features M3 mounting holes, M3 nut slots, and LEGO-compatible holes , greatly simplifying integration into various projects.
Unit Interface Adapter for Module Expansion - Grove 2-to-1 Converter with USB Type-C - M5Stack A162.
A practical Unit interface adapter designed for flexible connection of controllers and expansion modules in the M5Stack ecosystem.Special features

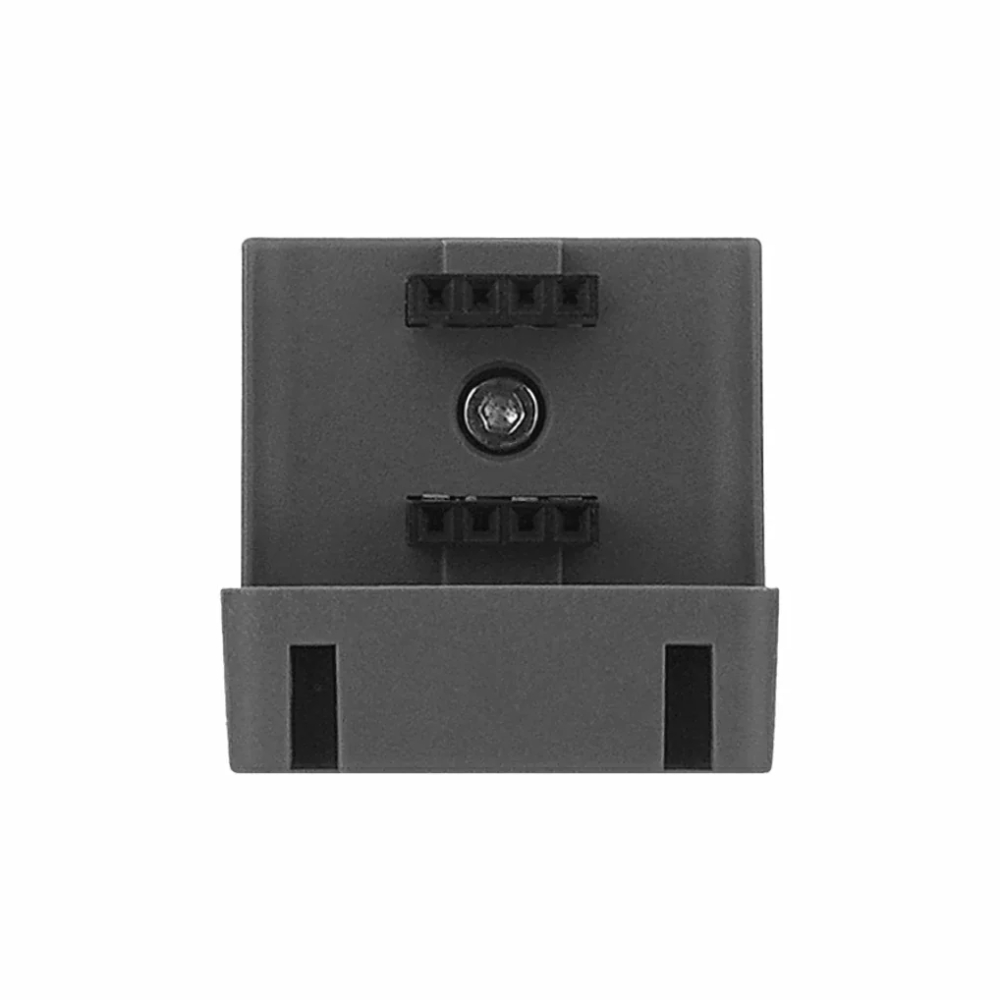

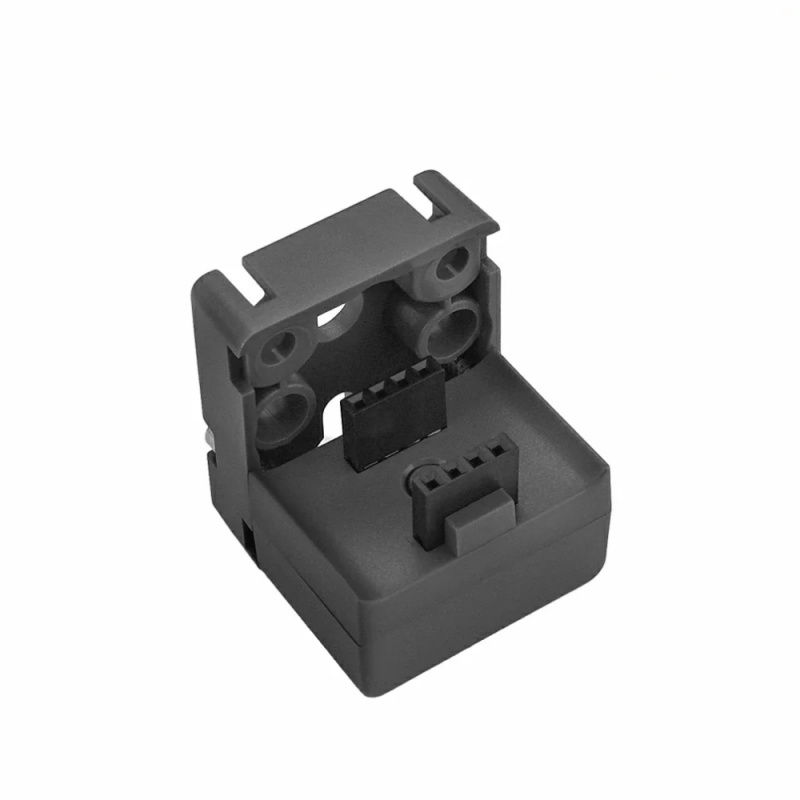

- Unit interface adapter enabling the connection of 2 modules to 1 connector thanks to three HY2.0-4P ports

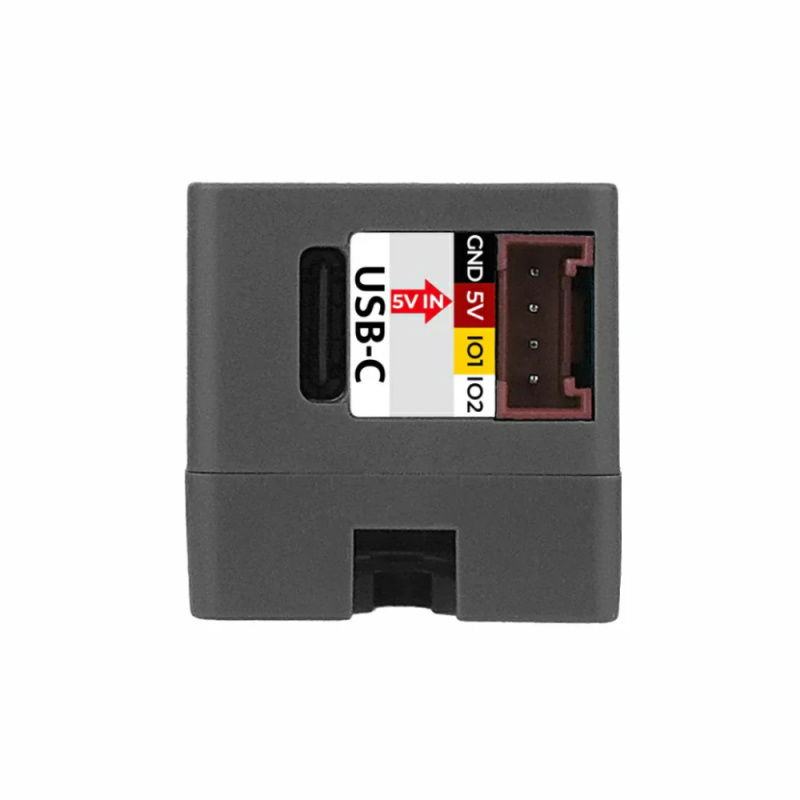

- USB Type-C connector provides stable 5V power to connected devices
- Integrated overcurrent protection with automatic reset function for increased operational safety
- Support for simultaneous operation of multiple Unit modules in one system
- Small dimensions for easy installation in embedded and prototype projects
Practical applications
The adapter is ideal for expanding sensor systems requiring simultaneous connection of multiple Unit modules. It is also suitable for portable projects, IoT prototypes, and embedded systems requiring stable power and organized connections. Thanks to its mechanical mounting capabilities, the adapter can be easily integrated into enclosures, LEGO structures, or project frames.
Technical specifications of the converter
- Type: Unit 2-to-1 Interface Adapter
- Connectors:
- 2x HY2.0-4P (male)
- 1x HY2.0-4P (female)
- Power interface: USB Type-C, Grove
- Protection: Self-resetting overcurrent protection
- Dimensions: 28 x 24 x 24 mm
- Weight: 7 g
Contents of the set
- 1x Unit 2-to-1 Interface Adapter
- 2x M3 x 12mm screws
- 2x M3 x 20mm screws
- 2x M3 nuts
- 1x Allen key L 2 mm
- 1x Allen key L 1.5 mm

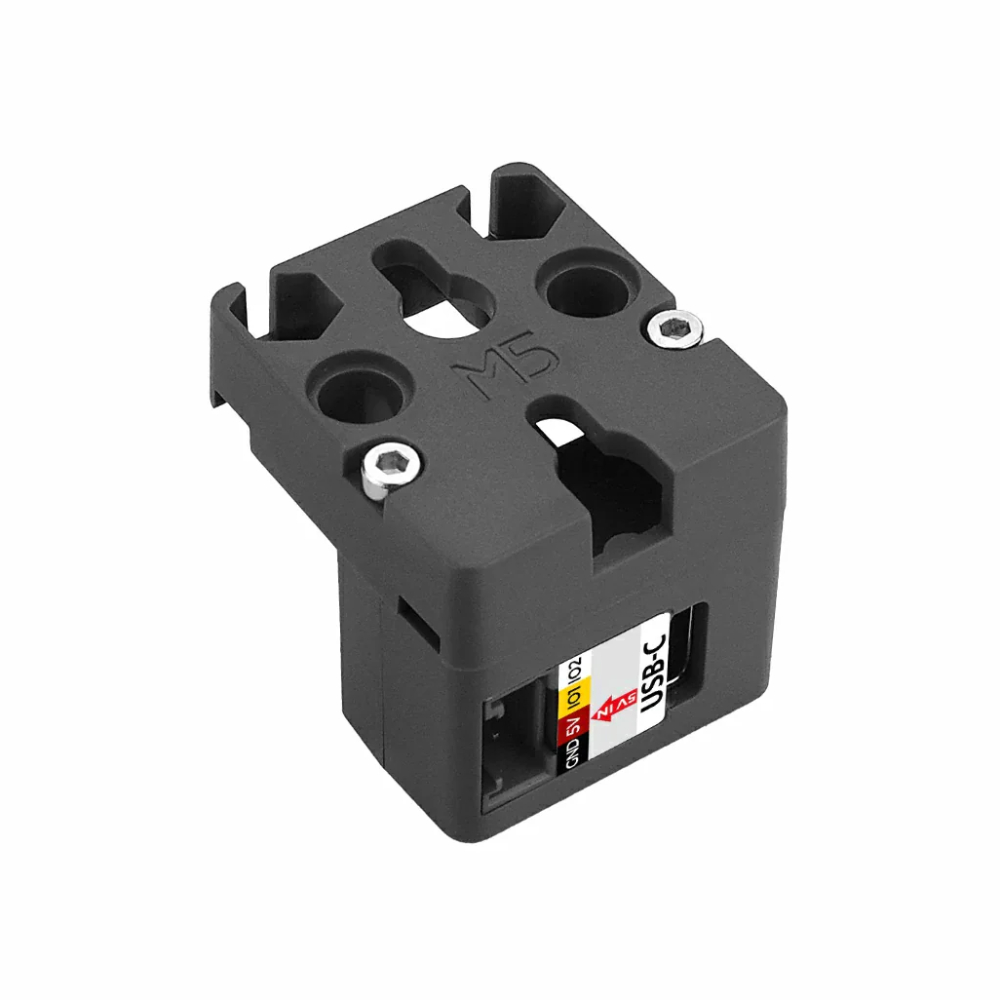

The bottom features M3 mounting holes, M3 nut slots, and LEGO compatible holes, making integration into various projects much easier. Useful links |
