Servo controller - 8-channel - STM32F030 - expansion Unit for developer modules - M5Stack U165

Index: MSS-23859 EAN: 6972934174789
Unit type extension intended for use with M5Atom , M5Stick and M5Core series development modules. It allows you to control up to 8 servomechanisms at the same time, and has two input voltage ranges - 5 V and from 9 V to 24 V.
Servo controller - 8-channel - STM32F030 - expansion Unit for developer modules - M5Stack U165
€8.50
€6.91 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: M5Stack
Compatibility: M5Stack Core M5Atom M5Stick

Product description: Servo controller - 8-channel - STM32F030 - Unit expansion module for development modules - M5Stack U165

Unit type extension intended for use with M5Atom , M5Stick and M5Core series development modules. It allows you to control up to 8 servomechanisms at the same time, and has two input voltage ranges - 5 V and from 9 V to 24 V , which increases design possibilities. The heart of the module is the STM32F030 system, thanks to which it is also possible to control the connected servos via the PWM signal.

Also checkthe user guide prepared by the manufacturer.

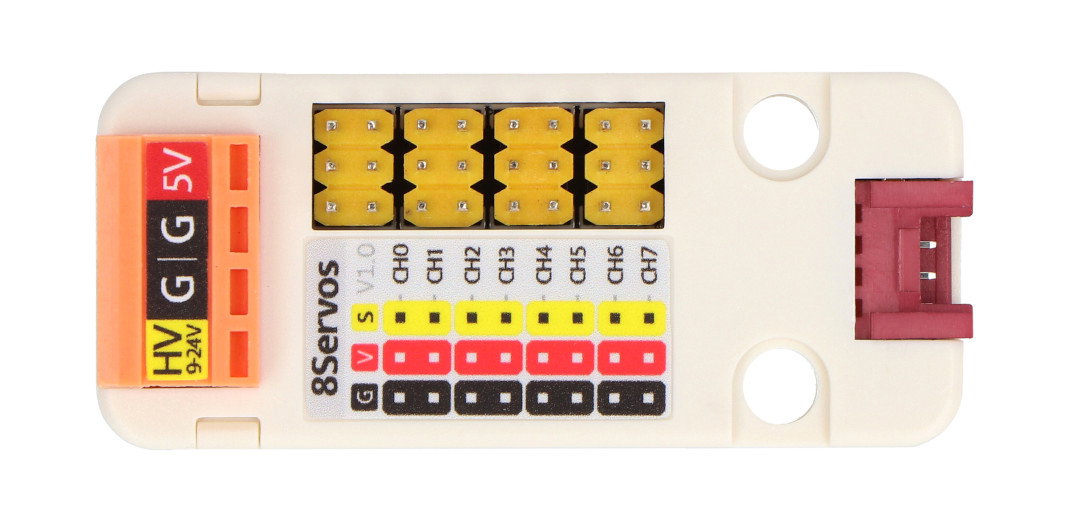

Servo controller - 8-channel - STM32F030 - Unit expansion module for development modules - M5Stack U165.

Servo controller - 8-channel.

Special features of the controller

  • It allows you to control the operation of the servo via the PWM signal.
  • It allows you to program dynamic control of the servo release/locking functions.
  • Includes a total current measurement circuit to monitor current power consumption to optimize operation.
  • Equipped with protection against reverse power connection
  • Supported by the most popular programming environments - Arduino, UIFlow (Blockly, Python).
  • It is used in the implementation of projects such as intelligent toys, remote-controlled robots for children or wheeled models.

Technical specifications of the module

  • Module type: servo controller
  • Number of channels: 8
  • Built-in control system: STM32F030F4
  • Communication interface: I2C
  • Interface address: 0x25
  • Possibility of PWM control: yes
  • Power supply: 5V, 9V to 24V
  • Maximum 8-channel load: 5 V DC / 1.3 A
  • Module dimensions: 55 x 24 x 11.5 mm
  • Module weight: 10.1 g

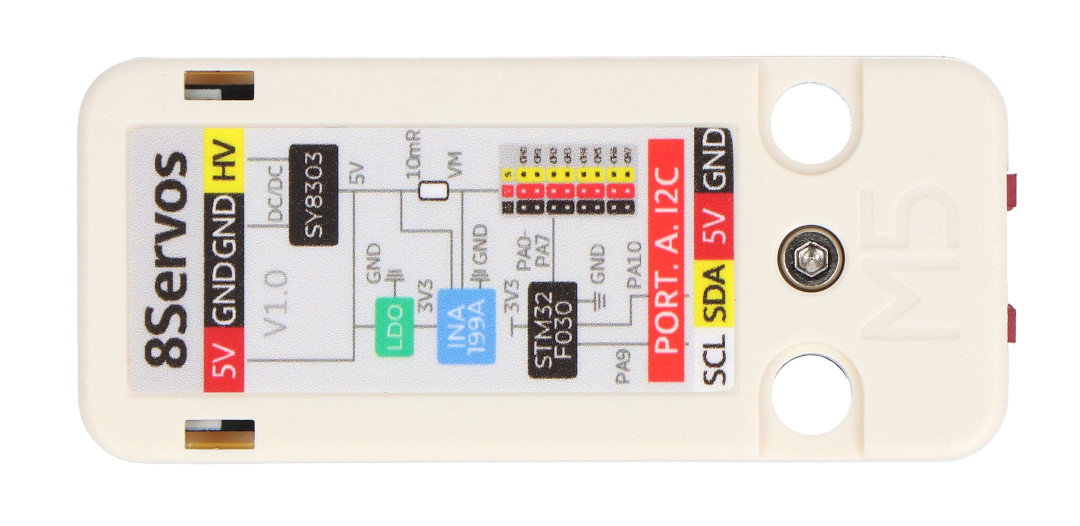

There is a circuit diagram on the module.

Set elements.

Set contents

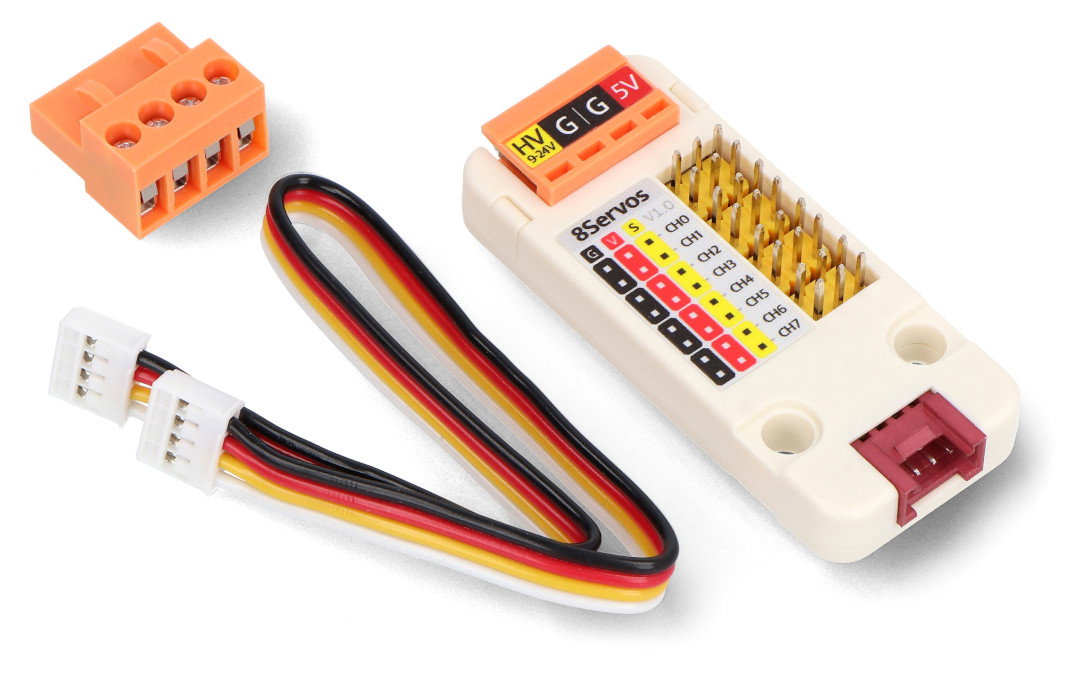

  • Servo controller - 8-channel - STM32F030 - Unit expansion module - 1 piece
  • Connection cable with Grove connector - 2 mm pitch 4-pin - length 20 cm - 1 piece
  • Screw connector - 3.96 mm raster 4-pin - 1 piece

Our offer also includes other Unit extensions - check them out!

Channels 8
Sensor - type motor driver
Package width 9 cm
Package height 14 cm
Package depth 0.5 cm
Package weight 0.018 kg
