M5StickC Mini JoyC HAT - STM32F030 - Unit expansion module for M5Stick modules - M5Stack U156
M5StickC Mini JoyC HAT is a joystick in the form of a Unit type extension intended for use with M5Stack development modules of the M5Stick series. The module is equipped with the STM32F030 system and a 200 mAh lithium-polymer battery. The joystick supports full angular movement (maximum tilt in each direction is 23°) and can also be used as a button.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: M5StickC Mini JoyC HAT - STM32F030 - Unit expansion module for M5Stick modules - M5Stack U156
M5StickC Mini JoyC HAT is a joystick in the form of a Unit type extension intended for use with M5Stack development modules of the M5Stick series. The module is equipped with the STM32F030 system and a 200 mAh lithium-polymer battery. The joystick supports full angular movement (maximum tilt in each direction is 23°) and can also be used as a button.
M5StickC Mini JoyC HAT - STM32F030 - Unit expansion module for M5Stick - M5Stack U156 modules.
The manufacturer has also prepared a detailed user's guide , in which you will find, among others, example Arduino and UIFlow codes - check it out!
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.

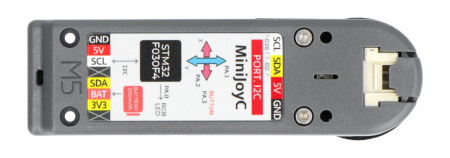

M5StickC Mini JoyC HAT from M5Stack.
Special features of the module
- It supports full angular movement and can also be used as a button
- Equipped with the STM32F030 chip
- It contains a built-in 200 mAh lithium-polymer battery
- Compatible with the M5Sticik series
- Programmed using popular programming environments such as Arduino and UIFlow
In our offer you will also find other Unit series modules - environmental sensor, RFID reader, popular wireless communication modules and many others. We invite you to familiarize yourself with the available assortment!
Module technical specification
- Type: Unit type extension
- Purpose: for M5StickC and M5StickC Plus development modules
- Extension type: joystick module
- Built-in chip: STM32F030
- Range of motion: the maximum working angle in all directions is 23°
- Button function: yes
- Built-in potentiometer: 10 kΩ
- Support voltage: 3.3 V
- Power supply: built-in Li-Pol battery with a capacity of 200 mAh
- Dimensions: 81.05 x 36 x 24mm
- Weight: 20.6g
Kit contents
- M5StickC Mini JoyC HAT - STM32F030 - Unit expansion module for M5Stick modules
- Mounting screws - 2 pieces
- Allen key
- Leash in black

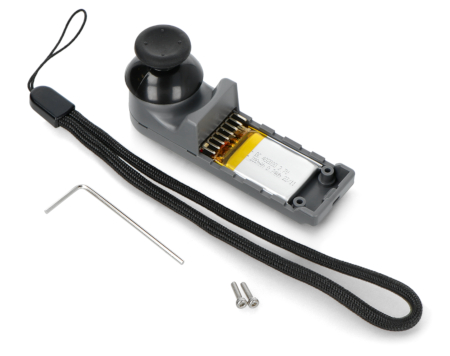

Components included in the set.
Useful links
| Name | Value |
|---|---|
| Width | 3 cm |
| Height | 10 cm |
| Depth | 3.5 cm |
| Weight | 0.031 kg |
