5V/1A Converter Module - ME3116AM6G - Unit Expansion Module for M5Stack Development Modules
Unit type extension compatible with M5Stack product series - M5Stack Core, M5Stack Atom and M5Stick. The module is equipped with ME3116AM6G chip which reduces the input voltage from 5 V to 24 V to the output value of 5 V / 1 A. It has two connectors located on the extreme parts of the board - DC input connector and Grove output connector. The converter module can be connected directly to ordinary DC power supplies.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: 5 V / 1 A Inverter Module - ME3116AM6G - Unit extension module for M5Stack development modules
Unit type extension compatible with M5Stack product series - M5Stack Core, M5Stack Atom and M5Stick. The module is equipped with ME3116AM6G chip which reduces the input voltage from 5 V to 24 V to the output value of 5 V / 1 A. It has two connectors located on the extreme parts of the board - DC input connector and Grove output connector. The inverter module can be connected directly to ordinary DC power supplies.
What is the inverter used for?
Voltage conver ter is also called a power converter or voltage converter. It is used wherever there are power systems whose current-voltage parameters do not allow for direct connection to the device. In short - its task is to change the input voltage to the output voltage suitable for the connected receiver. It can be used, for example, when you have a 12 V power supply unit and the module you need to supply requires only 5 V.
5 V / 1 A converter module - ME3116AM6G - Unit extension module for M5Stack development modules.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
Unit type extension with input voltage dropping circuit.
Features of the module from M5Stack
- Built-in ME3116AM6G chip responsible for reducing the input voltage to the target value of 5 V / 1 A
- DC-DC conversion circuit
- Wide input voltage range from 5 V to 24 V
- Plug&Play function and Grove standard compliant output connector
- LED indicator

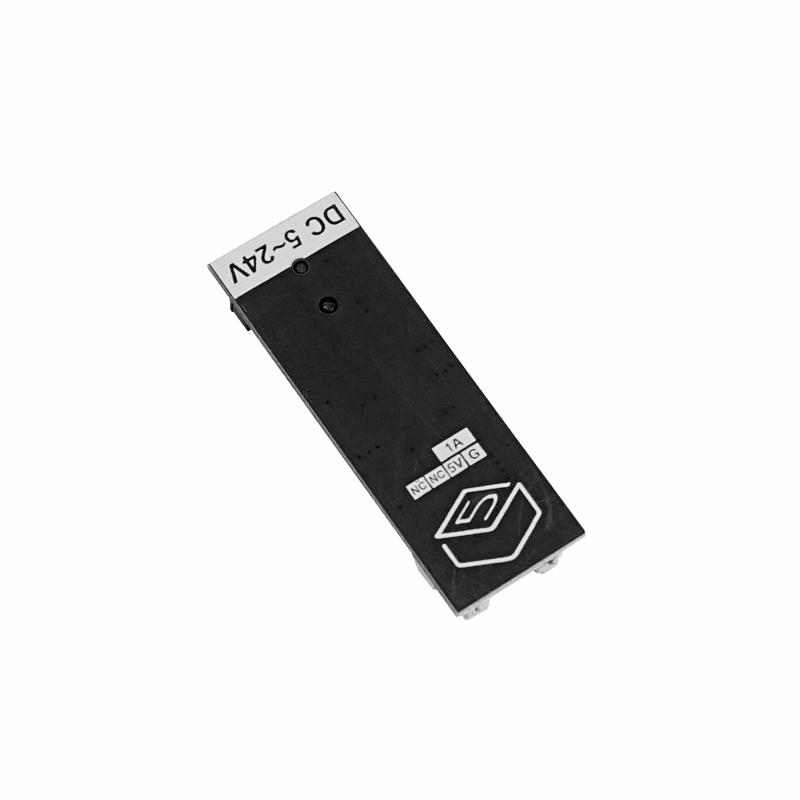

Pinout of the converter
- NC - not connect; pin not connected
- 5V - output voltage pin 5V
- GND - ground
- DC - input voltage pin from 5 V to 24 V
Technical specifications of the converter
- Built-in voltage regulator: ME3116AM6G
- Input voltage: from 5 V to 24 V DC
- Output parameters: 5 V / 1 A
- Connectors of the converter:
- connector no. 1: DC socket
- Connector no. 2: Grove standard
- Status indication: built-in LED
- Weight: 4.4 g

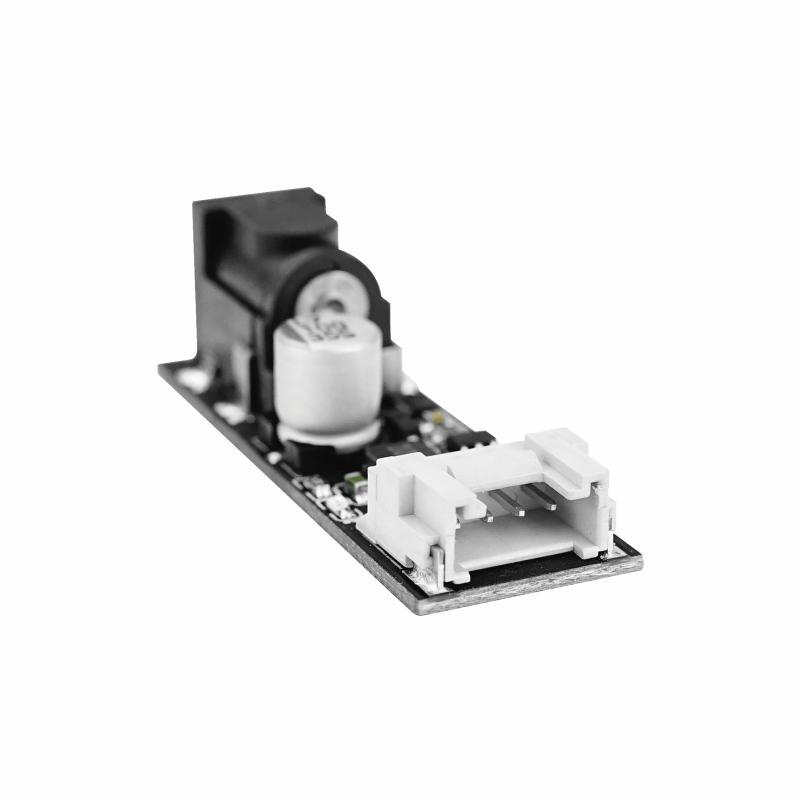

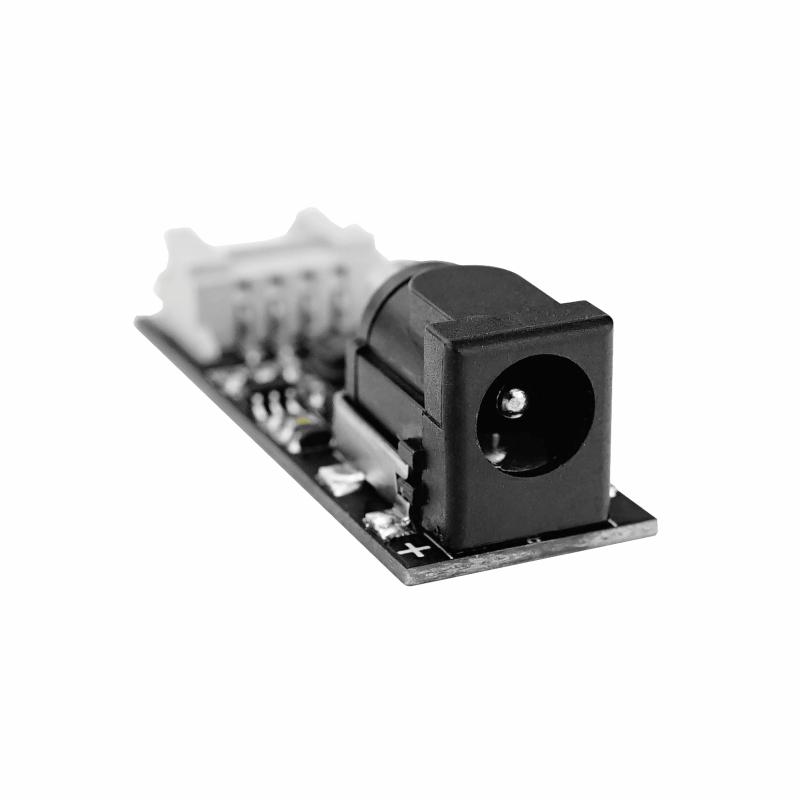

Module with two connectors - DC-015 and Grove.
Useful links
| Name | Value |
|---|---|
| Voltage to | 5.0 V |
| Voltage from | 24.0 V |
| Voltage output from | 5.0 V |
| Output voltage to | 5.0 V |
| Current | 1 A |
| Stabilizer - Type | step-down |
| Width | 5 cm |
| Height | 8 cm |
| Depth | 1 cm |
| Weight | 0.005 kg |
