Slide potentiometer B10K + RGB LEDs - expansion module Unit for M5Stack development modules

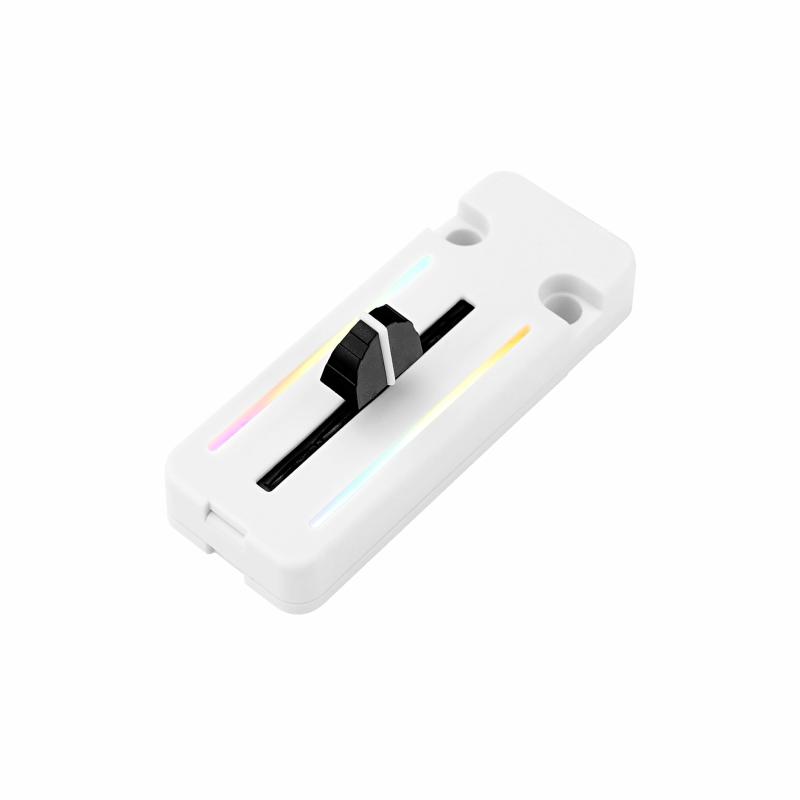

The module features a 10 kΩ slider potentiometer and 14 SK6812 programmable RGB LEDs arranged on both sides of the slider. The LEDs are used as indicators. The module is manufactured by M5Stack. It is a perfect solution in man-machine interaction projects, allows to precisely control music or light and can be also used as a regulation switch.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: B10K slide potentiometer + RGB LEDs - expansion module Unit for M5Stack development modules
Module equipped with 10 kΩ slide potentiometer and 14 programmable SK6812 RGB LED s placed on both sides of the slide potentiometer. The LEDs act as indicators. The module is manufactured by M5Stack. It is a perfect solution in man-machine interaction projects, it allows to precisely control music or light and can be also used as a regulation switch.
In our offer you will also find other Unit type extensions! Take a look at the available range.
Slide potentiometer + RGB LEDs - Unit extension module for M5Stack developer modules.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.

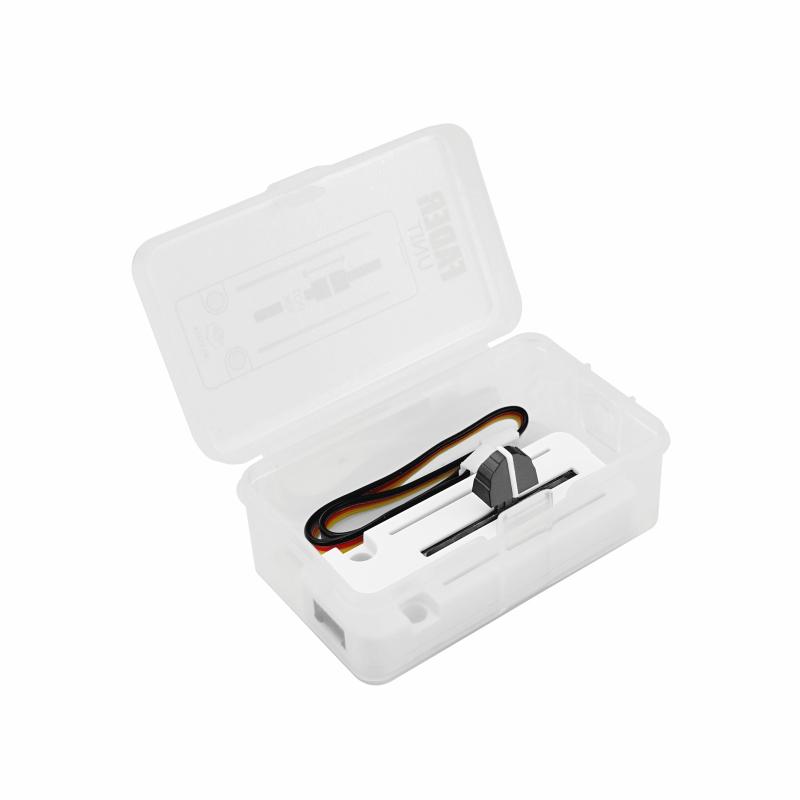

Elements of the set are supplied with a convenient container for easy storage.
Product features from M5Stack
- Equipped with 14 SK6812 RGB LEDs, which can be programmed in any way, thereby personalizing projects performed
- Cipher addressed LEDs, which means that you can adjust their color and brightness
- It has an excellent attenuation
- Built-in adjustable 10 kΩ resistor
- Grove connector compatible interface
- Supported on Arduino and ULFlow programming platforms
Unit pinout description
- GND - ground
- 5V - power supply pin
- OUT - RGB signal
- IN - ADC
Technical specification of the module
- Application: for M5Stack Core, M5Atom and M5Stick development modules
- Supply voltage: 5 V DC
- Operating current: 90.04 mA
- Potentiometer type: sliding scale
- Resistor: single 10k Ω
- Potentiometer travel: 35 mm
- Length of slider handle: 10 mm
- LEDs: programmable RGB
- RGB type: SK6812
- Number of LEDs: 14 pieces
- Supported programming platforms: Arduino, UIFlow
- Module compatible with LEGO
- Dimensions: 40,3 x 14 x 12,2 mm
- Weight: 15.5 g
Contents of the kit
- Slide potentiometer + RGB LEDs - expansion module Unit for M5Stack development modules - 1 pc.
- Connection cable with Grove connector - 1 pc.

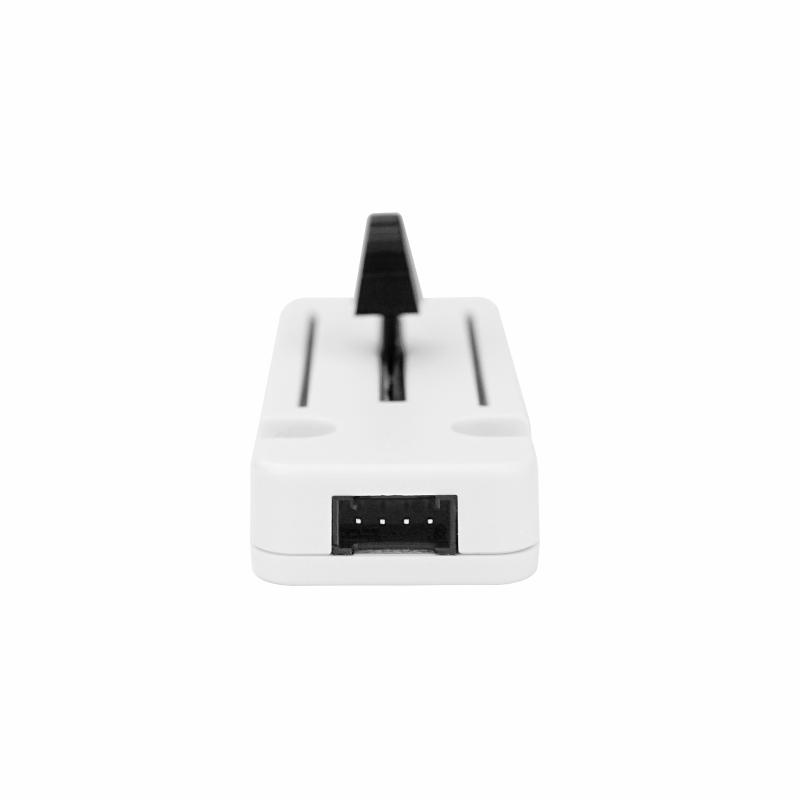

Slide potentiometer with Grove connector.
Useful links
| Name | Value |
|---|---|
| LED - type | SK6812 |
| Sensor - type | potentiometer |
| Width | 4.5 cm |
| Height | 7.5 cm |
| Depth | 3 cm |
| Weight | 0.029 kg |
