ADC Converter V1.1 ADS1110 - expansion Unit for M5Stack developer modules - M5Stack U013-V11

Index: MSS-24840 EAN: 6972934175090
ADC V1.1 is a Unit series expansion module based on the ADS1110 , offering 16-bit conversion precision. With an integrated PGA and built-in voltage reference , it provides accurate measurements at a variety of sampling rates. I2C communication facilitates integration with various systems, and its low noise and high precision make it ideal for advanced industrial, temperature measurement and automation applications.
ADC Converter V1.1 ADS1110 - expansion Unit for M5Stack developer modules - M5Stack U013-V11
€7.50
€6.10 tax excl.
Delivery 10 pcs scheduled for 2024-12-13
Waiting for delivery
PayPal payment
Manufacturer: M5Stack
Compatibility: M5Stack Core M5Atom M5Stick

Product description: ADC Converter V1.1 ADS1110 - Unit expansion module for M5Stack development modules - M5Stack U013-V11

ADC V1.1 is an advanced A/D conversion module from the Unit series, using the ADS1110 , a 16-bit self-calibrating analog-to-digital converter . With an I2C interface, the module offers simple and convenient integration with M5Stack development modules. The device enables conversion at speeds of 8, 16, 32 and 128 samples per second (SPS) , offering various levels of accuracy at 16, 15, 14 and 12 bit resolution. The module is equipped with a programmable amplifier (PGA) with a maximum gain of 8, which allows the measurement of very weak signals. Additionally, the ADS1110 has a built-in voltage reference with an accuracy of 2.048 V , which significantly improves the accuracy of measurements. With low noise and minimal temperature drift, the ADC V1.1 Unit provides stable and reliable data in a wide range of applications.

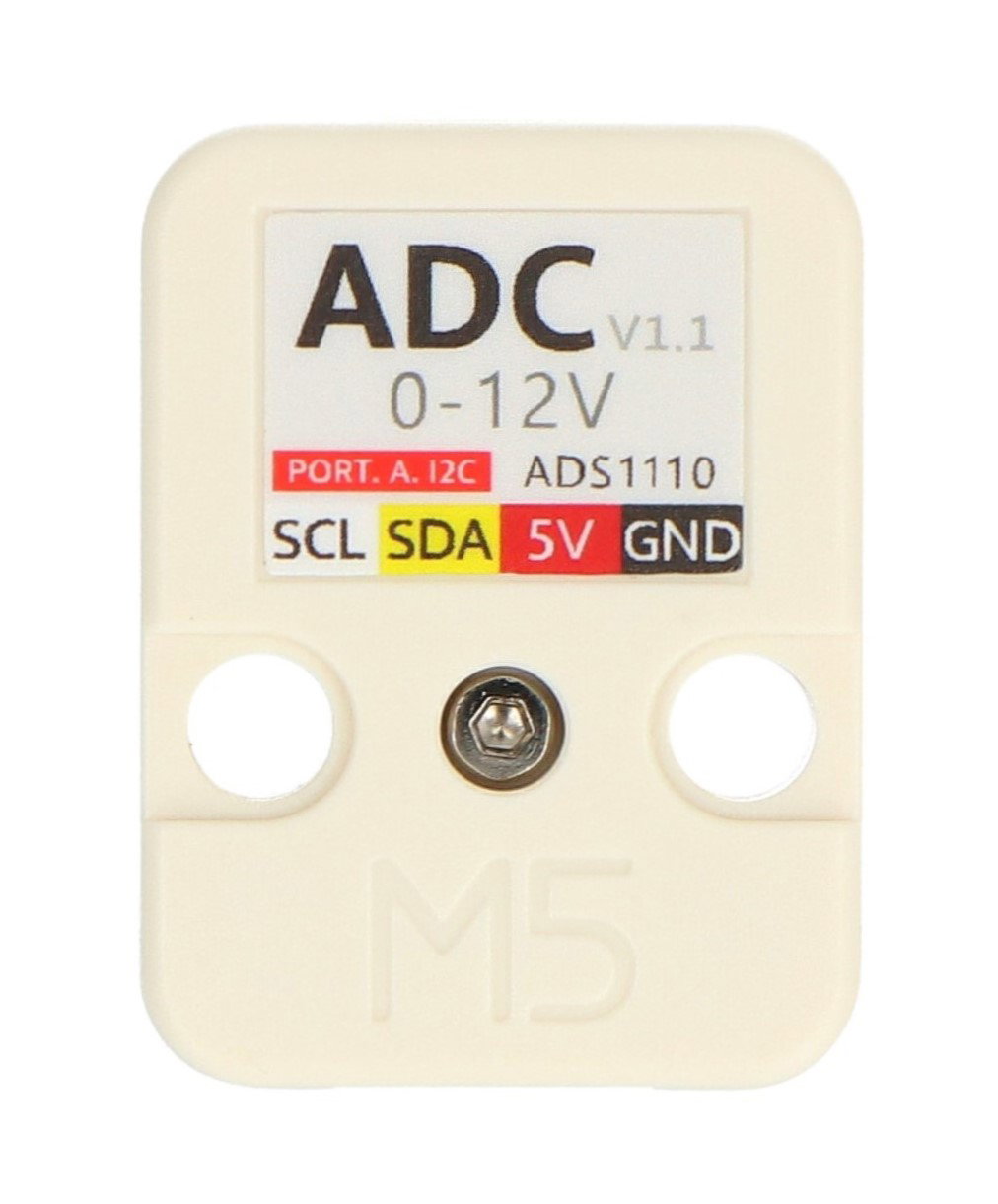

ADC Converter V1.1 ADS1110 - Unit expansion module for M5Stack development modules - M5Stack U013-V11

ADC V1.1 converter ADS1110 - Unit expansion module for M5Stack development modules - M5Stack U013-V11.

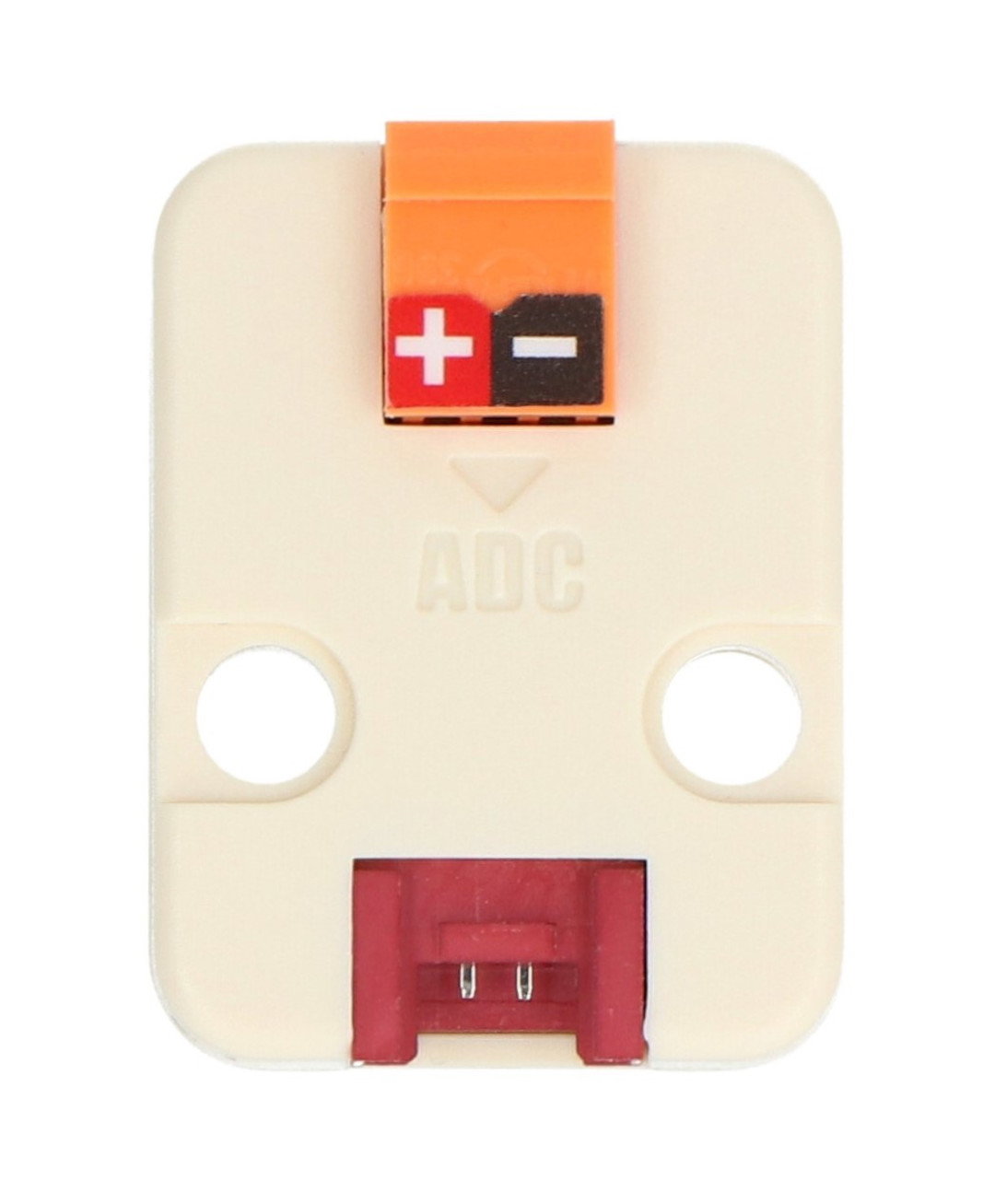

ADC Converter V1.1 ADS1110 - Unit expansion module for M5Stack development modules - M5Stack U013-V11

The device communicates with M5Stack development modules via the I2C interface.

Special Features of ADC V1.1 Unit

  • Programmable Gain Amplifier (PGA) : allows the gain to be adjusted to 1, 2, 4 or 8, allowing measurements to be adapted to different signals.
  • Low noise : 10 µV PP noise ensures high quality measurements.
  • I2C communication : enables easy integration with systems using the standard I2C interface.
  • Built-in voltage reference : reference accuracy of 2.048 V ± 0.05% improves measurement precision.

Converter Applications

ADC V1.1 Unit is ideal for:

  • Industrial process control : monitoring and controlling parameters in industrial applications.
  • Temperature measurement : accurate temperature measurements in a variety of environments.
  • Factory automation : collecting data in automation systems and controlling production processes.
  • Portable meters : use in compact measuring devices requiring high precision.
  • Intelligent transmitters : measurement and transmission of data in remote monitoring systems.

Check out other M5Stack products in our offer!

ADC Converter V1.1 ADS1110 - Unit expansion module for M5Stack development modules - M5Stack U013-V11 The module is equipped with a programmable amplifier.
ADC Converter V1.1 ADS1110 - Unit expansion module for M5Stack development modules - M5Stack U013-V11

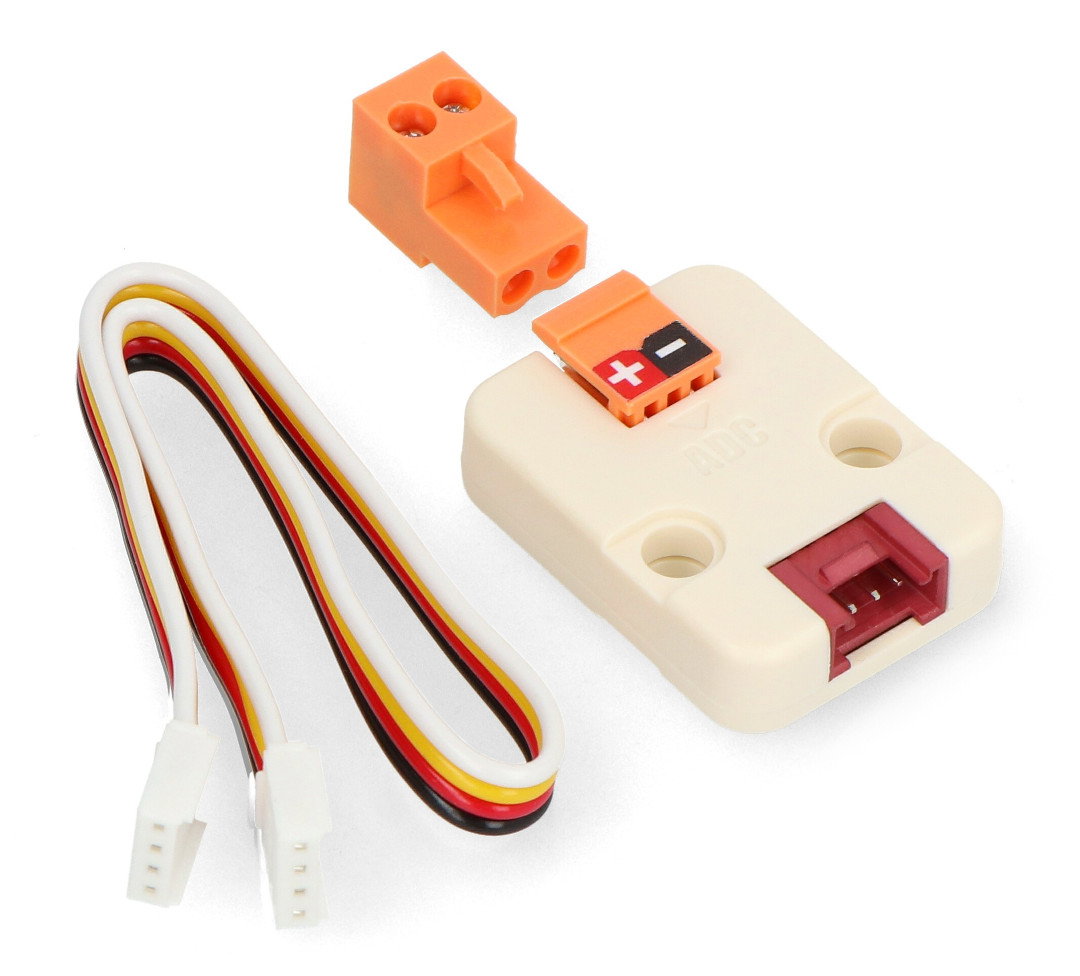

Items included in the set.

Technical specifications of the converter

  • Model: ADC V1.1 Unit
  • Programmable Amplifier: PGA = 1, 2, 4, 8
  • Built-in reference voltage: 2.048 V ± 0.05%
  • I2C communication: address 0x48
  • Temperature drift: 5 ppm/°C
  • INL (Non-Linearity Error): Max. 0.01% FSR
  • Sampling Speed: 15 SPS to 240 SPS
  • Resolution: 16-bit
  • Operating temperature: 0°C to 40°C
  • Dimensions: 32 x 24 x 10.2 mm
  • Weight: 4.5 g

Kit Contents

  • 1x ADC V1.1 Unit
  • 1x Grove Connecting Cable - 20cm
  • 1x 2-pin mounting connector - 3.96 mm pitch

Package width 9.5 cm
Package height 13.5 cm
Package depth 1 cm
Package weight 0.011 kg
