Product description: Grove 1,12'' OLED Display (SH1107) v3.0 128x128px SPI/I2C - Seeedstudio 104020250
Monochrome display with 1.12'' diagonal and 128 x 128 px resolution, based on SH1107 driver. Operates with 3.3 V and 5 V. The screen uses SPI/I2C bus for communication. There is also included cable for connection with Seeedstudio Base Shield v2.0 overlay.
Product is compatible with Arduino.
Manufacturer prepared user guide with example program for Arduino.
Grove - OLED 1,12'' v3 display - Seeedstudio 104020250.
The display is equipped with Grove connector.

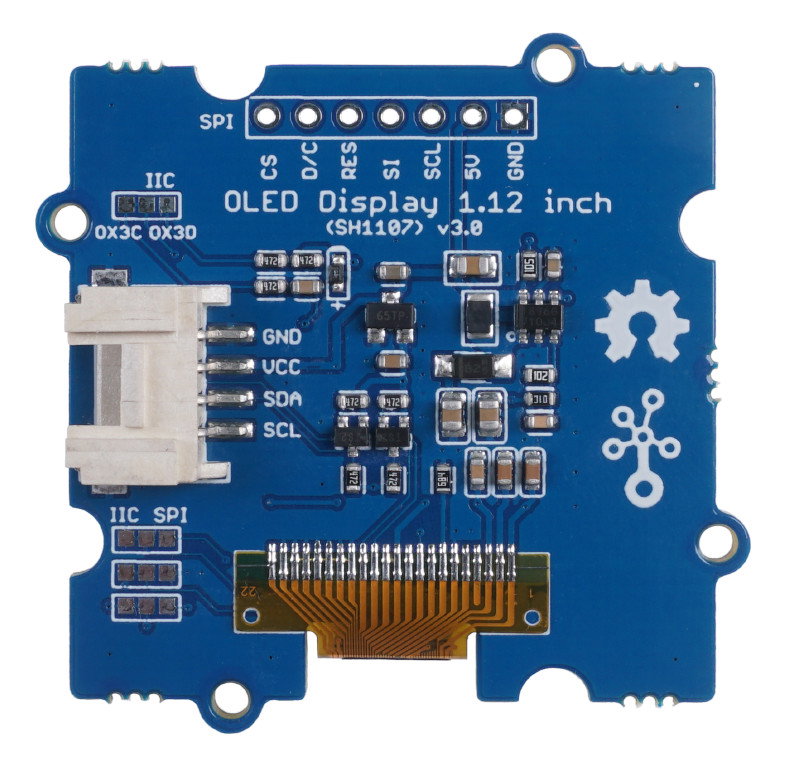

Pinout description
Display is equipped with 4-pin Grove standard connector, placed on the bottom of the display. This solution allows a more convenient connection with the microcontroller. Grove OLED 1.12'' v3.0 display has the following I2C bus pins:
- GND: Ground of the chip.
- VCC: Supply voltage from 3.3 V to 5 V.
- SCL: I2C bus clock line.
- SDA: I2C data line.
Advantages of OLED displays
Compared to traditional LCD displays, OLED (Organic Light Emitting Diode) displays have the following advantages:
- High contrast ratio
- Self-emission
- Wide viewing angle
- Slim / thin outline
- Low power consumption

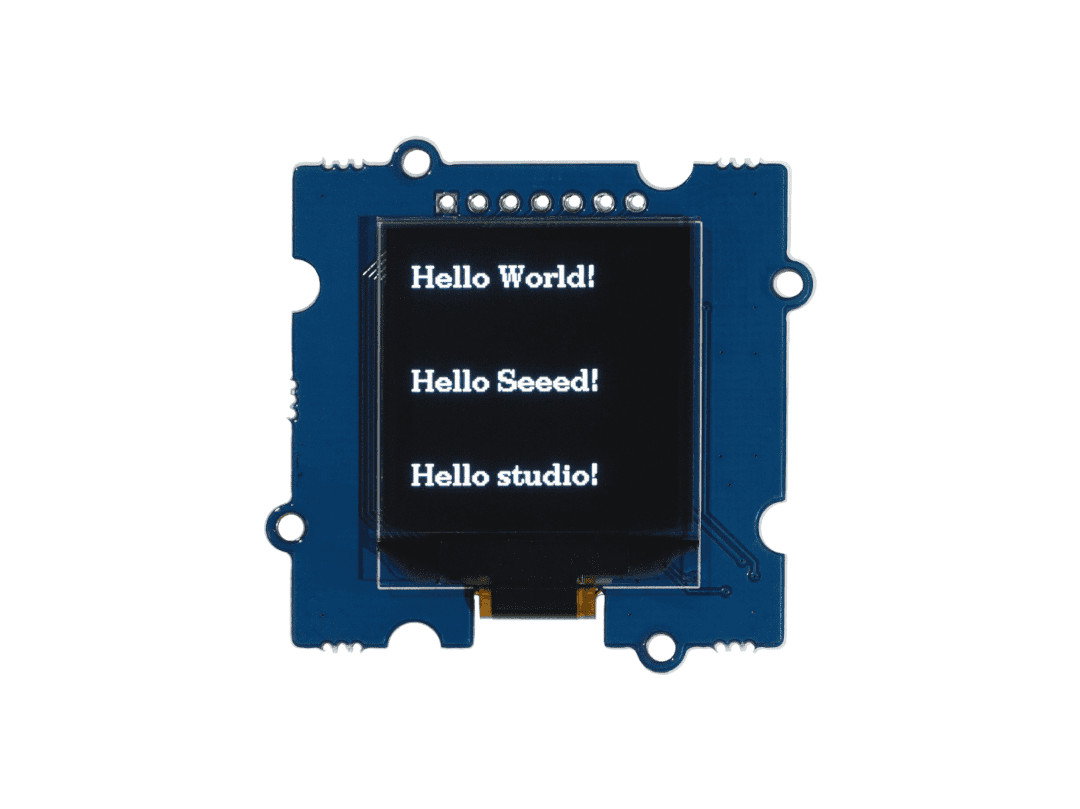

1.12'' OLED Display (SH1107) v3.0.

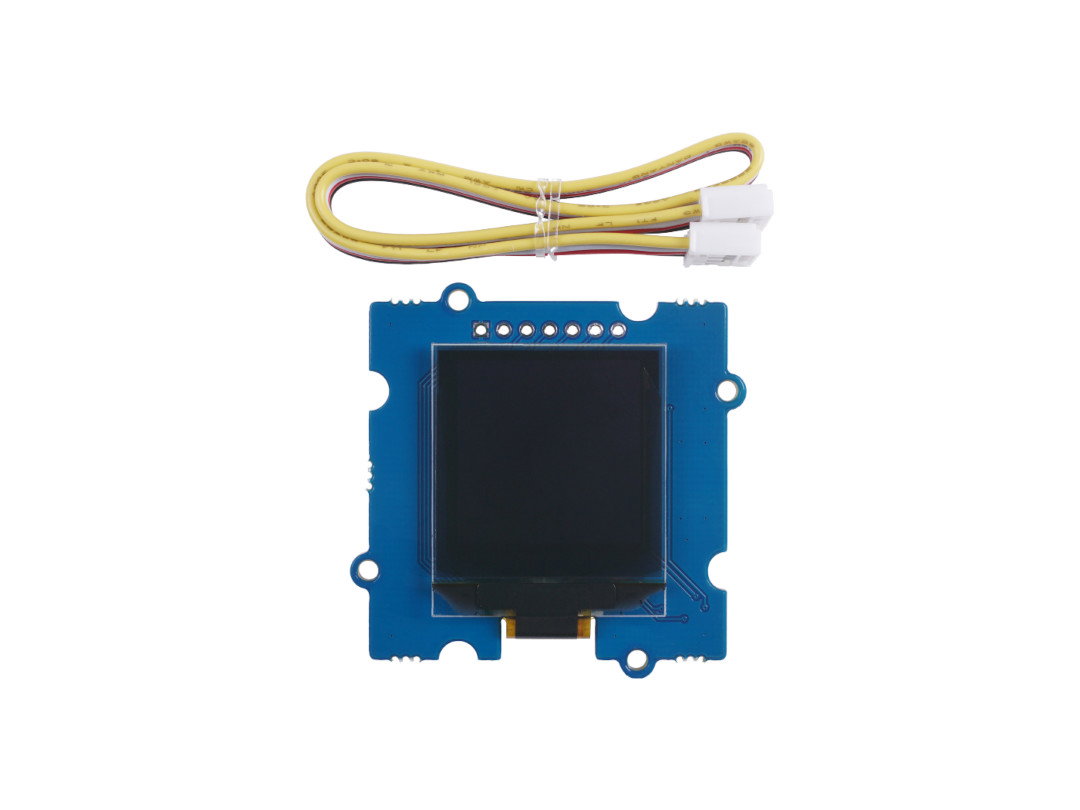

Components included.
OLED 1.12'' v3.0 display specifications
- Supply voltage: 3.3 V / 5 V
- Operation voltage: from 0 V to 2.3 V
- Display type: monochromatic
- Resolution: 128 x 128 px
- Diagonal size: 1,12''
- Supported interfaces: SPI/I2C
- Variable I2C address
- Operating temperature range: -40°C to 85°C
Set contents
- Grove 1.12'' OLED display (SH1107) v3.0
- Grove cable
