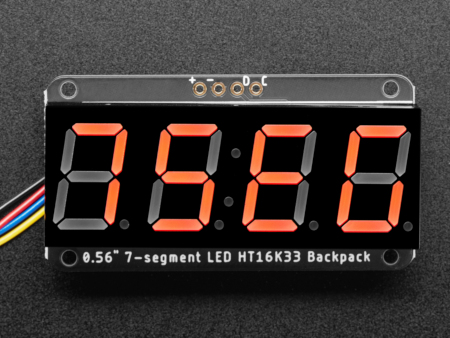

4-digit 0.56'' display - 7-segment backpack - I2C - red - STEMMA QT / Qwiic - Adafruit 5599
7-segment display with a diagonal of 0.56'' from Adafruit. It enables the display of 4 digits with dots after each digit and one colon between digits 2 and 3. The digits of the module are highlighted in red . The whole thing is controlled via the I2C interface, so there is no need to connect a large number of wires. The module is additionally equipped with two quick connect connectors - Qwiic / Stemma QT .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 0.56'' 4-digit display - 7-segment backpack - I2C - red - STEMMA QT / Qwiic - Adafruit 5599
7-segment display with a diagonal of 0.56'' from Adafruit. It enables the display of 4 digits with dots after each digit and one colon between digits 2 and 3. The digits of the module are highlighted in red . The whole thing is controlled via the I2C interface, so there is no need to connect a large number of wires. The module is additionally equipped with two quick connect connectors - Qwiic / Stemma QT . On the board you can also find jumpers to select the I2C address, so you can connect up to eight 7-segment display modules. Module powered by 5 V or 3 V.
The subject of the sale is the display in the assembled version.
0.56'' 4-digit display - 7-segment backpack - I2C - red - STEMMA QT / Qwiic - Adafruit 5599.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.

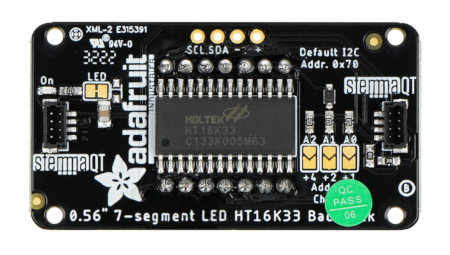

4-digit 7-segment display module.
Pins of the 7-segment display
The communication module uses the I2C interface, and the board also includes 2 Qwiic / STEMMA QT connectors for quick connection to modules with the same connector.
- VCC - supply voltage 5 V / 3 V
- GND - system ground
- SDA - data line of the I2C interface
- SCL - clock line of the I2C interface
More information on how to connect can be found here .
Technical specification of the display module
- Type: segment display
- Number of segments: 7
- Control system: HT16K33
- Number of digits: 4
- Number of dots: one after each number and one colon between the number 2 and 3
- Backlight color: red
- Interface: I2C
- I2C address: configured with jumpers from 0x70 to 0x77
- Leads: solder pads / Qwiic connectors / STEMMA QT
- Module dimensions: 50.0 x 26.7 x 6.0 mm (without display)
- Display dimensions: 19 x 50 x 14 mm
- Weight: 14g

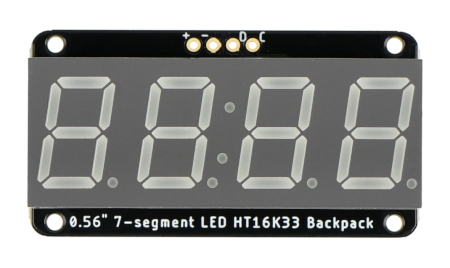

The diagonal is 0.56''.

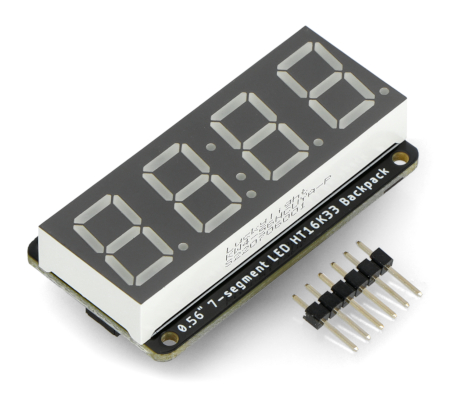

Kit contents.
Kit contents
- 0.56'' 4-digit display - 7-segment Backpack - I2C - red - STEMMA QT / Qwiic - 1 piece
- Golpin strip 1x6 pin - raster 2.54 mm - 1 piece
Also check the manufacturer 's user guide !
Useful links
| Name | Value |
|---|---|
| Screen - type | sectional LED |
| Screen - diagonal | 0.56 " |
| Screen - interface | I2C |
| Screen - resolution | 4 cyfry |
| Width | 10.5 cm |
| Height | 4 cm |
| Depth | 2 cm |
| Weight | 0.017 kg |
