Adafruit 0.56" 4-Digit 7-Segment Display with I2C Backpack - Red - STEMMA QT / qwiic
Adafruit Backpack module with a 7-segment display consisting of 4 digits with dots. The display diagonal is 0.56 " , and the module digits are highlighted in red . The whole is controlled by the I2C interface, so there is no need to connect a large number of wires. The module is additionally equipped with two quick-connect connectors - Qwiic / Stemma QT . on the board you can also find jumpers for selecting the I2C address, so you can connect up to eight 7-segment display modules. The module is powered by 5 V or 3 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 4-digit 7-segment display module 0.56 '' Backpack - red I2C - STEMMA QT / Qwiic - Adafruit 878
Adafruit Backpack module with a 7-segment display consisting of 4 digits with dots. The display diagonal is 0.56 " , and the module digits are highlighted in red . The whole is controlled by the I2C interface, so there is no need to connect a large number of wires. The module is additionally equipped with two quick-connect connectors - Qwiic / Stemma QT . on the board you can also find jumpers for selecting the I2C address, so you can connect up to eight 7-segment display modules. The module is powered by 5 V or 3 V.
The display module must be self-soldered to the PCB.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.

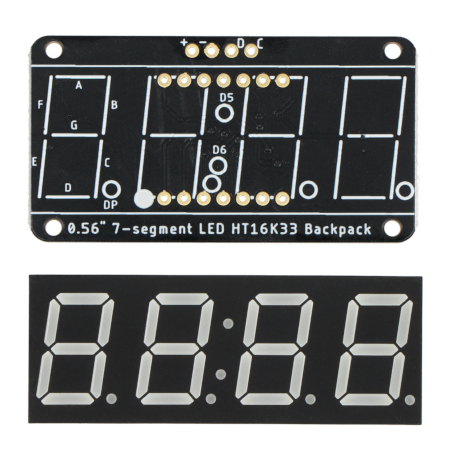

4-digit 7-segment display module.
Pins of the 7-segment display module
The communication module uses the I2C interface, on the board you can also find 2 Qwiic / STEMMA QT connectors for quick connection with modules with the same connector.
- VCC - supply voltage 5 V / 3 V
- GND - the ground of the system
- SDA - data line of the I2C interface
- SCL - clock line of the I2C interface
Kit contents
- Backpack tile
- 7-segment, 4-digit, 0.56 "display
- Golpin strip 6-pin 2.54 mm pitch
The product is compatible with Arduino and Raspberry Pi
The manufacturer has prepared a user guide that presents connection diagrams and code examples in Arduino and CircuitPython.

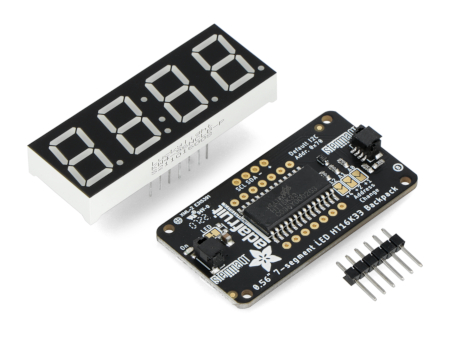

Kit contents.

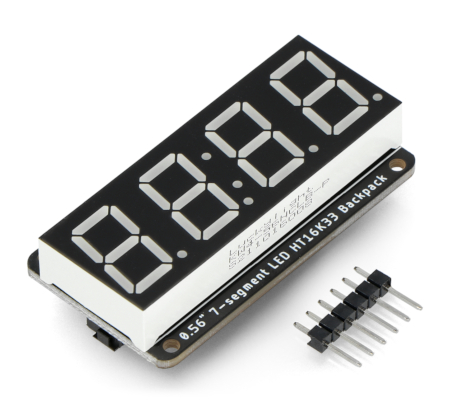

The communication module uses the I2C interface, there are also 2 Qwiic / STEMMA QT connectors on the board.
Technical specification of the display module
- Chip: HT16K33
- Number of digits: 4
- Number of segments: 7
- Backlight color: red
- Interface: I2C
- Backlight brightness adjustment: 1/16 steps
- Two Qwiic / STEMMA QT connectors
- I2C address: from 0x70 to 0x77
- Requires self-soldering
- Backpack tile dimensions: 50 x 26.7 x 6 mm
- Backpack plate weight: 5.6 g
- Display dimensions: 19 x 50 x 14 mm
- Display weight: 8.4 g
Useful links
| Name | Value |
|---|---|
| Screen - type | sectional LED |
| Screen - diagonal | 0.56 " |
| Screen - interface | I2C |
| Screen - touch | no |
| Screen - resolution | 4 cyfry |
| Width | 15 cm |
| Height | 25 cm |
| Depth | 2.5 cm |
| Weight | 0.024 kg |
