Product description: DFRobotGravity - 4-digit segmented display - green - DFRobot DFR0645-G.
Four-digit,8-segment Gravity series displaywithadjustable 8-level brightnesslevels, The modules are equipped with an I2C port compatible with the Gravityinterface. The whole module is very comfortable to use due to its small size and the use of an easy to use communication port.

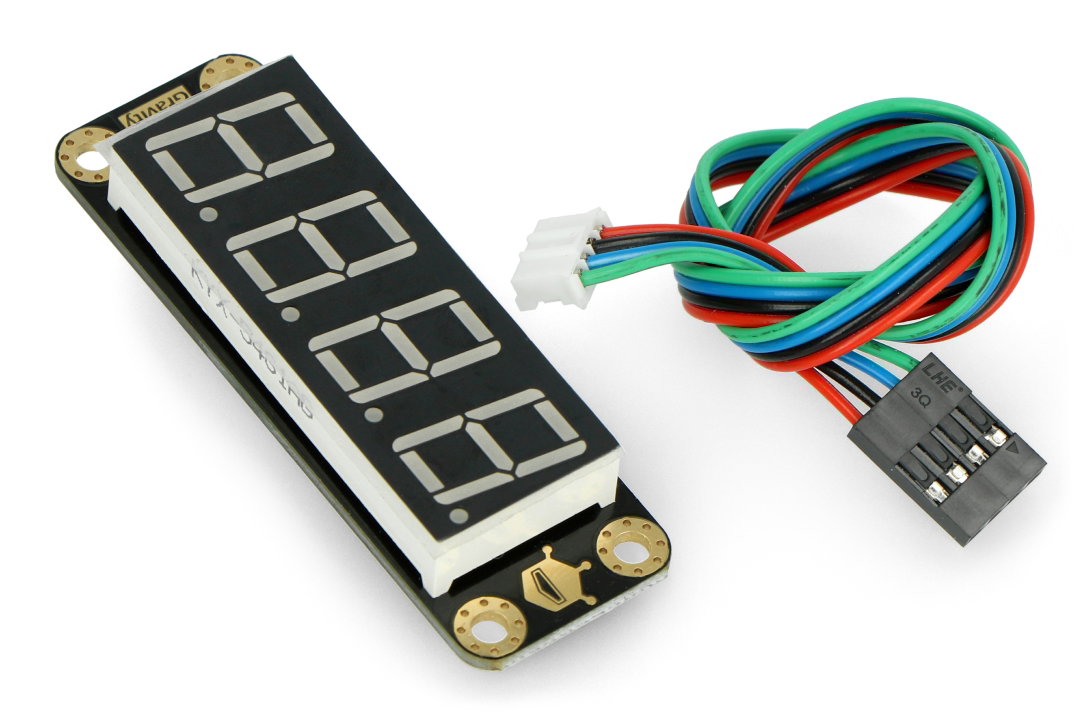

Segmented display with compatible cables.
Display connection
The display module communicates through the I2C interface. It is equipped with a Gravity connector, and cables with a compatible connector are included.
| Pin | Description |
|---|---|
| SDA | I2C interface data line. |
| SCL | Clock line of the I2C interface. |
| GND | The weight of the system. |
| VCC | Supply voltage 5 V. |
Segment display specification
- Operating voltage: 5 V
- Current: < 55 mA
- Backlight colour: green
- Operating temperature: -40°C to 85°C
- Storage temperature: -55°C to 125°C
- Communication: Gravity compatible I2C
- Display type: 8-segment, 4-digit
- Module dimensions: 67 x 22 mm
