Product description: DFRobotGravity - 8-digit segmented display - red - DFRobot DFR0645-G.
TheDFRobotGravity8-digit,8-segment display allows you to control the brightness level of the characters displayed, thanks to a 16-degree adjustment. The device is equipped with an I2C port compatiblewiththe Gravity interface. The small size and easy connection makes it easy to work with the module.

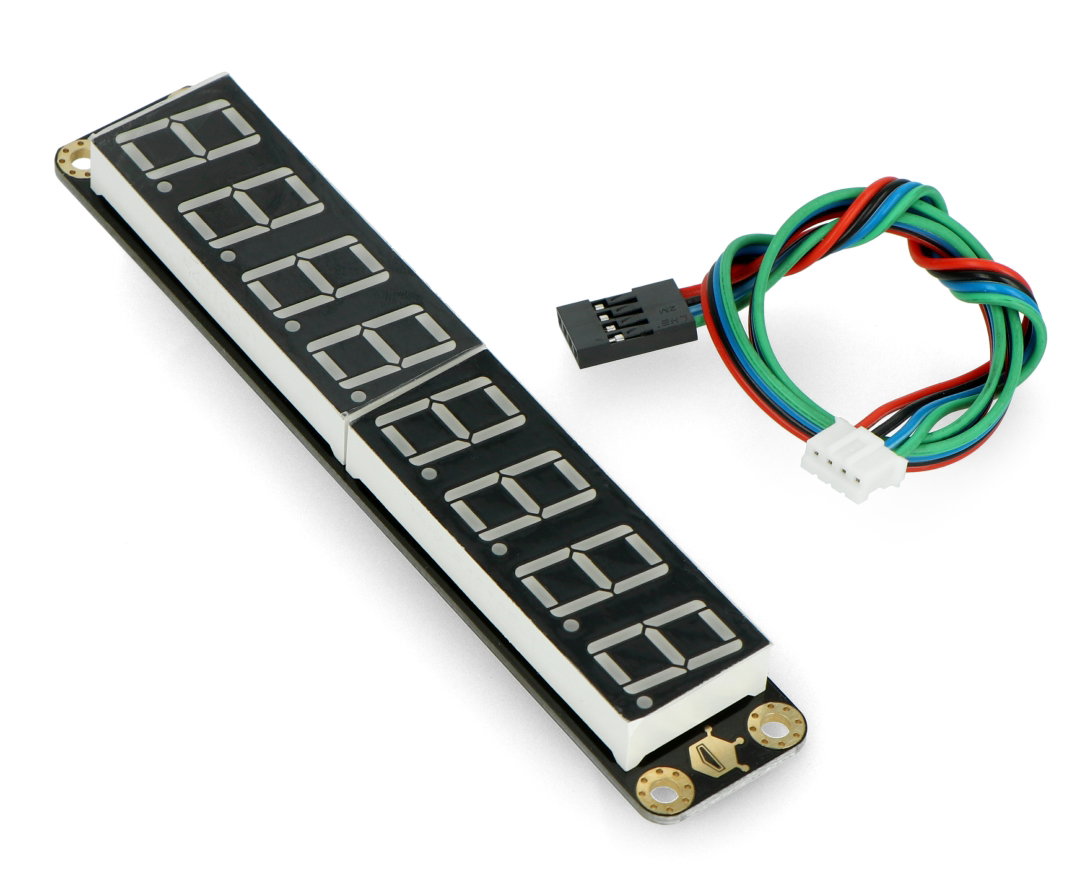

Segmented display with compatible cables.
Display connection
The display module communicates through the I2C interface. It is equipped with a Gravity connector, and cables with a compatible connector are included.
| Pin | Description |
|---|---|
| SDA | I2C interface data line. |
| SCL | Clock line of the I2C interface. |
| GND | The weight of the system. |
| VCC | Supply voltage 5 V. |
Segment display specification
- Working voltage: 5 V DC
- Current: < 130 mA
- Backlight colour: green
- Operating temperature: -40°C to 85°C
- Storage temperature: -55°C to 125°C
- Communication: Gravity compatible I2C
- Display type: 8-segment, 8-digit
- Module dimensions: 117 x 22 mm
