Description

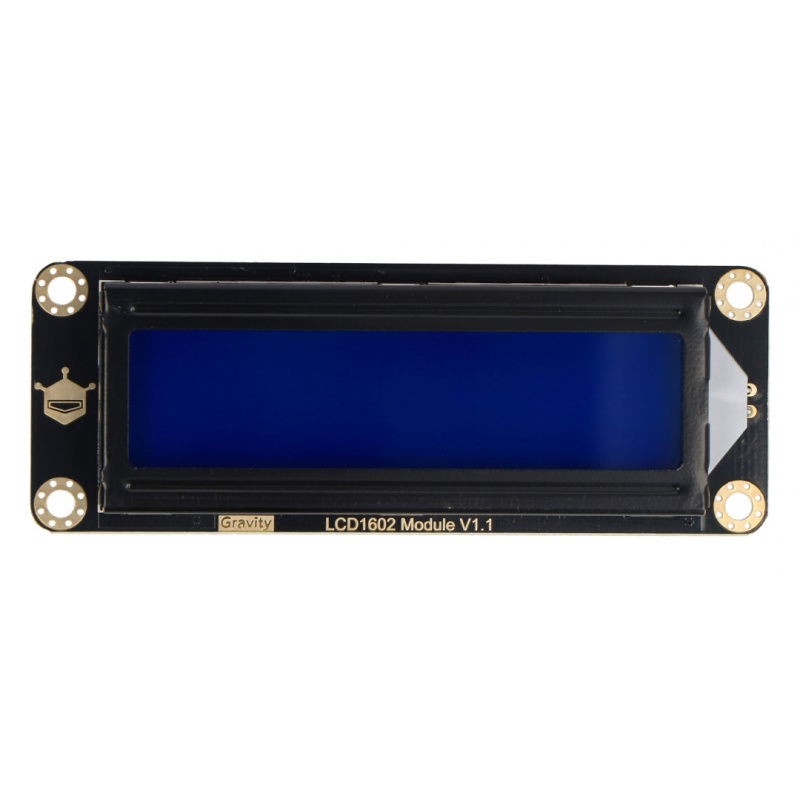

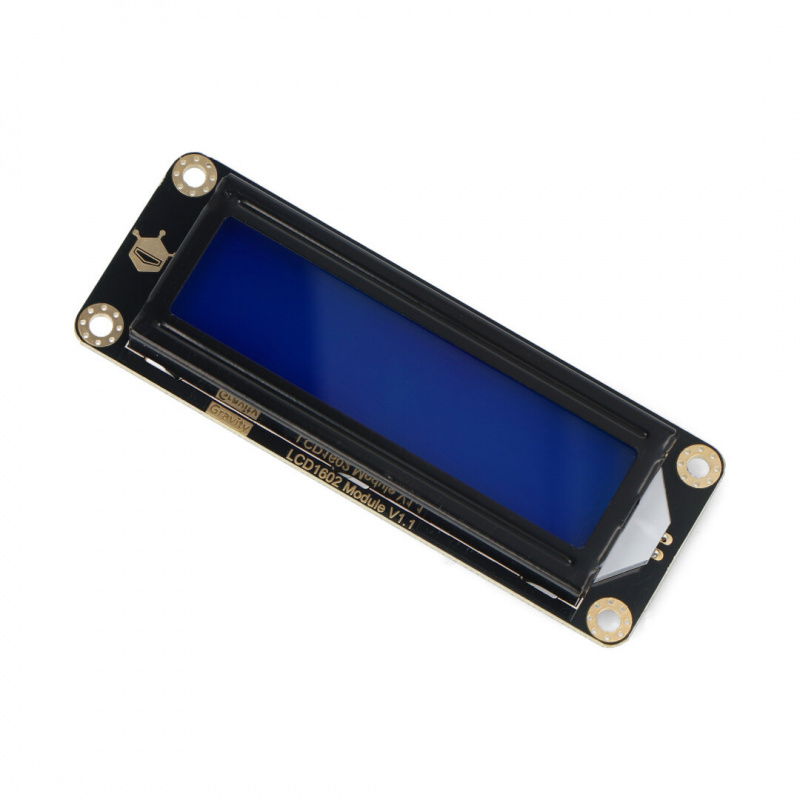

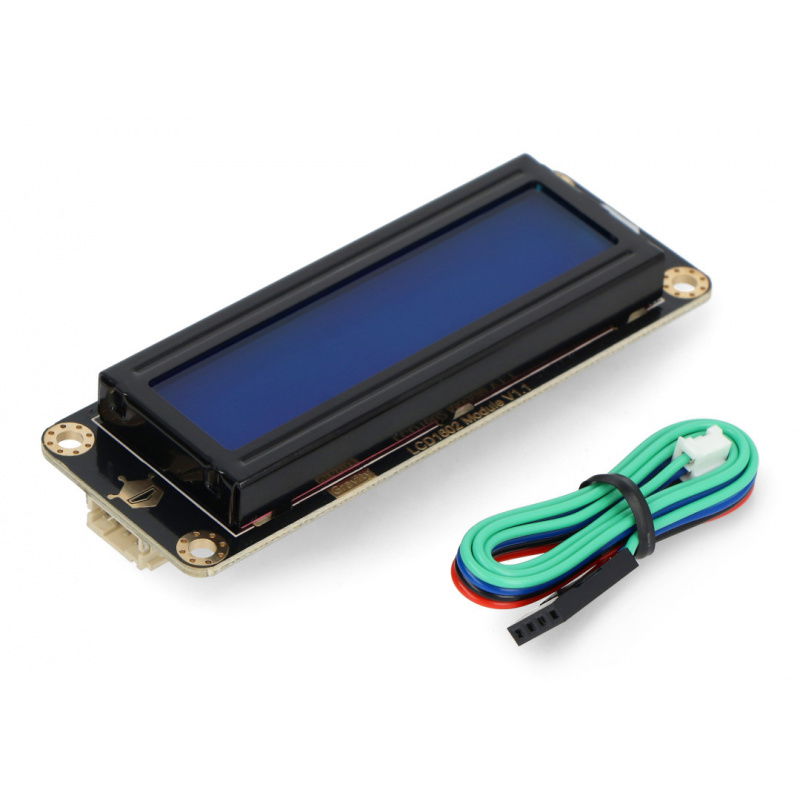

LCD display 2x16 characters with backlight in blue. Communicates with two-wire I2C bus. The kit includes a cable adapted toGravity DFRobot IO Expansion Shield.
|
The product is compatible with Arduino Sample code and detailed information can be found inthe user guide. |
Outputs
The display communicates with the Arduino using the I2C bus, the connection can be facilitated by the output expander Gravityprepared by the manufacturer.
| Pin | Description |
|---|---|
| VCC | Supply voltage from 3.3 V to 5 V. |
| GND | The ground of the system. |
| SCL | Clock line of the I2C bus. |
| Traffic | Data line of the I2C bus. |
Specification
- Supply voltage: from 3.3 V to 5 V
- Current consumption: 20 mA
- Display: 16 x 2 characters
- Communication: IIC / I2C
- Backlight: blue
- Operating temperature: -20 to 70℃
- Ambient temperature: -30 to 80℃
- Dimensions: 87 x 32 x 13 mm
