Description

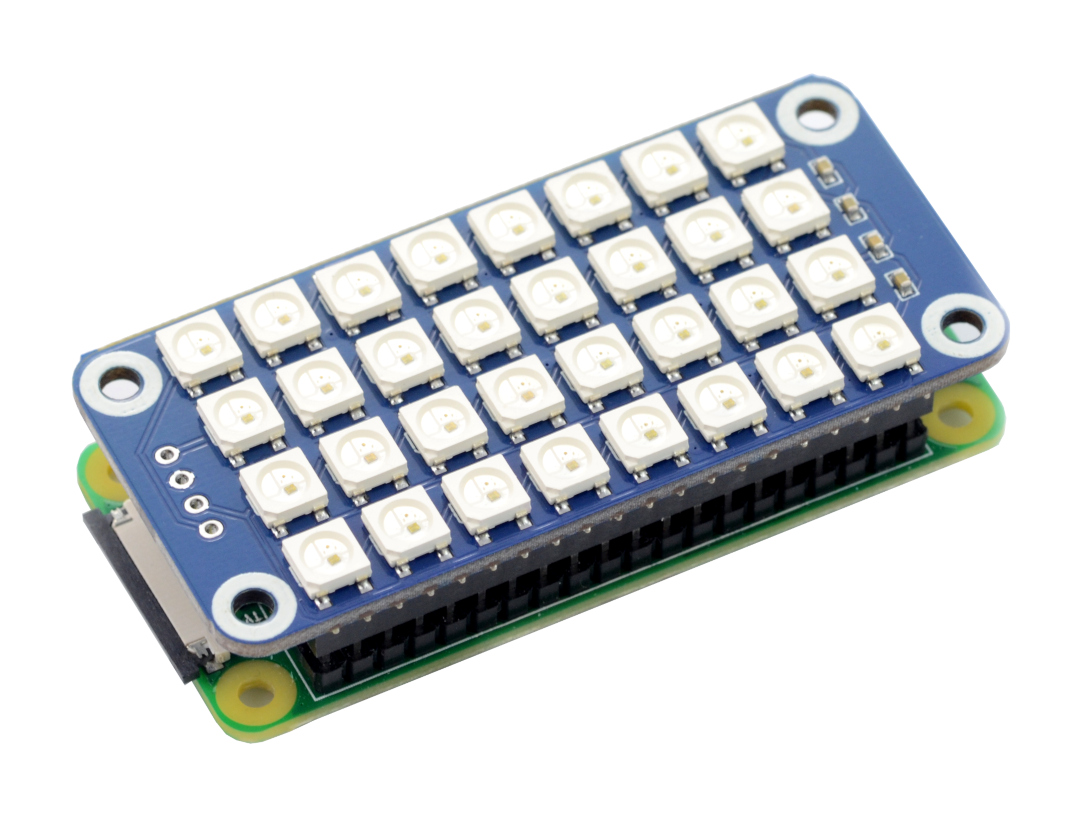

Shield for the Raspberry Pi containing the LED matrix 8 x 4 consisting of WS2812B LEDs. Each LED can be individually set. The device has dimensions of 65 x 30 mm, it works with Raspberry Pi 4B/3B+/3B/Zero/Zero W. It also has a Jack to connect to any controller.
The shield is fixed to the Rasperry Pi Zero.
The subject of the sale is a shield, minicomputer Raspberry Pican be purchased separately.
Pins
Devices have a 40-pin GPIO connector to Raspberry and 4-pin connector to connect with any microcontroller.

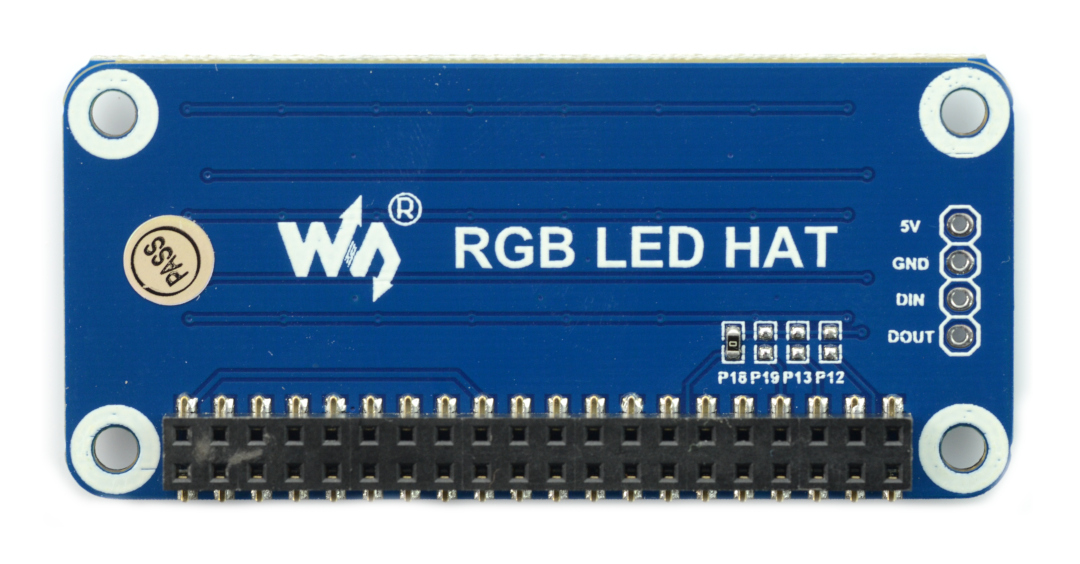

Pins are marked on the reverse side of the board what facilitates the connection.
| Pin | Description |
|---|---|
| 5V | Voltage: 5 V. |
| GND | The ground of the system. |
| DIN | The input of the control signal. |
| DOUT | The output of the control signal. |
|
Connecting to the Raspberry The manufacturer inthe user's manual, provides sample program to work in Python. |
Specification
- Power supply: 5 V
- LED type: WS2812B
- Number of LEDs: 8 x 4 - 32 LEDs
- Brightness: set on 256 levels of brightness
- Color depth: 24-bit
- Data transfer rate: 800 kB/s
- Included are screws and spacers
- Module's dimensions: 65 x 30 mm
