Description

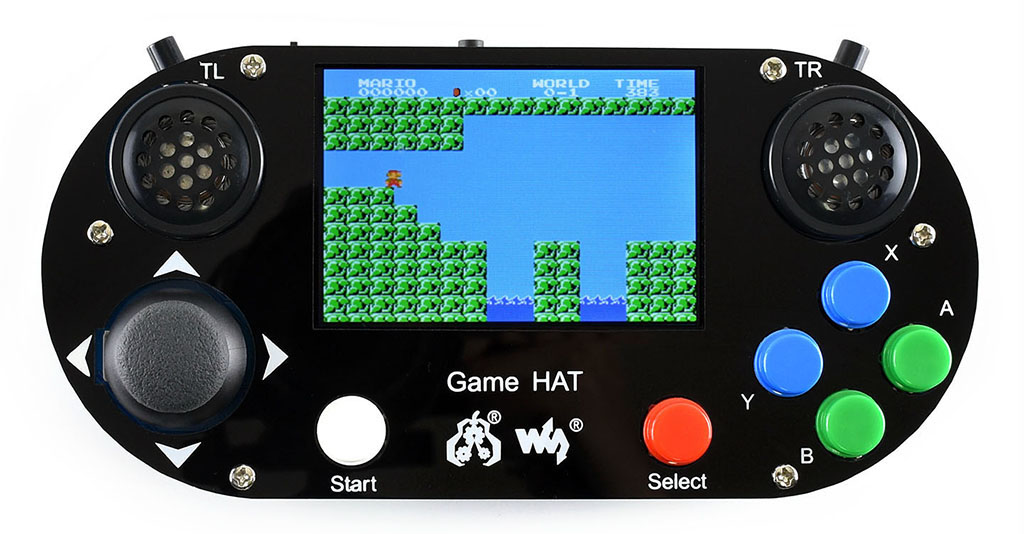

Shield that allows you to create miniconsole for games based on minicomputer Raspberry Pi. The module is equipped with buttons, joystick, IPS 3,5" display, speaker and output for headphones. Powered by a batteryLi-Ion 18650.
|
A detailed description of the settings can be found inthe manufacturer's instructions. |
Key features
- IPS 3.5" display with a resolution of 480 x 320 px
- 60 frames, smooth display, no dropped frames
- Compatible with Raspberry Pi 4B, 3B+, 3B, 2B, B+, A+ (Raspberry Pi Zero / Zero W requires an additional HDMI)
- Integrated system loading the battery, power from Li-Ion18650 battery (not included)
- Status LED of the capacity of battery
- On board is a speaker, headphone Jack, buttons, joystick
Button's labels
- Function keys vary depending on the specific game
- Start + Select- out of the currently playing game
- Menu,up/ left,down / right,Exit - these four buttons at the bottom allow you to adjust the brightness / contrast of the display, volume, etc.
Dimensions
Set includes
- Game HAT
- Acrylic case
- HDMI connector
- Screws and distance
