Product description: D36V6ALV - 2.5 V step-down converter - 7.5 V 0.6 A - Polol 3798.
A step-down converter operating with an input voltage between4 V and 50 V(notethe drop-out value andshort voltage pulses that candamage the system).Theoutput voltage is regulatedby a built-in potentiometer from2.5 V to 7.5 Vwith a maximum output current of 600 mA. The board has dimensions of 15 x 10 x 4 mm and a weight of 0.6 g. We offerinverters with a wide operating range.
Outputs D36V6ALV - 2.5 V - 7.5 V 0.6 A step-down converter - Polol 3798
The controller is equipped with 4 outputs.
| Pin | Description |
|---|---|
| SHDN | Low power consumption state (approx. 2 uA) activated by means of low state. |
| VIN | Input voltage from 4 V to 50 V (minimum value depends onthe drop-outvoltage). |
| GND | The weight of the system. |
| VOUT | output voltage from 2.5 V to 7.5 V. |
The minimum value of the input voltage depends on the drop-out voltage, this is the minimum difference between the input and output voltage thatis necessary for proper operation of the module.The following are the minimum parameters for D36V6x series inverters.
Also pay attention to the voltage pinswhenconnecting the power supply to the module, when connecting the voltage to the electronic circuits, the initial flow of current may cause rapid voltage increases, higher than the input voltage which may permanentlydamage the circuit.From tests carried out by Polol company, the input voltage above 28 V caused jumps higher than 50 V. In order toprotect against this undesirable phenomenon, it is recommended to solder a capacitor with a value of at least 33 uF as close as possible to the pins supplying the inverter.

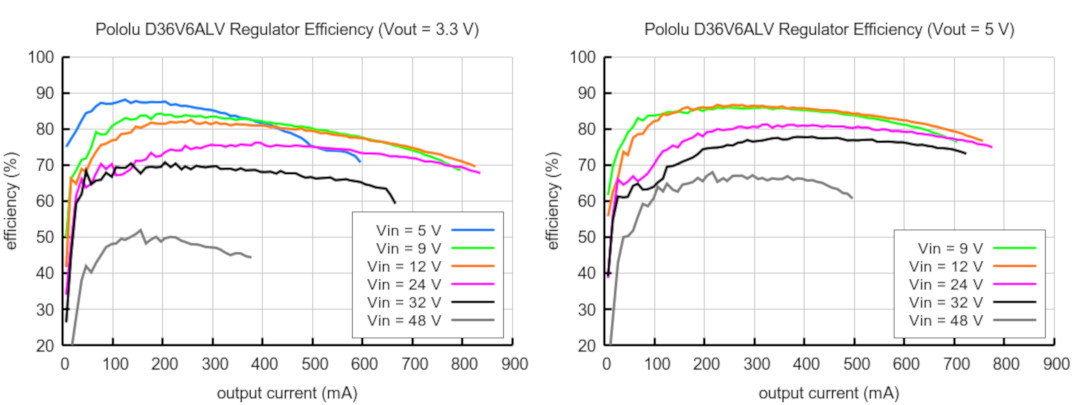

Performance of step-down D36V6ALV - 2.5 V - 7.5 V 0.6 A - Polol 3798
Efficiency is defined as the ratio of output power to input power (Power out)/(Power in).This is an important parameter in the case of operation withaccumulators and batteries, wherethetime of operation on one charging cycle counts.
Specification D36V6ALV - 2.5 V - 7.5 V 0.6 A step-down converter - Polol 3798
- Input voltage: 4 V to 50 V
- Output voltage: 2.5 V to 7.5 V
- Maximum output current: 0,6 A
- Dimensions: 15 mmx 10 mm x 4 mm
- Weight: 0.6 g
