Description

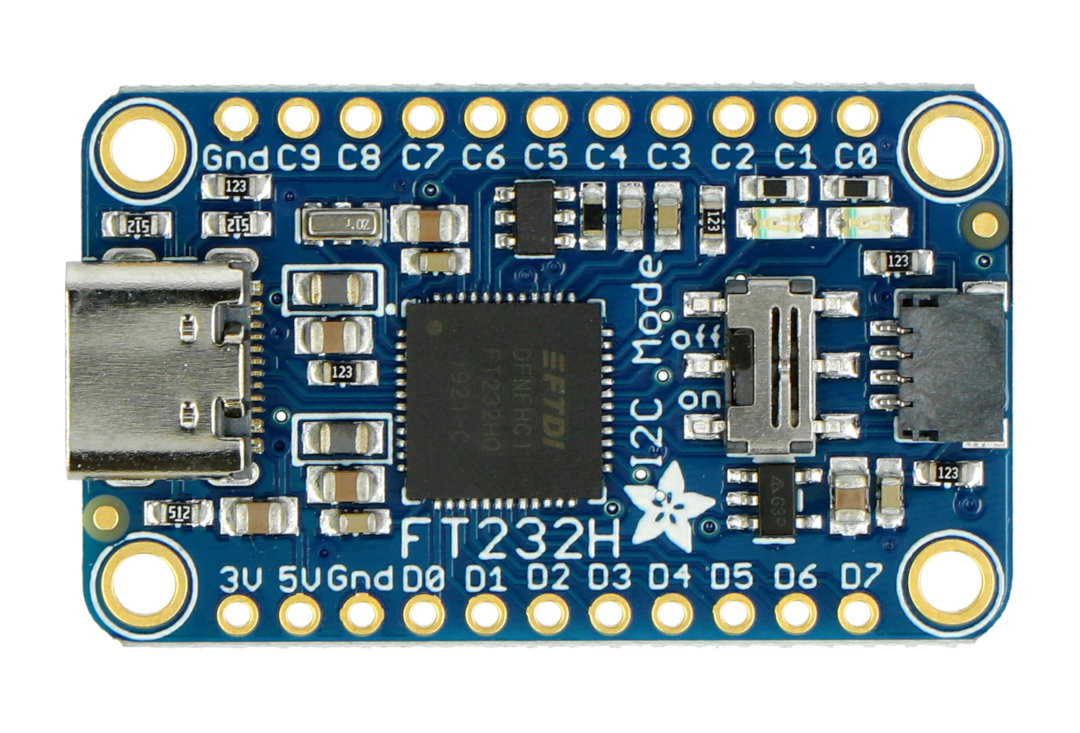

Board allows you to communicate with the modules and sensors directly from the computer. It supports the most popular interfaces: UART, I2C, SPI, it also has some GPIO pins. Thanks to the FT232H, the user does not need a microcontroller, which is the intermediary between the computer and the device or sensor. Chip is supported by the operating systems Windows, Linux and Mac. To connect the device, sufficient isUSB C cable or STEMMA QT /Qwiiccable.
Specification
- Controller: FT232H (documentation)
- PC connectivity - USB C connector
- Supported interfaces: I2C, UART, SPI, GPIO
- Leads:
- goldpin connectors 2.54 mm - strips are included in the kit for self-soldering
- STEMMA QT / Qwiic connectors - not include
- Board dimensions: 23 x 38 x 4 mm
- Weight: 3.5 g
