Specification
- Type of the sensor: PT100
- Probe length: 30 mm
- Probe diameter: 3 mm
- Resistance at 0 °C: 100 Ω
- Temperature range: from -50 °C to 150 °C
- Pin length: 30 cm
- Pins: 2 wires
Characteristic of the PT100 sensor.

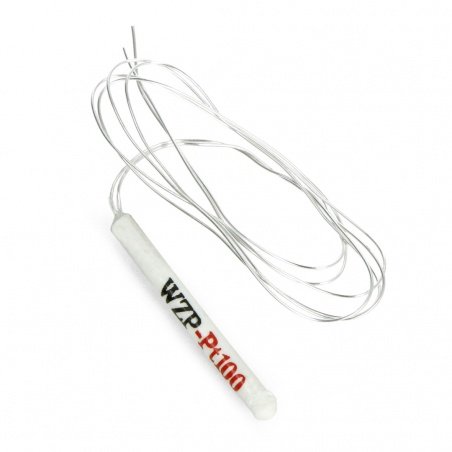

High temperatura probe PT100 - 3x30mm
Index:
SES-07475
EAN:
5904422349493
Analog sensor of high temperature operating in the range from -50 °C to 150 °C. The output is the resistance depending on temperature. The probe's length is 30 mm.
| Package width | 6 cm |
| Package height | 0.4 cm |
| Package depth | 8 cm |
| Package weight | 0.001 kg |
| Marcin
12/13/21 | Question: What device can this probe be connected to? |
Answer: Parameters from the probe can be read from a microcontroller with an analog interface, such as Arduino. https://botland.com.pl/arduino-seria-podstawowa-oryginalne-plytki/1060-arduino-uno-rev3-a000066-8058333490090.html | |
