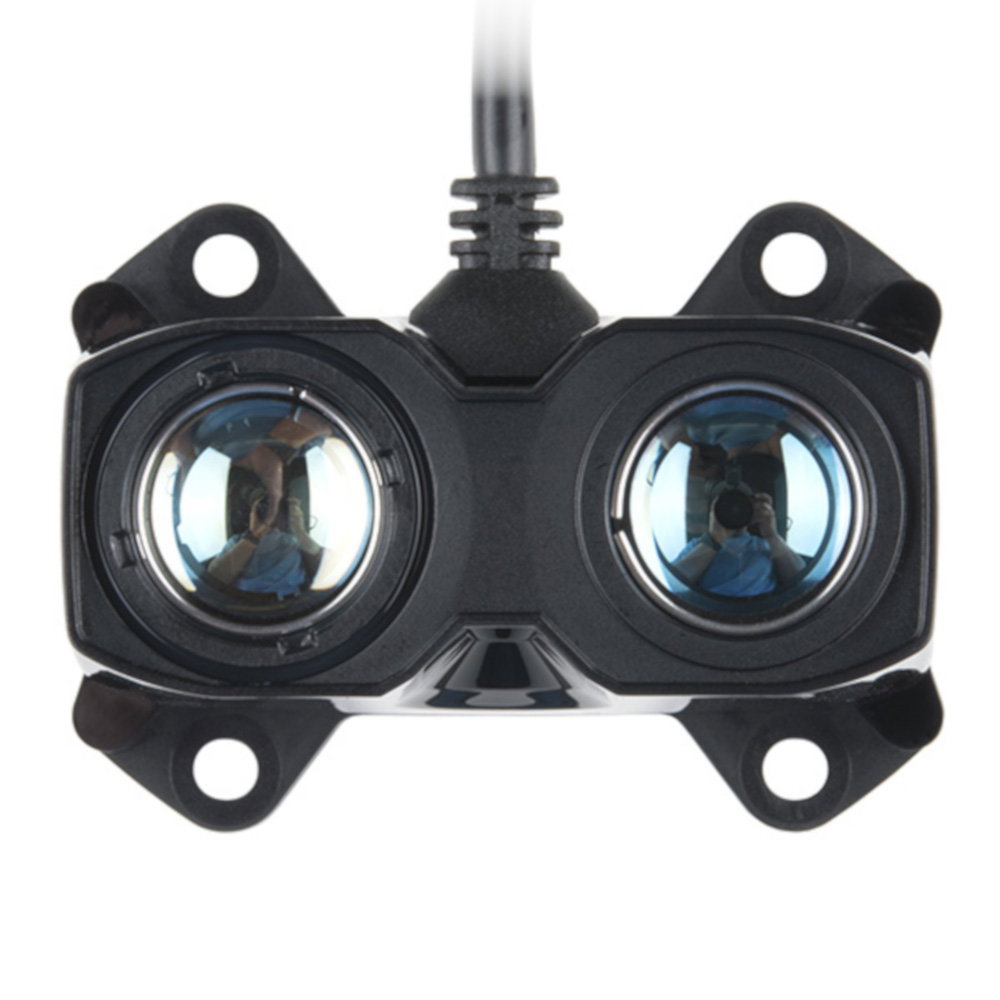

Product description: Lidar Lite v3HP Laser Distance Sensor I2C/PWM - 40 m - SparkFun SEN-14599
Precise laser distance sensor operating in a range of 0.05 m to 40 m with an accuracy of 0.025 m . Operating at a supply voltage of 4.75 V to 5.5 V, it draws up to 85 mA of current. The device communicates via I2C or PWM interfaces. The emitted light wavelength is 905 nm.
Technical specifications of the distance sensor
- Supply voltage: 4.75 to 5 V
- Current consumption: up to 85 mA
- Range: 0.05 to 40 m
- Accuracy: +/- 0.025 m
- Resolution: 1 cm
- Operating frequency: 1000 Hz
- Light beam length: 905 nm / 1.3 W
- Beam divergence: 8 m
- Optical aperture: 12.5 mm
- Operating temperature: -20 °C to 60 °C
- Communication: PWM or I2C
- Dimensions: 53.5 x 33.5 x 24.5 mm
- Weight: 34 g
Attention! The device uses a Class 1 laser , meaning it is safe under normal operating conditions. However, the manufacturer recommends keeping the beam away from eyes. |
The Lidar Lite distance sensor is based on a Garmin sensor. Countries embargoed by the US (i.e., Cuba, Iran, North Korea, Syria, Sudan, Russia, Belarus, and the disputed regions of Ukraine—Crimea, DNR, LNR) —are excluded from purchase and export.
Lidar Lite v3HP Laser Distance Sensor I2C/PWM - 40m - SparkFun SEN-14599
The Lidar Lite v3HP laser distance sensor created by SparkFun is a device that is perfect for various electronic projects, such as DIY robots, alarm systems, and measuring instruments.
The sensor has a very wide measurement range - it can measure distances from 5 cm to up to 40 m. The device can be powered by a voltage ranging from 4.75 V to 5 V, and its maximum current consumption is up to 85 mA.
Distance sensor with laser scanner for Arduino
The Lidar Lite v3HP laser scanning distance sensor utilizes I2C and PWM communication interfaces (optional). The device is compatible with a variety of microcontrollers, including the popular Arduino platform.
Our offer also includes other laser scanners and distance sensors using other technologies (including ultrasonic). We also offer a wide selection of other sensor types, including temperature and humidity, pressure, force, light intensity, and many others.
