Product description: ToF4M - distance sensor - 400 cm - VL53L1X - Unit expansion module - M5Stack U172
ToF4M is an advanced distance sensor module based on Time-of-Flight technology, which offers precise distance measurement in the range from 4 cm to 400 cm with an accuracy of 0.1 mm . Thanks to this, it is able to detect even the smallest changes in distance and record details of the surface of objects. The fast response time allows measurements to be taken within milliseconds, making the ToF4M Unit ideal for applications requiring immediate response. The module uses the I2C communication protocol, ensuring simplified connection, support for multi-master and multi-slave topologies and high reliability. It can be easily integrated into existing sensor buses , effectively saving I/O resources. A standard cable with a Grove interface guarantees stable and reliable signal transmission. Working with the M5Stack hardware ecosystem, ToF4M offers plug-and-play functionality, enabling rapid project development.
Also check out the user guide prepared by the manufacturer!

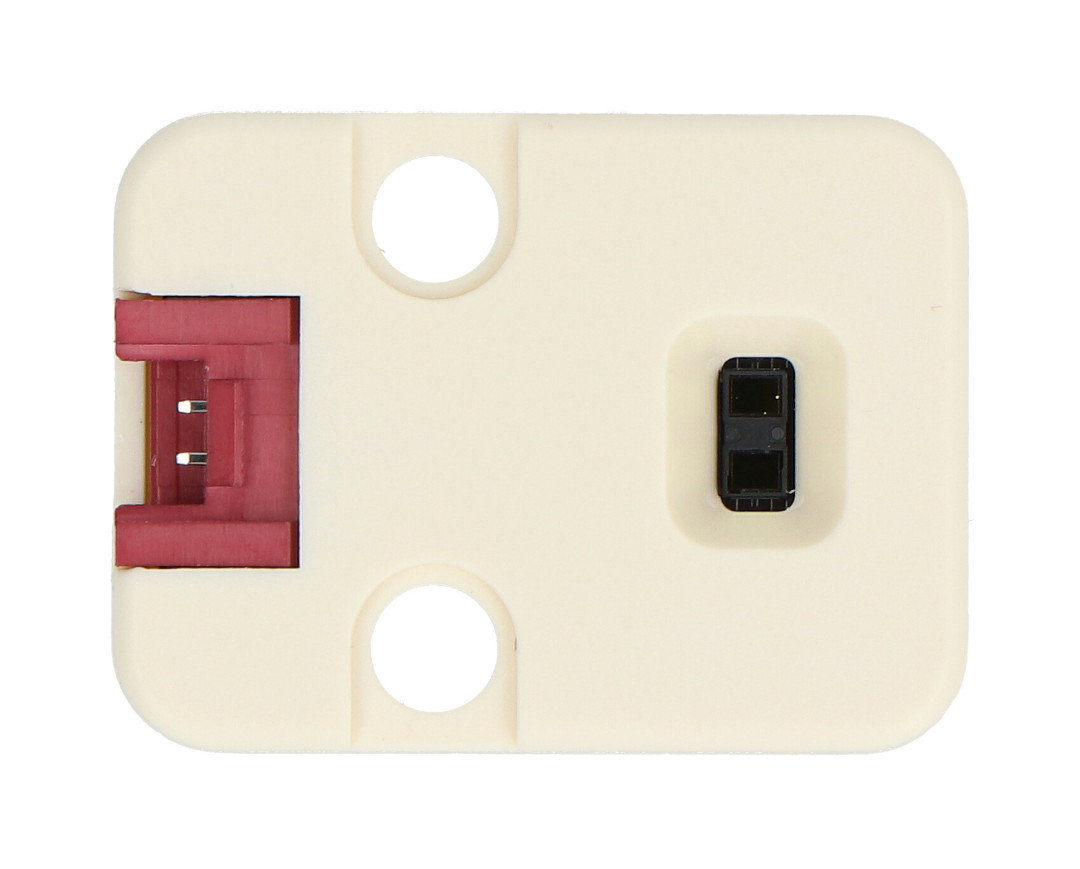

ToF4M - distance sensor - 400 cm - VL53L1X - Unit expansion module - M5Stack U172.
The module offers distance measurement in the range from 4 cm to 400 cm with an accuracy of 0.1 mm.
Special features of the module
- Wide measuring range: the module can measure distances ranging from 4 cm to 400 cm, making it a versatile tool for a variety of applications.
- High precision: ToF4M Unit offers very high measurement precision, up to 0.1 mm.
- Fast response time: ToF4M Unit performs measurements within milliseconds.
- Applications in many fields: The module is suitable for robotics, autonomous vehicles, drones, security systems and other applications.
- Programming Platform: Supports programming platforms such as Arduino, UIFlow, etc.

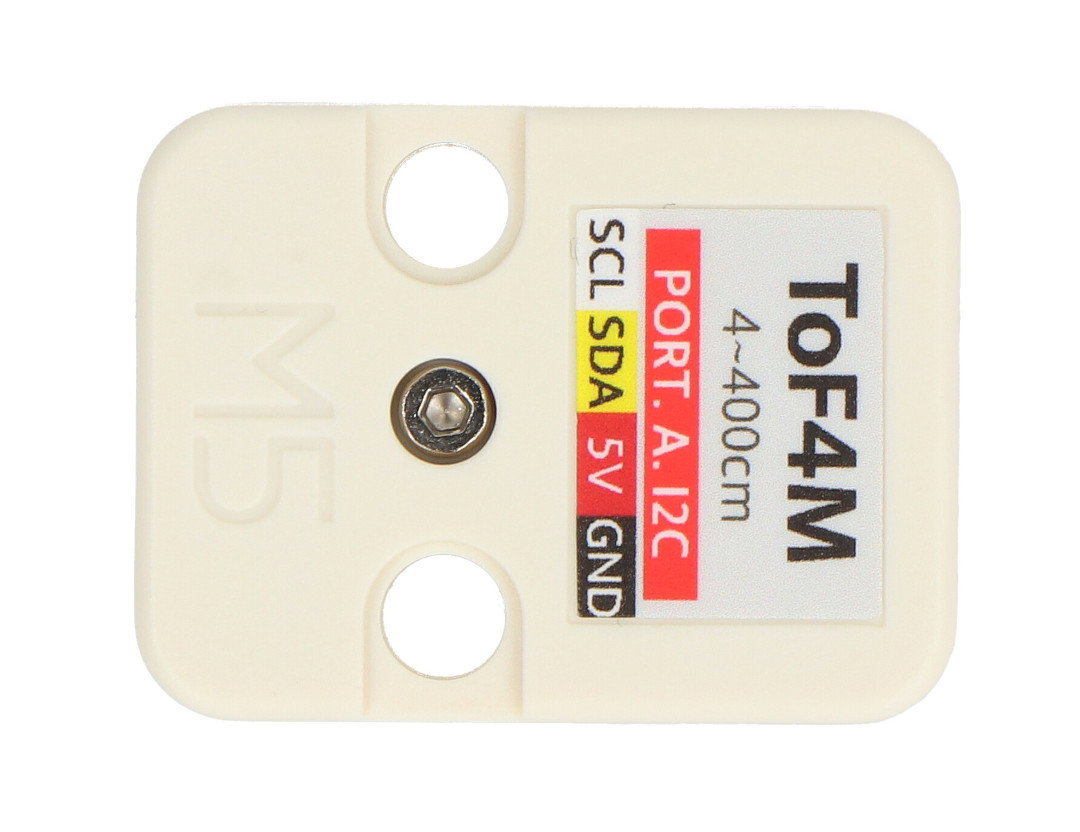

- I2C interface: ToF4M uses the I2C communication protocol, which ensures easy integration with other devices and systems.
- Plug-and-play: easy integration into the M5Stack ecosystem.
How does the ToF4M module work?
ToF4M Unit uses Time-of-Flight (ToF) technology to precisely measure distances. The VL53L1CXV0FY/1 sensor emits a laser pulse that is reflected from the object and returns to the sensor. The device measures the time it takes for the impulse to return and then converts this time into distance . Thanks to this, ToF4M is able to detect even the smallest changes in distance with exceptional precision of up to 0.1 mm.
Elements included in the set.
Technical specifications of the distance sensor
- Sensor: VL53L1CXV0FY/1
- Measuring range: from 4 cm to 400 cm
- Resolution: 1 mm
- Measuring speed: 1 ms
- Field of View (FoV): 15° to 27°
- Light source: laser (ToF)
- I2C address: default 0x29
- Operating temperature range: from 0°C to 40°C
- Dimensions: 32 x 24 x 8 mm
- Weight: 4.4 g

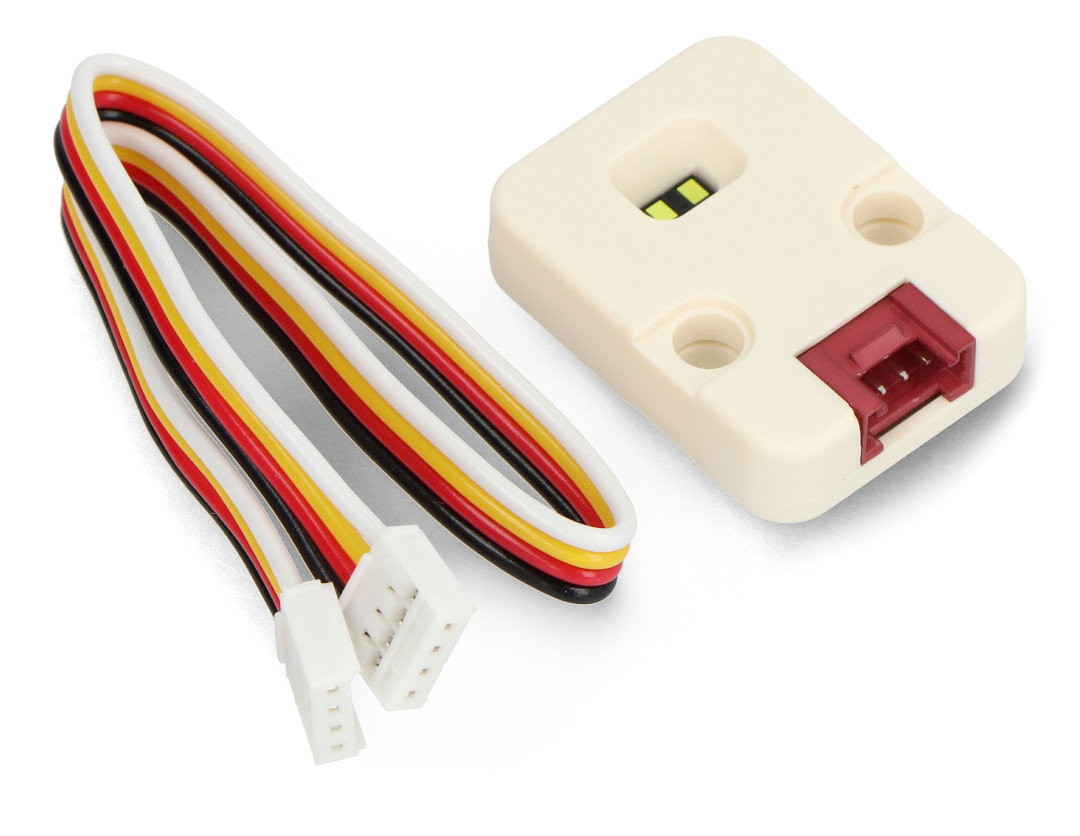

Set contains
- ToF4M - distance sensor - 400 cm - VL53L1X - Unit expansion module - M5Stack U172
- Connection cable with Grove connector - 20 cm
