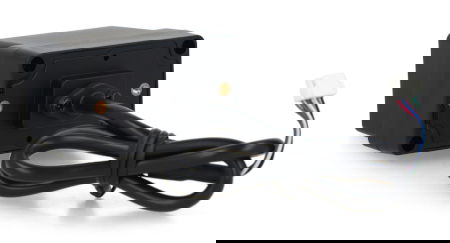

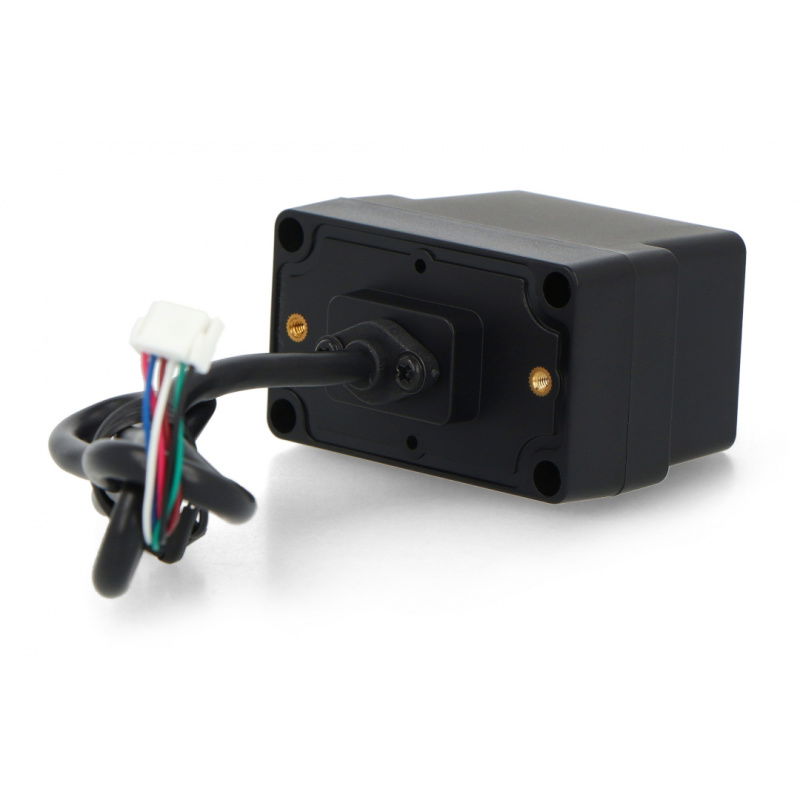

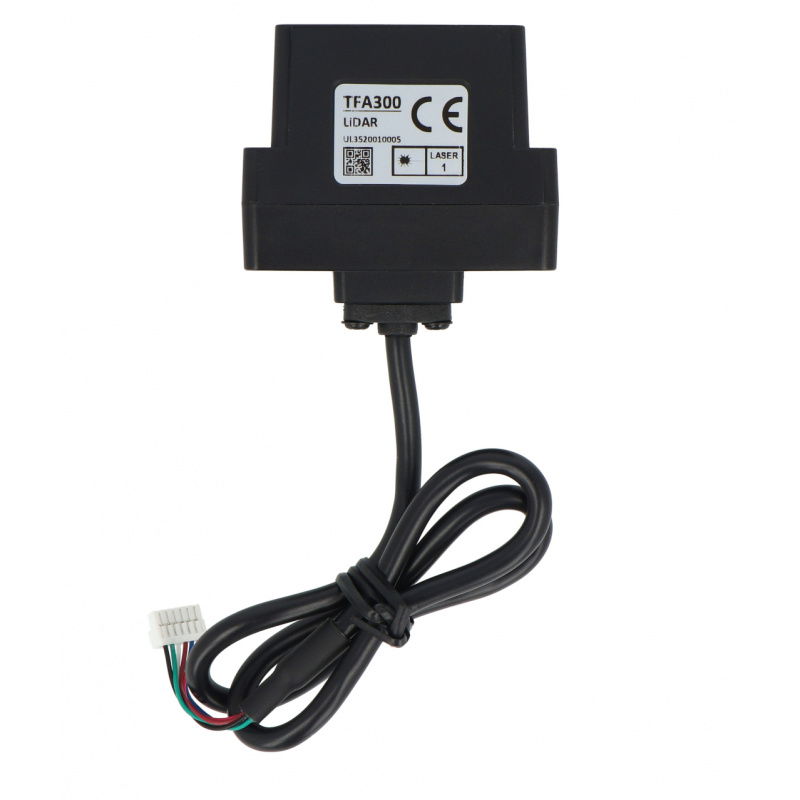

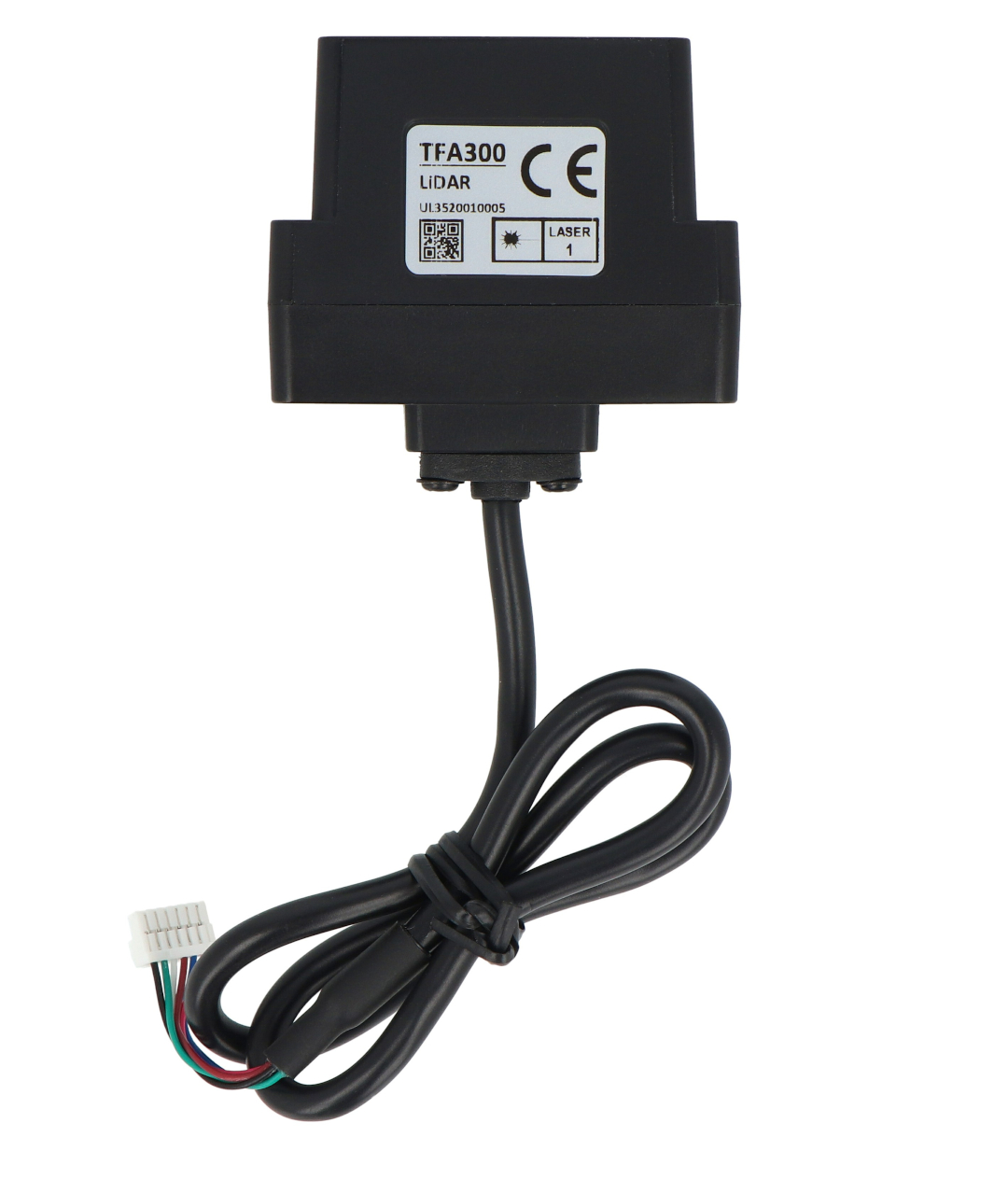

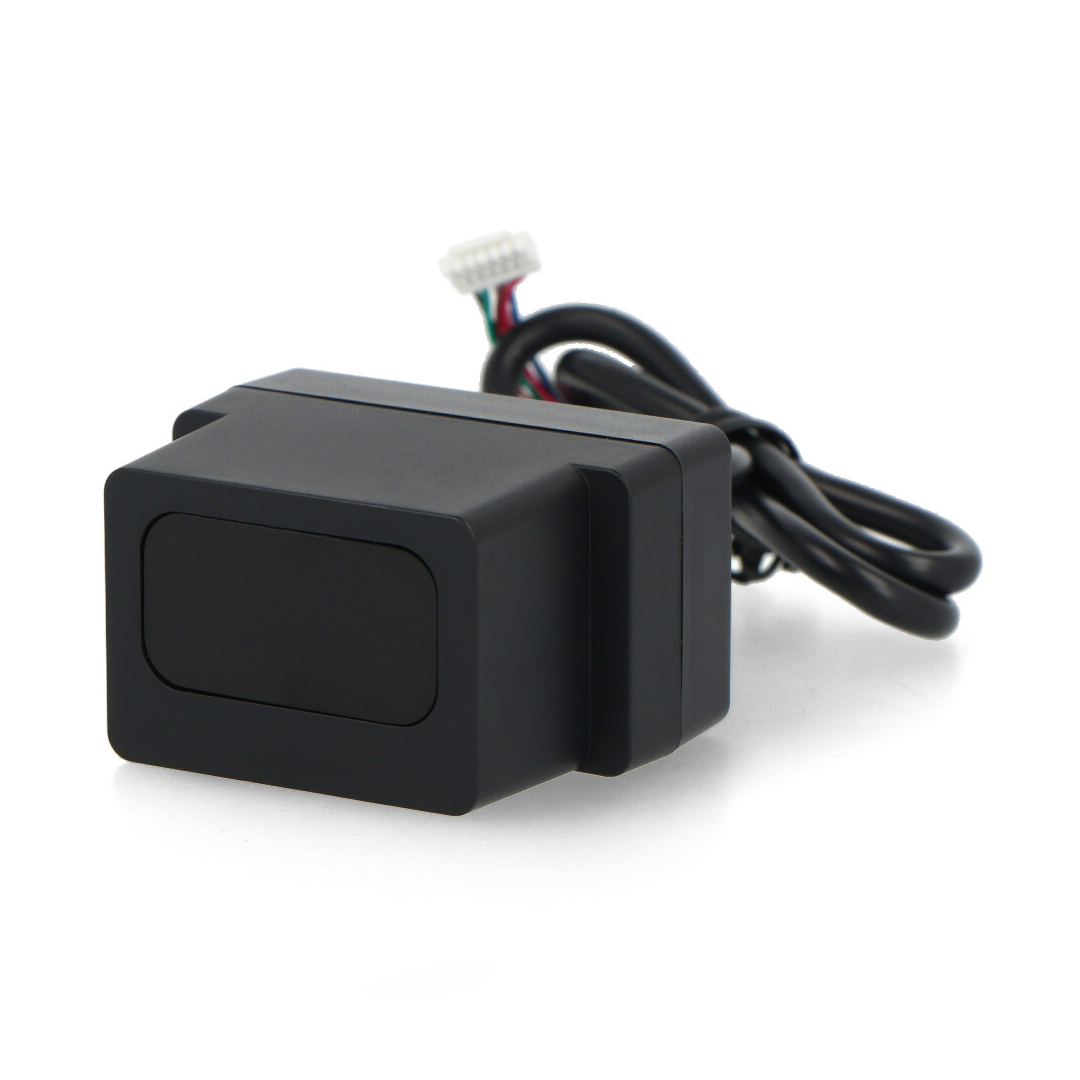

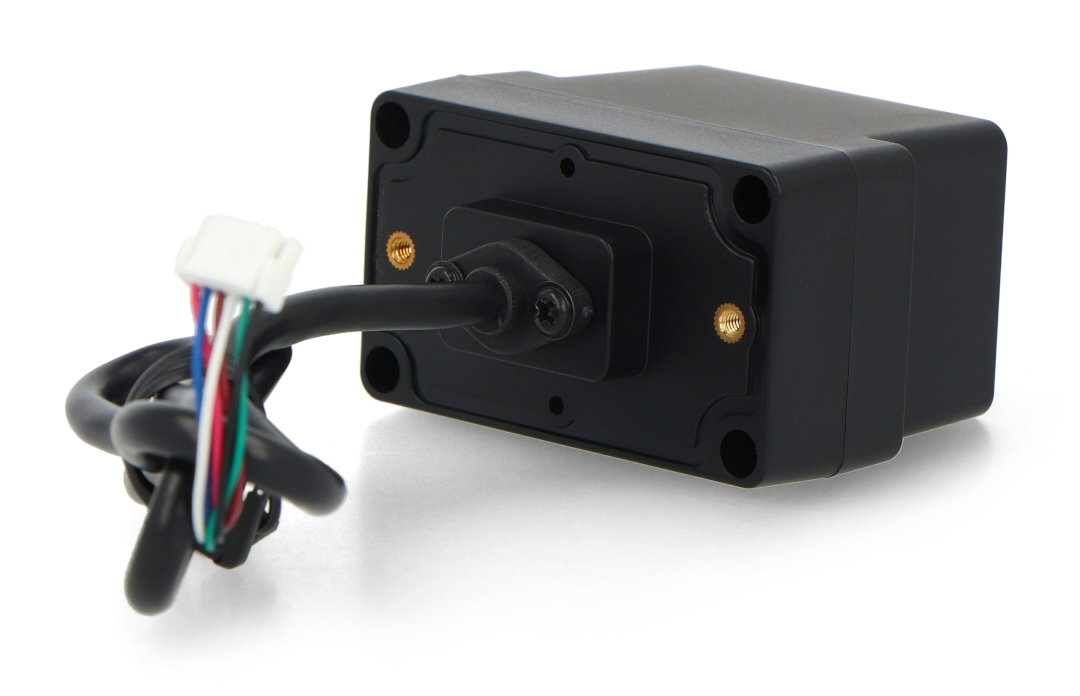

Product description: Lidar Laser Distance Sensor - UHF 10000 Hz - 270 m - UART / CAN - for Drones and UAVs - Benewake TFA300
The TFA300 LiDAR module is an advanced solution with a measurement frequency of up to 10,000 Hz , enabling precise monitoring of the surroundings of drones, UAVs, and autonomous vehicles. A range of up to 270 m and a measurement frequency of 10,000 times per second enable rapid obstacle detection, giving devices more time to react. Weighing just 34.5 g , its compact size facilitates integration with electro-optical systems, EO/IR gimbals, and FPV drones . Its rugged design ensures resistance to harsh weather conditions (rain, fog, dust) and extreme temperatures. The TFA300 features a CAN interface and JST GH connectors , ensuring easy integration with control platforms without the need for adapters. It supports the DroneCAN protocol, enabling quick connection to popular flight controllers. With support for applications such as automatic camera focus adjustment, precise localization, and obstacle avoidance, the TFA300 is ideal for SAR drones, transport drones, and systems requiring rapid response .
Lidar Laser Distance Sensor - UHF 10000 Hz - 270 m - UART / CAN - for drones and UAVs - Benewake TFA30.
The TFA300 features a CAN interface and JST GH connectors for easy integration into control platforms without the need for adapters.Special features
- High measurement frequency: up to 10,000 Hz, allowing for faster obstacle detection and distance updates
- Range up to 270 m: allows detection of objects at long distances
- Compact and lightweight: weighs only 34.5g, easy to integrate with drones and EO/IR systems
- Resistance to harsh weather conditions: operation in rain, fog, dust and extreme temperatures
- Built-in CAN interface: allows easy integration with flight control platforms and no adapters required
- Measurement accuracy: ±10 cm (<10 m), 1% (>10 m)
- DroneCAN Compatibility: Support for Future-Proof Flight Controllers
Practical applications
- SAR rescue drones: accurate monitoring of the surroundings in difficult conditions
- Transport drones: ensuring precise obstacle avoidance and stable navigation
- FPV Racing Drones: Quickly Detect Obstacles and Maintain a Constant Altitude
- EO/IR gimbal systems: automatic camera focus and precise object location
Reliable LiDAR solution for drones and autonomous vehicles in harsh environments
The TFA300 LiDAR module is a reliable solution for drones and autonomous vehicles that require fast and accurate environmental sensing. Thanks to its advanced technology, this sensor effectively eliminates the issues associated with false detections common in traditional LiDAR systems. Ideal for outdoor applications, it ensures reliability and accuracy in every situation.
Range up to 270 m and measurement frequency of 10,000 times per second allow for quick detection of obstacles, giving devices more time to react
Its reinforced construction ensures resistance to harsh weather conditions (rain, fog, dust) and extreme temperatures.Technical specifications of the module
- Measurement frequency: 1 Hz to 1000 Hz (default 50 Hz), up to 10000 Hz in ultra-high-frequency mode
- Detection range:
- 270 m at 90% reflectance, 100 KLux
- 150 m at 30% reflectance, 100 KLux
- 90 m at 10% reflectance, 100 KLux
- Field of View (FoV): < 0.5°
- Ambient light resistance: 100 KLux
- Accuracy: ±10 cm (<10 m), 1% (>10 m)
- Operating temperature: -20°C to 60°C
- Communication interface: UART / CAN
- Connectors: JST GH 1.25 mm, 6 pins
- Average power consumption: ≤ 0.45 W
- Maximum current: < 0.75 A
- Power supply: DC 5V
- Environmental resistance: operation in rain, fog, dust, high light intensity
- Operating mode: continuous and duty cycling
- Weight: 34.5 g
- Dimensions: 48 x 37 x 28.6 mm
Contents of the set

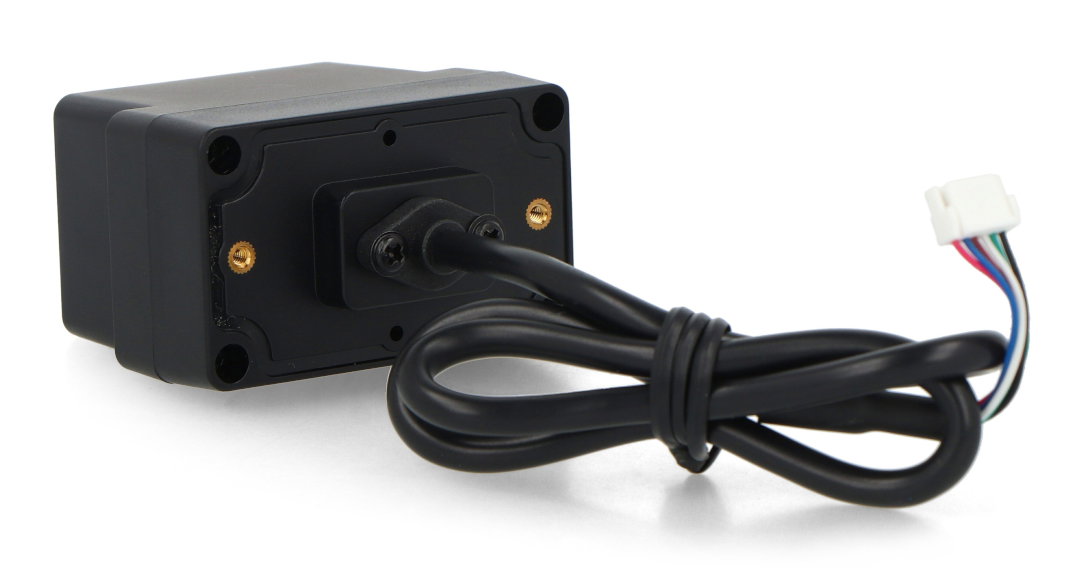

- 1x TFA300 LiDAR Module
- 1x Cable
