Lidar TF02-i IP65 - laser distance sensor - 40m - RS485

Index: BEN-21540
Benewake LiDAR TF02-i is a laser distance sensor with a measuring range from 0.1 m to 40 m with an accuracy of 0.05 m . The sensor is supplied with the voltage from 7 V to 30 V, for communication it uses the RS485 communication interface. The length of the emitted light wave is 850 nm. It is equipped with advanced algorithms so that it can work in various conditions. The sensor is closed in a dustproof and waterproof casing resistant to corrosion, with a protection class of IP65.
Lidar TF02-i IP65 - laser distance sensor - 40m - RS485
€162.90
€132.44 tax excl.
Waiting time: 6-8 weeks
Only on request
30-day returns
PayPal payment
Laser distance sensor Lidar TF02-i IP65 - 40m - interface:
Manufacturer: Benewake

Product description: Lidar TF02-i IP65 laser distance sensor - 40m - RS485

Benewake LiDAR TF02-i is a laser distance sensor with a measuring range from 0.1 m to 40 m with an accuracy of 0.05 m . The sensor is supplied with the voltage from 7 V to 30 V, for communication it uses the RS485 communication interface. The length of the emitted light wave is 850 nm. It is equipped with advanced algorithms so that it can work in various conditions. The sensor can operate at 100 klux brightness without affecting temperature, humidity, light, electronics and airflow. The scan frequency is adjustable up to 1000 Hz. The sensor is closed in a dustproof and waterproof casing resistant to corrosion, with a protection class of IP65.

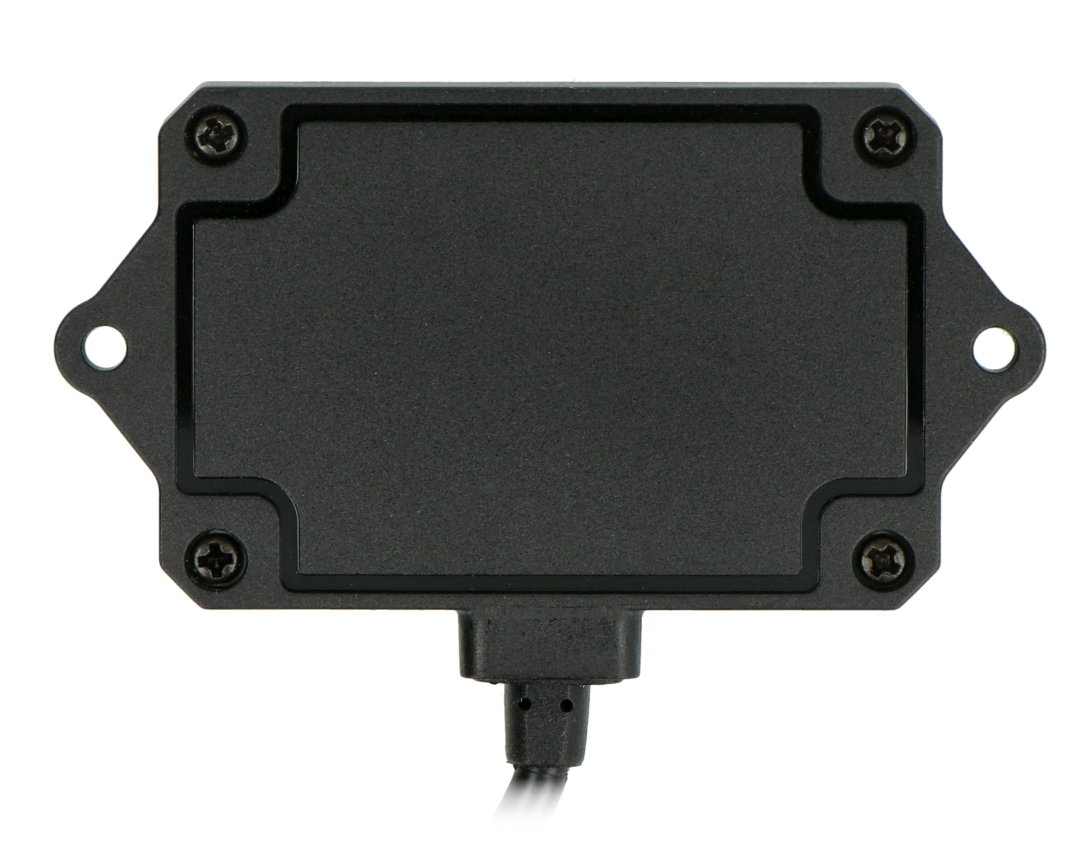

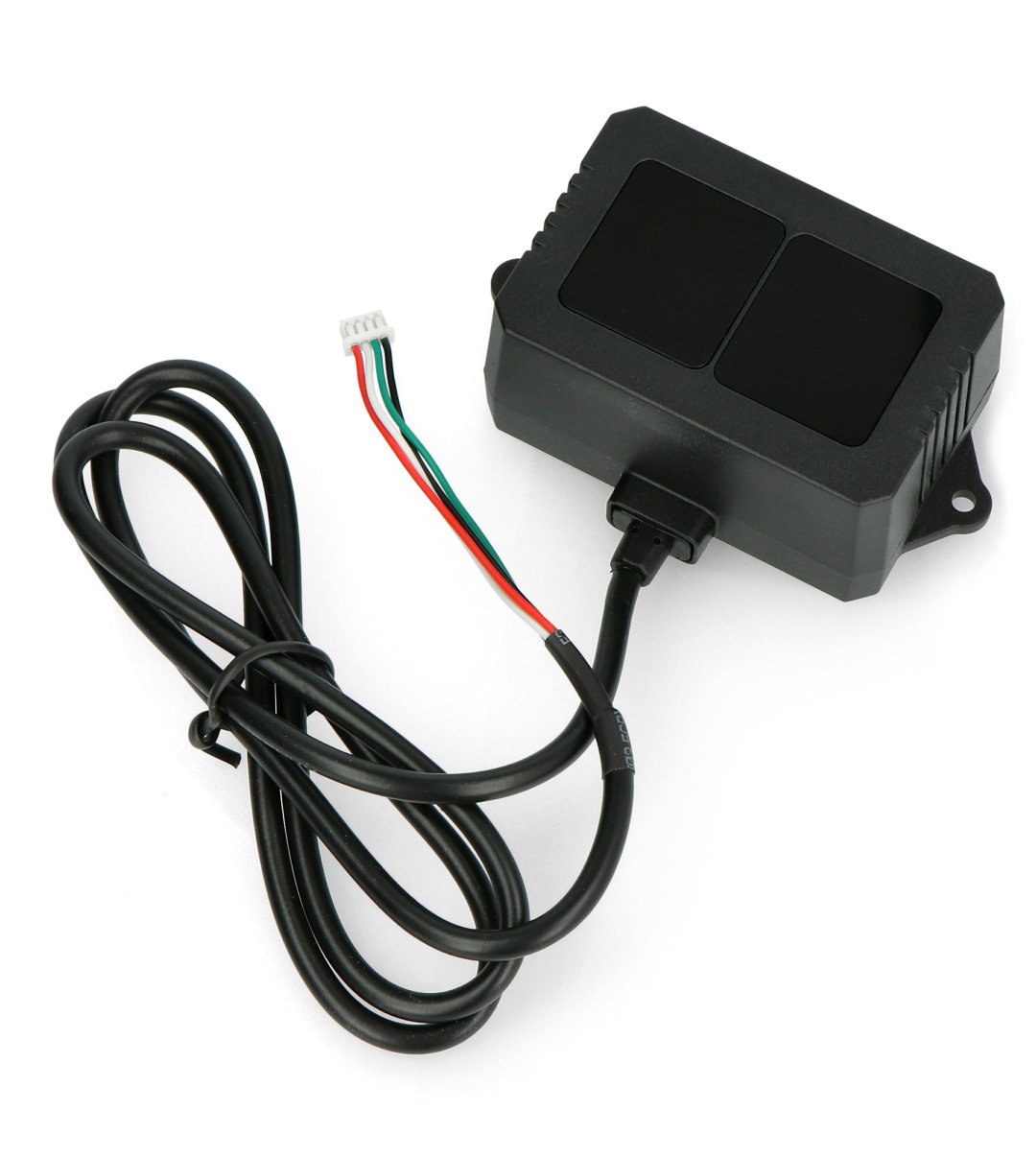

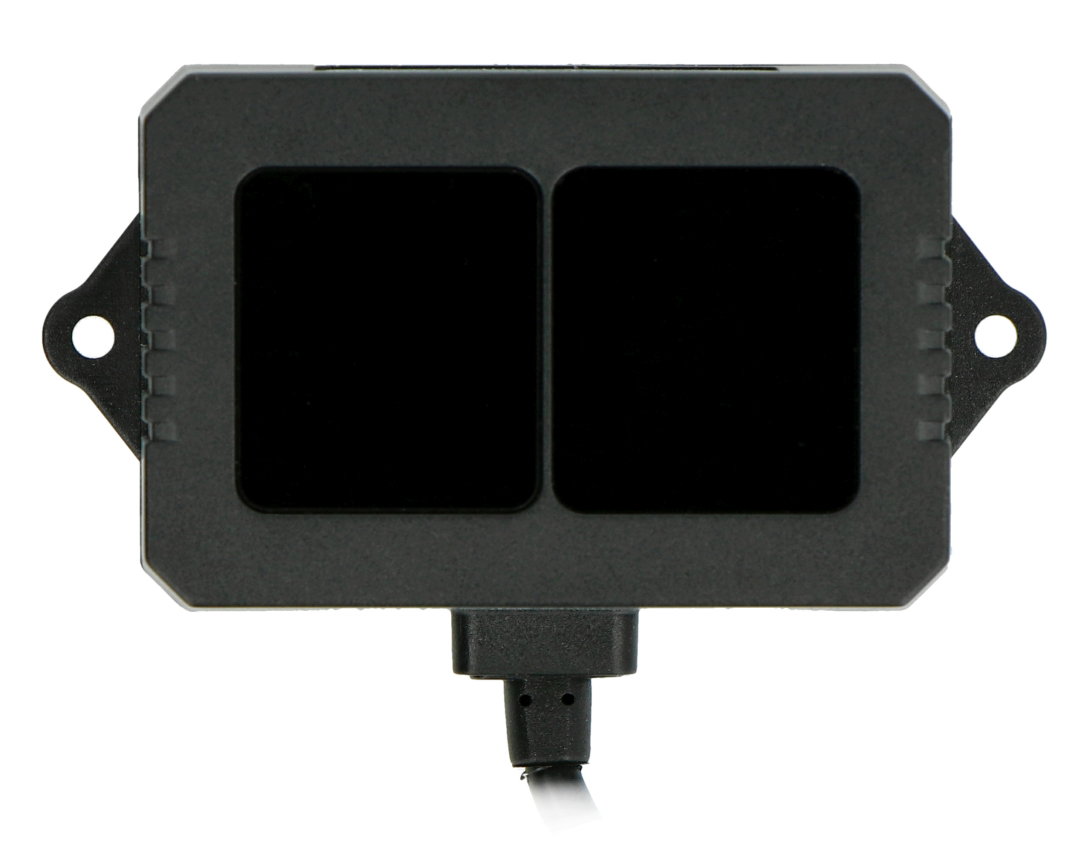

Laser distance sensor TF02-i LiDAR laser distance sensor.
Laser distance sensor from 0.1 to 40 m Laser distance sensor from 0.1 m to 40 m.

Better parameters and a durable housing

TF02-i laser distance sensor with a measuring range from 0.1 m to 40 m and a measuring error range up to 5 cm . The operating frequency of the sensor is adjustable from 1 to 1000 Hz (the default is 100 Hz). Optimized and improved algorithm makes it more accurate. LiDAR has been closed in a small, durable housing with IP65 tightness class.

Advanced algorithm and high accuracy

The sensor is based on ToF (Time of Flight) technology, it can work with lighting up to 100 klux. A special optical system and advanced algorithms make the product resistant to interference from ambient light and other weather conditions, which ensures high data accuracy.

Advanced algorithms Advanced algorithms.
TF02 i

Lidar TF02-i IP65 laser distance sensor - 40m - CAN.

Application of the TF02-i sensor

  • Traffic safety warnings
  • Obstacle detection / fall prevention
  • Industrial robots
  • Traffic statistics
  • Drone obstacle avoidance and altitude hold mode

Specification of the Lidar TF02-i distance sensor

  • Supply voltage: 7 V to 30 V
  • Current consumption: ≤ 70 mA / 12 V
  • Power consumption: ≤ 0.85 W / 12 V
  • Peak current: 100 mA
  • Photobiological Safety: Class1 (EN60825)
  • Measurement range:
    • for 90% reflectance: 0.1 to 40 m
    • for a reflectivity of 10%: from 0.1 to 13.5 m
    • for 90% reflectance and 100 klux: 0.1m to 40m
    • for 10% reflectance and 100 klux: 0.1 m to 13.5 m
  • Accuracy:
    • up to 5 m: ± 5 cm
    • from 5 m: 1%
  • Resolution: 1 cm
  • Repeatability: 1σ : <2 cm="" li="">
  • Operating frequency: 1 Hz to 1000 Hz (default 100 Hz)
  • Light beam length: 850 nm
  • Operating angle: 3 °
  • Protection degree: IP65
  • Housing material: PC / ABS / PMMA
  • Corrosion resistant
  • Resistant to contamination
  • Ambient light resistant up to 100 klux
  • Working temperature: -20 ° C to 60 ° C
  • Storage temperature: -30 ° C to 80 ° C
  • Communication: RS485
  • Cable length: 70 cm
  • Dimensions: 69 x 41.5 x 31.5 mm
  • Weight: 60 g

Voltage to 7.0 V
Voltage from 30.0 V
Sensor - type distance
Sensor - distance to 4000 cm
Sensor - distance from 10 cm
