Product description: Lidar TF02-i IP65 laser distance sensor - 40m - CAN
Benewake LiDAR TF02-i laser distance sensor , which measures in the range from 0.1 m to 40 m with an accuracy of 0.05 m . It is supplied with the voltage from 7 V to 30 V. The communication device uses the CAN communication interface. The length of the emitted light wave is 850 nm. It is equipped with advanced algorithms so that it can work in various conditions. The sensor can operate at 100,000 lux without affecting temperature, humidity, light, electronics and airflow. The scanning frequency is up to 1000 Hz. The sensor is closed in a dustproof and waterproof casing resistant to corrosion, with a protection class of IP65. The housing is made of PC, ABS and PMMA materials.

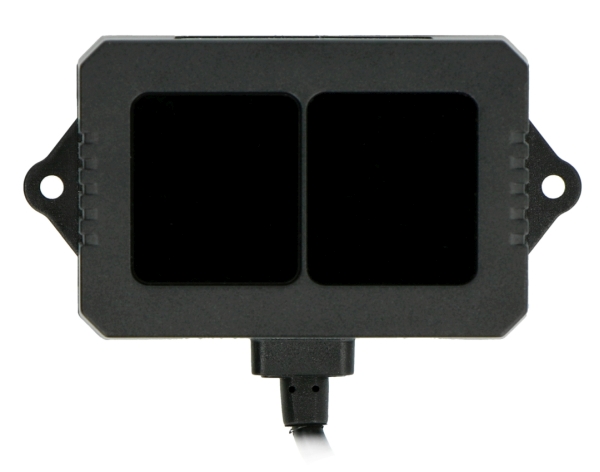

TF02-i LiDAR laser distance sensor.

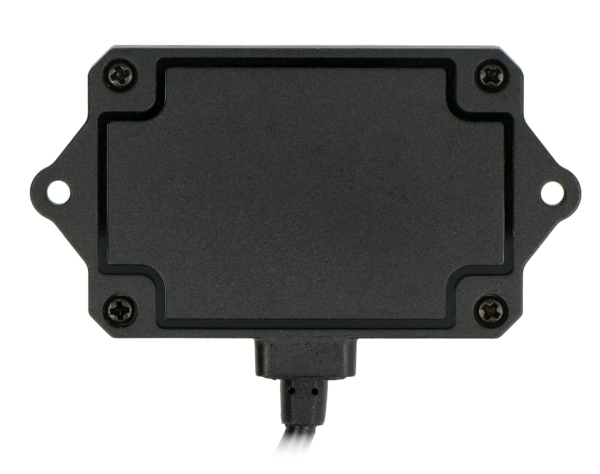

Laser distance sensor from 0.1 m to 40 m.Better parameters and a durable housing
The TF02-i is a laser distance sensor whose measuring range is 0.1 m to 40 m and the measuring error range is only 5 cm . The operating frequency of the sensor is adjustable from 1 to 1000 Hz (the default is 100 Hz). Optimized and improved algorithm makes it more accurate. The whole is closed in a small, durable housing with IP65 tightness class.
Advanced algorithm and high accuracy
The sensor works based on the ToF (Time of Flight) technology, it can work with lighting up to 100 klux. Thanks to a special optical system and algorithm, the product is resistant to interference from ambient light and other weather conditions, which ensures high data accuracy.
Advanced algorithms.

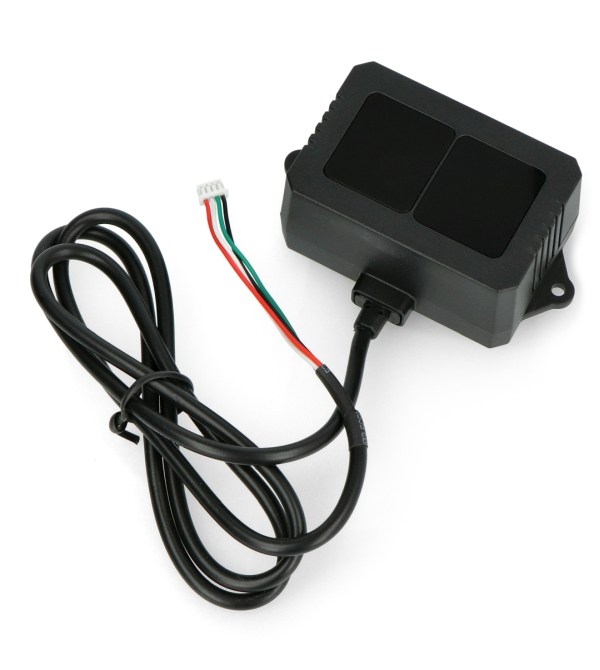

Lidar TF02-i IP65 laser distance sensor - 40m - CAN.
Application of the TF02-i sensor
- Traffic safety warnings
- Obstacle detection / fall prevention
- Industrial robots
- Traffic statistics
- Drone obstacle avoidance and altitude hold mode
Specification of the Lidar TF02-i distance sensor
- Supply voltage: 7 V to 30 V
- Current consumption: ≤ 70 mA / 12 V
- Power consumption: ≤ 0.85 W / 12 V
- Peak current: 100 mA
- Photobiological Safety: Class1 (EN60825)
- Measurement range:
- for 90% reflectance: 0.1 to 40 m
- for a reflectivity of 10%: from 0.1 to 13.5 m
- for 90% reflectance and 100 klux: 0.1m to 40m
- for a reflectivity of 10% and 100 klux: 0.1 m to 13.5 m
- Accuracy:
- up to 5 m: ± 5 cm
- from 5 m: 1%
- Resolution: 1 cm
- Repeatability: 1σ ： <2 cm="" li="">
- Operating frequency: 1 Hz to 1000 Hz (default 100 Hz)
- Light beam length: 850 nm
- Operating angle: 3 °
- Protection degree: IP65
- Housing material: PC / ABS / PMMA
- Corrosion resistant
- Resistant to contamination
- Ambient light resistant up to 100 klux
- Working temperature: -20 ° C to 60 ° C
- Storage temperature: -30 ° C to 80 ° C
- Communication: CAN
- Cable length: 70 cm
- Dimensions: 69 x 41.5 x 31.5 mm
- Weight: 60 g
