Rangefinder - TF03 LiDAR sensor IP67 - 180m - analog

Index: BEN-21532

The Benewake TF03 is a fast, industrial, LiDAR laser distance sensor measuring in the range from 0.1 to 180 m with an accuracy of 10 cm (in the range of 10 m). It is supplied with the voltage from 5 V to 24 V and consumes up to 150 mA of current. The sensor is equipped with compensated algorithms for glare from outside light and other disturbances, so it can work in strong lighting and rain, fog and snow. The communication device uses a current analog signal of 4 mA to 20 mA. It has an IP67 housing.

Rangefinder - TF03 LiDAR sensor IP67 - 180m - analog
€407.50
€331.30 tax excl.
Waiting time: 6-8 weeks
Only on request
PayPal payment
Lidar TF350 IP67 laser distance sensor - analog - range:
Manufacturer: Benewake

Product description: Lidar TF03 IP67 laser distance sensor - 180m - RS485 / RS232

The Benewake TF03 is a fast, industrial, LiDAR laser distance sensor measuring in the range from 0.1 to 180 m with an accuracy of 10 cm (in the range of 10 m). It is supplied with the voltage from 5 V to 24 V and consumes up to 150 mA of current. The sensor is equipped with compensated algorithms for glare from outside light and other disturbances, so it can work in strong lighting and rain, fog and snow. The communication device uses a current analog signal of 4 mA to 20 mA. It has an IP67 housing. The sensor is used in drones, car collision avoidance, intelligent transportation and industrial safety alert.

Compact and durable
Compact and durable housing for LiDAR TF03 sensor.

Efficient and compact laser sensor

The Benewake TF03 laser sensor is equipped with a unique design of the optical system and signal processing circuit, which ensures high detection efficiency and is also compact in size. In addition to the long measuring range of 180 m, it has excellent parameters throughout the range, such as distance resolution, accuracy, repeatability and detection frequency. The housing of the TF03 is made of an aluminum alloy and glass transmitting infrared radiation to improve the overall strength. The degree of protection of the housing is IP67, thanks to which the sensor can be used in extreme environments.

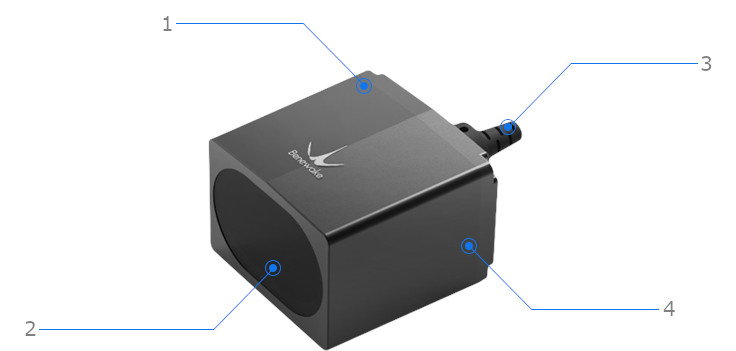

  1. Housing made of aluminum and glass
  2. Anti-vibration and anti-shock
  3. Communication interface
  4. IP67 tightness class

Application of the LiDAR TF03 sensor

  • Vehicle Counting - To ensure the proper operation of the traffic management system and to provide accurate and reliable traffic information, Benewake LiDAR provides solutions according to the actual requirements and integrated with the road monitoring system.
  • Drones, Obstacle Avoidance, and Altitude Hold - Benewake LiDAR equipped drones can perform ground-keeping and obstacle avoidance tasks in applications such as patrolling, security, farming and deliveries.
  • Industrial Safety Distance Warnings - Benewake LiDAR can alert you of unsafe distance and activate alarm systems to reduce the accident rate in all types of industrial environment. LiDAR has been used in tower cranes, thanks to which alarms about a safe distance have been implemented.

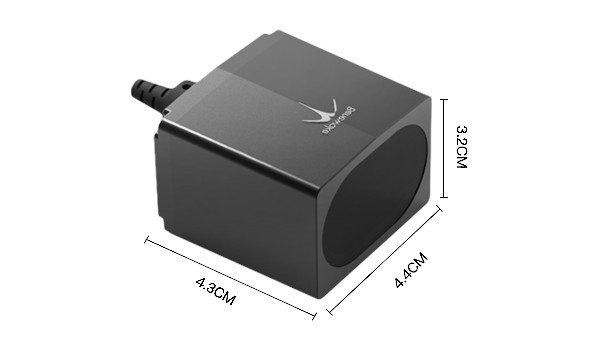

Compact dimensions Compact dimensions of the laser distance sensor.
Benewake LiDAR TF03 Benewake LiDAR TF03.

Lidar TF03 sensor specification

  • Supply voltage: 5 V to 24 V
  • Power consumption:
    • ≤ 150 mA @ 5V
    • ≤ 80 mA @ 12 V
    • ≤ 50 mA @ 24 V
  • Photobiological Safety: Class1 (EN60825)
  • Measurement range:
    • for 90% reflectance: from 0.1 to 180 m
    • for a reflectivity of 10%: from 0.1 to 70 m
    • for 90% reflectance and 100 k lux: 0.1 to 130 m
    • for a reflectivity of 10% and 100 k lux: 0.1 to 50 m
  • Accuracy:
    • up to 10 m: ± 10 cm
    • from 10 m: 1%
  • Resolution: 1 cm
  • Repeatability: 1σ : <3 cm="" li="">
  • Operating frequency: 1 Hz to 1000 Hz (default 100 Hz)
  • Light beam length: 905 nm
  • 0.5 ° contact angle
  • Protection degree: IP67
  • Corrosion resistant
  • Resistant to contamination
  • Ambient light resistant up to 100 klux
  • Working temperature: -25 ° C to 60 ° C
  • Storage temperature: -40 ° C to 85 ° C
  • Communication: analog signal from 4 mA to 20 mA
  • Cable length: 70 cm
  • Dimensions: 44 x 43 x 32 mm
  • Weight: 92 g

Voltage to 5.0 V
Voltage from 24.0 V
Sensor - type distance
Sensor - distance to 180 000 cm
Sensor - distance from 10 cm
