Fermion - SHTC3 I2C temperature and humidity sensor - DFRobot SEN0414

Index: DFR-20677 EAN: 6959420921027
The SHTC3 temperature and humidity sensor on the Fermion series DFRobot board. The SHTC3 can measure humidity from 0% to 100% RH with an accuracy of ±2% RH and temperature from -40°C to 125°C with an accuracy of ±0.2°C. The module uses I2C interface for communication. The board is powered from 3.3 V to 5 V and consumes less than 0.15 mA in low-power mode, making it ideal for battery-powered mobile and wireless devices.
Fermion - SHTC3 I2C temperature and humidity sensor - DFRobot SEN0414
€6.50
€5.28 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino Raspberry Pi Micro:bit

Product description: Fermion - SHTC3 I2C temperature and humidity sensor - DFRobot SEN0414

The SHTC3 temperature and humidity sensor sits on the Fermion series DFRobot board. SHTC3 allows to measure humidity in the range from 0% to 100% RH with an accuracy of ±2% RH and temperature in the range from -40°C to 125°C with an accuracy of ±0.2°C. The module uses I2C interface for communication. The board is powered from 3.3 V to 5 V and draws less than 0.15 mA in low-power mode, making it ideal for battery-powered mobile and wireless devices.

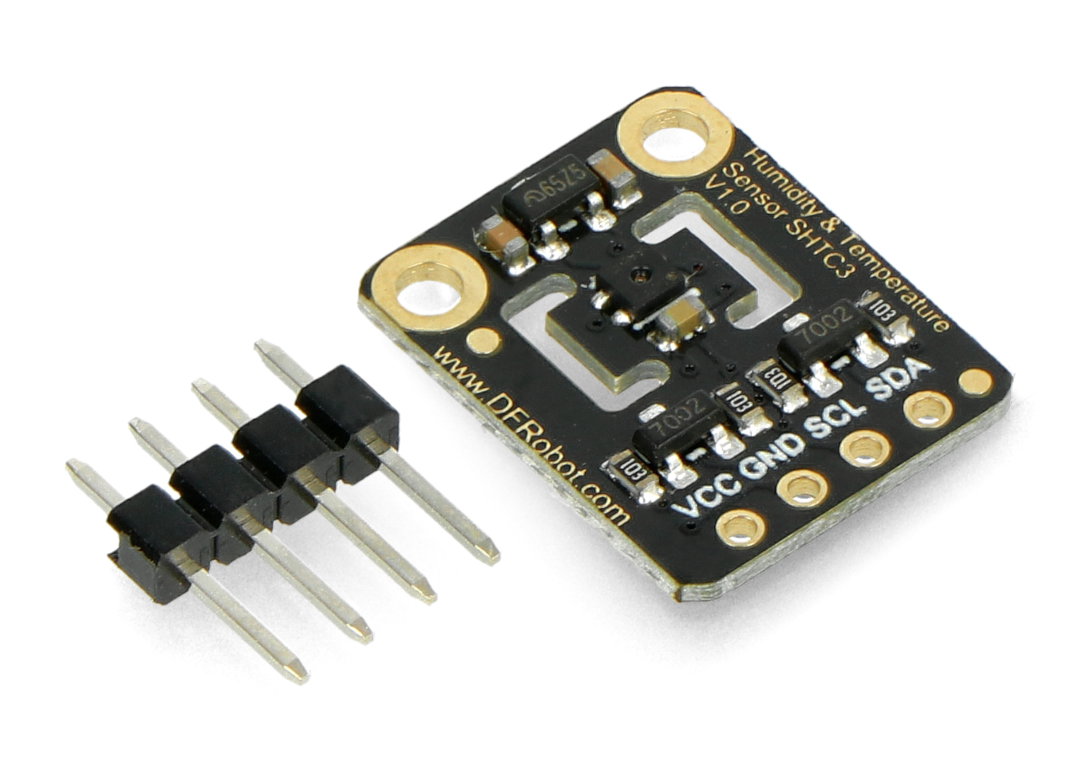

Czujnik SHTC3SHTC3 temperature and humidity sensor module. Goldpin strip included.
Moduł DFRobot FermionDFRobot Fermion module.

Main features of the SHTC3 sensor

  • Temperature and humidity measurement
  • High accuracy
  • Low power consumption mode
  • I2C interface
  • Small dimensions
  • Fast response time

Sensor application

  • HVAC
  • Automotive
  • Data loggers
  • Weather stations
  • Domestic appliances

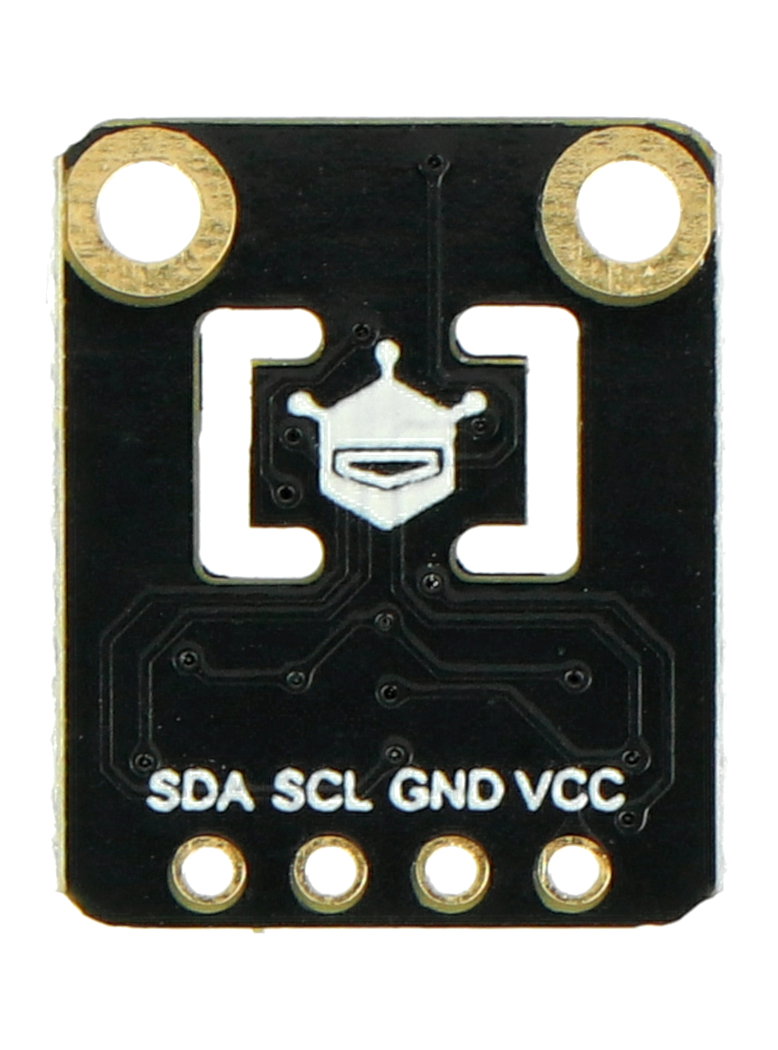

Temperature sensor module pinouts

The SHTC3 temperature sensor module communicates with the microcontroller via an I2C interface. The board is powered from 3.3 V to 5 V.

  • VCC - supply voltage from 3.3 V to 5 V
  • GND - system ground
  • SCL - I2C interface clock line
  • SDL - I2C interface data line

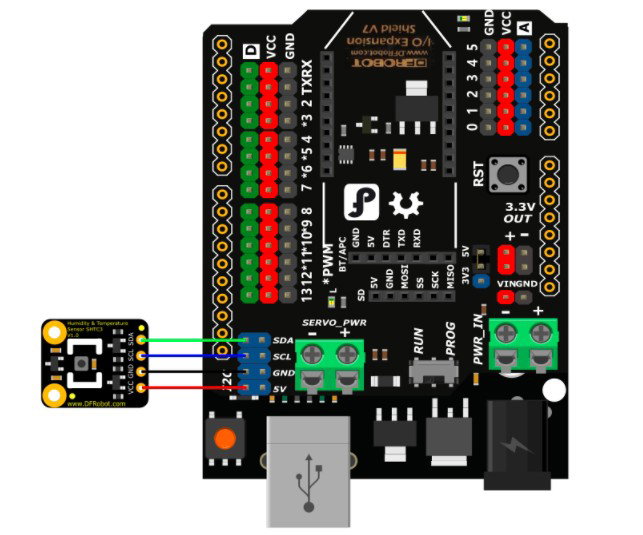

Przykład połączenia z nakładą DFRobotExample of connection with DFRobot overlay to Arduino.

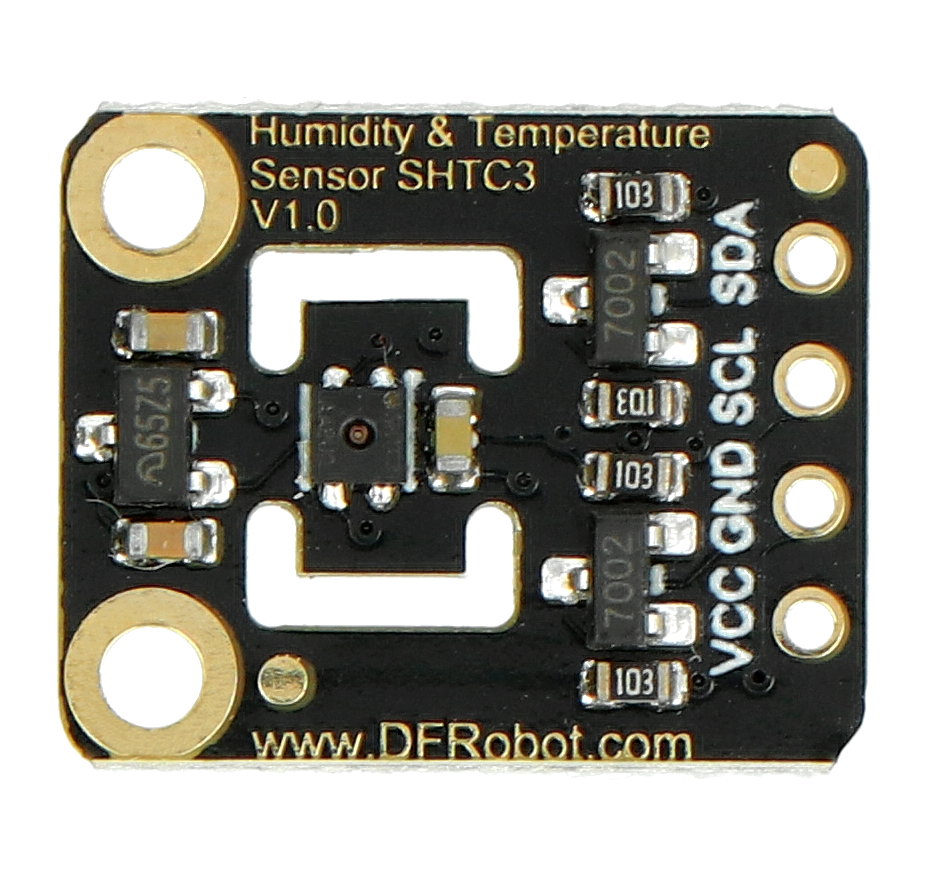

Moduł z czujnikiem temperatury i wilgotności SHTC3DFRobot module with SHTC3 temperature and humidity sensor - I2C.

SHTC3 temperature and humidity sensor specification

  • Supply voltage: 3.3 V to 5 V
  • Current consumption: 0.45 mA
  • Communication interface: I2C
  • Humidity measurement range: from 0% to 100% RH
  • Accuracy of humidity measurement: ±2% RH
  • Temperature measurement range: -40°C to 125°C
  • Temperature measurement accuracy: ±0,2°C
  • Response time: 8s
  • Mounting hole diameter: M2 (2 mm)
  • Mounting hole spacing: 10 mm
  • Dimensions: 14 x 17 mm

Interface I2C
Sensor - Temperature to 125 °C
Sensor - Temperature accuracy +/- 0.2°C
Sensor - Temperature from -40 °C - 120 °C
Package width 5.7 cm
Package height 2.5 cm
Package depth 6 cm
Package weight 0.006 kg
