Product description: Cytron Maker Object - Digital distance sensor IR 38 kHz
A small digital distance sensor using theIR beamto measure, the sensor's operating range isadjustable. The distance at which it is able to detect objects depends on the colour of its surface, for black from15 cm to 60 cm,and for whitefrom 40 to 140 cm. The sensor is powered from 4.5 V to 5.5 V.We offer a dedicated CytronMaker Mini Sumorobot controller.

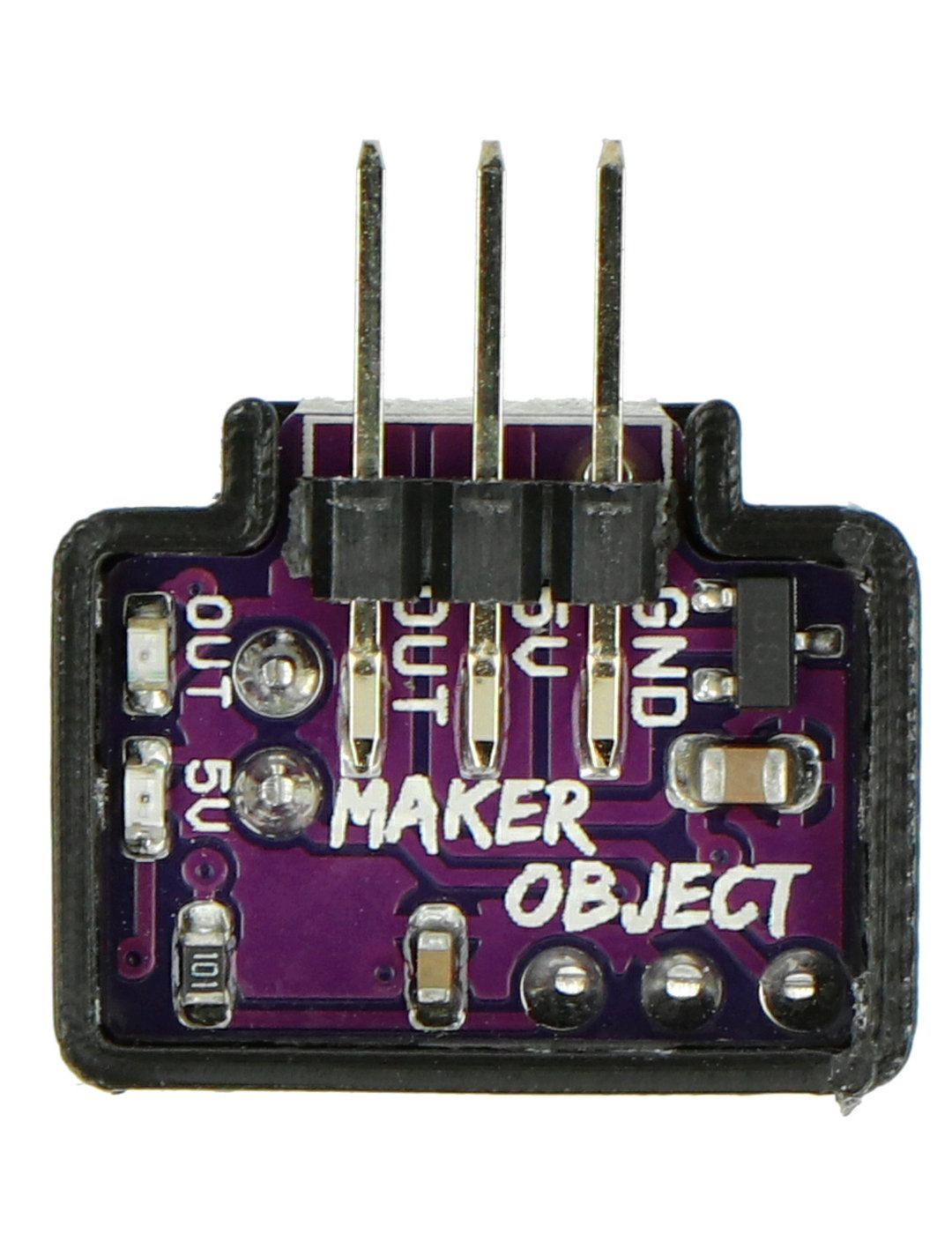

The sensor is closed in a black casing.
Outputs Cytron Maker Object - Digital distance sensor IR 38 kHz

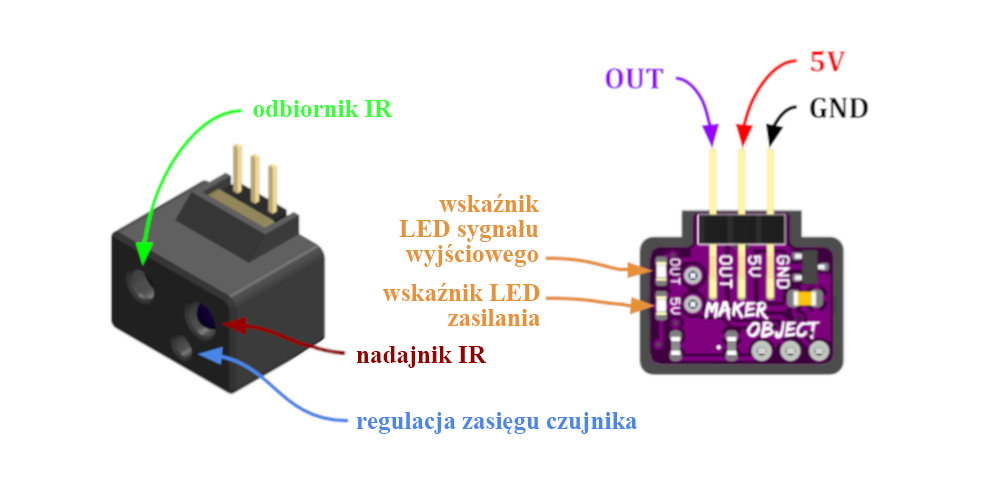

| Name | Description |
|---|---|
|
IR Receiver |
It receives infrared light reflected from the object. The receiver has a built-in 38 kHz filter |
|
Output signal LED indicator |
LED indicating detection of an object. |
|
Power LED indicator |
The sensor's operation LED. |
|
IR transmitter |
It sends out an infrared light beam. |
|
Sensor range adjustment |
Potentiometer for adjusting the maximum range in which the sensor operates. |
|
OUT |
Output signal connector, when an object is detected it goes into low state |
|
5V |
Sensor power supply, it can be supplied from 4.5 V to 5.5 V |
|
GND |
The weight of the system. |
Specification Cytron Maker Object - 38 kHz IR digital distance sensor
- Supply voltage: 4.5 V to 5.5 V
- NPN output:
- Object detected: 0 V to 0.8 V
- No object: from VCC-0.5 to VCC
- Maximum detection distance:
- Black surface: 15 to 60 cm
- White surface: 4 to 140 cm
- Dimensions: 18.6 x 13.7 x 12.6 mm
