Adjustable digital distance sensor E18-D80NK 10-80cm

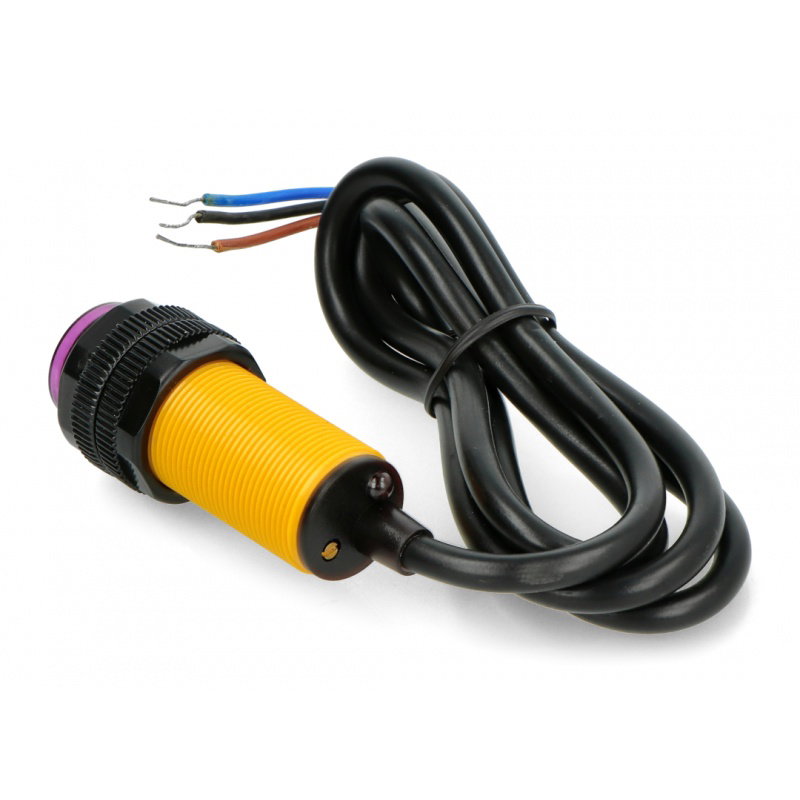

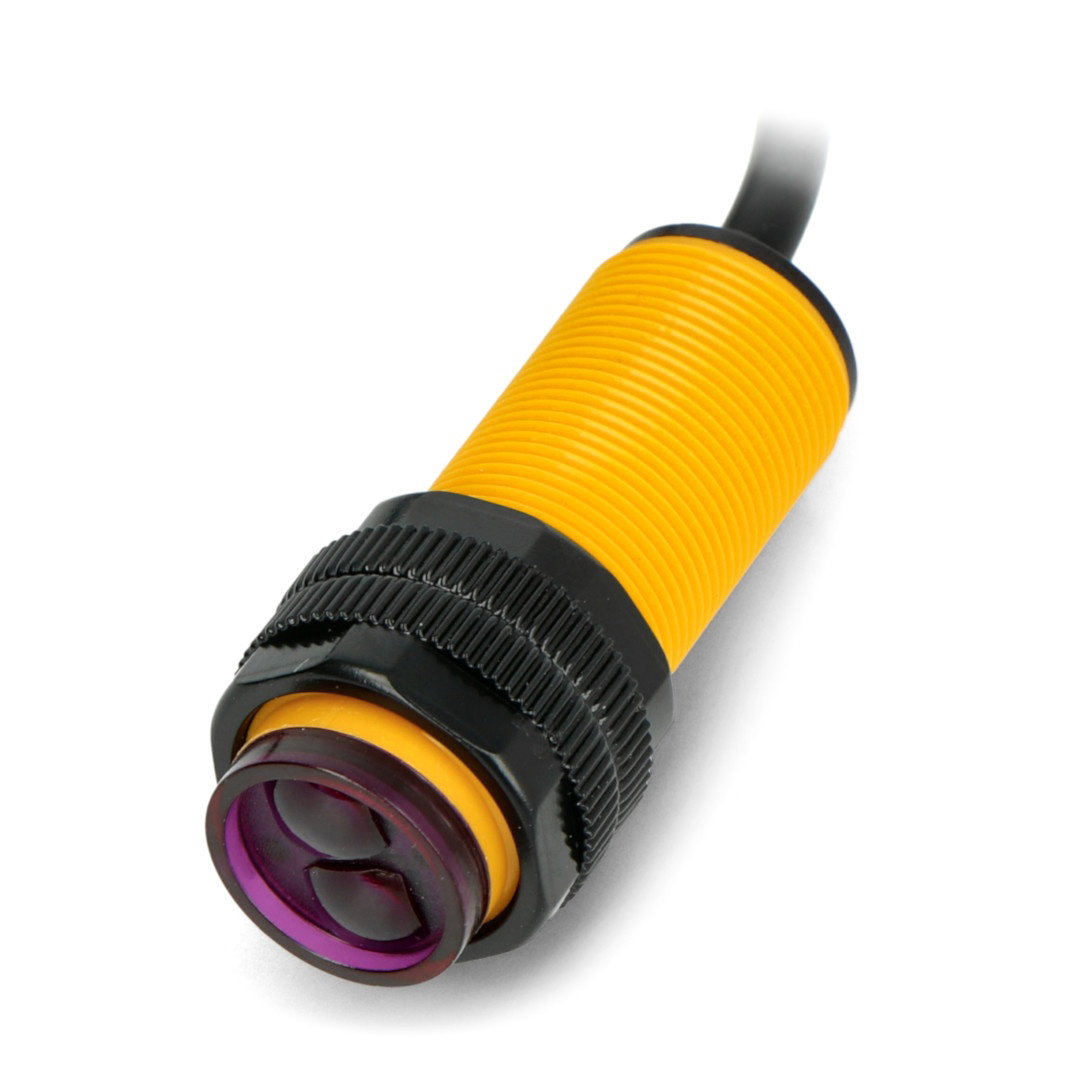

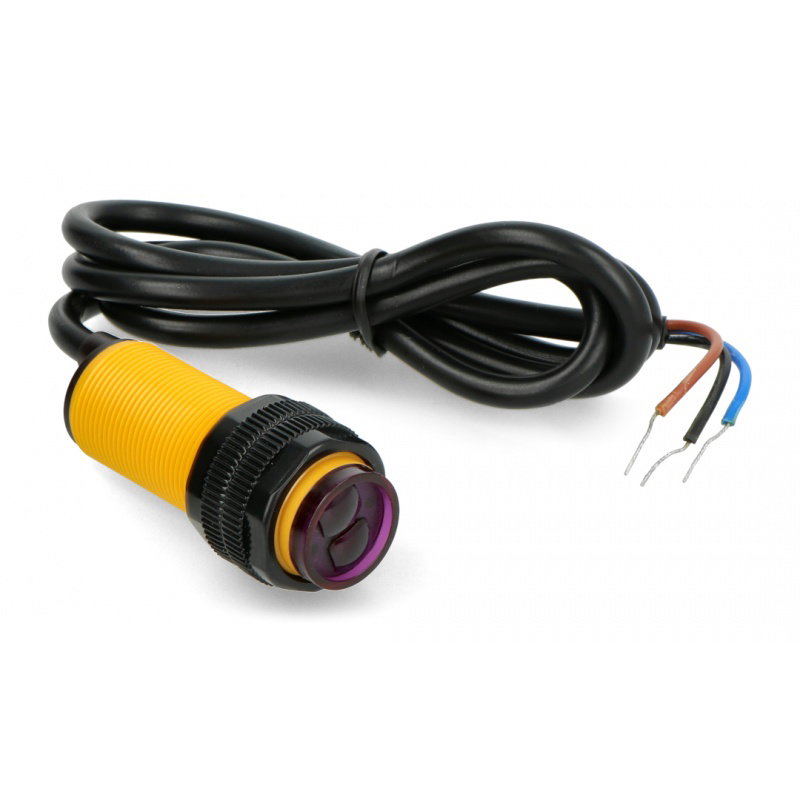

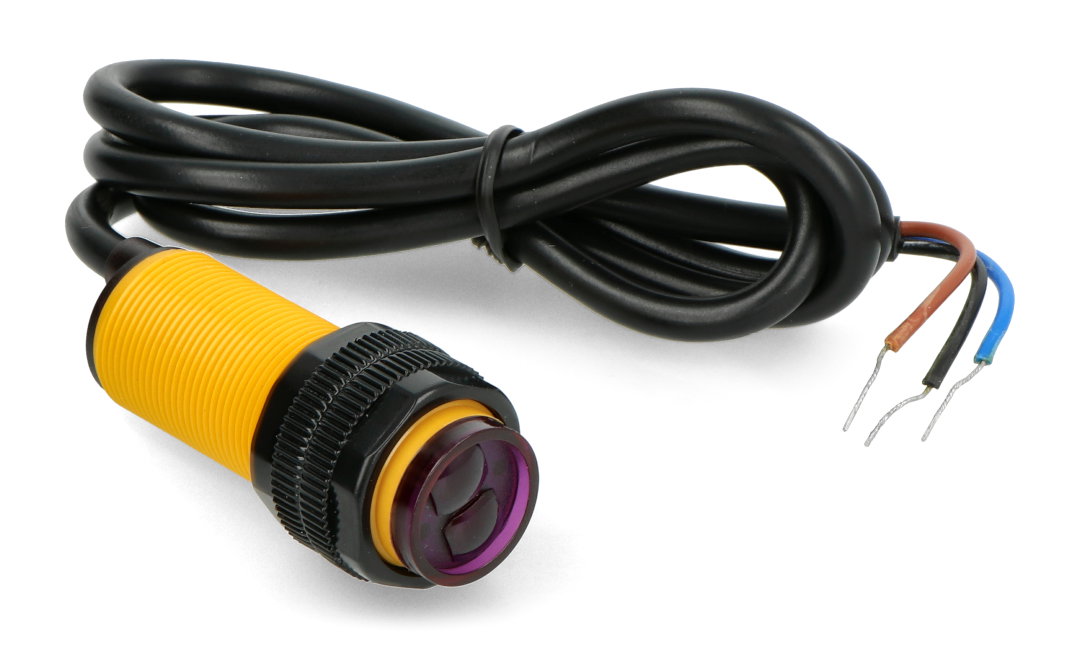

Adjustable, digital distance sensor with a cable length of 65 cm and nuts to facilitate mounting. Measuring range from 10 to 80 cm, is configured using a knob. Voltage supply 5 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description of Adjustable digital distance sensor E18-D80NK 10-80cm
Adjustable, digital distance sensor with a cable length of 65 cm and nuts to facilitate mounting. Measuring range from 10 to 80 cm, is set using the knob located at the rearpart ofthe device - counterclockwise rotatingdecreases the range.
Object detection is indicated through the occurrence of a low state at the output (yellow wire) and the switching on of the red led. The advantage of the sensor is also protection against reverse power connection.
Connection
- The wire is red or brown: supply voltage - V 5
- Wire - green or blue: GND
- Wire yellow or black: digital output - OUT
- there is no object - high state
- the object detection - low state
The 5 V supply voltage and digital output make the sensor being able to be connected directly to the leads of the most available on the marketof microcontrollersincluding AVRandSTM32and kits includingArduino.
The product is compatible with Arduino The user manual is available onour website. For proper operation, it is sufficient to connect power of 5 Volts and the sensor's output to any digital lead of Arduino. Reading works by causing a standard function digitalRead(lead_number). |
Specification of adjustable digital distance sensor
- Supply voltage: 5 V
- Consumption of current: below 100 mA
- The measuring range is adjustable: from 10 to 80 cm
- Knob of range's regulation - rotary potentiometer
- Output signal: digital (low state in the case of object detection, otherwise high)
- The led indicating the detection of the object
- Response time: below 2 MS
- Protection against reverse polarity
- Operating temperature: -25 °C to +55 °C
- Diameter: 18 mm
- Sensor length: 45 mm
| Name | Value |
|---|---|
| Interface | Digital I / O |
| Sensor - distance to | 80 cm |
| Sensor - distance from | 5.0 cm |
| Width | 7.5 cm |
| Height | 10 cm |
| Depth | 2 cm |
| Weight | 0.042 kg |
