Product description: Gravity - kit with DS18B20 temperature sensor - DFRobot KIT0021
A set consisting of a waterproof probe with a DS18B20 sensor , an adapter for digital and analog sensors with clamp connectors and a Gravity connecting cable . The sensor was placed in a very tight casing, thanks to which it allows temperature measurement in extremely humid conditions. In addition, the probe cable is about 90 cm long , which allows you to measure the temperature in a place that is not directly next to the connected microcontroller. Using the DS18B20 probe, we can measure the temperature in the range from -55 ° C to 125 ° C , with an accuracy of ± 0.5 ° C. The cable has been covered with a PVC layer, therefore the manufacturer suggests not to subject it to temperatures higher than 100 ° C. The kit is widely used in many areas such as soil temperature measurement, hot water tank temperature control, etc. It supports multi-point measurement.

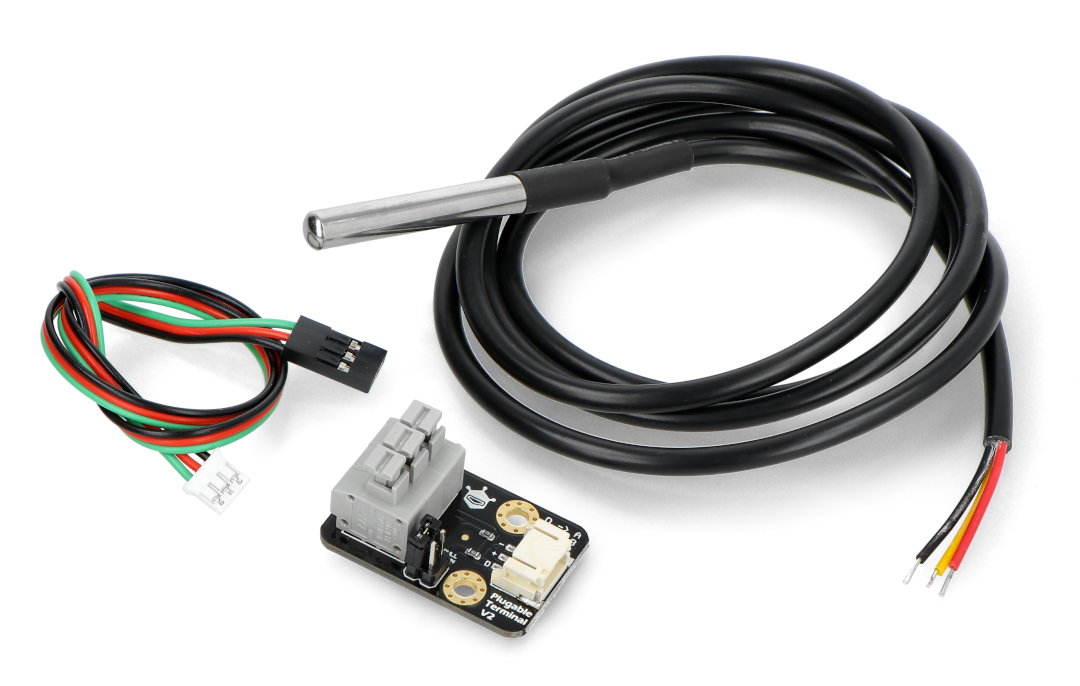

Gravity - kit with DS18B20 temperature sensor - DFRobot KIT0021.
Suggested use
- Constant temperature control
- Plant
- Consumer electronics
- Refrigerators
- Tanks
- Telecommunications rooms
- Energy communication rooms
Kit contents
- Waterproof probe with DS18B20 sensor - 0.95 m - DFRobot DFR0198 - 1 piece
- DFRobot Gravity - adapter with clamp connectors and cable - 1 piece
- DFRobot Gravity - connection cable - for digital sensors for Arduino - 30 cm
Technical Specifications
- Sensor chip: DS18B20
- Operating voltage range: 3.0V to 5.5V
- Current consumption: <3 a="" li="">
- Temperature measurement range: -55 ° C to 125 ° C
- Measurement accuracy: ± 0.5 ° C in the range from -10 ° C to + 85 ° C
- Measurement resolution: selectable from 9 bit to 12 bit
- Unique 64-bit ID burned into the chip
- Possibility to set the temperature threshold that triggers the alarm
- 3-wire interface:
- red line - VCC power supply
- black line - GND ground
- yellow line: DATA data

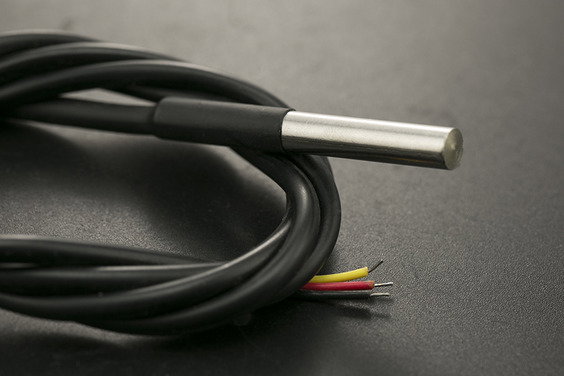

- Probe:
- material: stainless steel
- diameter: 6 mm
- length: 35 mm
- Wire diameter: 4 mm
- Cable length: 900 mm
Connection diagram - DFRduino must be purchased separately.
Project 1 - ESP32 Bluetooth Temperature Sensor (BLE)
Project 2 - WiFi + Firebeetle temperature monitor
Description - how to create a Firebeetle controlled temperature monitor?
