Product description: SenseCAP S2100 - data logger / DTU - LoRaWAN - Seeedstudio 114992872
SenseCAP S2100 is a LoRaWAN data logger designed for monitoring environmental parameters. The recorder collects data and enables their wireless transmission over long distances - up to 2 km in urban areas and up to 10 km in open spaces . It is equipped with analog, RS485 and GPIO ports that allow integration with various types of sensors . Thanks to its high weather resistance and low energy consumption, the data logger is ideal for outdoor use. The device can be powered by a Li-SOCl2 type D battery with a capacity of 19 Ah or connected to an external 12 V DC power supply .

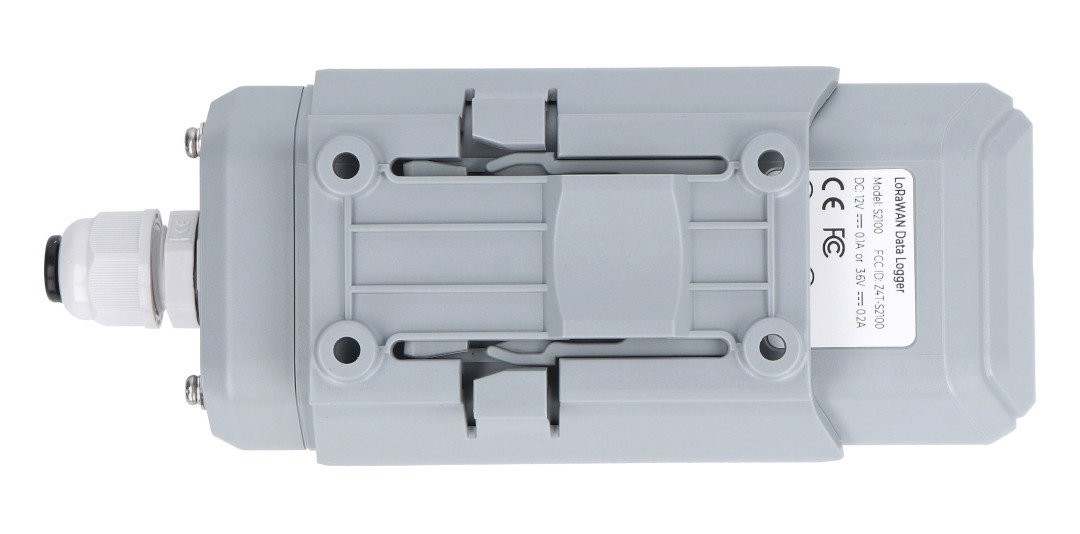

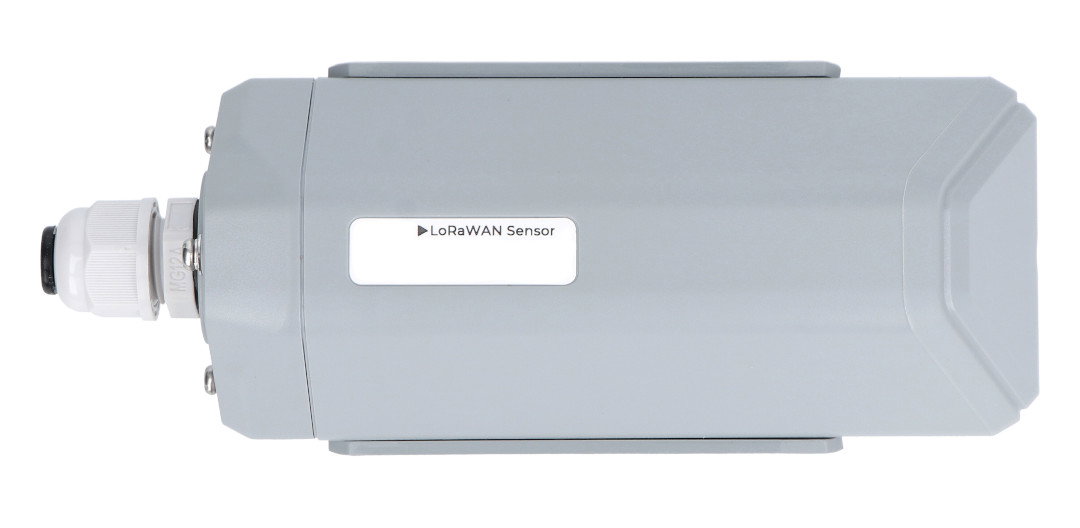

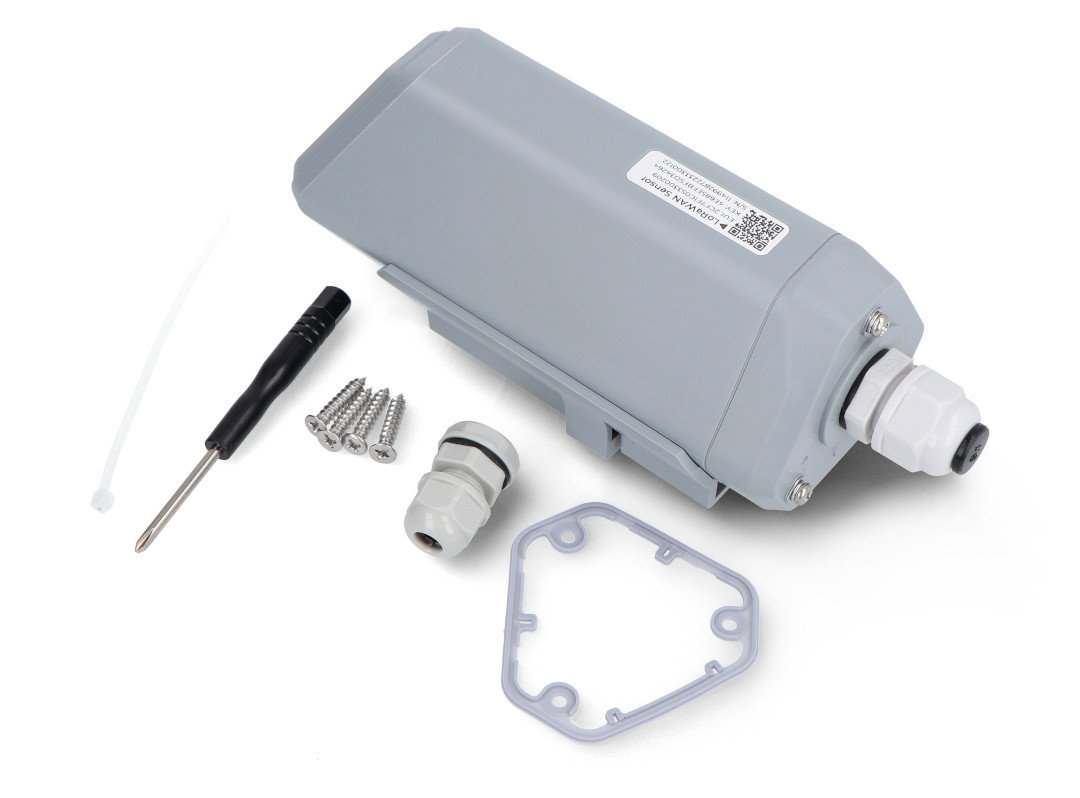

SenseCAP S2100 - data logger / DTU - LoRaWAN - Seeedstudio 114992872.

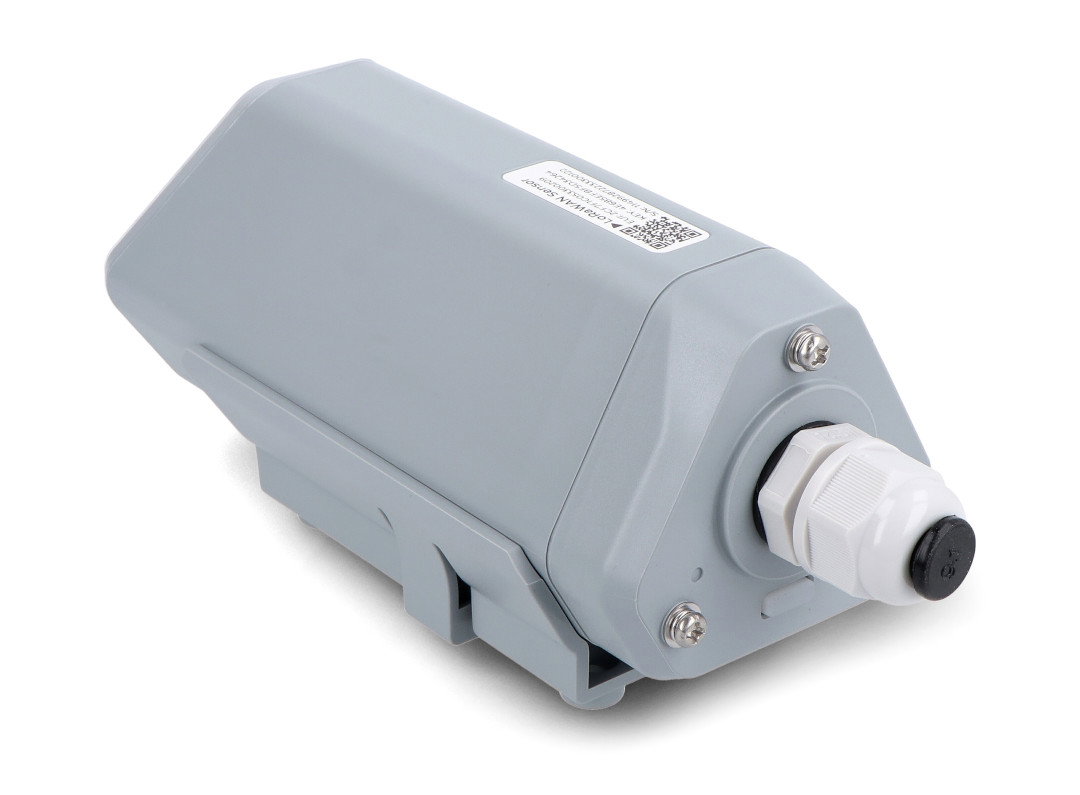

The data logger has analog, RS485 and GPIO ports.
Main features of the data logger
- Ensures compatibility with MODBUS RTU RS485, analog and GPIO sensors
- It can transmit data over long distances - up to 2 km in urban environments and up to 10 km in open spaces
- It is ideal for outdoor use - it is resistant to temperatures ranging from -40°C to 85°C and includes an IP66 housing protection rating
- Enables remote configuration and management using the SenseCAP Mate application
- Supports Bluetooth 5.0 wireless communication
- It has two power supply options - using the built-in D-type Li-SOCl2 battery or connecting to an external 12 V power source
- Enables cooperation with various LoRaWAN gateways
- It offers the option of connecting to the SenseCAP S2110 converter to expand the project with Grove sensors
SenseCAP S2100 is single-channel, which means it can use only one communication interface at a time, to which multiple sensors can be connected.
Dedicated SenseCAP Mate mobile application
The SenseCAP S2100 data logger is compatible with the SenseCAP Mate mobile application, which allows you to configure the device, remotely view data and change settings. The application is intuitive and allows you to set time intervals for data transmission and alarm thresholds, which allows you to quickly respond to changes in conditions.
Applications of SenseCAP S2100
SenseCAP S2100 can be used in precision agriculture, industry and smart buildings . In agriculture, it is great for monitoring environmental conditions, supporting crop optimization. It also supervises production processes and operating conditions of machines in industry, and in the field of smart home monitors room parameters such as temperature and humidity.
Check out others Seeedstudio products in our offer!
The product is compatible with the SenseCAP Mate mobile application.
SenseCAP S2100 can work with LoRaWAN control panels.
Technical specifications of the recorder
- Device type: data logger / DTU
- Built-in chip: Wio-E5
- Communication protocol: LoRaWAN
- Supported LoRaWAN bands: IN865 / EU868 / US915 / AU915 / AS923
- Maximum transmission power: 19 dBm
- Sensitivity: -136 dBm for SF12 BW = 125 kHz
- Communication interface: analog ports (current input from 4 mA to 20 mA, 2 channels; voltage input from 0 V to 10 V, 2 channels), Modbus RTU RS485, GPIO
- Communication range: 2 km to 10 km (depending on the environment)
- Power supply: D-type Li-SOCl2 battery or external 12 V power source
- Battery capacity: 19 Ah
- Battery life: up to 10 years of use
- Bluetooth wireless supported: yes
- IP housing protection rating: IP66
- Operating temperature range: from -40°C to 85°C
- Operating humidity range: 0% to 100% RH, non-condensing
- Dimensions: 165.7 x 63 x 57 mm
- Weight: 280 g
