Product description: microSD memory card for SenseCAP M1 - Seeedstudio 114992729
A set containing a microSD card with the system image uploaded to the LoRaWAN 868 MHz network gateway - SeseCAP M1 Indoor Gateway . In addition to the card, the set also includes a screwdriver and a memory card reader. With this kit you will be able to easily replace the microSD card in your SenseCAP M1 gateway. Please note that each gateway has a unique config.json file that must be copied from the original microSD card before installing a new card in the gateway.
Attention!
If you do not have the original config.json file, please create a "ticket" in support on the official SenseCAP MX Community Discord channel ( https://discord.gg/sensecapmx) . To verify that you are the owner, you must upload a photo of the device's label.
microSD card for SenseCAP M1 - Seeedstudio 114992729.
Kit contents.How to replace the microSD card in SenseCAP M1?
- Turn off the SenseCAP M1 and remove the antenna.
- Using a screwdriver, unscrew the two screws on the front panel and remove it.
- Remove the yellow sticker from the top of the original microSD card and remove the card.
- Insert the original card into the USB card reader and plug it into the computer. Open dist resin-boot, copy the file named config.json and save it on your computer.
- Insert the new card into the USB reader, open the resin-boot dist and drag the config.json file you saved earlier from the original microSD card to the drive and click Replace.
Each device has a different config.json configuration file, please do not share the file with other people and do not use files from other devices.

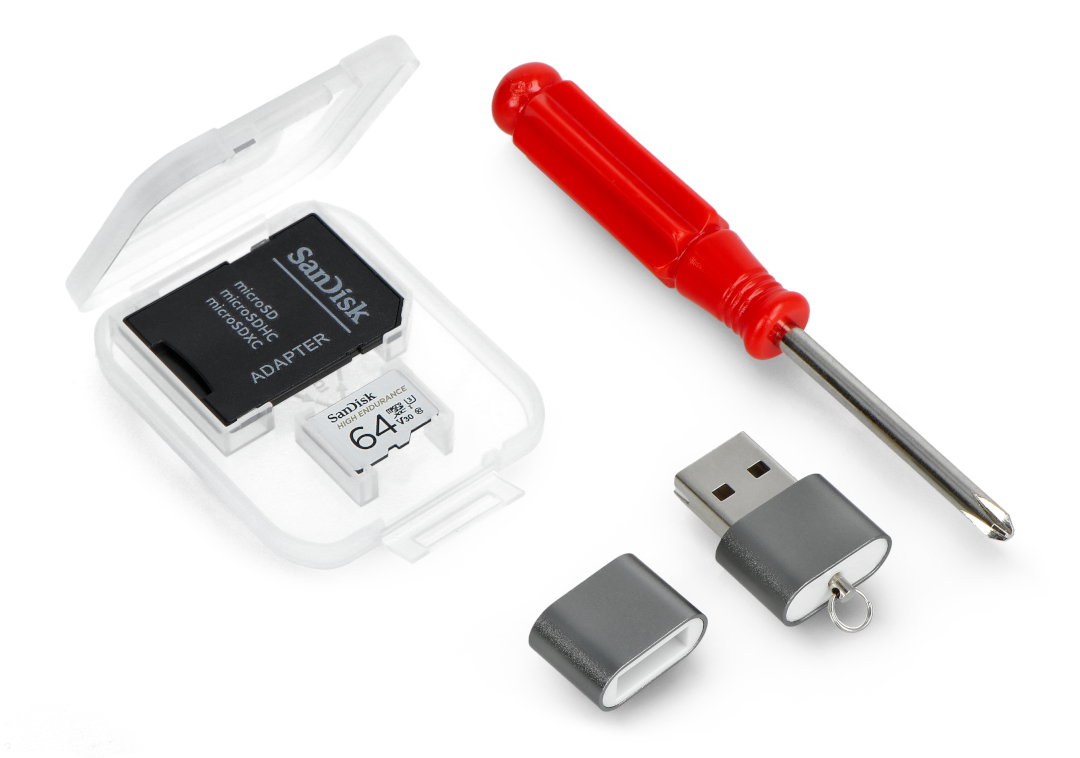

Kit contents
- 64 GB microSD card with image SenseCAP M1
- microSD memory card reader
- Screwdriver
