Photo Interrupter Sensor, Speed Measuring - Waveshare 12225

Index: WSR-08834 EAN: 5904422366292

Digital module with optical sensor, with a gap of 6 mm. The module has a built-in comparator, because of this, the output is a digital signal. Supply voltage is from 3.3 V to 5 V. Together with the disc of the encoder, it can be used as a device counting the pulses, etc.

Photo Interrupter Sensor, Speed Measuring - Waveshare 12225
€3.50
€2.85 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Waveshare
Compatibility: Arduino

Description

Digital module with optical sensor, with a gap of 6 mm. The module has a built-in comparator, because of this, the output is a digital signal. Supply voltage is from 3.3 V to 5 V. Together with the disc of the encoder, it can be used as a device counting the pulses, etc.

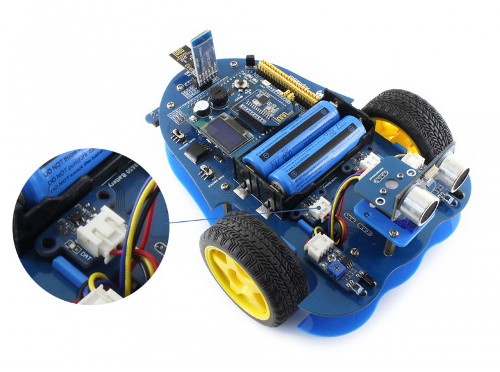

The module is used in setsAlphaBot.

Sensor maintenance

The sensor has a digital output that is to be attached to the pin of the microcontroller, e.g.Arduino. After power-up, at the outputs will be logical statuses 0 or 1.

Pin Description
VCC Supply voltage is from 3.3 V to 5 V.
GND The ground of the system.
DOUT The digital output transmits the signal 0 and 1.



The product is compatible with Arduino

The manufacturer has prepared a user guide along witha sample program for Arduino and STM32.



Specification

  • Supply voltage: from 3.3 V to 5 V

  • Slot width: 6 mm
  • Communications: 0/1 digital signal
  • Module dimensions: 27 x 19 x 15 mm







Test 3
Package width 5 cm
Package height 6 cm
Package depth 0.5 cm
Package weight 0.006 kg
