Product description: TFT LCD display 1,44'' 128x128x - SPI - 65K RGB - for Raspberry Pi Pico - Waveshare 19576
TFTdisplaydesigned to work withRaspberry Pi Picoboard, its diagonal is1.44"and resolution is128 x 128 px. The module is based on ST7735S chip and communicates viaSPIinterface. It is capable of displaying 65 thousand colors included in the RGB gamut. The size of a single pixel is 0.20 x 0.20 mm. The module is equipped with 4 buttons for any purpose.
Product compatible with RaspberryPi Pico
The manufacturer provides aWiki page for the product, which contains information about the module's pinouts and a detailed user guide. You will also learn from it how to connect the display.
Display module pinouts for Raspberry Pi Pico.Display module pinouts for Pico

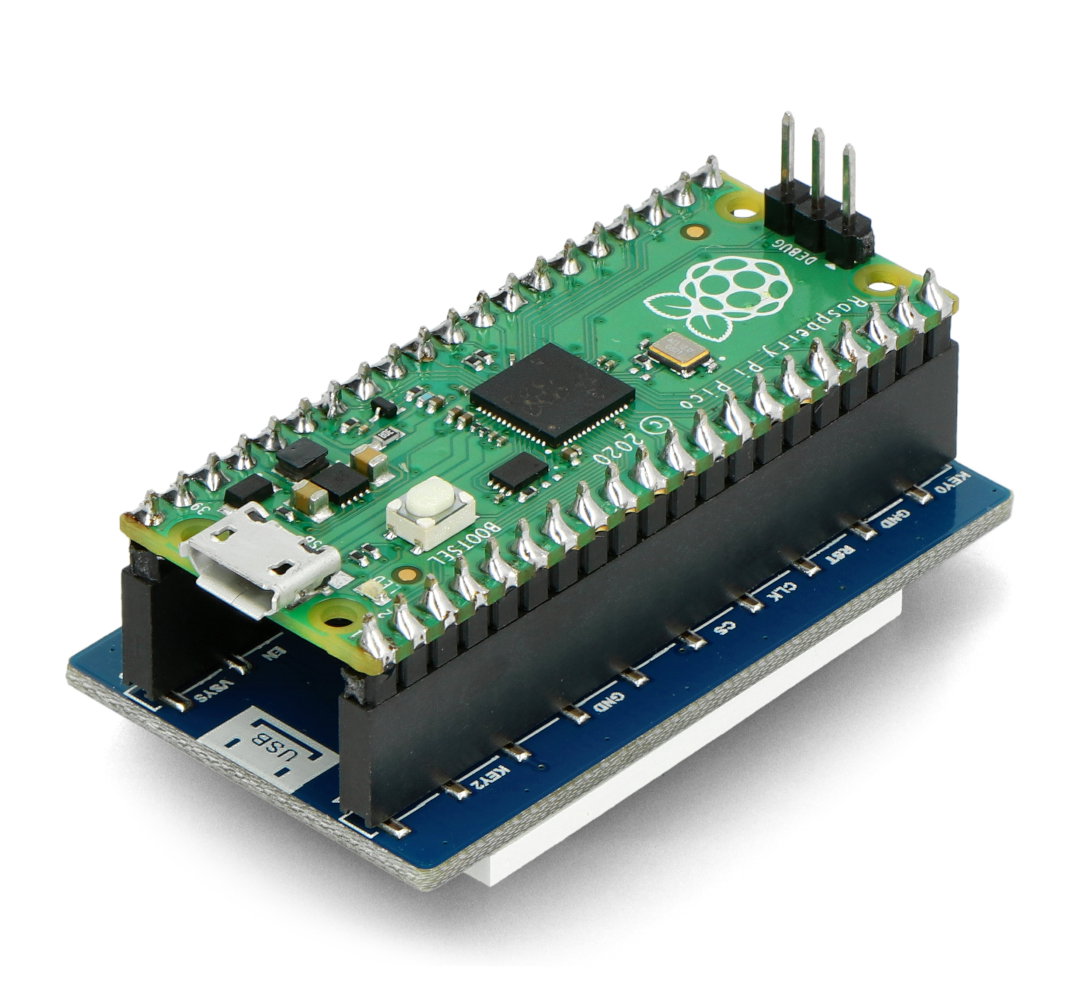

The manufacturer has placed a socket on the module where you can directly plug in the Raspberry Pi Pico board or make a connection using wires. Among the pins there are:
- VSYS - supply voltage from 1.8 V to 5.5 V
- GND - ground
- GP8|LCD_DC - LCD data / command line, high for data, low for commands
- GP9|LCD_CS - chip selection line, activated by low state
- GP10|LCD_CLK - SPI clock line
- GP11|LCD_DIN - SPI data line
- GP12|LCD_RST - LCD reset, activated by a low state
- GP13|LCD_BL - LCD backlight
- GP15|KEY0 - user key 0
- GP17|KEY1 - user key 1
- GP2|KEY2 - user key 2
- GP3|KEY3 - user button 3
Display specification
- Operating voltage: from 3.15 V to 5 V
- Interface: SPI 4-wire
- Display type: TFT
- Chip: ST7735S
- Diagonal: 1,44"
- Resolution: 128 x 128 px
- Number of displayed colors: 65k RGB
- Display size: 25.50 x 26.50 mm
- Pixel size: 0.20 x 0.20 mm
- Module size: 52 x 30 mm
Set contents
- Display 1.44"
The item for sale is the display, the Raspberry Pi Pico module can be purchased separately.
