Product description: reComputer R1025-10 - Raspberry Pi CM4 4 GB RAM + 32 GB eMMC - Seeedstudio 113991274
reComputer R1025-10 is a powerful IoT controller based on Raspberry Pi CM4 , designed for smart building and energy management. Equipped with a quad-core A72 processor , it supports 4 GB RAM and 32 GB eMMC memory , offering excellent performance for advanced tasks. It has dual Ethernet interfaces and built-in WiFi and BLE , while connectors for optional 4G, LoRa and ZigBee modules enable universal connectivity. Additionally, the R1025-10 has three isolated RS485 channels that support BACnet, Modbus RTU, KNX and Modbus TCP / IP protocols, ensuring comprehensive communication with devices. Thanks to advanced IoT connectivity, the controller allows you to manage devices in smart building systems , such as HVAC, lighting or energy distribution, providing an excellent solution for both new and modernized buildings.

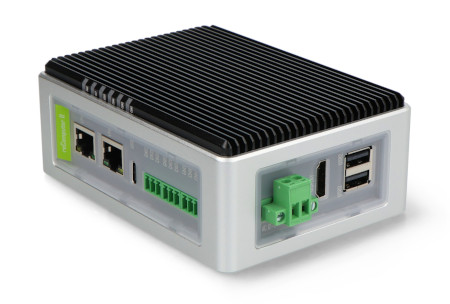

reComputer R1025-10 - Raspberry Pi CM4 4 GB RAM + 32 GB eMMC - Seeedstudio 113991274.

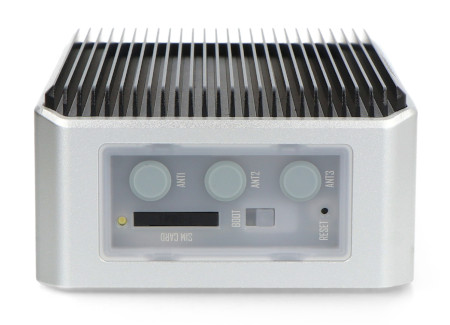

reComputer provides flexible wireless communication.
Key Features of the reComputer R1025-10
- Designed for building automation systems : supports multiple isolated RS485 channels, enabling high and low speed communication
- Wide device compatibility : supports BACnet, Modbus RTU and Modbus TCP/IP protocols
- Performance : Offers 4GB of RAM to efficiently process thousands of data points
- LED Indicators : Dual LED indicators for quick verification of device operating status
- Robust housing : metal housing, compatible with DIN rail and wall mounting
- Optimized OS : Supports Yocto and Buildroot for customized OS
- Communication capabilities : built-in WiFi and BLE, has mini PCIe for additional 4G, LoRa and ZigBee modules that are not included in the kit
- Rich interfaces : 3x isolated RS485, Ethernet 10/100/1000 Mb/s (PoE), HDMI, USB 2.0, Type-C ports, SIM card slot
- Security and reliability : hardware protection by Watchdog, optional UPS supercapacitor
Used reComputer R1025-10
reComputer R1000 is widely used in various fields , such as fleet management, cloud solutions, industrial edge computing and computer vision. It enables integration with technologies such as NodeRed, FUXA, FIN, N3uron, balena, Home Assistant, AWS IoT Core and Ultralytics Computer Vision . Examples of applications include intelligent supermarket systems based on Raspberry Pi CM4, lighting control based on posture recognition and data management in the IIoT industry using MING Stack. In addition, the FIN platform supports the management of intelligent buildings, enabling process automation in various environments.
Smart supermarket system powered by Raspberry Pi CM4
reComputer has versatile interfaces and works with various wireless communication protocols.
Interfaces in reComputer
- 1x mini-PCIe1 slot : supports 4G LTE, USB LoRa and USB ZigBee modules
- 1x mini-PCIe2 slot : supports SPI LoRa, USB LoRa and USB ZigBee modules
- 3x RS485 (isolated) : supports serial communication with isolation for higher level of security
- 1x 10/100/1000 Mbps Ethernet : Supports Power over Ethernet (PoE), allowing power to be delivered over the network cable
- 1x Ethernet 10/100 Mbps : Supports Ethernet port for standard network connectivity
- 1x HDMI 2.0 : Support HDMI port for high definition video output
- 2x USB Type-A 2.0 : supports standard USB ports for connecting peripherals or storage devices
- 1x USB Type-C 2.0 : Supports USB port, mainly used for OS updates and other possible functions
- 1x SIM card slot : supports SIM cards, usually used for mobile network connectivity
- 1x M.2 slot : Supports M.2 expansion card slot for added functionality or SSD storage option
Durable construction
The casing is made of shock-resistant materials such as 6061 aluminum alloy, with transparent PC panels , ensuring durability in harsh environments. Another important feature is that the controller operates in a wide temperature range from -30°C to 70°C and meets vibration, shock, electrostatic discharge (ESD), fast transients (EFT) and surge (Surge) resistance standards. Additionally, the IP40 protection rating provides excellent dust protection in harsh industrial environments.

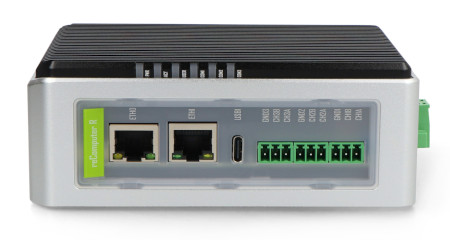

Equipped with two Ethernet interfaces.
The housing is compatible with DIN rail and wall mounting.
Power and mounting options for industrial requirements

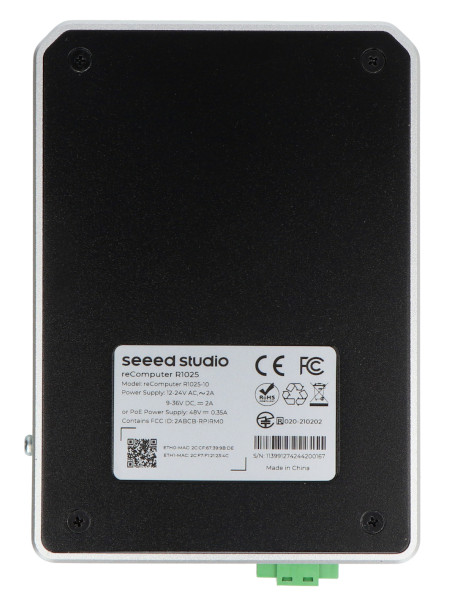

The controller supports a wide input voltage range of 12V to 24V AC and 9V to 36V DC , which allows for flexibility in the selection of power sources. For mission-critical applications, consider the option of redundant power supply via PoE (Power over Ethernet), purchased separately. Additionally, low power consumption and energy optimization help reduce heat generation. The optional UPS function ensures continuous operation of the device and notification of a power outage. The controller offers flexibility in installation, allowing for wall or DIN rail mounting , making it an ideal solution for control panels and industrial cabinets.
Kit Contents
- 1x reComputer R1025-10
- 1x DIN rail clip
- 1x Screw set
- 1x Female socket to screw terminal adapter
- 3x 3-pin male terminal connector
- 5x Resistor 120Ω
- 1x English User Manual

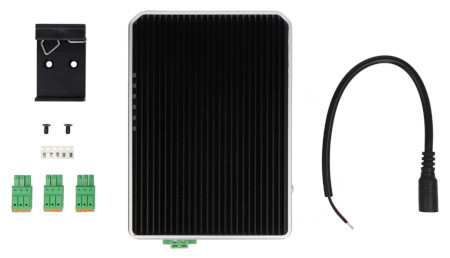

Items included in the set.
| reComputer R1000 Technical Specifications and Comparison | ||
|---|---|---|
| Product | ||
| CPU | ||
| Operating system | ||
| RAM | ||
| eMMC | ||
| Power supply | ||
| PoE | ||
| Fuse | ||
| Energy consumption | ||
| Power switch | ||
| Restart switch | ||
| Interfaces | 1x 10 / 100 Mb/s IEEE802.3/802.3u, 2x USB A 2.0, 1x USB C 2.0 (OS flashing), 3x RS485, 1x HDMI 2.0, 1x SIM slot, 1x M.2 NVMe SSD | |
| LED | ||
| Buzzer | ||
| Reset button | ||
| Wi-Fi | ||
| BLE | ||
| Lora | ||
| ZigBee | ||
| Operating temperature | ||
| Working humidity | ||
| Dimensions | ||
| Mass | ||
