Product description: 3D scanner - Revopoint INSPIRE 2 - Standard Edition
Revopoint INSPIRE 2 is a versatile 3D scanner designed for the precise capture of small and medium-sized objects, technical parts, models, sculptures, as well as faces and figures. It combines 11 parallel infrared laser lines with infrared structured light , allowing it to work with both detailed objects and dark or shiny surfaces. The scanner offers single-frame accuracy of up to 0.05 mm , precision of up to 0.03 mm , and volumetric accuracy of 0.05 mm + 0.1 mm x L (m) , allowing it to be used in design, reverse engineering, and preparing models for 3D printing. It can scan objects from 20 x 20 x 20 mm to 2 x 2 x 2 m , and connectivity via WiFi 6, Bluetooth 4.1, and USB Type-C facilitates work with computers and mobile devices. INSPIRE 2 enables rapid 3D model creation with scanning speeds of up to 90 fps in laser mode and up to 18 fps in structured light mode . The built-in RGB camera captures realistic colors, allowing for high-quality model textures. INSPIRE 2 supports markerless scanning and, with a variety of tracking modes, adapts to a wide range of workflows.

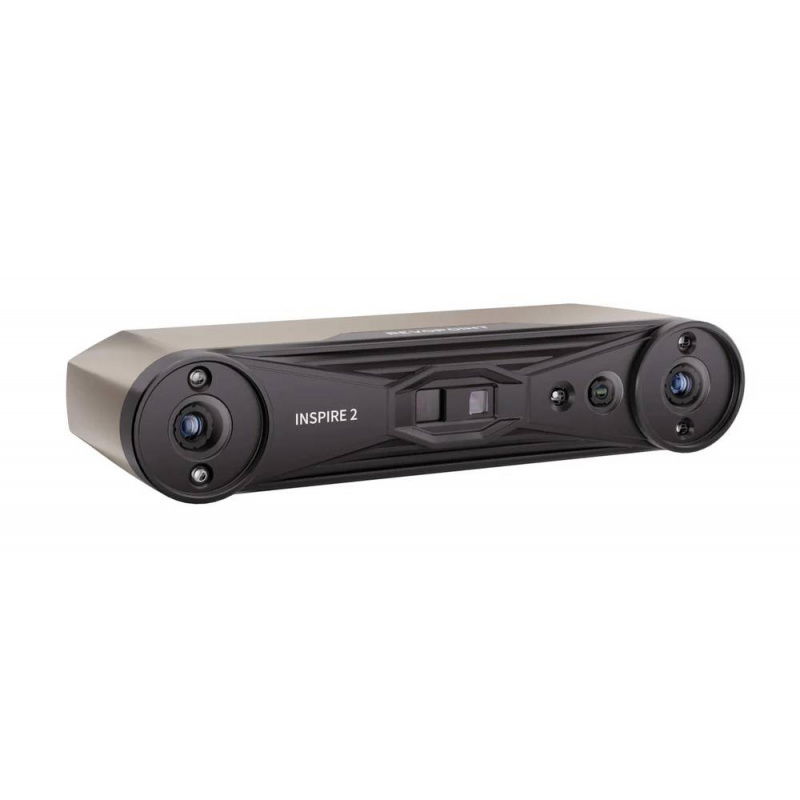

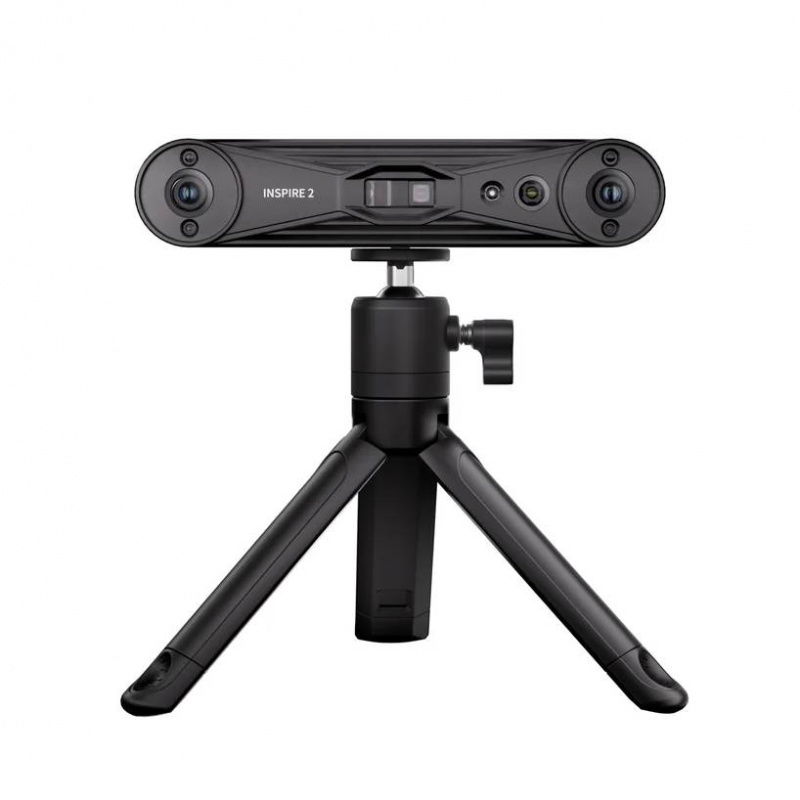

3D scanner - Revopoint INSPIRE 2 - Standard Edition.

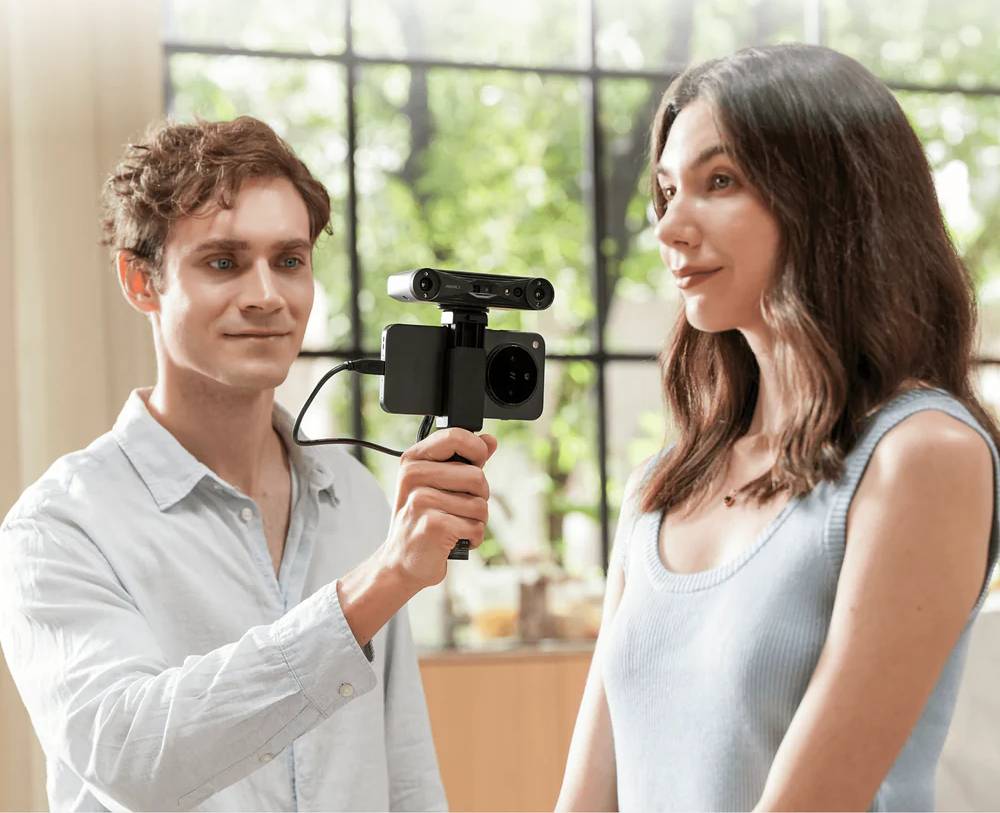

Structured infrared light allows for quick body and face scanning without the need for markers.
3D scanning technology in Revopoint INSPIRE 2
The Revopoint INSPIRE 2 utilizes two complementary operating modes: a multi-line infrared laser and infrared structured light . Laser mode is ideal for capturing dark, shiny, and more challenging surfaces, while structured light mode enables the rapid scanning of objects rich in geometric features, as well as faces and silhouettes without markers . This combination of technologies allows for customization of workflows to suit the type of model and the desired end result. Additionally, a projector with 1.5x and 2x optical zoom helps enhance detail reproduction on objects with diverse geometries. This allows the scanner to be used for both simple hobby tasks and more demanding technical work.
3D scanning accuracy and supported size range
INSPIRE 2 is designed for precise digitization of objects of various sizes. It achieves precision of up to 0.03 mm , accuracy of up to 0.05 mm , and volumetric accuracy of 0.05 mm + 0.1 mm x L (m) , which is important for reproducing part dimensions and preparing models for further processing. The minimum scanned object size is 20 x 20 x 20 mm , while the maximum reaches 2 x 2 x 2 m . The single capture field ranges from 130 x 129 mm at 200 mm to 293 x 257 mm at 400 mm , making it easy to adjust the workflow to the model size. This makes INSPIRE 2 suitable for both small components and larger utility or decorative objects.

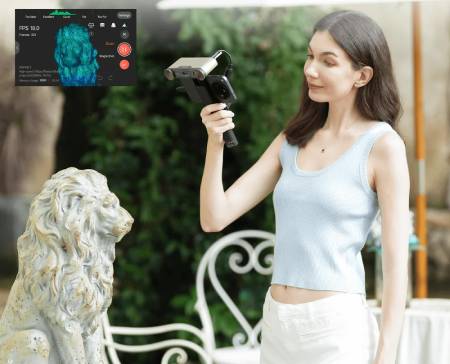

You can scan various types of objects even in strong daylight up to 20,000 lux.

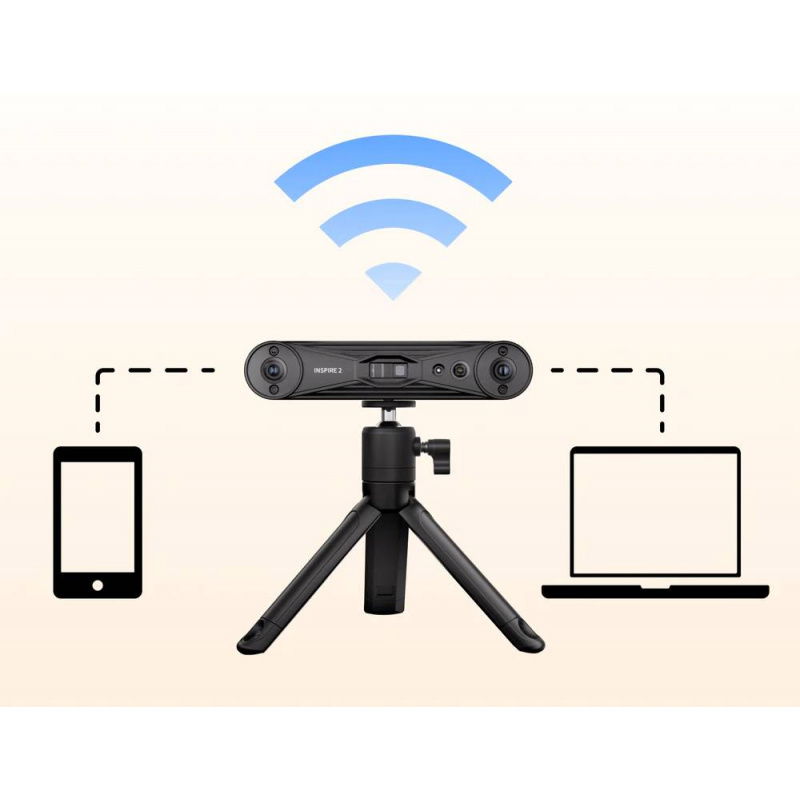

Connectivity and mobile operation of the Revopoint INSPIRE 2 3D scanner
One of the key advantages of the INSPIRE 2 is its extensive connectivity, which facilitates both stationary and mobile operation. The scanner supports WiFi 6 , Bluetooth 4.1 , and a USB Type-C port, allowing it to work with computers, smartphones, and tablets. In mobile mode, you can scan using your phone, or for more demanding tasks, use your computer and stream images to your mobile device's screen. Its compact dimensions of 53 x 27 x 132 mm and weight of 190 g make the scanner easy to fit in a bag and conveniently take to the workshop, office, or field. An additional advantage is the ability to work outdoors in lighting up to 20,000 lux , while adhering to the manufacturer's recommendations to avoid direct sunlight.
Revo Metro software and 3D scanner application possibilities
Revopoint INSPIRE 2 works with Revo Metro software, enabling the complete 3D model creation process—from scanning, through data processing, to editing and exporting the final file. Users can save models in PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX formats, facilitating further work in CAD, CAM, graphics, and 3D printing environments. Various tracking modes— Feature, Marker, and Global Marker —allow the scanner to be better adapted to the object type and working conditions. INSPIRE 2 is suitable for reverse engineering, product design, object documentation, creating animation assets, and digitizing cultural heritage. It is a solution for those who require a combination of portability, accuracy, and broad compatibility with their subsequent design workflow.

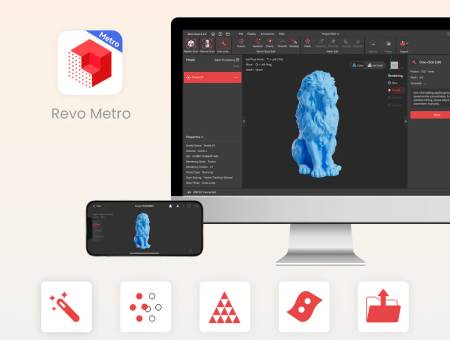

Create 3D models with the intuitive operation and capabilities of advanced Revo Metro software.

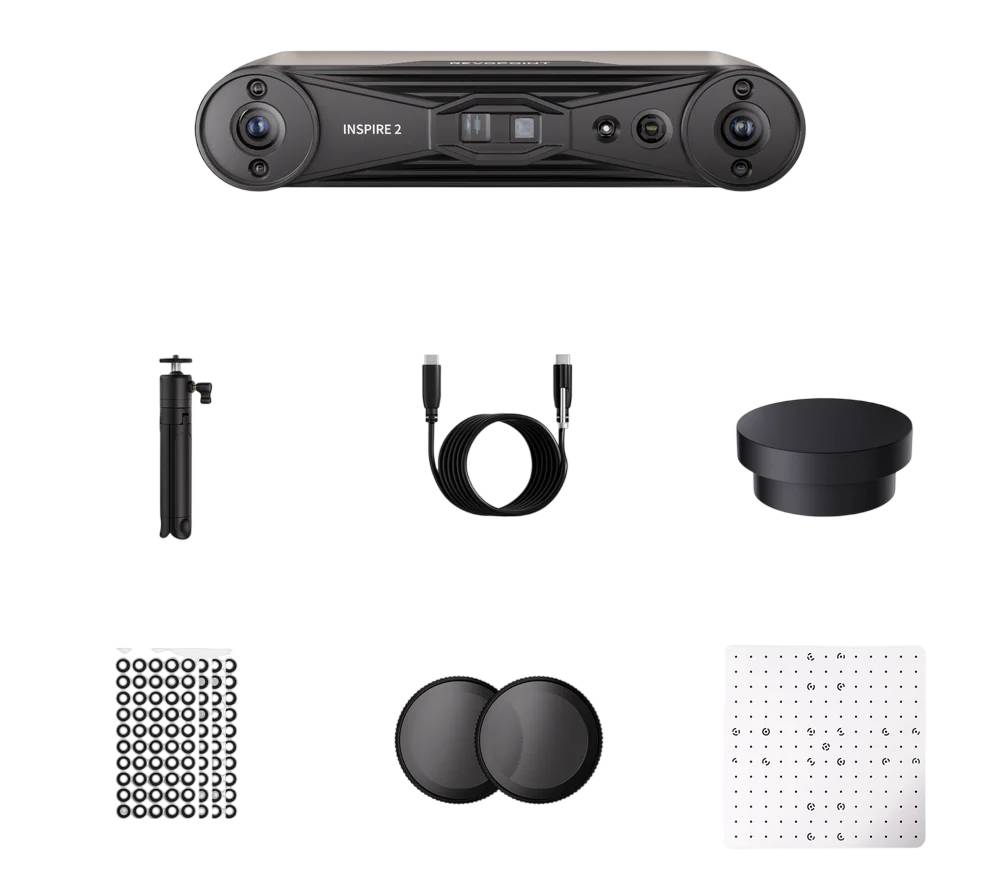

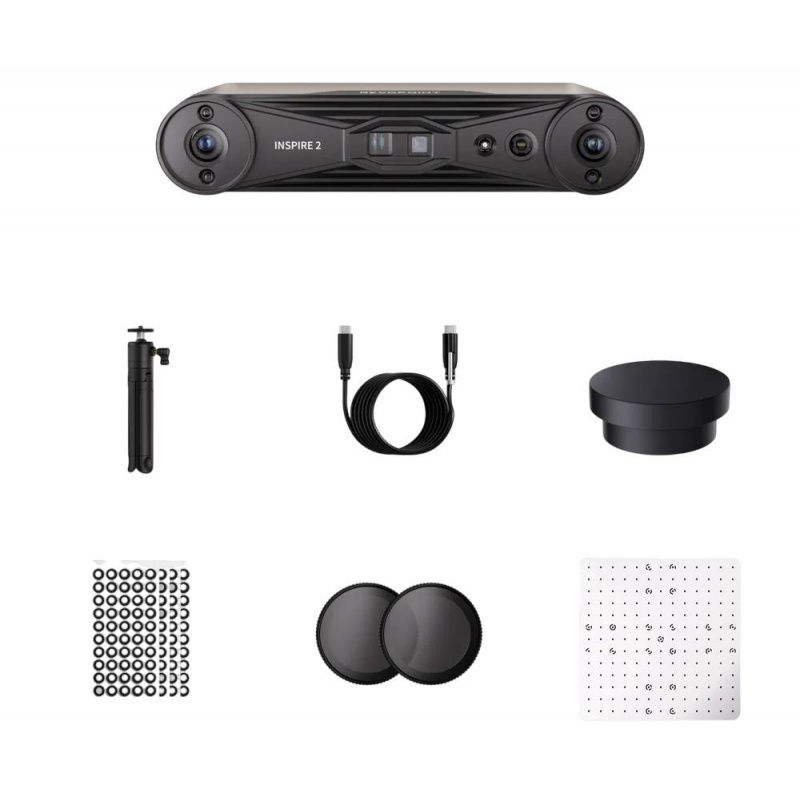

Elements included in the set.
Contents of the set
- Revopoint INSPIRE 2 3D Scanner
- Tripod
- USB Type-C - USB Type-C cable, 2 m long
- Mini rotating platform
- Reflective markers - 200 pcs.
- Filters for outdoor use
- Calibration table
| Technical specifications of the Revopoint INSPIRE 2 3D scanner | |
|---|---|
| Scanner type | handheld and stationary |
| Technology | dual infrared structured light camera and infrared multi-line laser |
| Size of scanned objects | small and medium |
| Single frame precision | up to 0.03 mm |
| Single frame accuracy | up to 0.05 mm |
| Volumetric accuracy | 0.05 mm + 0.1 mm x L (m), where L is the length of the object, in marker mode |
| Minimum distance between points after merging | up to 0.1 mm |
| Working distance inside | from 200 mm to 400 mm |
| Outdoor working distance | from 150 mm to 250 mm |
| Single capture field at the smallest distance inside | 130 x 129 mm at 200 mm |
| Single capture field at greatest distance inside | 293 x 257 mm at 400 mm |
| Angular field of view | 43° x 35° |
| Minimum scan volume | 20 x 20 x 20 mm |
| Maximum scan volume | 2 x 2 x 2 m |
| Scanning speed | Structured light: up to 18 fps, multi-line laser: up to 90 fps with GPU, up to 40 fps with CPU |
| RGB camera resolution | 1280 x 800 px |
| Color scanning | Yes |
| Tracking methods | Feature, Marker, Global Marker |
| Scanning outside | Yes |
| 3D light source | Class 1 infrared light |
| Lighting | 4 infrared LEDs |
| White LED flash | 1 diode |
| Built-in processing | depth map calculation |
| Number of buttons | 1 |
| Minimum PC requirements - macOS | CPU: M1 Pro / Max / Ultra, RAM at least 16 GB |
| Minimum PC requirements - Windows | CPU: Intel i7 13th Gen. or AMD Ryzen 7 5800, RAM at least 16 GB, GPU: NVIDIA GeForce RTX 3060 8 GB |
| Recommended PC requirements - macOS | CPU: M2 Pro / Max / Ultra or M3 Pro / Max / Ultra, RAM at least 24 GB |
| Recommended PC requirements - Windows | CPU: Intel i9 12th Gen or better, RAM at least 64 GB, GPU: NVIDIA RTX 4060 8 GB or better |
| Mobile requirements - Android | Android 9.0 or later, RAM at least 8 GB, storage at least 128 GB |
| Mobile requirements - iPhone | models after iPhone X, iOS 14.0 or later, RAM above 4 GB, memory at least 64 GB |
| Mobile requirements - iPad | iPad 10th generation or newer |
| Supported operating systems | Windows 10/11, Android, iOS, macOS 11.0 or later |
| Output file formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| 3D printing-ready models | Yes |
| WiFi | 6 |
| Bluetooth | 4.1 |

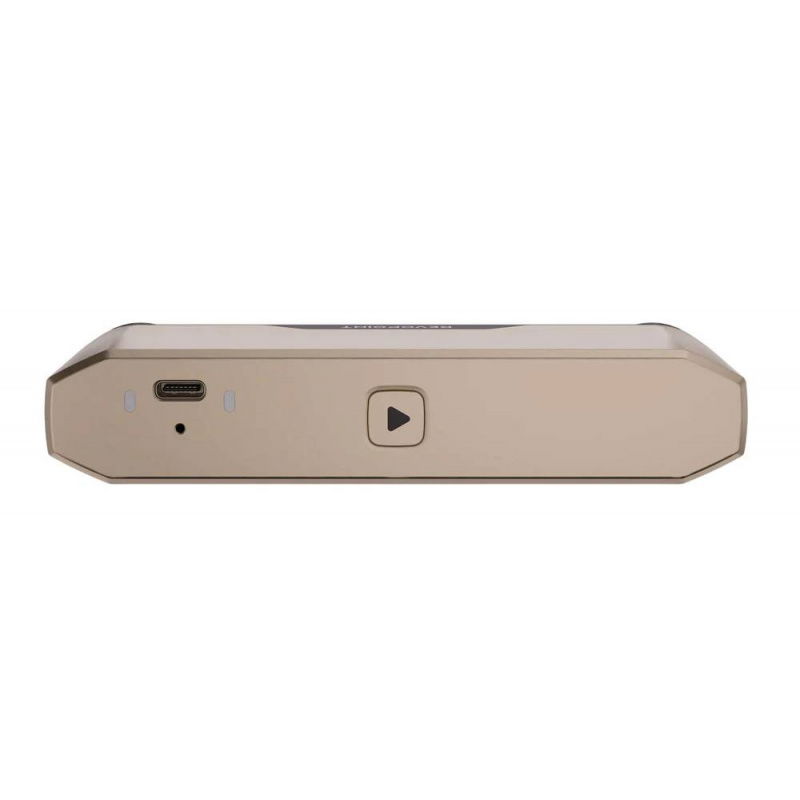

| Connector type | USB Type-C |
| Power supply | DC 5V, 1A |
| User Recalibration | Yes |
| Supported accessories | large rotating platform, two-axis rotating platform, power bank, mobile kit |
| Notes on special surfaces | When scanning transparent and highly reflective surfaces, it is recommended to use a scanning spray |
| Dimensions | 53 x 27 x 132 mm |
| Mass | 190 g |
