Product description: 3D scanner - Revopoint MetroY Ultra - CMM Edition
The Revopoint MetroY Ultra is an advanced metrology-grade 3D scanner designed for the precise reproduction of small and medium-sized components. It utilizes a combination of a multi-line blue laser and full-field structured light , enabling fast and accurate scanning of technical parts, objects with complex geometry, and dark or shiny surfaces. The device achieves throughput of up to 7,000,000 points/s and a frame rate of up to 90 fps , significantly reducing 3D data acquisition time. With Wi-Fi 6 support, color texture capture, and compatibility with Revo Metro, Revo Measure, and Revo Design software, it's ideal for measurement, quality control, reverse engineering, and CAD model and 3D print preparation. The CMM Edition includes a certified ball plate for accuracy verification and a one-year license for Revo Measure software , designed for professional 3D measurement, GD&T analysis, and advanced quality control.

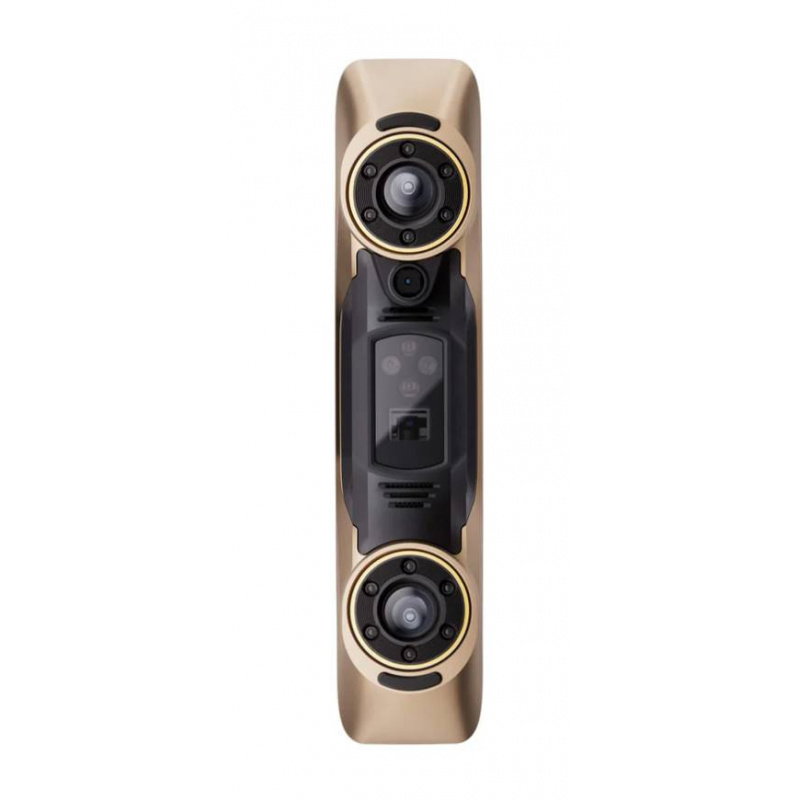

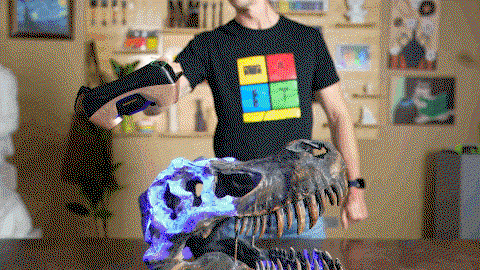

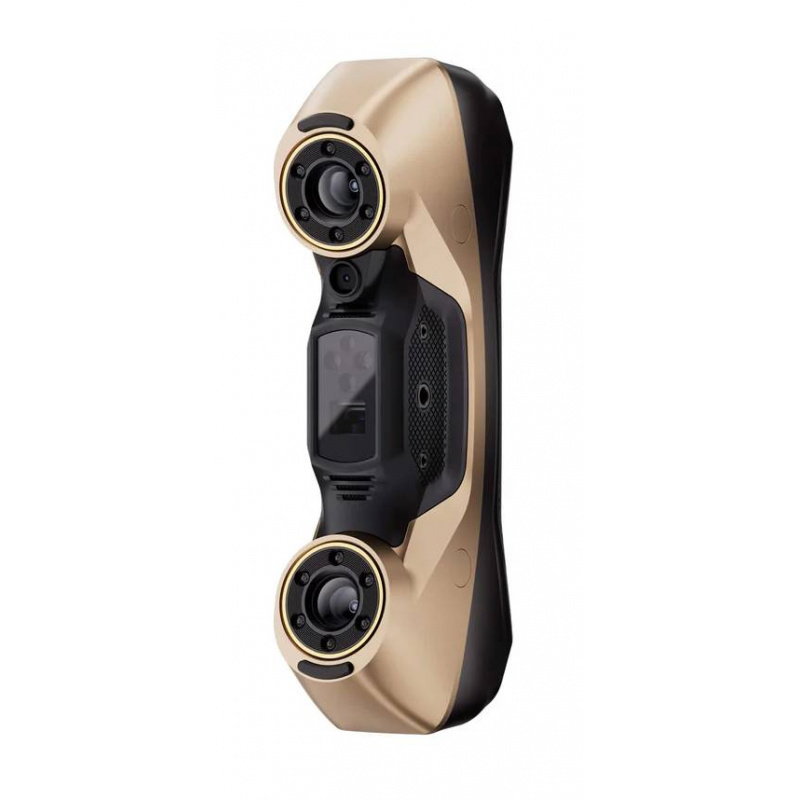

3D scanner - Revopoint MetroY Ultra - CMM Edition.

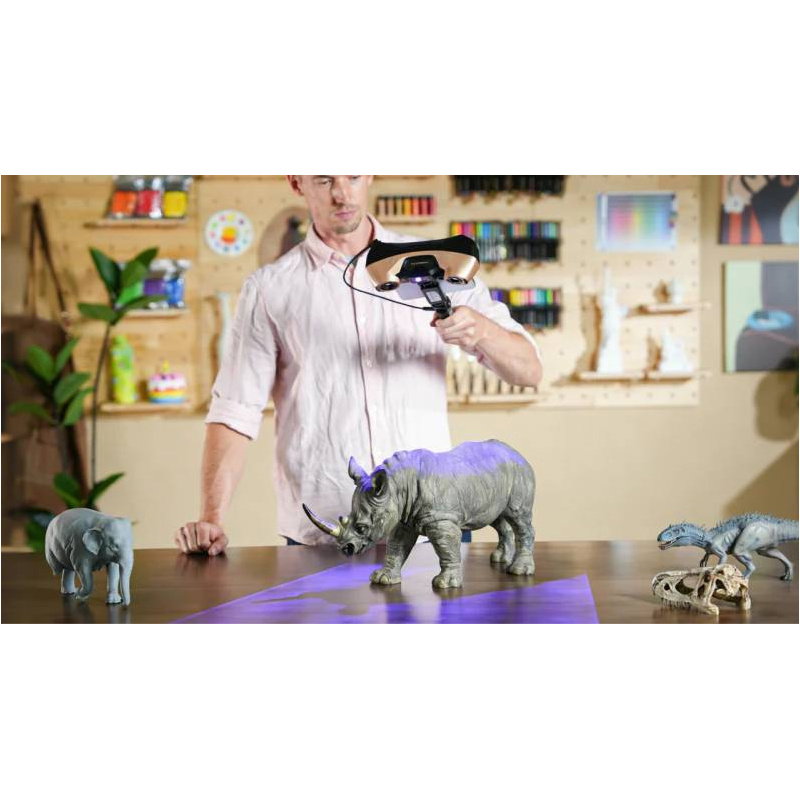

Structured light allows you to capture richly detailed elements without the need for markers.

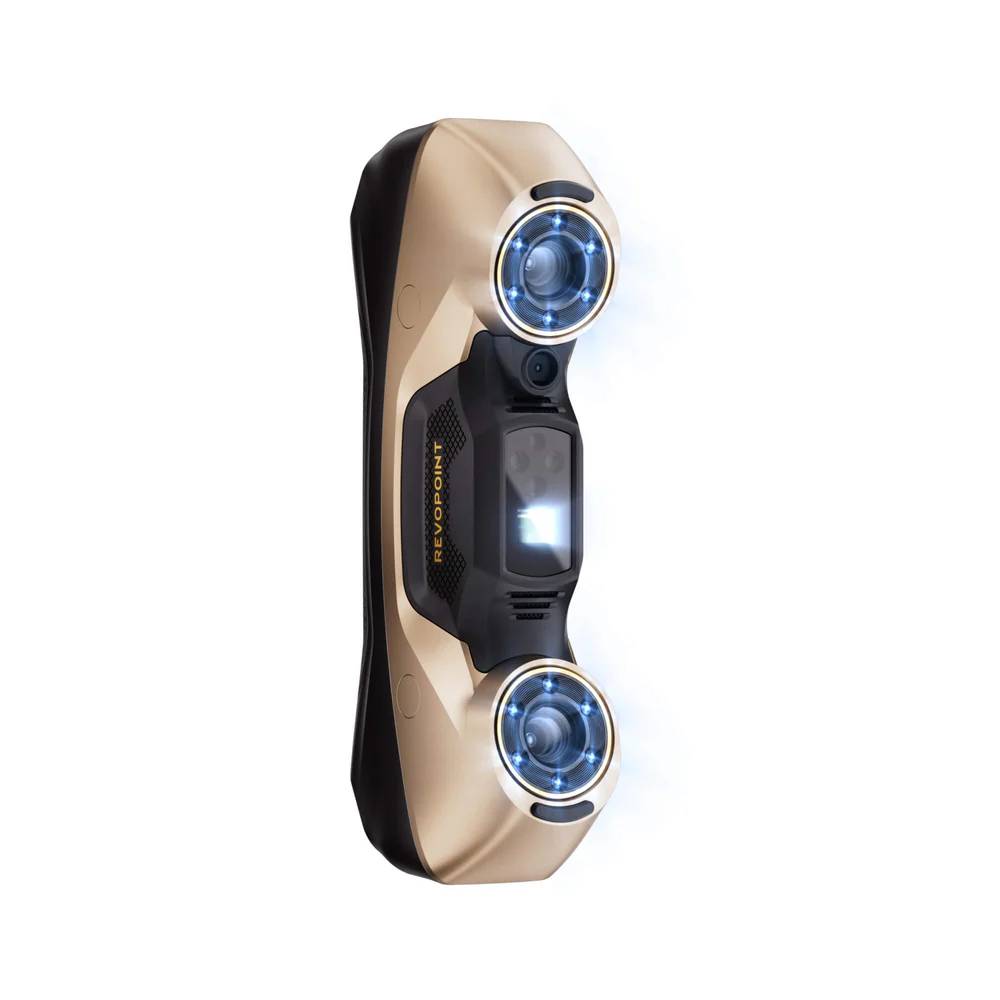

Blue light technology in the Revopoint 3D scanner
MetroY Ultra utilizes advanced blue laser technology and full-field structured light , ensuring high resistance to light interference and excellent geometry reproduction. Blue light sources enable more effective detail capture compared to traditional white light solutions. This allows for exceptionally accurate models to be obtained even in harsh industrial environments . This technology is used wherever precise measurements and repeatable scanning results are required.
3D scanning modes for details, holes and technical surfaces
The scanner offers five dedicated operating modes adapted to different geometries and surface types. The 34-line cross laser mode ensures maximum data capture speed when scanning large surface areas. The 15-line parallel mode is optimized for capturing fine details, edges, and technical elements. A single laser line enables efficient scanning of deep holes, slots, and recesses, while the structured light and automatic turntable allow for the rapid creation of accurate models of small parts.

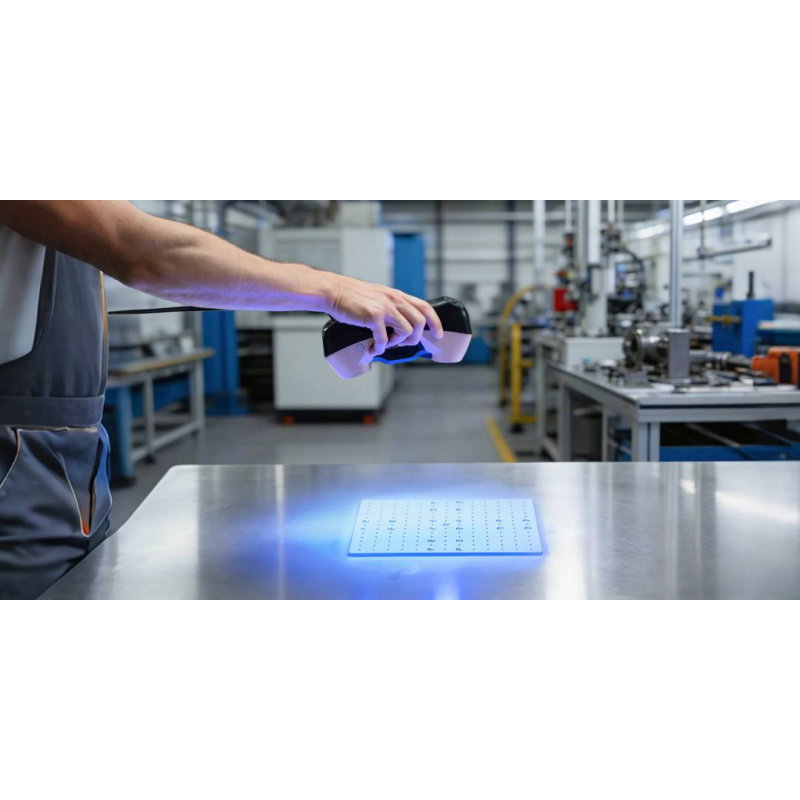

Metrological accuracy for quality control and 3D measurements
MetroY Ultra is designed for applications where measurement data reliability is key. The scanner offers single-frame accuracy of up to 0.015 mm , precision of up to 0.01 mm , and volumetric accuracy of 0.015 mm + 0.04 mm x L (m) . These parameters enable the device to be used for part inspection, model comparison with CAD documentation, and dimensional analysis. The CMM version also offers Accuracy verification using a certified ball plate and Revo Measure software. This solution enables measurements that meet the requirements of professional production and quality processes.
Fast 3D scanning with a capacity of up to 7 million points per second
The Revopoint MetroY Ultra significantly reduces 3D data acquisition time while maintaining high model detail. In laser modes, the scanner achieves throughput of up to 3,000,000 points/s , and in full-field structured light mode , up to 7,000,000 points/s . The maximum scanning rate is up to 90 fps , enabling smooth work with more complex objects. The high data capture speed makes the scanner well-suited for quality control, prototyping, and rapid part digitization.

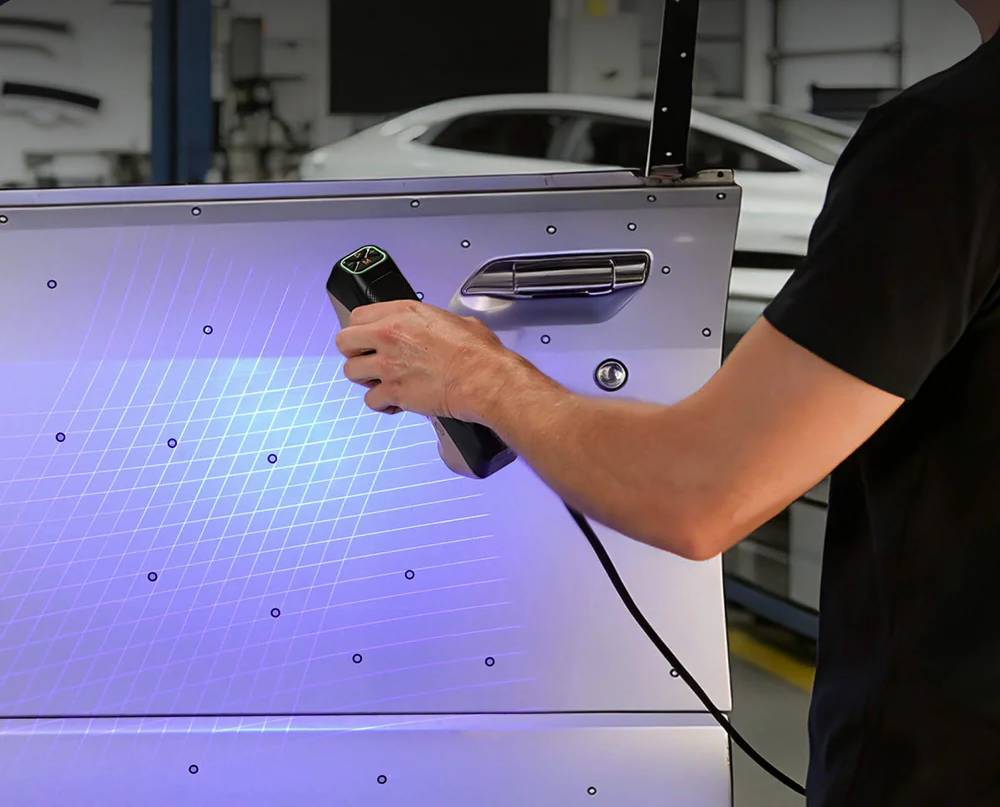

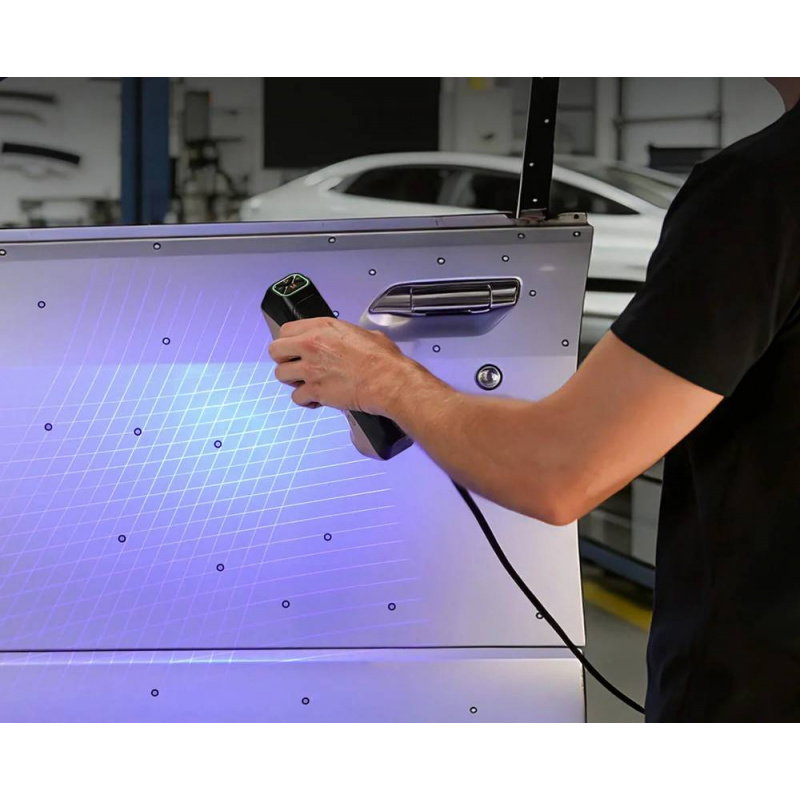

34 cross lines are suitable for scanning flat, shiny or black surfaces.

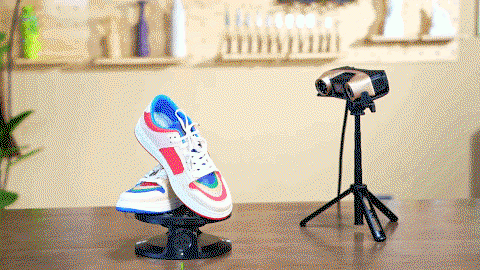

The dual-axis rotation platform ensures repeatable results.

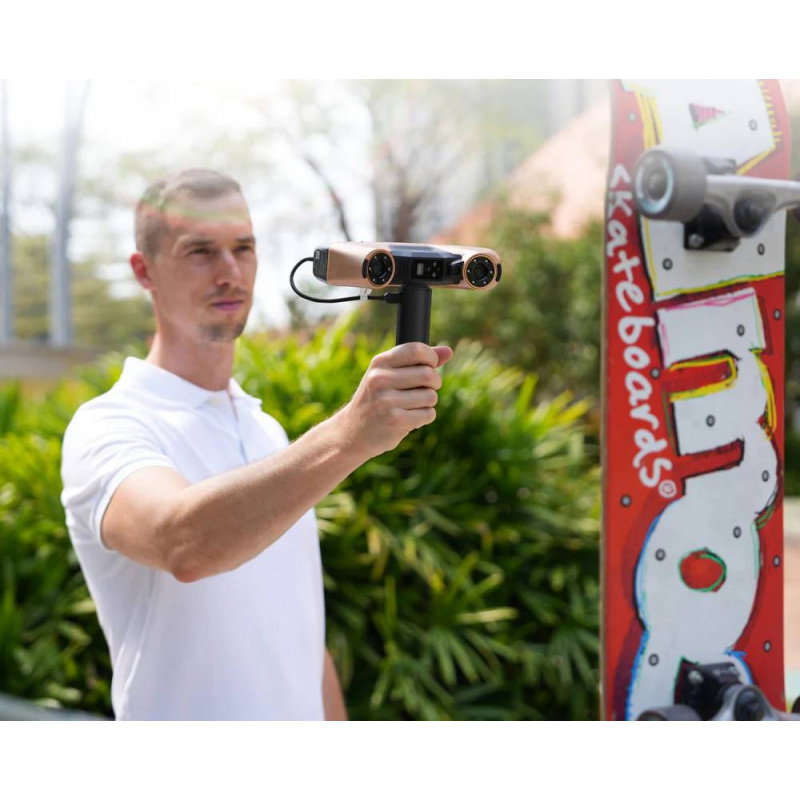

Wireless 3D scanner for field and production work
Thanks to WiFi 6 connectivity, MetroY Ultra enables convenient scanning without a constant cable connection to a computer. The operator can transfer data in real time and monitor scan progress on a compatible device. Laser modes allow operation even in bright light, up to 100,000 lux , extending the scanner's usability outside the laboratory. The 5500 mAh battery holder provides approximately 2.5 hours of mobile operation .
3D scanning, measurement and CAD design software

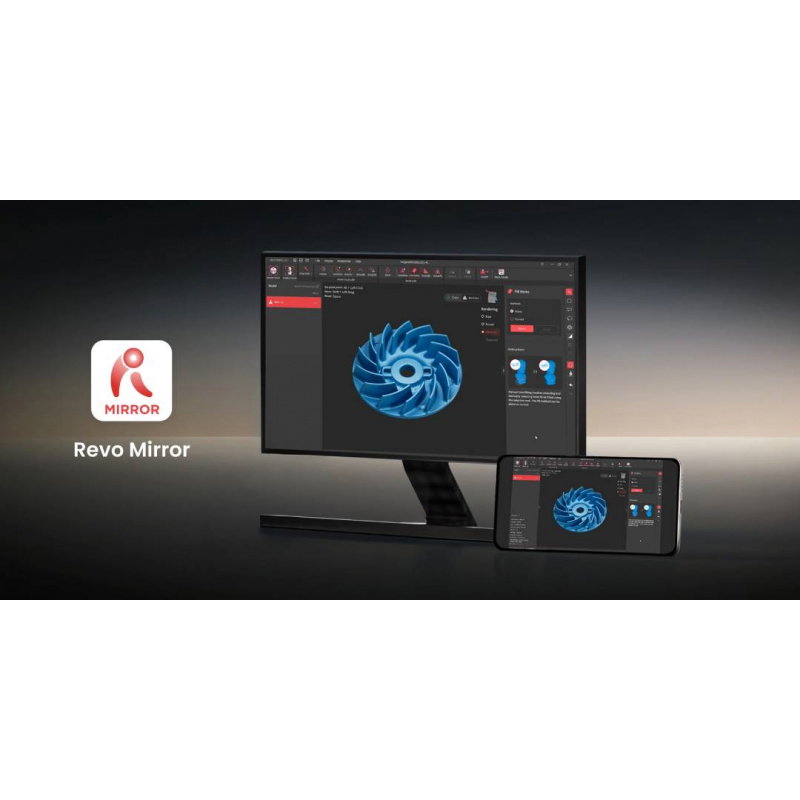

MetroY Ultra integrates with a suite of tools that support the entire 3D modeling process. The free Revo Metro software allows users to scan, edit, combine, and export models in popular formats. Revo Measure allows for measurements, geometric analysis, and quality control based on scanner data. Revo Design, in turn, supports the conversion of scans into CAD models, which is particularly useful for reverse engineering, product design, and technical documentation preparation.

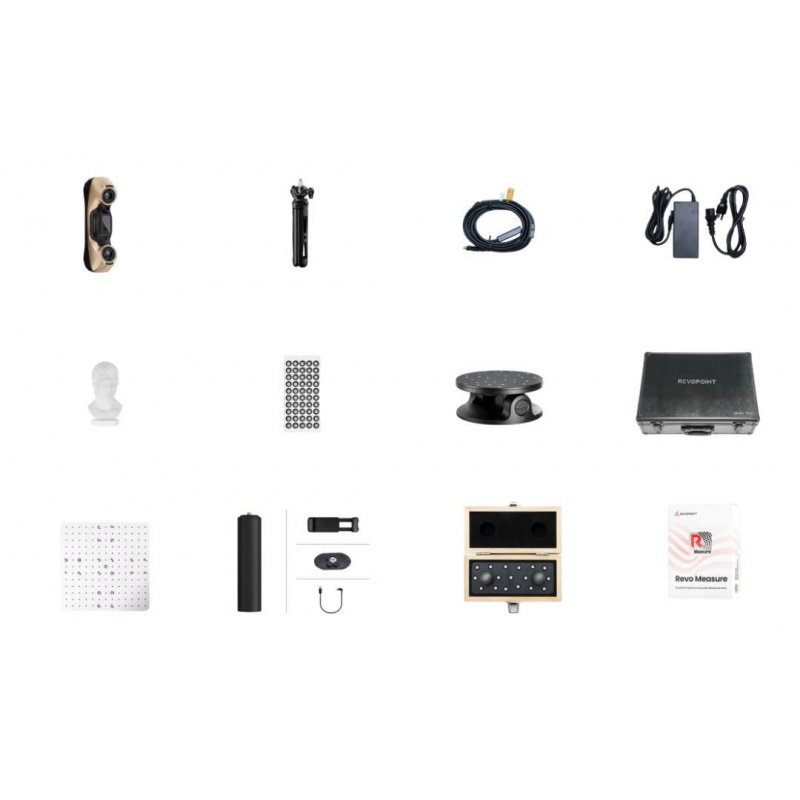

Contents of the set
- Revopoint MetroY Ultra 3D scanner
- Tripod
- USB Type-C to USB Type-C cable
- Charger
- Test model
- 500 6mm markers
- Two-axis rotating platform
- Transport case
- Calibration plate
- Ball plate
- Revo Measure Software (1-Year License - Windows 10/11 Supported Only)
- Mobile kit (4th generation)

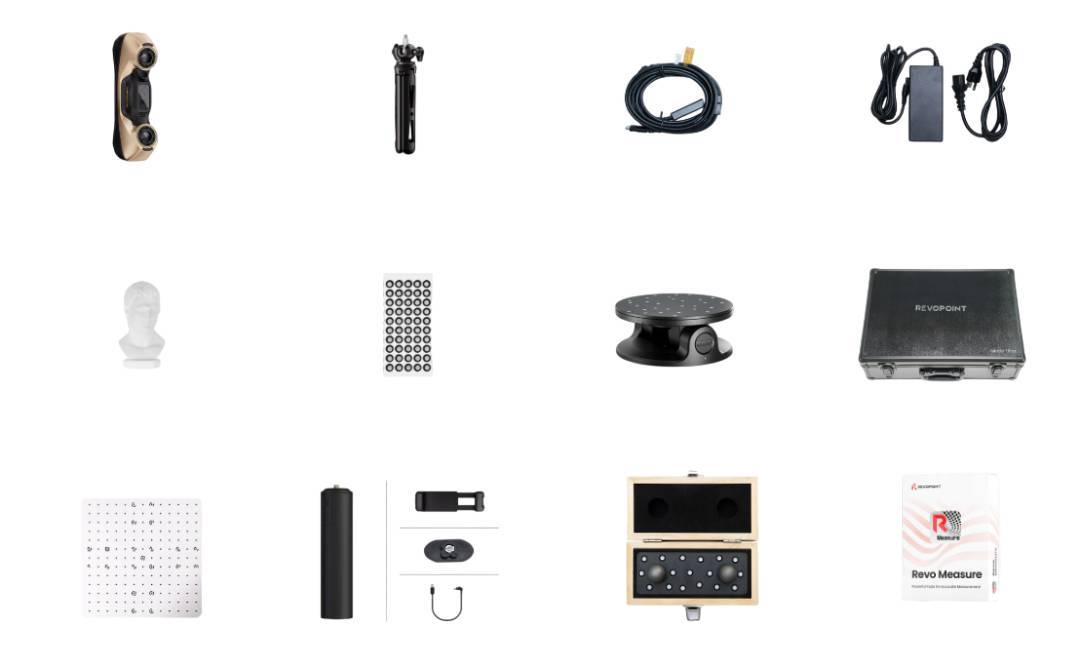

Elements included in the set.
| Technical specifications of the Revopoint MetroY Ultra 3D scanner | |
|---|---|
| Scanner type | handheld and stationary |
| Technology | multi-line laser scanner + full-field structured light |
| Supported object sizes | small and medium |
| Single frame precision | up to 0.01 mm |
| Single frame accuracy | up to 0.015 mm |
| Volumetric accuracy | 0.015 mm + 0.04 mm x L (m) |
| Distance between points | up to 0.05 mm |
| Working distance | from 200 mm to 400 mm |
| Capture field at 200 mm | 152 x 138 mm |
| Capture field at 400 mm | 332 x 276 mm |
| View | 49° x 38° |
| Minimum scan volume | 10 x 10 x 10 mm |
| Maximum scan volume | 2 x 2 x 2 m |
| Scanning speed | up to 90 fps with NVIDIA GPU, up to 60 fps with CPU |
| Laser mode performance | up to 3,000,000 points/s |
| Structured light efficiency | up to 7,000,000 points/s |
| RGB camera resolution | 2 MPx |
| Color scanning | yes, in automatic rotating platform mode |
| Tracking methods | marker, global marker, feature |
| External scanning | yes, in laser modes up to 100,000 lux |
| 3D light sources | 34 cross laser lines, 15 parallel laser lines, 1 single deep hole laser line, 62-line full field structured light |
| Illuminating diodes | 12 blue LEDs |
| Processor | 2.0 GHz 4-core ARM |
| Built-in calculations | depth calculations |
| Buttons | 4 |
| Minimum requirements - macOS | CPU M2 Pro, RAM at least 16 GB |
| Minimum requirements - Windows | Intel i7 13th generation or AMD Ryzen 7 5800, RAM minimum 32 GB, NVIDIA GeForce RTX 3060 8 GB |
| Recommended requirements - macOS | CPU M4 Pro or better, RAM minimum 24 GB |
| Recommended requirements - Windows | Intel i9 12th generation or better, RAM minimum 64 GB, NVIDIA RTX 4060 8 GB or better |
| Compatible operating systems | Windows 10/11 64-bit, macOS 11.0 or later |
| Export formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Readiness of models for 3D printing | Yes |
| Wireless connectivity | WiFi 6 |
| Connector | USB Type-C to USB Type-C |
| Power supply | DC 12V / 3A |
| Special Scanning Requirements | for transparent or mirror surfaces in laser modes, use scanning spray; in structured light modes, spray is recommended for transparent, black surfaces, mirror or highly reflective |
| User Recalibration | Yes |

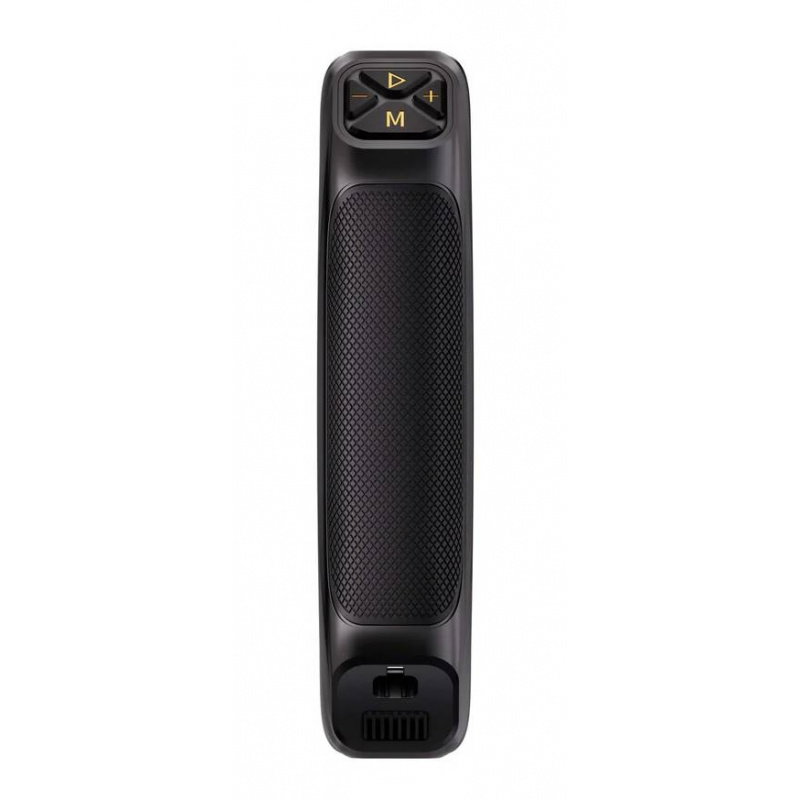

| Handle battery capacity | 5500 mAh |
| Operating time with battery holder | about 2.5 hours |
| Supported accessories | Marker Block Kit, Mobile Kit 4th Generation, Dual-axis Turntable, Ball Plate |
| Laser class | Class 2M |
| Dimensions | 211 x 94 x 47 mm |
| Mass | 450 g |
