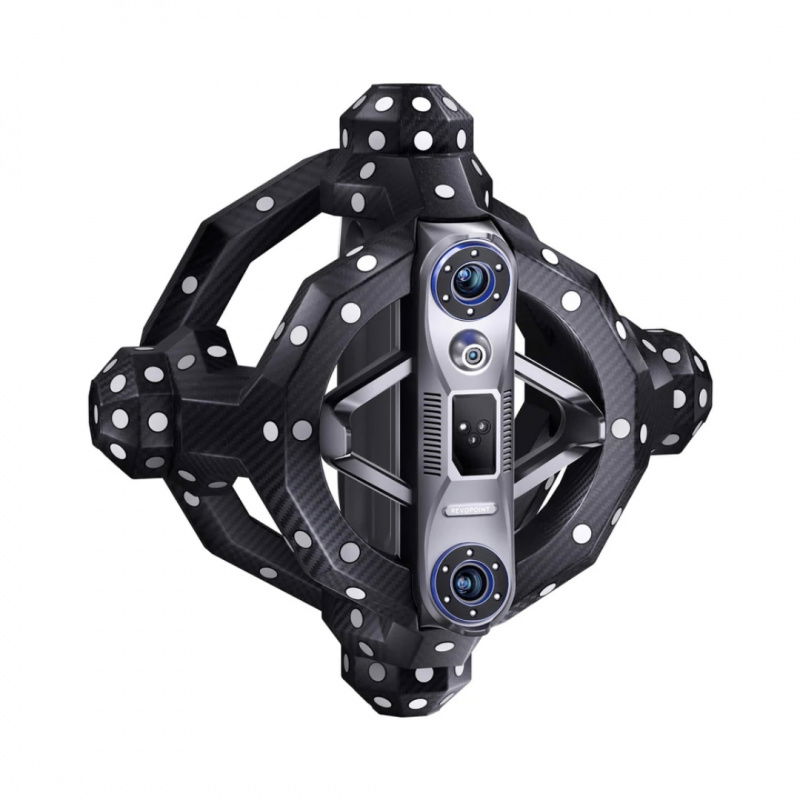

Product description: 3D scanner - Revopoint TrackIt - Standard Edition
The Trackit Standard Edition utilizes innovative dual-mode blue laser technology, offering a 30-line crosshair mode for fast surface scanning and a single-line mode for precise mapping of deep details such as gear teeth, cavities, and holes. The scanner can operate in optical tracking mode or as a standalone handheld device, allowing for easy capture of hard-to-reach areas. An automatic calibration system significantly reduces setup time and eliminates human error, while the durable carbon fiber construction ensures data consistency even during extended use. Equipped with a high-quality RGB camera , the Trackit reproduces realistic textures, supports objects from 10 mm to 6 m , and provides a volumetric accuracy of 0.02 mm + 0.04 mm x L(m) . The device works with popular 3D formats (PLY, STL, OBJ, 3MF, FBX) and is ideal for engineering, quality control, design, and reverse engineering.

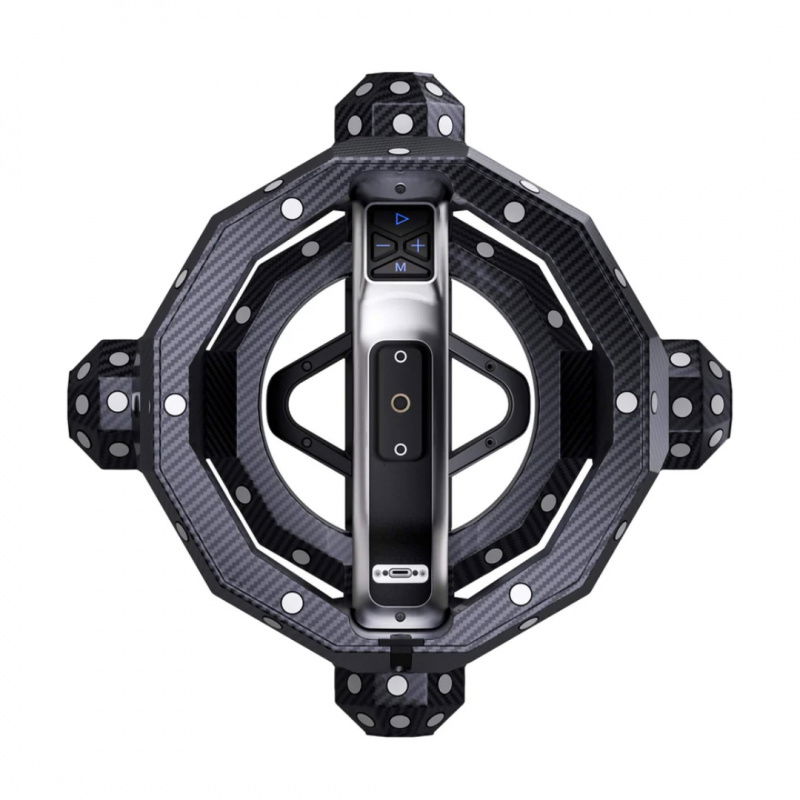

3D scanner - Revopoint TrackIt - Standard Edition.
Trackit Standard Edition uses innovative dual-mode blue laser technology.Special features
- Markerless optical tracking - enables fast and precise scanning without the need for markers, which speeds up work and increases convenience
- Two laser modes - 30 cross lines for quick scanning of large areas and a single line for capturing fine details, such as gear teeth or deep recesses
- Volumetric accuracy - 0.02 mm + 0.04 mm x L(m), ensures precise reproduction of the dimensions of scanned objects
- Automatic two-axis gimbal calibration - intelligent calibration system eliminates human errors and ensures consistent scanning precision
- High-quality RGB camera - enables realistic reproduction of surface texture and color, creating detailed 3D models
Precise reproduction of details

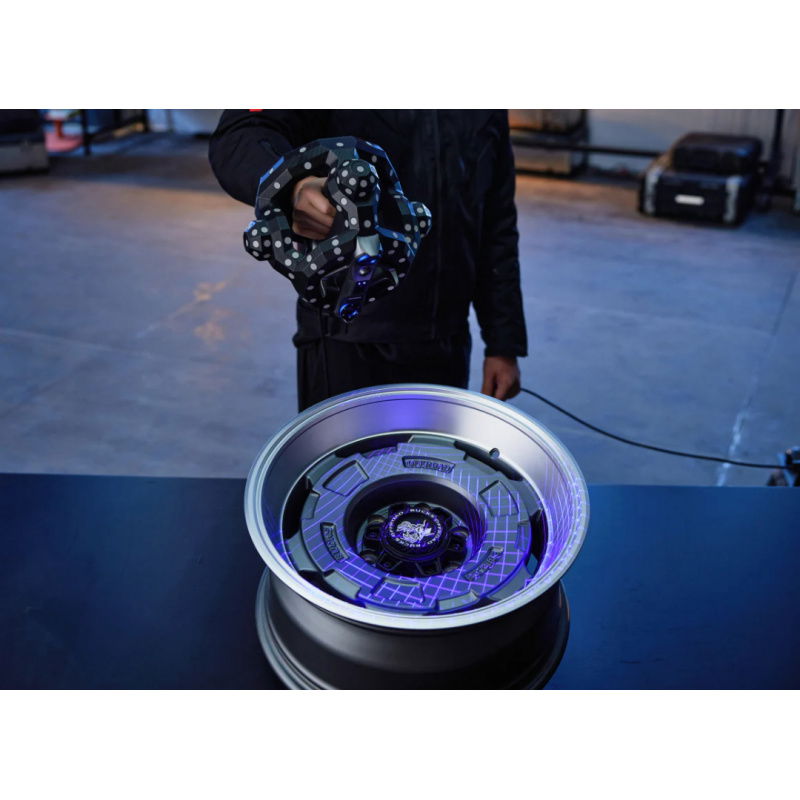

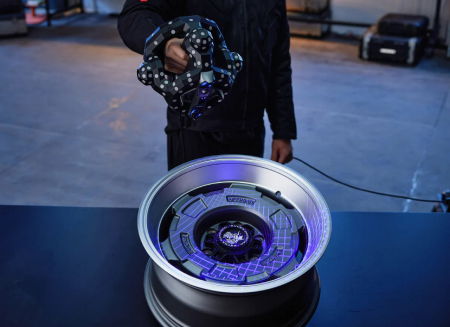

By combining dual-mode blue laser technology with high-resolution RGB, Trackit captures even the smallest details. Whether scanning small mechanical components, jewelry, or complex industrial parts, the device produces incredibly accurate and realistic 3D models.
Flexible working modes

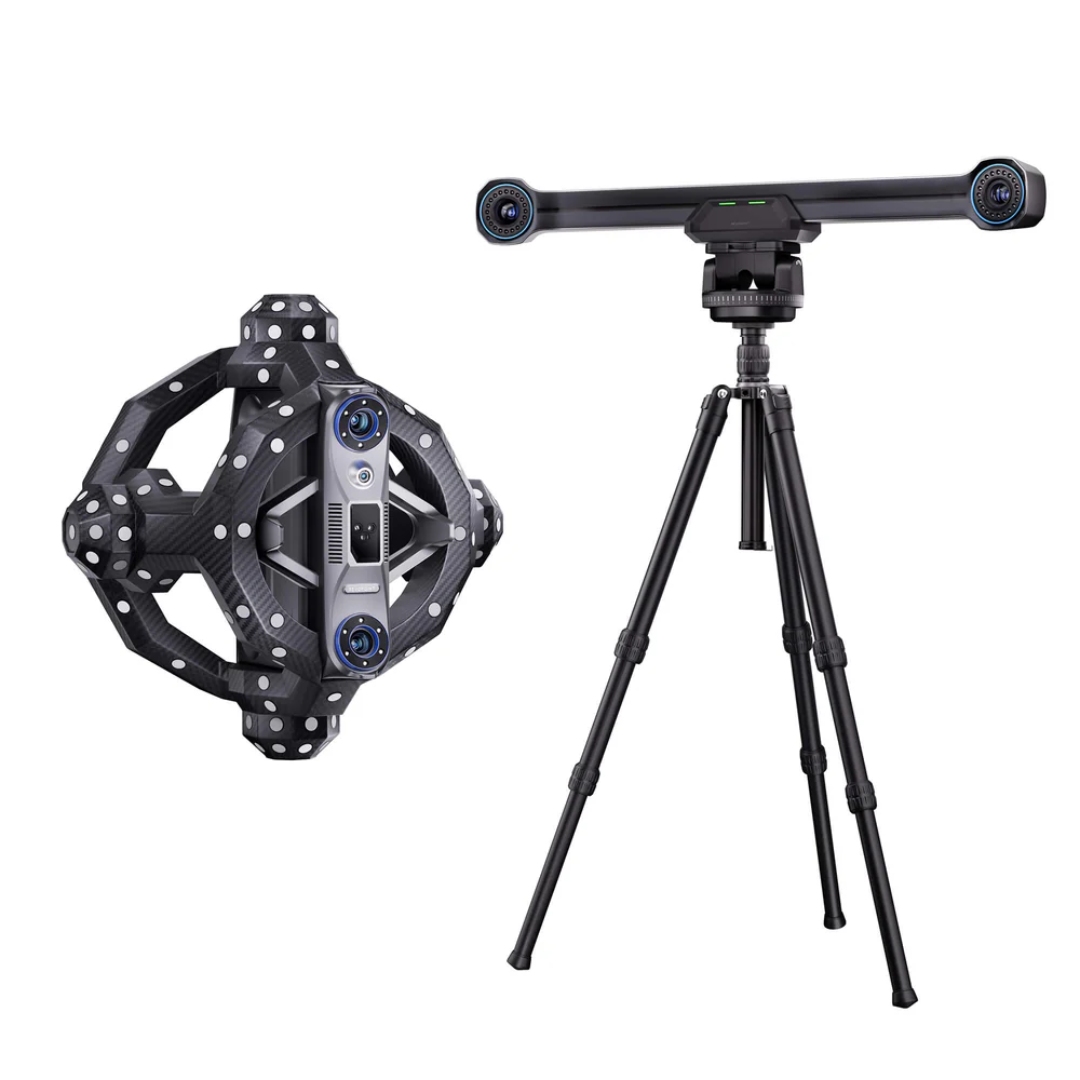

The device can operate in both optical tracking mode and as a standalone handheld scanner. This allows for easy scanning of hard-to-reach areas and odd-shaped objects, providing full control over the scanning process and maximum application versatility.
The automatic calibration system significantly reduces preparation time and eliminates human errors.

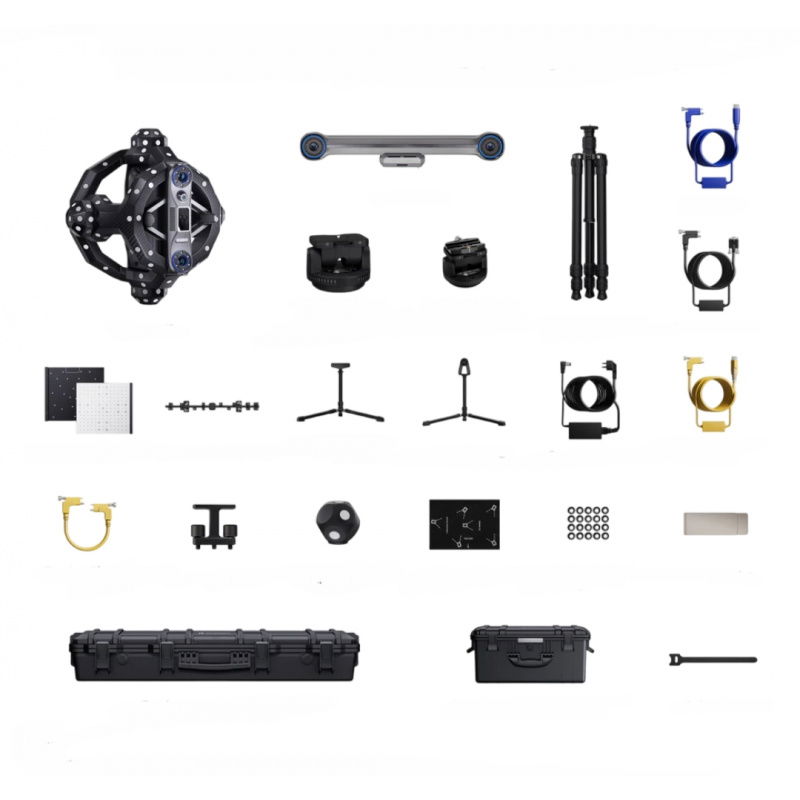

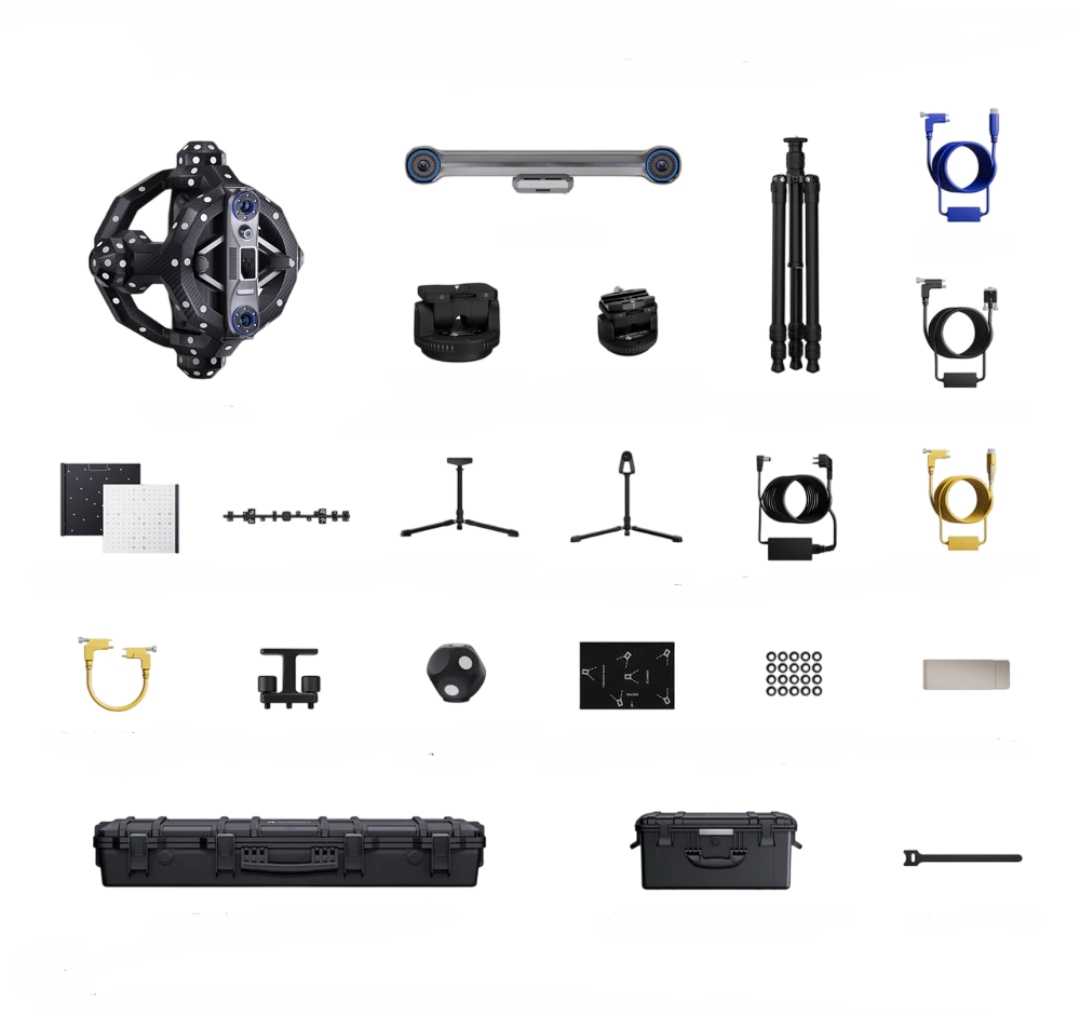

Contents of the set.Contents of the set
- Trackit 3D Scanner

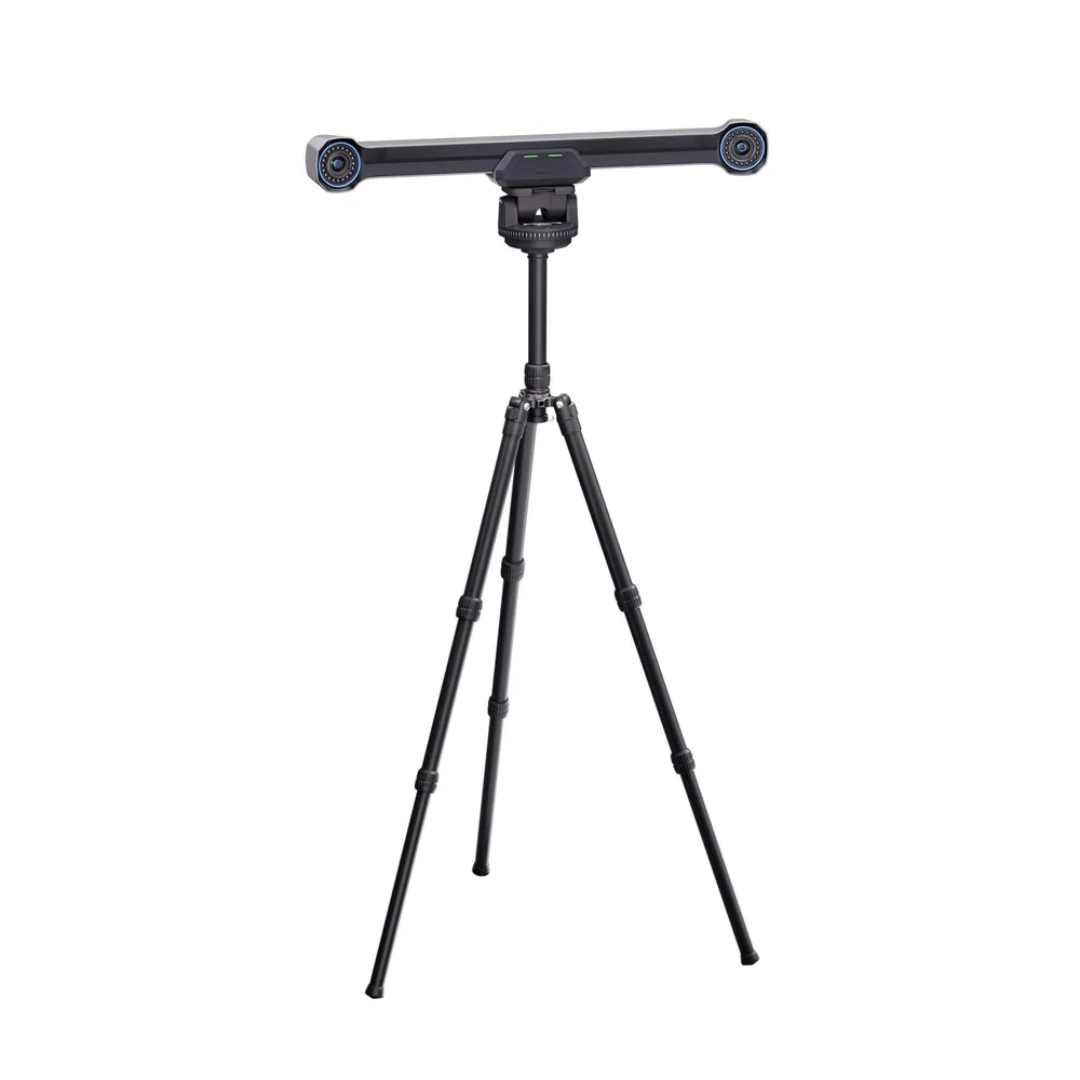

- Tracker
- Tracker Tripod
- Bidirectional gimbal with automatic scanner calibration
- Bidirectional gimbal with automatic Tracker calibration
- Calibration plate
- Calibration bar
- Stand for calibration plate
- Scanner stand
- Charger
- PC cable
- Scanner cable
- Scanner gimbal cable
- Tracker Gimbal Cable
- Cable ties
- Markers x20 (magnetic)
- Anchor blocks x8 (magnetic)
- Positioning pad
- Scanner adapter
- USB memory stick
- Tracker Carrying Case with Wheels
- Scanner transport case with wheels
| Technical specifications of the Revopoint Revopoint TrackIt 3D scanner | |
|---|---|
| Scanning technology | marker-free optical 3D tracking |
| Laser modes | 30 cross lines / single line |
| Volumetric accuracy | 0.02 mm + 0.04 mm x L(m) |
| Scanning speed | up to 1,500,000 points/s |
| RGB camera | high resolution texture mapping |
| Object scanning range | from 10 mm to 6 m |
| Recommended tracker operating range | from 1.5 to 4 m |
| Minimum tracking area | 1400 x 1050 mm at 1500 mm |
| Maximum tracking area | 2800 x 2800 mm at 4000 mm |
| Tracking volume | 11 m³ |
| Interface | USB / Revo Track Software Connection |
| Output formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Operating temperature | 0ºC to 40ºC (20℃ to 25℃ recommended for maximum accuracy) |
| Calibration system | automatic calibration using the gimbal system |
| Scanner dimensions | 295 x 295 x 205 mm |
| Tracker dimensions | 686 x 115 x 111 mm |
| Scanner weight | 1.2 kg |
| Tracker weight | 1.8 kg |
