Product description: 3D scanner - Revopoint Trackit SR - CMM Edition
The Revopoint Trackit SR CMM Edition combines a handheld laser scanner with an optical tracker and measurement equipment. The system utilizes 30 cross lasers, 17 parallel lasers, and one single blue laser line , allowing for customization of registration for fine details, large surfaces, and deep holes. The scanner achieves a single-frame accuracy of 0.02 mm and a speed of up to 2,000,000 points/s , while the tracking system provides a volumetric accuracy of 0.025 mm + 0.04 mm x L (m) . Object sizes range from 10 mm to 4 m . WiFi 6 and optical tracking reduce dependence on cables and markers. The CMM Edition expands the Standard Edition with a ball plate, a one-year Revo Measure license, a Battery Grip, and a power cord , creating a complete package for quality control and dimensional verification.

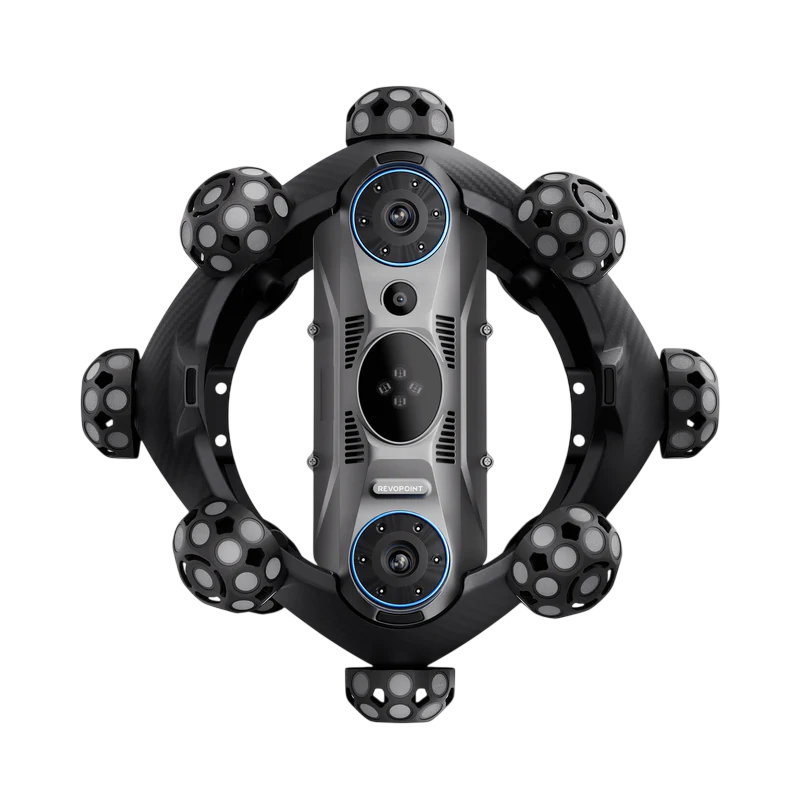

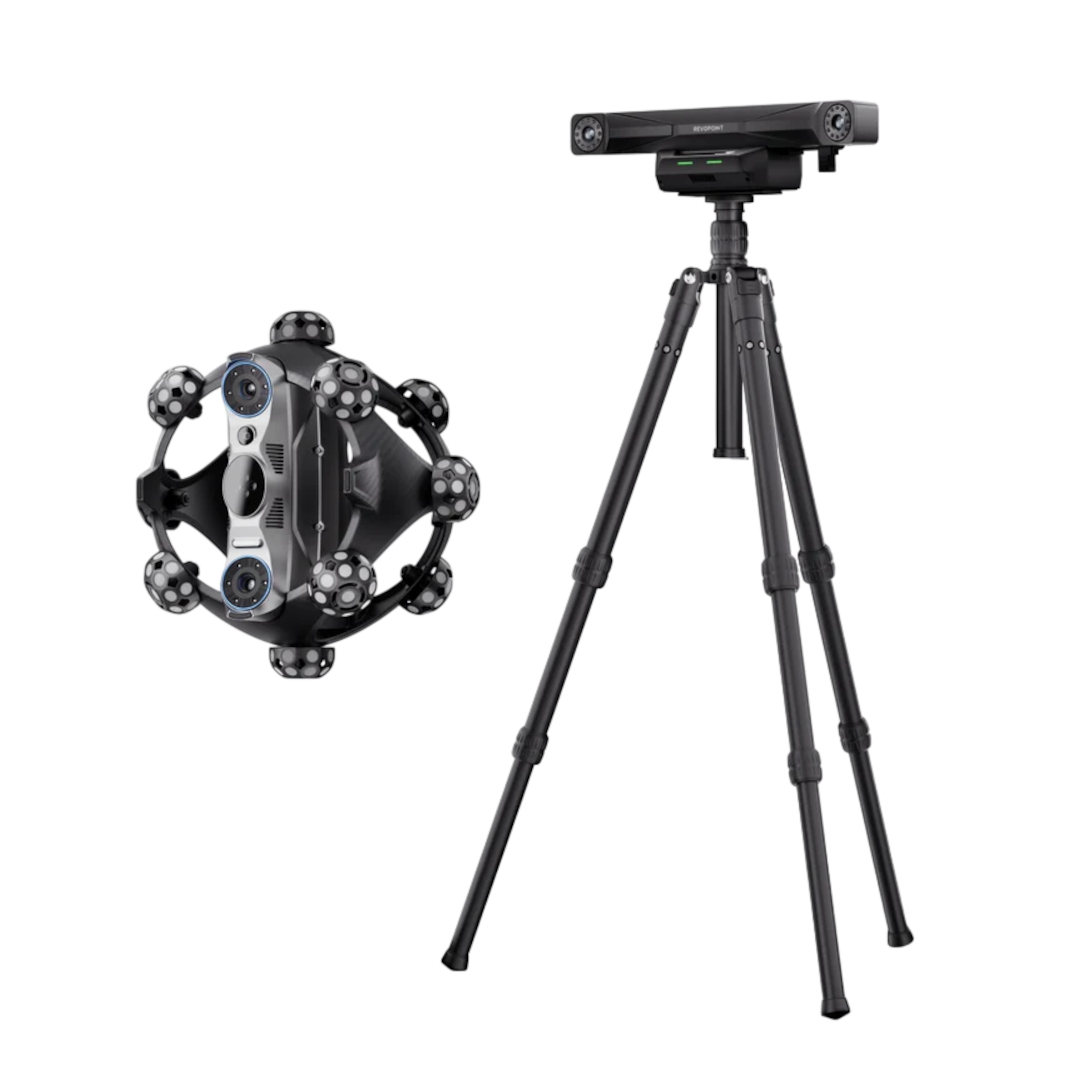

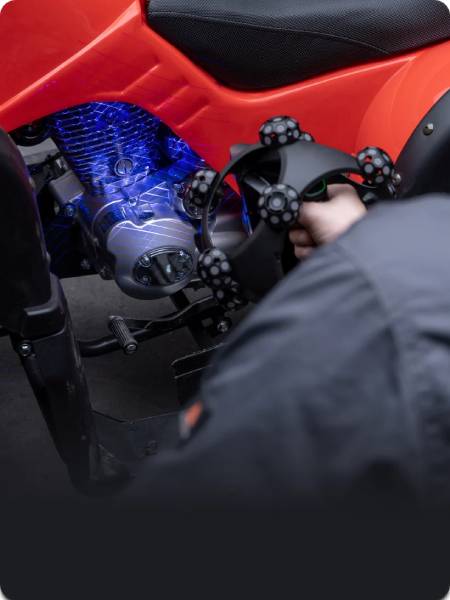

3D scanner - Revopoint Trackit SR.
The scanner is designed to work with objects ranging in size from 0.01 m to 4 m.
Key Features of the Trackit SR CMM Kit
- CMM version for quality control : the extended kit includes equipment and software to facilitate the transition from scanning to dimensional analysis
- Ball Plate : used to verify the system's accuracy directly on site
- Revo Measure with an annual license : allows you to perform measurements, analyze GD&T, compare scans with CAD models and evaluate deviations
- Single frame accuracy of 0.02 mm : allows you to capture the geometry of parts that require detailed reproduction
- Volumetric accuracy of 0.025 mm + 0.04 mm x L (m) : supports traceability when scanning larger components
- Three blue laser modes : 30 cross lines, 17 parallel lines and a single line allow you to adjust the work method to the geometry of the object
- Speed up to 2,000,000 points/s : enables efficient registration of large surfaces and reduces data acquisition time
- Object range from 10 mm to 4 m : allows the analysis of both small components and larger parts of machines or vehicles
- Markerless scanning : the optical tracker determines the scanner's position in real time, so in the basic Track Scan mode there is no need to tape the object's surface
- WiFi 6 : enables wireless data transmission between devices and your computer

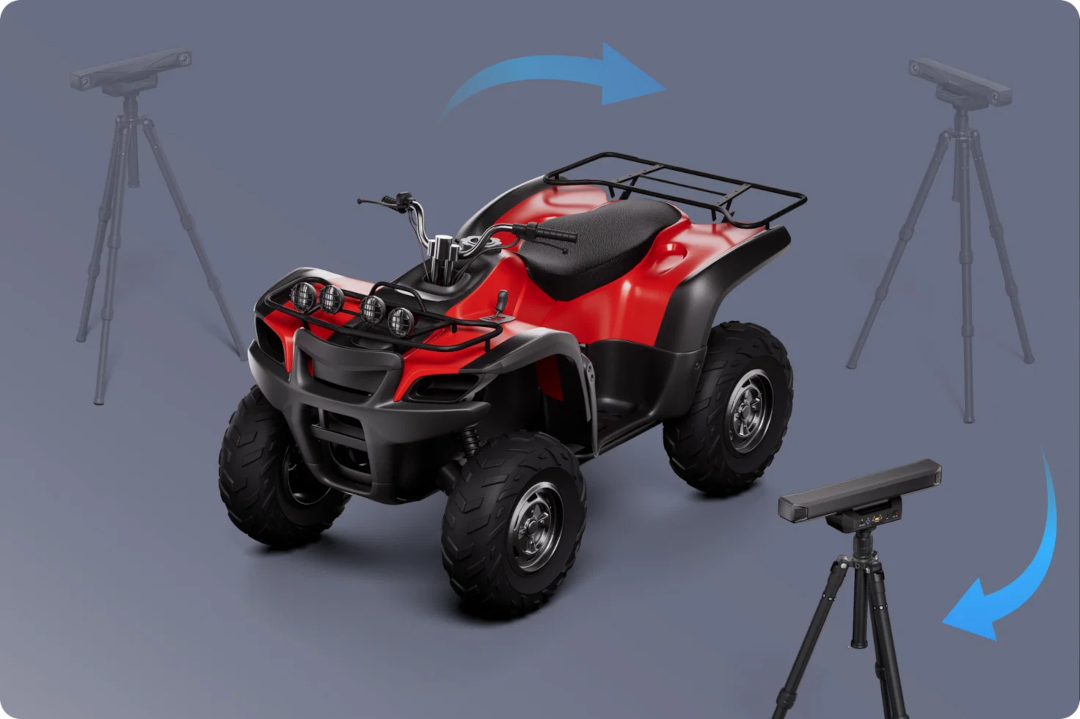

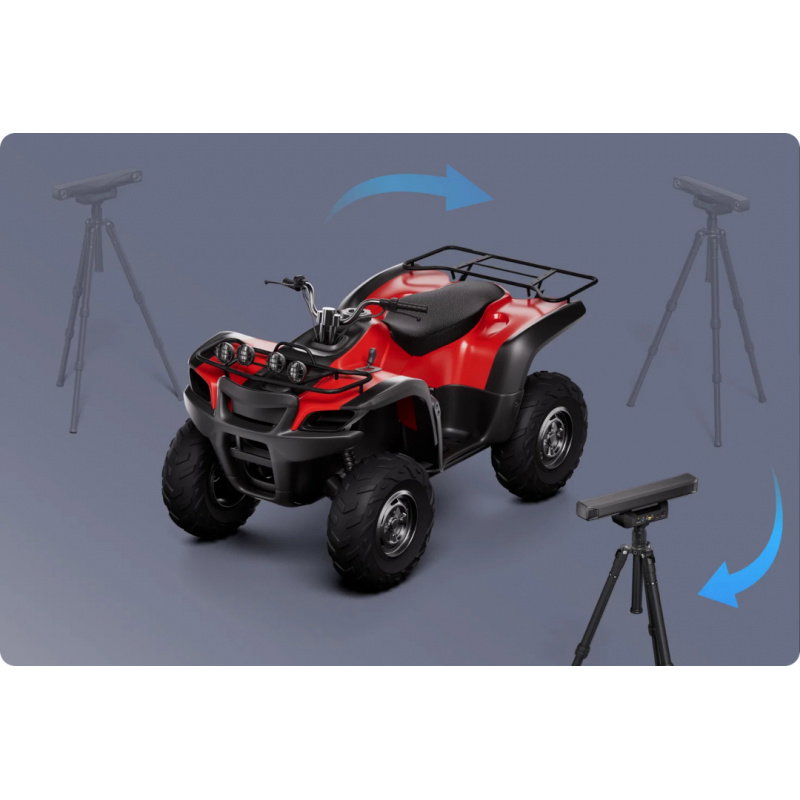

- Battery Grip : increases the mobility of the tracker and makes it easier to perform multi-station measurements
- RGB camera : records information about the color and texture of the model's surface
- Thermal stabilization : active heating and temperature sensors help maintain stable measurement conditions
- Carbon construction : the use of carbon fiber ensures high stiffness while keeping the weight of the devices low
- High-light performance : Trackit SR allows for outdoor scanning in ambient light up to 100,000 lux
Blue laser modes for details, large surfaces and holes
The system offers three complementary laser scanning modes , allowing you to tailor the operating characteristics to the shape and size of the component being measured. Fine Mode utilizes 30 cross-shaped blue laser lines and is primarily designed for accurate capture of details, complex surfaces, and black, metallic, and reflective elements. Far Mode, with 17 parallel lines, operates at a greater distance—from 250 mm to 500 mm—and enables the rapid capture of larger or otherwise indistinct surfaces. Deep Hole Mode generates a single blue laser line , facilitating the mapping of narrow grooves, slots, deep holes, and other structures with limited visibility.
Revopoint Trackit SR uses a blue laser operating in 3 modes (from 1 to 30 laser lines).
The scanner enables wireless operation via WiFi 6 connectivity.
Measurement range and data stability during quality control
Trackit SR supports object sizes from 10 mm to 4 m , making it suitable for everything from small mechanical parts to bodywork, structural components, and larger industrial assemblies. Single-frame accuracy is 0.02 mm , with a maximum integrated point spacing of 0.05 mm , and volumetric accuracy of the tracking system reaching 0.025 mm + 0.04 mm x L (m) . The tracker operates from a distance of 800 mm to 2500 mm, providing a tracking volume of 3 m³, and a maximum frame area of 2075 x 1778 mm at 2500 mm. In the CMM version, a ball plate can be used to check the system's accuracy on the jobsite, while active heating and temperature sensors help mitigate the effects of thermal changes. For the highest accuracy, the manufacturer recommends an ambient temperature of 20°C to 25°C.
Mobile design and wireless organization of the measurement station
The scanner and tracker are designed for use both in the measurement laboratory and directly on a machine, vehicle, or large workpiece. The scanner weighs 1 kg, the tracker 1.5 kg , and carbon fiber structural components help combine high stiffness with low weight. A Class 2 blue laser is used to scan geometry, while the optical tracking system operates in the NIR band. WiFi 6 connectivity allows for cable-free data transfer to a computer, and the scanner's replaceable batteries provide up to 2.5 hours of operation . The CMM Edition also includes a Battery Grip with a power cable for greater flexibility in tracker positioning, which is particularly useful when measuring large objects at multiple stations.
The scanner allows for outdoor scanning with lighting up to 100,000 Lux.

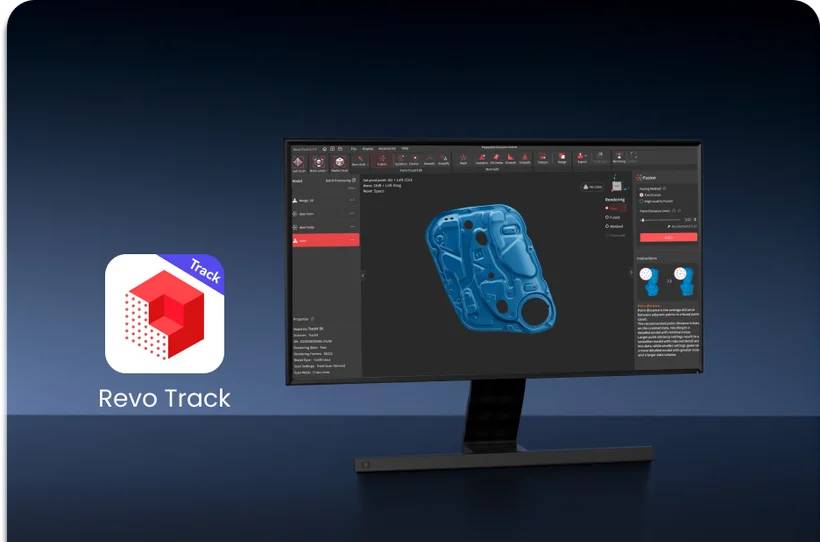

Trackit SR works with the free Revo Track software, and the CMM Edition also offers a one-year Revo Measure license.
Revo Measure and Revo Track in the scanning and inspection process
CMM Edition expands the system's capabilities with a one-year Revo Measure license , allowing scanned geometry to be used directly for dimensional inspection and quality analysis. The program allows for length, angle, and volume measurements, GD&T analysis, cross-sectioning, and comparison of measurement data with CAD models, including generating deviation maps that show the distribution of surface errors. Data recording and preparation are handled by the free Revo Track software , which supports scanning, calibration, merging, editing, and exporting to PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX formats. Data can then be used in CAD environments, 3D modeling programs, and 3D printing applications. The Revo Measure license included with CMM Edition is designed for Windows 10 and Windows 11 .
Contents of the set
- Revopoint Trackit SR Scanner

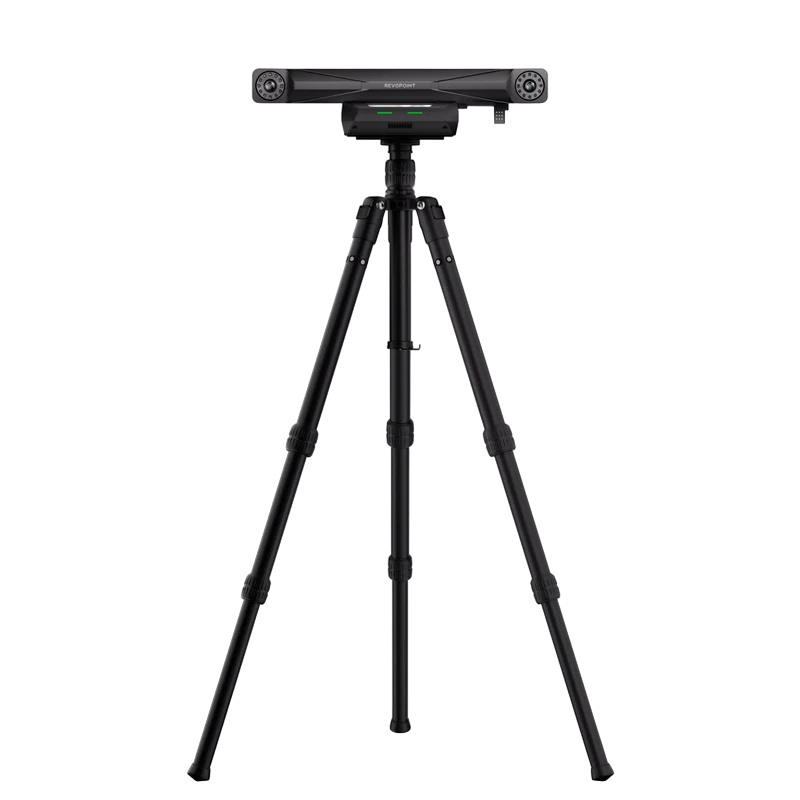

- Tracker
- Two-axis gimbal for automated calibration
- Tripod
- Gimbal Adapter Plate
- Quick-release handle
- Calibration plate
- Calibration pole
- Charger
- Tracker Cable - PC
- Scanner - PC Cable
- Cable Tracker - Scanner
- Tracker Cable - Gimbal
- Cable cover
- 20 magnetic markers
- 200 self-adhesive markers
- Transport case on wheels
- 2 batteries for the scanner
- Scanner battery charger

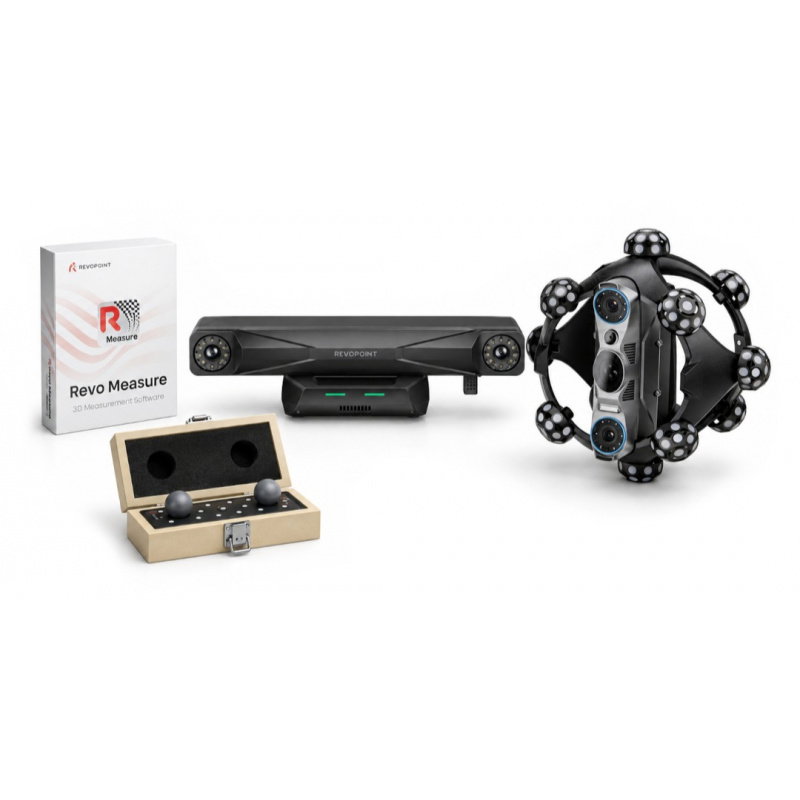

- Ball Plate
- Revo Measure - 1-year license
- Battery Grip
- Battery Grip Power Cable

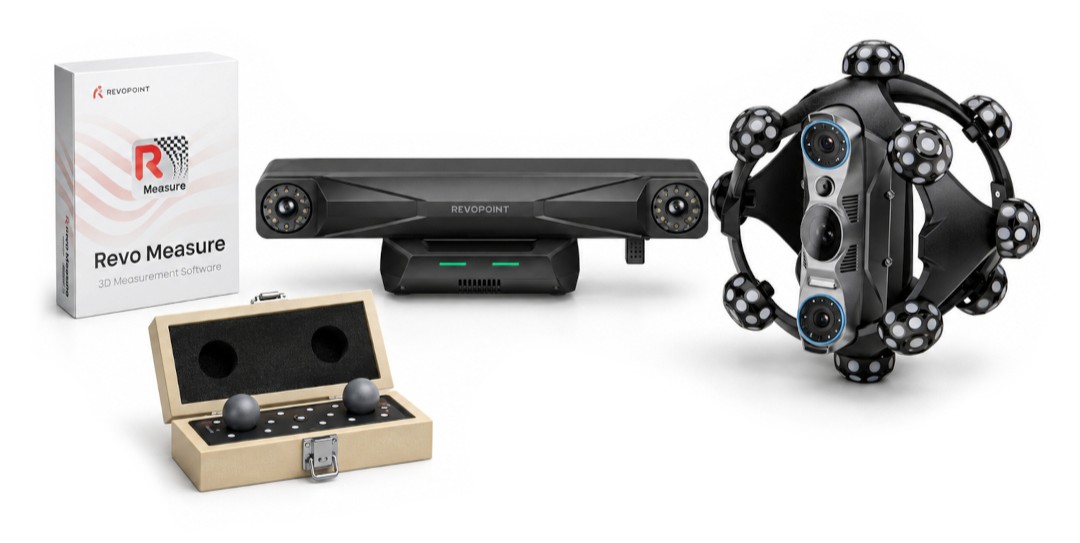

The kit includes the elements included in the standard version as well as additional accessories and software.
| Revopoint Trackit SR Technical Specifications | |
|---|---|
| Trackit SR Scanner | |
| Single frame accuracy | 0.02 mm |
| Acceptance Test Standard | VDI/VDE 2634 Part 3 and ISO 10360-13 |
| Distance of merged points | up to 0.05 mm |
| Scanning speed | up to 2,000,000 points/s |
| Light source - Fine Mode | 30 cross blue laser lines |
| Light Source - Far Mode | 17 parallel blue laser lines |
| Light Source - Deep Hole Mode | 1 blue laser line |
| Laser class | class 2 |
| Working Distance - Fine Mode | from 200 mm to 400 mm |
| Working Distance - Far Mode | from 250 mm to 500 mm |
| Working Distance - Deep Hole Mode | from 200 mm to 400 mm |
| Single shot area at shortest distance | 123 x 130 mm at 200 mm |
| Single shot area at greatest distance | 330 x 325 mm at 500 mm |
| Recommended size of scanned objects | from 10 mm to 4 m |
| Scanning outside | up to 100,000 lux |
| Wireless connectivity | WiFi 6 |
| Scanner battery life | up to about 2.5 hours |
| Operating temperature | from 0°C to 30°C |
| Recommended temperature for highest accuracy | from 20°C to 25°C |
| Thermal stabilization | active heating, internal and external temperature sensors |
| Time to reach thermal stability | about 2 minutes |
| Texture recording | RGB camera |
| Output formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Frame material | carbon fiber |
| Housing material | polycarbonate |
| Tracker | |
| Volumetric accuracy of the tracking system | 0.025 mm + 0.04 mm x L (m) |
| Working distance | from 800 mm to 2500 mm |
| Minimum tracking frame area | 587 x 569 mm at 800 mm |
| Maximum tracking frame area | 2075 x 1778 mm at 2500 mm |
| Tracking volume | 3 m³ |
| Tracking Bandwidth | NIR |
| Wireless connectivity | WiFi 6 |
| User Recalibration | manual calibration |
| Supported accessories | Calibration Plate, Calibration Pole, Anchor Block, Battery Grip |
| CMM Edition Hardware and Software | |
| Ball Plate | ball plate for verifying the system's accuracy at the measuring station |
| Revo Measure | annual license |
| Supported system for Revo Measure license included in the kit | Windows 10 / Windows 11 |
| Revo Measure Features | dimension, angle and volume measurements, GD&T analysis, CAD deviation analysis, cross-sections, deviation maps and measurement reporting |
| Battery Grip | included in the set |
| Battery Grip Power Cable | included in the set |
| Dimensions and weight | |
| Scanner dimensions | 250 x 250 x 177 mm |
| Scanner weight | 1 kg |
| Tracker dimensions | 441 x 111 x 103 mm |
| Tracker weight | 1.5 kg |
| Total weight of scanner and tracker | 2.5 kg |
