Product description: 3D scanner - Creality Sermoon S1
The Creality Sermoon S1 is an advanced 3D scanner designed for users who demand high precision, a wide operating range, and high performance . It scans objects ranging in size from 5 mm to 4000 mm , offering accuracy down to 0.02 mm , and speeds up to 90 fps . Thanks to a hybrid scanning system using 42 blue laser lines (1 single line, 7 parallel lines, and 34 cross lines) and NIR structured light , the Sermoon S1 is suitable for both small details and larger elements, including industrial parts, figures, automotive components, and human body scanning. The scanner enables markerless scanning of large objects and figures , supports color mapping, and is compatible with popular CAD programs. Thanks to its compact design ( 225 mm x 53 mm x 76 mm, 508 g ) and optional wireless operation (after purchasing the Scan Bridge holder), it is convenient to use both in the field and in the studio.

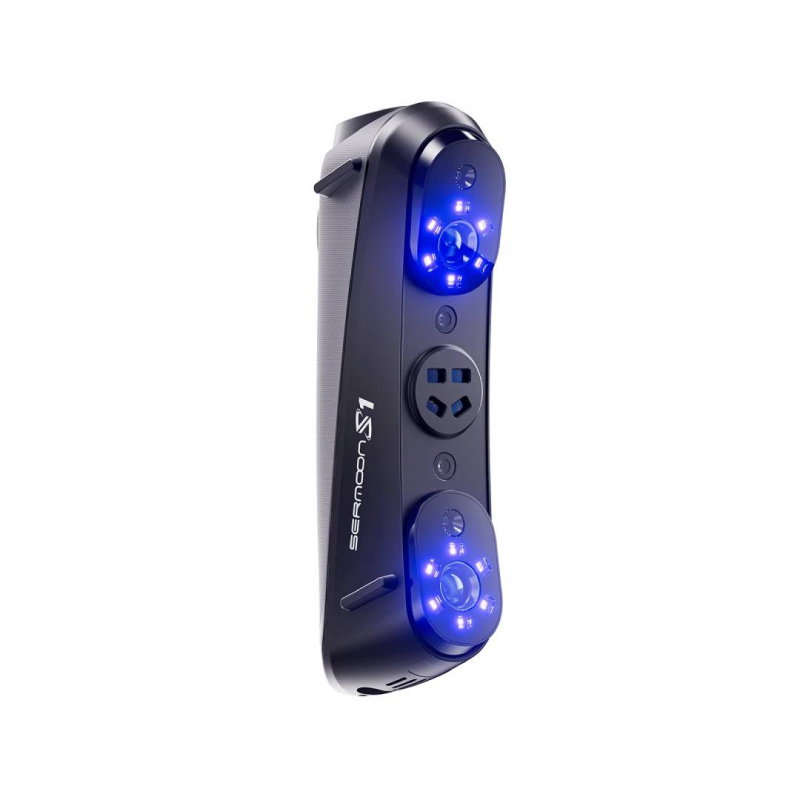

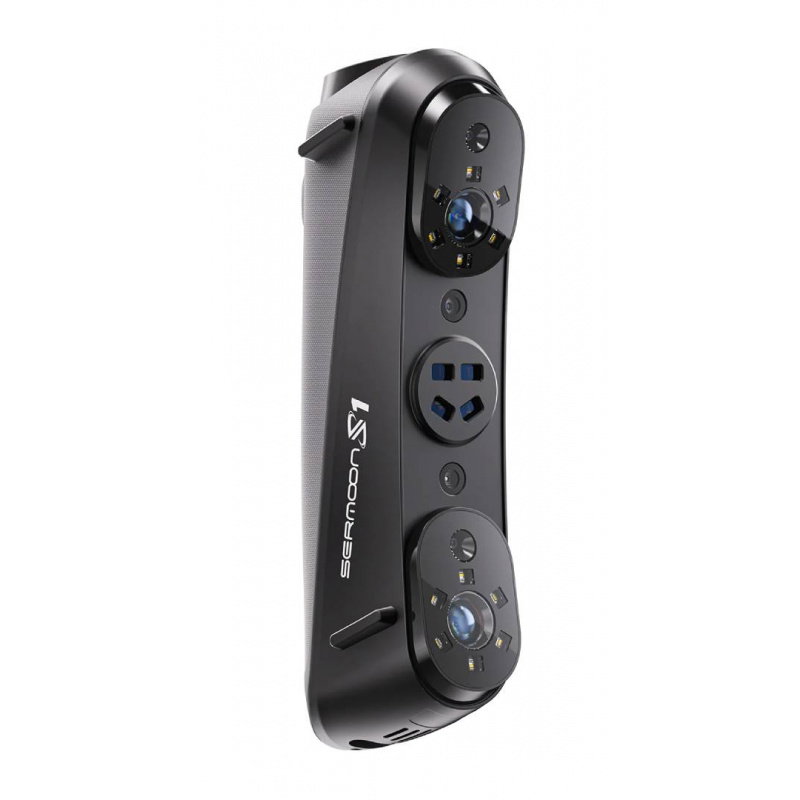

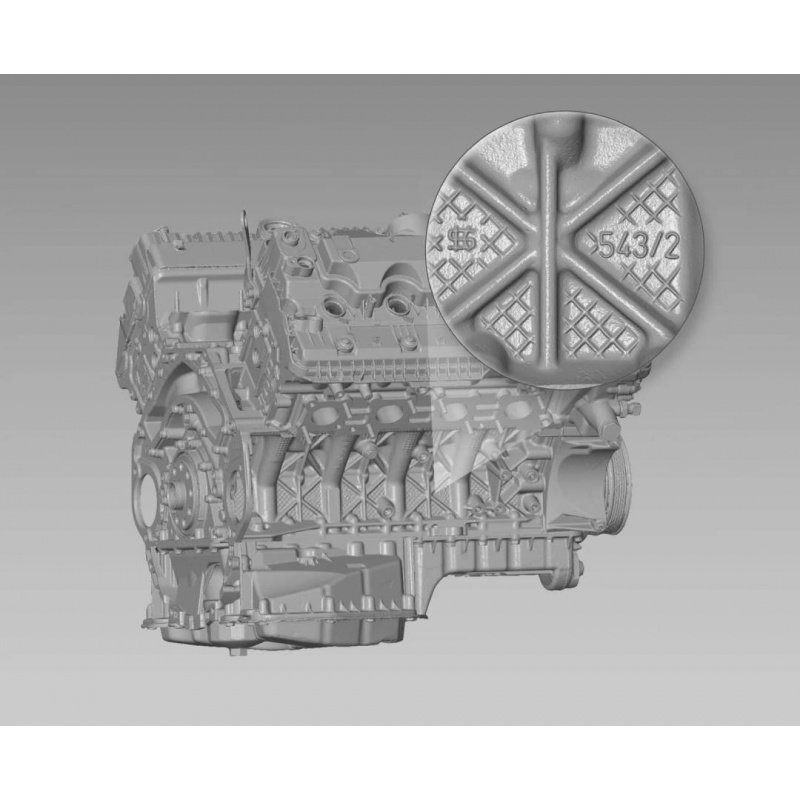

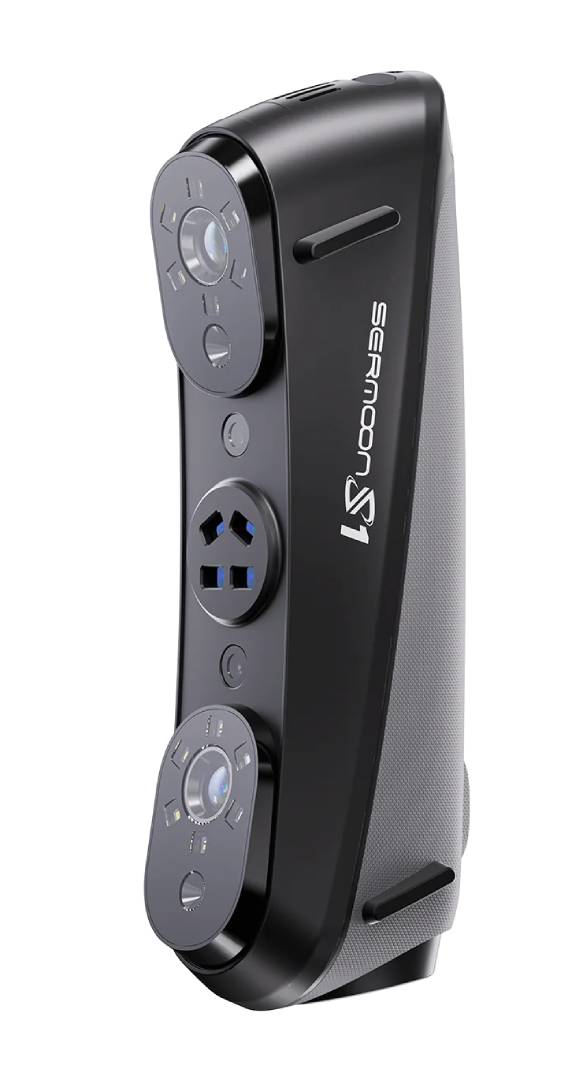

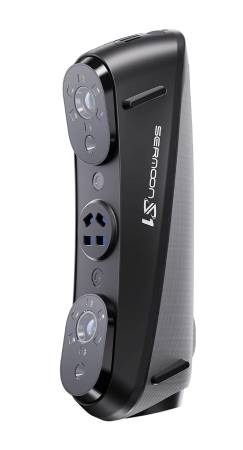

3D scanner - Creality Sermoon S1.

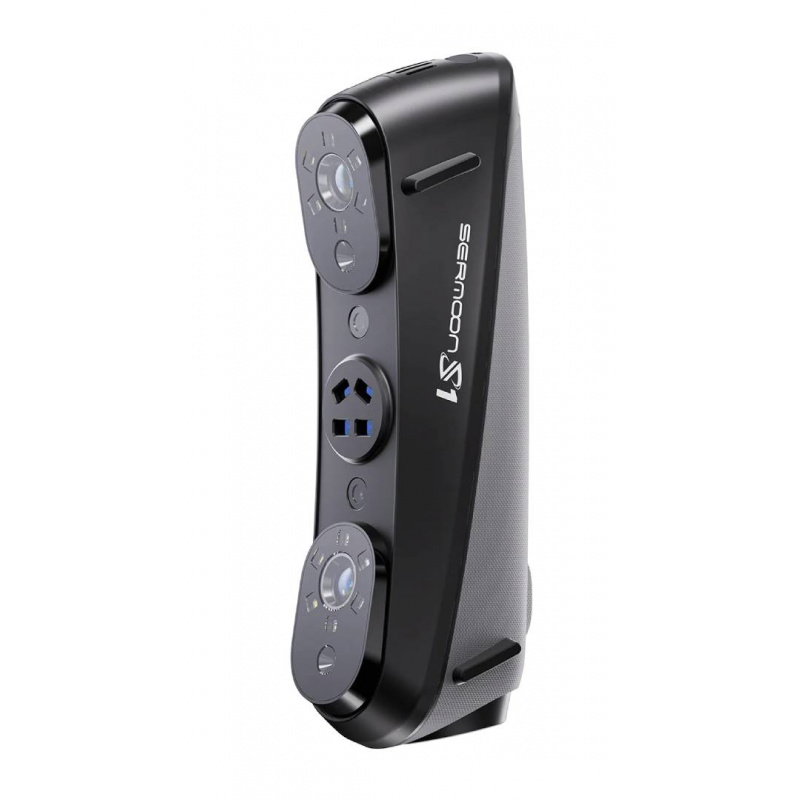

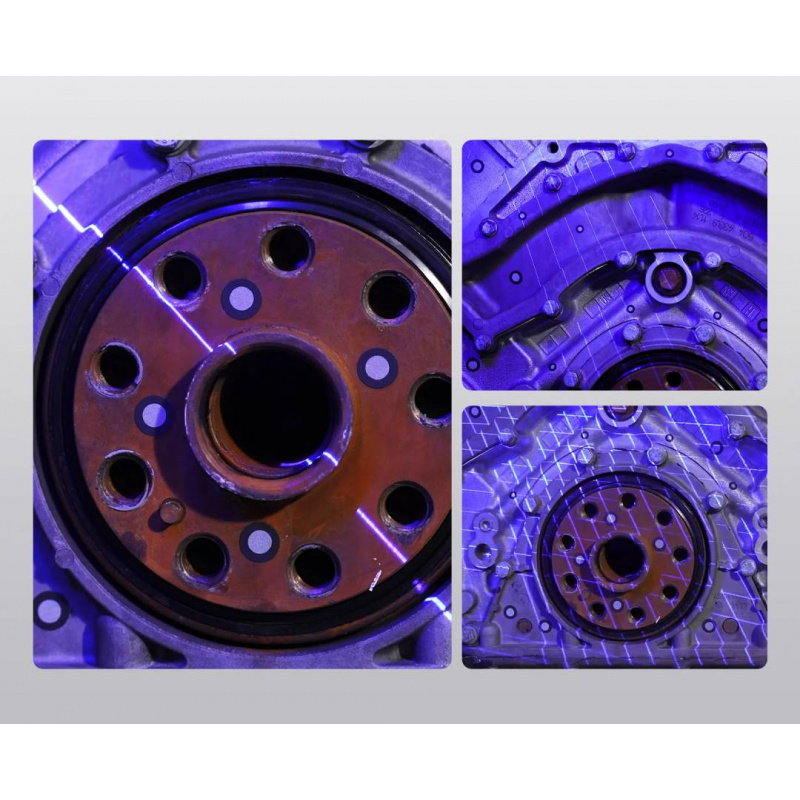

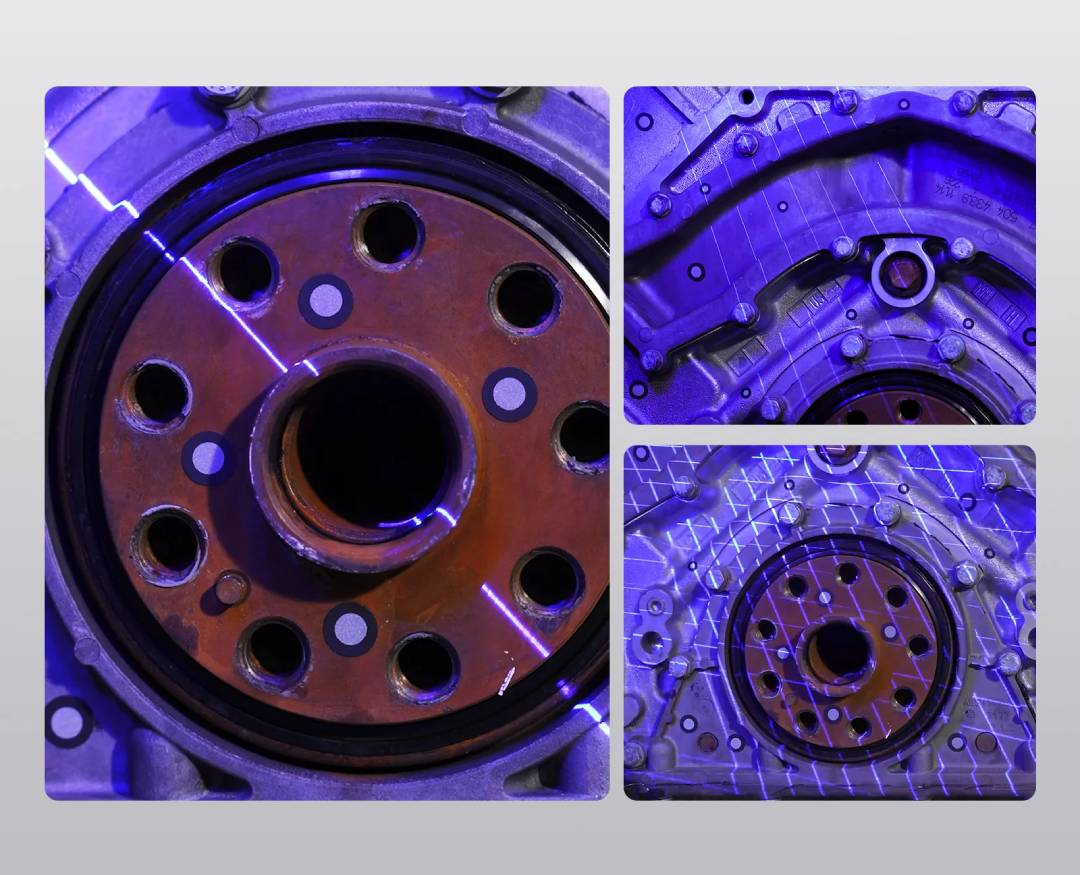

The Creality Sermoon S1 scanner uses an optical system consisting of 42 blue laser lines (1 single line, 7 parallel lines and 34 cross lines) and NIR structured light.
3D scanning technology in the Creality Sermoon S1
The Creality Sermoon S1 utilizes hybrid 3D scanning technology that combines multiple light sources and various optical systems. Users have access to a single blue laser line, 7 parallel blue laser lines, 34 cross laser lines , and NIR structured light for scanning at both close and long distances. This design allows for selecting the appropriate operating mode based on the object's geometry, level of detail, and environmental conditions. The scanner is equipped with a multi-camera system , including high-precision cameras , wide-angle cameras, and a color camera. This allows it to accurately capture hard-to-reach areas such as narrow gaps, deep holes, and recesses, while also effectively capturing surface color data. The use of NIR technology also facilitates markerless scanning of larger objects and human figures . The extensive optical system allows the Sermoon S1 to handle a wide range of surfaces. The manufacturer claims effective scanning of black and metallic objects without the use of spray , and for complex elements, you can switch to a mode better suited to the detail or range. This solution increases work flexibility and allows the scanner to be used in various industries.
Metrological accuracy and efficiency in every dimension
The Creality Sermoon S1 is designed to work with a very wide range of objects – from 5 mm to 4000 mm . This means a single scanner can be used to digitize small details like coins, screws, or small technical components, as well as larger industrial components, automotive parts, or figures. The minimum scan volume is 5 x 5 x 5 mm , allowing for work with even small elements. In terms of precision, the model offers an accuracy of up to 0.02 mm and a volumetric accuracy of 0.02 mm + 0.08 mm/m in laser modes. In NIR structured light modes, the accuracy reaches up to 0.075 mm , still ensuring high data quality when scanning larger objects. 3D resolution ranges from 0.05 mm to 2 mm for lasers and from 0.1 mm to 2 mm for NIR. The scanner operates at up to 90 fps in selected laser modes and achieves up to 1,428,000 measurements/s , while in NIR mode, it can reach up to 4,600,000 measurements/s . The large field of view and wide single-capture range help digitize larger objects faster, reducing the number of necessary captures and streamlining the entire scanning process. This translates into higher workflow efficiency in professional applications.
The scanner supports an extremely wide range of objects - from 5 x 5 x 5 mm up to structures up to 4000 mm in size, making it a universal solution for many industries.

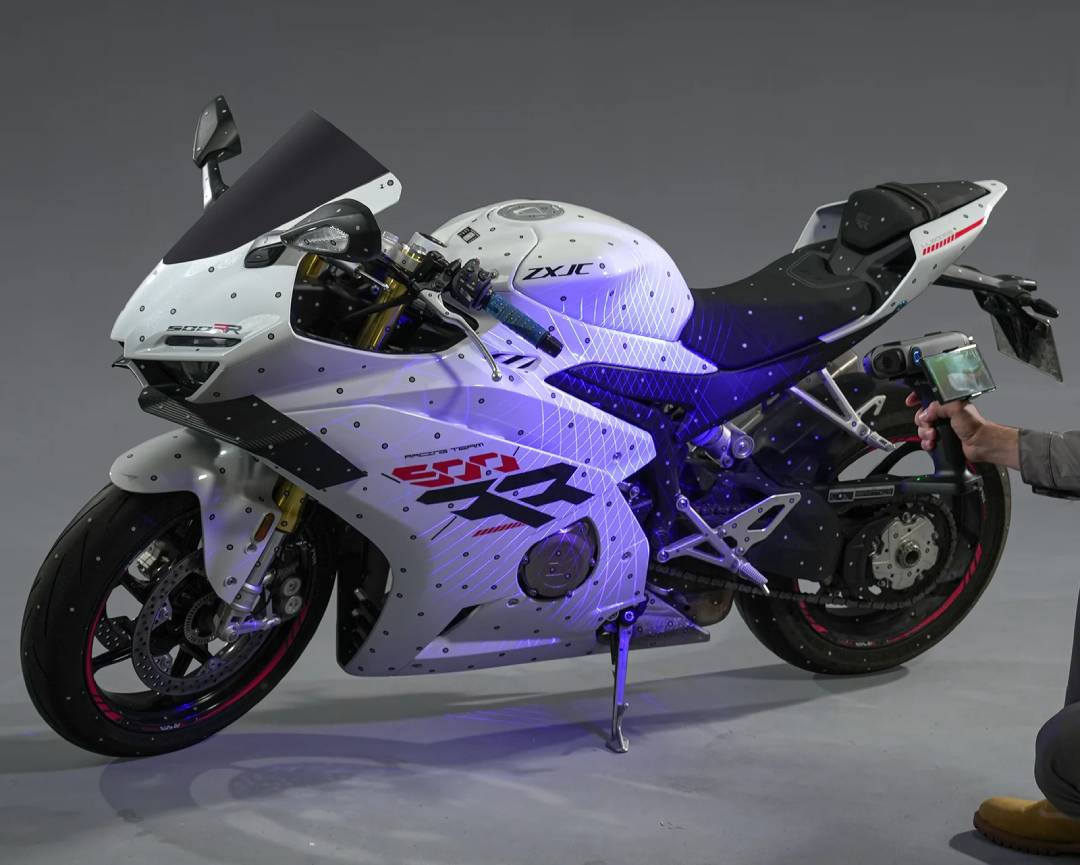

With the optional Scan Bridge accessory (available separately), the scanner can operate in wireless mode, providing complete freedom of movement.
Intelligent functions and stabilization of the scanning process
The Creality Sermoon S1 3D scanner utilizes a temperature compensation algorithm that helps maintain stable operating parameters during extended scanning sessions. This is especially important when repeatable results and limiting the impact of environmental conditions on final data quality are key. The manufacturer has also implemented solutions to improve tracking stability and reduce errors resulting from device movement . Data processing is handled by AI-powered software that simplifies more complex workflows. This allows you to move from scanning to model processing faster, reducing the number of manual adjustments. This simplifies daily workflows for both less experienced users and professionals performing serial scanning. The Sermoon S1 also supports modern workflows related to design, quality control, and reverse engineering. Data can be exported to popular environments used in design and industry, shortening the time between geometry acquisition and further analysis or model preparation for production.

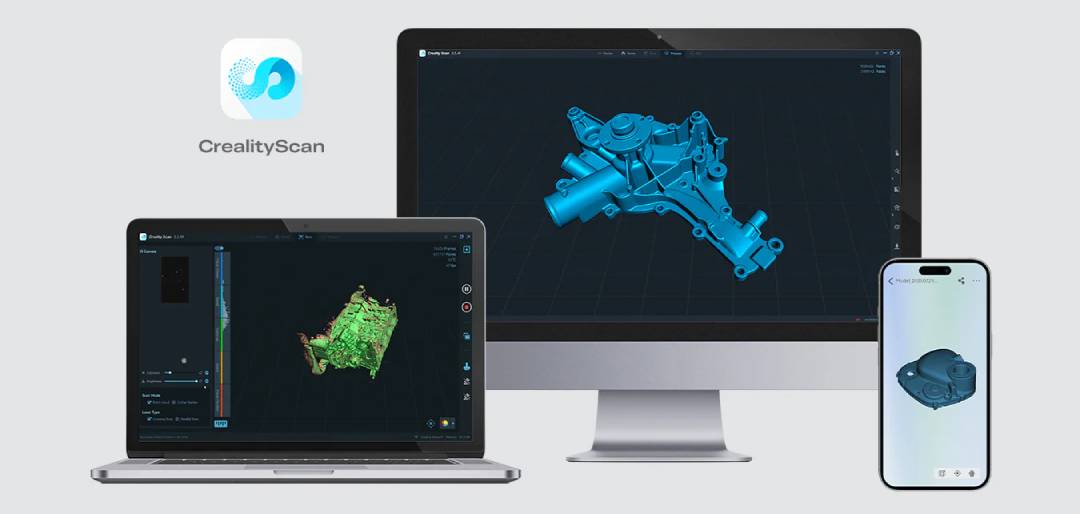

User-friendly 3D scanner software and operation

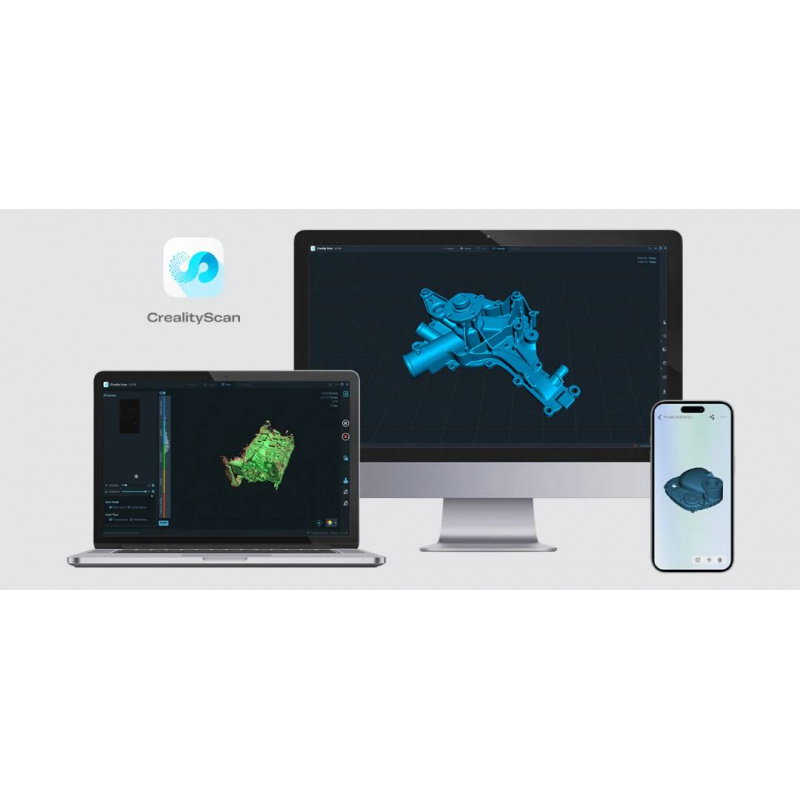

The Creality Sermoon S1 is designed to simplify everyday user workflows. It performs well in a variety of lighting conditions, supports spray-free scanning of black and metallic surfaces , and allows for both indoor and outdoor use. For larger objects and silhouette scanning , markerless scanning is also possible in appropriate modes. The scanner is operated by CrealityScan software , which offers an intuitive interface, step-by-step tutorials, and automatic model processing functions. The software supports faster data preparation for further processing and simplifies workflows for those who want to quickly start scanning without lengthy implementation. GPU acceleration further enhances workflow comfort for more demanding projects. The scanner is compatible with Windows and macOS , and with appropriate accessories, it also supports Android and iOS . Scan data can be used in popular modeling, inspection, and reverse engineering programs such as QuickSurface, Geomagic Design X, Blender, Rhino, and Fusion 360. This allows the Sermoon S1 to easily fit into your existing work environment.

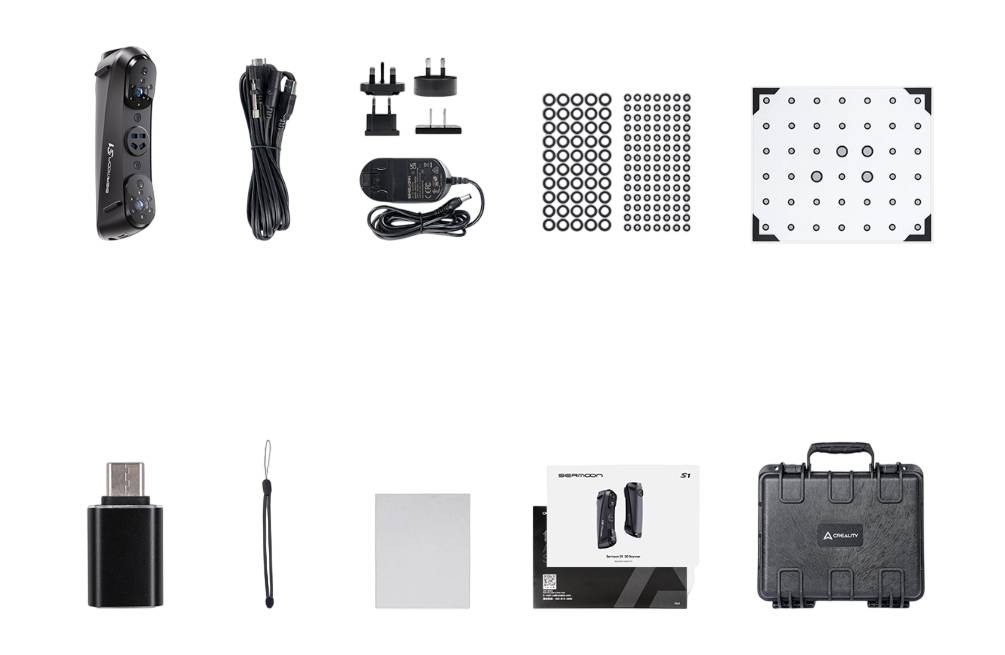

Elements included in the set.
Contents of the set
- Creality Sermoon S1 3D Scanner
- USB 3.0 Type-C / USB Type-A Cable
- Charger
- Reflective markers D6 mm - 10 sheets
- Reflective markers D3 mm - 10 sheets
- High precision glass calibration plate
- USB Type-C adapter
- Leash
- Cleaning cloth
- Quick start guide, certificate of conformity and warranty card
- Waterproof carrying case
| Creality Sermoon S1 3D Scanner Technical Specifications | |||||
|---|---|---|---|---|---|
| Scan mode | Single laser line | 7 parallel lines | 34 cross lines | NIR short range | NIR long range |
| Accuracy | up to 0.02 mm | up to 0.075 mm | |||
| Volumetric accuracy | 0.02 mm + 0.08 mm/m | 0.075 mm + 0.1 mm/m | |||
| Measurement speed | 108,000 measurements/s | 756,000 measurements/s | 1,428,000 measurements/s | 4,600,000 measurements/s | |
| 3D resolution | from 0.05 mm to 2 mm | from 0.1 mm to 2 mm | |||
| Scanning speed | up to 90 fps | up to 30 fps | |||
| Minimum scan volume | 5 x 5 x 5 mm | 150 x 150 x 150 mm | |||
| Single scan range | 205 x 147 mm @ 200 mm 293 x 217 mm @ 300 mm 355 x 289 mm @ 400 mm 417 x 361 mm @ 500 mm 506 x 433 mm @ 600 mm | 293 x 217 mm @ 300 mm 417 x 361 mm @ 500 mm | 689 x 375 mm @ 500 mm 1245 x 754 mm @ 1000 mm | ||
| Working distance | from 200 mm to 600 mm | from 150 mm to 400 mm | from 200 mm to 600 mm | from 170 mm to 500 mm | from 200 mm to 1200 mm |
| Color mapping | Yes | ||||
| Alignment modes | marker / global marker | marker/global/geometry/texture | |||
| Auxiliary lighting | 12 white LEDs | ||||
| Scanning outside | up to 100,000 lux | up to 50,000 lux | up to 100,000 lux | up to 30,000 lux | |
| Marker support | 12 blue LEDs / 12 white LEDs | ||||
| Laser class | Class II | Class I | Class II | Class I | |
| Calibration plate | high precision glass calibration plate | ||||
| Wireless scanning | supported with an additional accessory - Scan Bridge | ||||
| Supported systems | Windows, macOS Android, iOS (wireless scanning accessories required) | ||||
| Computer hardware requirements | Windows: Recommended: 10th Gen i7 processor, Nvidia graphics card (8 GB VRAM), 32 GB RAM, Windows 10/11 (64-bit); Minimum: 7th Gen i7 processor, Nvidia graphics card (6 GB VRAM), 16 GB RAM, Windows 10/11 (64-bit) macOS: Apple M1 / M2 / M3 / M4 processors, 16 GB RAM | ||||
| Operating temperature | from -10°C to 40°C | ||||
| Working humidity | from 10% to 90% RH | ||||
| Dimensions | 225 x 53 x 76 mm | ||||
| Mass | 508 g | ||||
