Product description: 3D scanner - Revopoint POP 4 - Standard Edition
The Revopoint POP 4 is a hybrid 3D scanner for small to medium-sized objects , designed for handheld and stationary operation . It combines a multi-line blue laser, a single laser line, and full-field structured light and VCSEL , offering a total of 5 scanning modes . The device delivers single-frame accuracy down to 0.03 mm , volumetric accuracy of 0.03 mm + 0.05 mm x L, and a scanning speed of up to 105 fps . The working distance is from 200 mm to 800 mm , and the supported object range extends from 10 x 10 x 10 mm to 2 x 2 x 2 m . The scanner enables color capture, AI- based object segmentation, and outdoor operation with illumination up to 100,000 lux . The compact design, measuring 160 x 30 x 72 mm and weighing 286 g, facilitates mobile scanning of parts, models, people and items intended for 3D printing or reverse engineering.

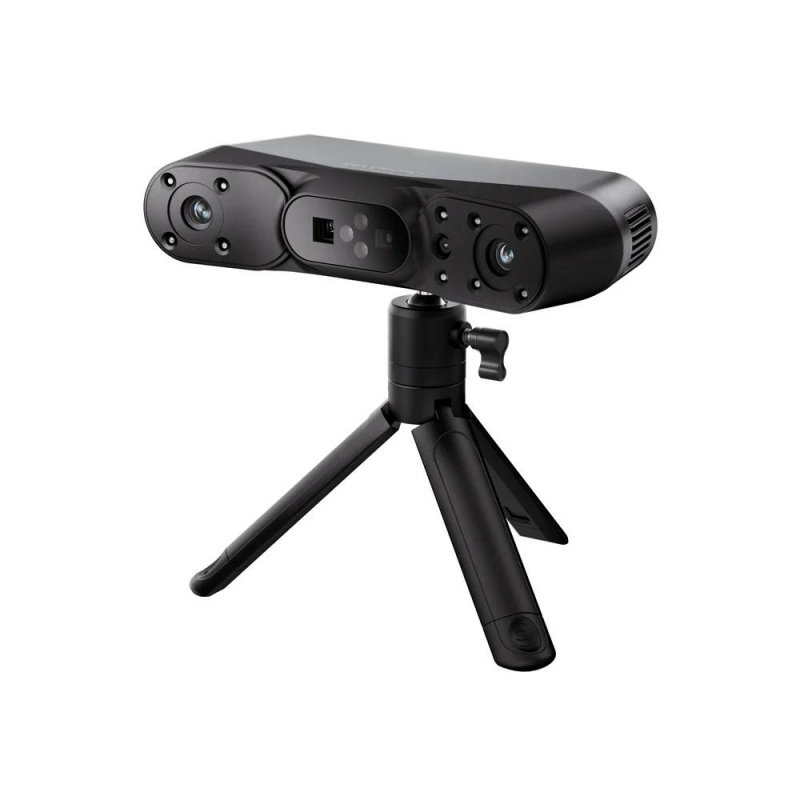

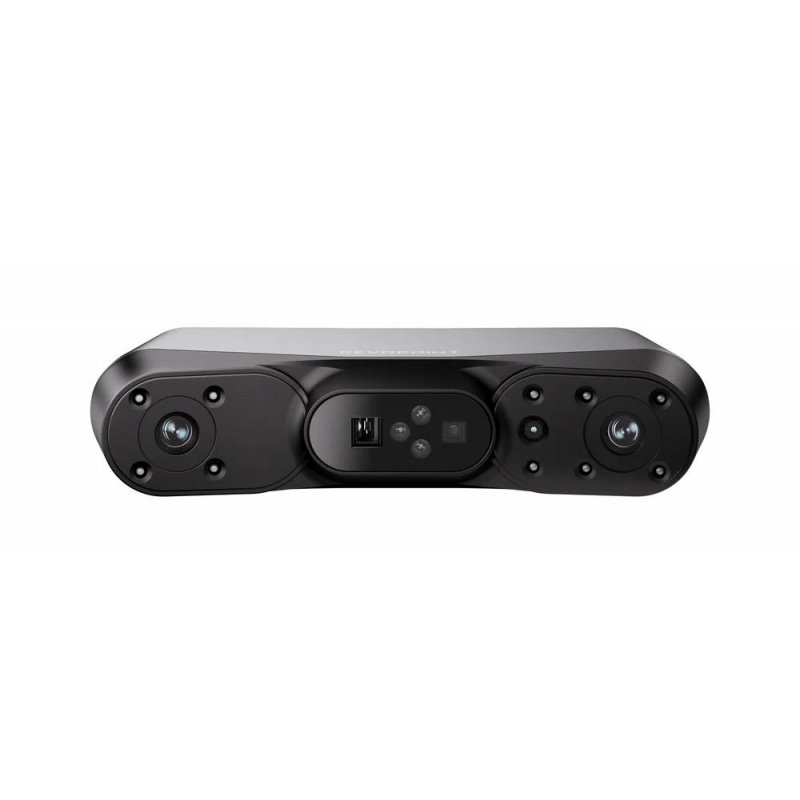

3D scanner - Revopoint POP 4 - Standard Edition.
The scanner supports 5 modes - fast 30 blue cross lines mode, single line mode for deep holes, Full-Field HD, VCSEL Rapid and Hybrid HD.
3D scanning technology and five operating modes
The Revopoint POP 4 combines 30 blue cross lines, a single laser line, a full-field near-infrared structured light, and a VCSEL projector . High Speed mode is designed for fast scanning of technical parts, including those with dark or shiny surfaces, while the single line makes it easier to reach deep holes and narrow crevices. Full-Field HD allows for efficient capture of people and objects with rich geometry, while VCSEL Rapid increases the workspace and facilitates work in bright light. Hybrid HD combines the advantages of full-field structured light and VCSEL, ensuring rapid acquisition of a dense point cloud. In laser modes, markers should be used to enable stable tracking of the scanner's position. In structured light modes, markers are not necessary for objects with distinct and varied geometric features . For surfaces without feature features, markers can improve the stability of stitching subsequent frames.
Measurement precision, speed and scanning range

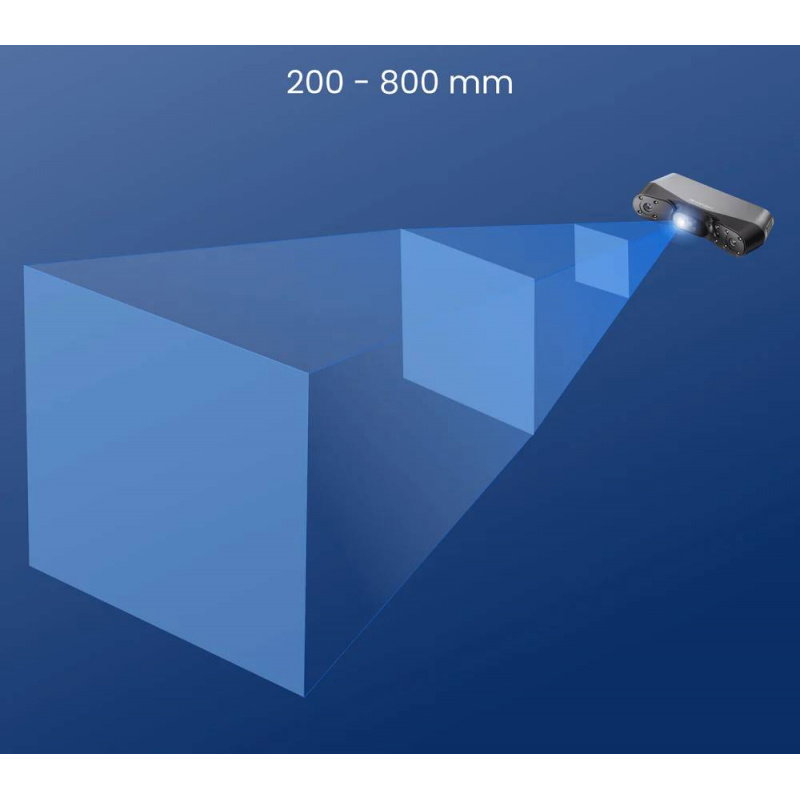

Single-frame accuracy is up to 0.03 mm in line laser mode, up to 0.08 mm in Full-Field mode, and up to 0.1 mm or 0.2 mm in VCSEL mode – depending on the working distance. Volumetric accuracy in multi-line mode is defined by the formula 0.03 mm + 0.05 mm x L , where L is the object length in meters. Laser scanning can be performed at up to 105 fps with NVIDIA acceleration or up to 60 fps when computed by the CPU. Working distances range from 200 mm to 400 mm for laser, from 250 mm to 500 mm for Full-Field HD and Hybrid HD modes, and from 300 mm to 800 mm for VCSEL. The scanner supports object volumes from 10 x 10 x 10 mm to 2 x 2 x 2 m . At 200 mm distance, the single capture area is 131 x 134 mm. In VCSEL mode, at 800 mm distance, this can increase to 505 x 538 mm, which facilitates the digitization of larger surfaces.

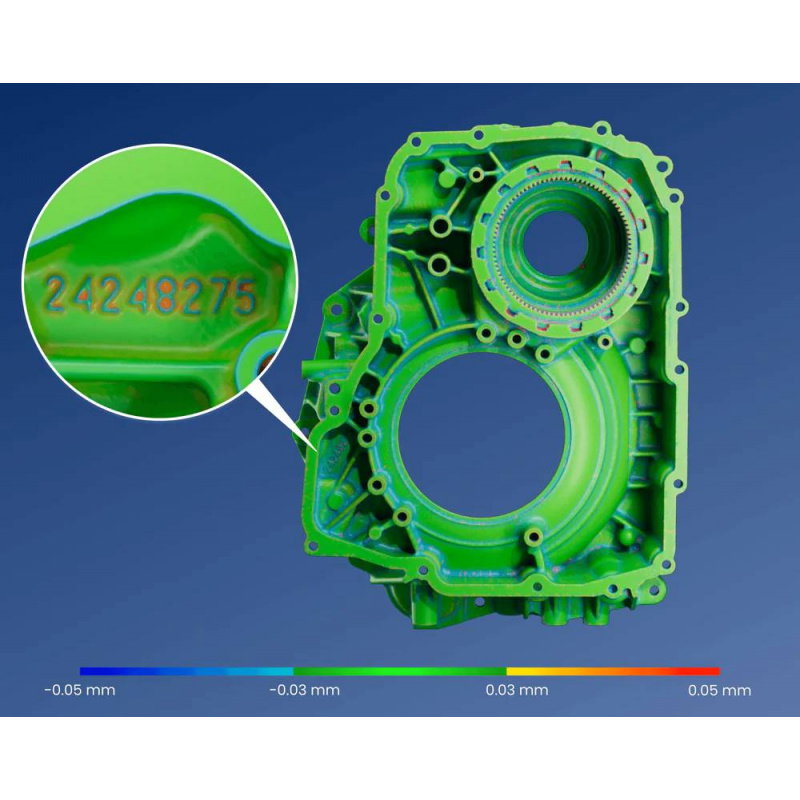

Volumetric accuracy of 0.03 mm + 0.05 mm x L ensures reliable dimensional data during multi-line scanning.
VCSEL mode supports illumination up to 100,000 lx, which allows for outdoor operation.
Color scanning, outdoor operation and power
A built-in 1.3 MP RGB camera and two white LEDs enable the capture of geometry along with color and texture. The 3D Gaussian Splatting function also allows for the mapping of light interactions with surfaces, which is useful when digitizing hair, fabrics, reflections, and semi-transparent materials. Data can be exported directly to the Splat format. VCSEL mode allows for operation at illuminances up to 100,000 lux , making it suitable for use outdoors and in direct sunlight. Multi-line laser mode supports illuminances up to 50,000 lux by default, while 100,000 lux requires an optional external filter. The scanner itself does not have a built-in battery and requires power via USB Type-C . An optional 5500 mAh battery holder provides approximately 4 hours of operation , but is not included in the Standard Edition .

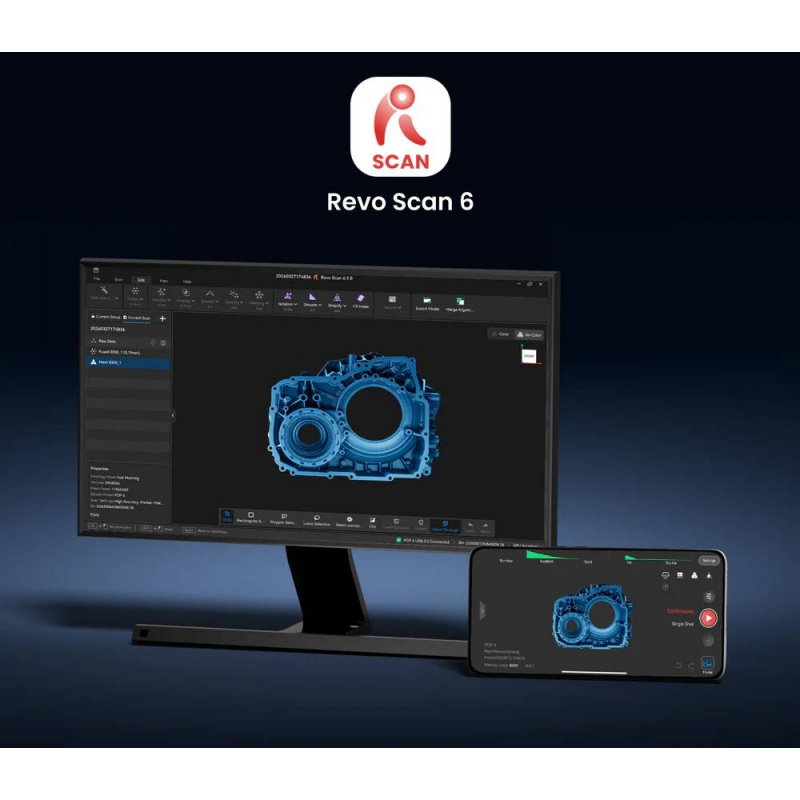

Wireless connectivity and Revo Scan 6 software
The Revopoint POP 4 communicates via WiFi 6, Bluetooth 4.1, or a wired USB 3.0 Type-C port . While the wireless connection allows the scanner to be detached from a computer, it still requires an external power source, such as an optional battery holder. The multi-line laser mode utilizes the computer's processing power and operates independently, only with a smartphone. Full-Field and VCSEL modes can be operated on the go . Free Revo Scan 6 software is used to acquire point clouds, stitch scans, clean data, smooth models, and export files. Supported formats include PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, and Splat , allowing models to be transferred to CAD environments, graphics programs, and 3D printing slicers. The manufacturer also offers separately sold Revo Design for scan-to-CAD conversion and reverse engineering, and Revo Measure for dimensional inspection. The availability of GPU acceleration, AI segmentation, and 3DGS processing depends on the system used and your computer's components.

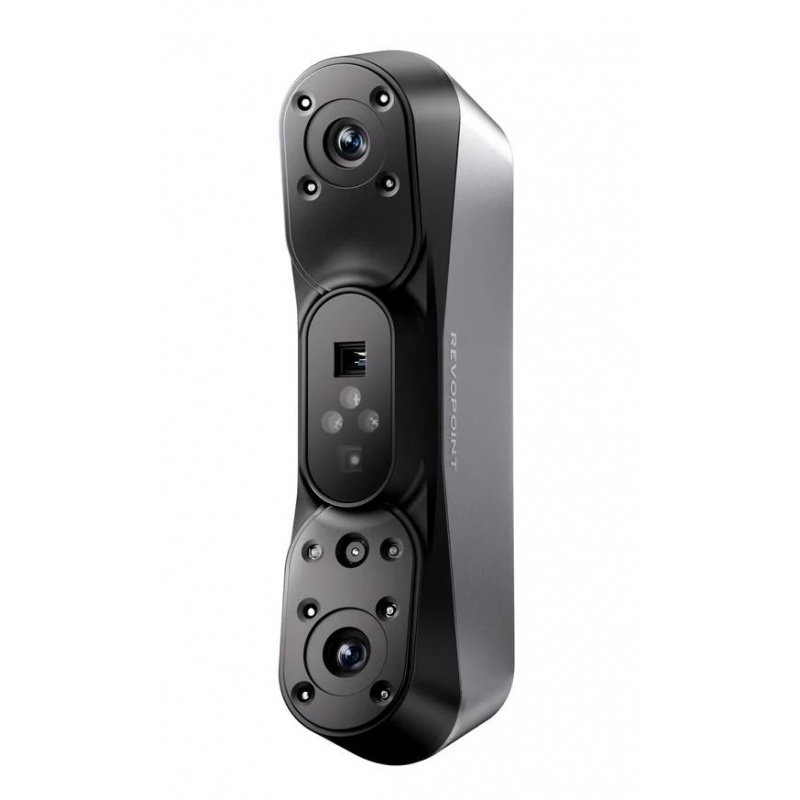

Hybrid HD mode combines the advantages of Full-Field and VCSEL modes, providing fast and precise 3D scanning and reliable object tracking.

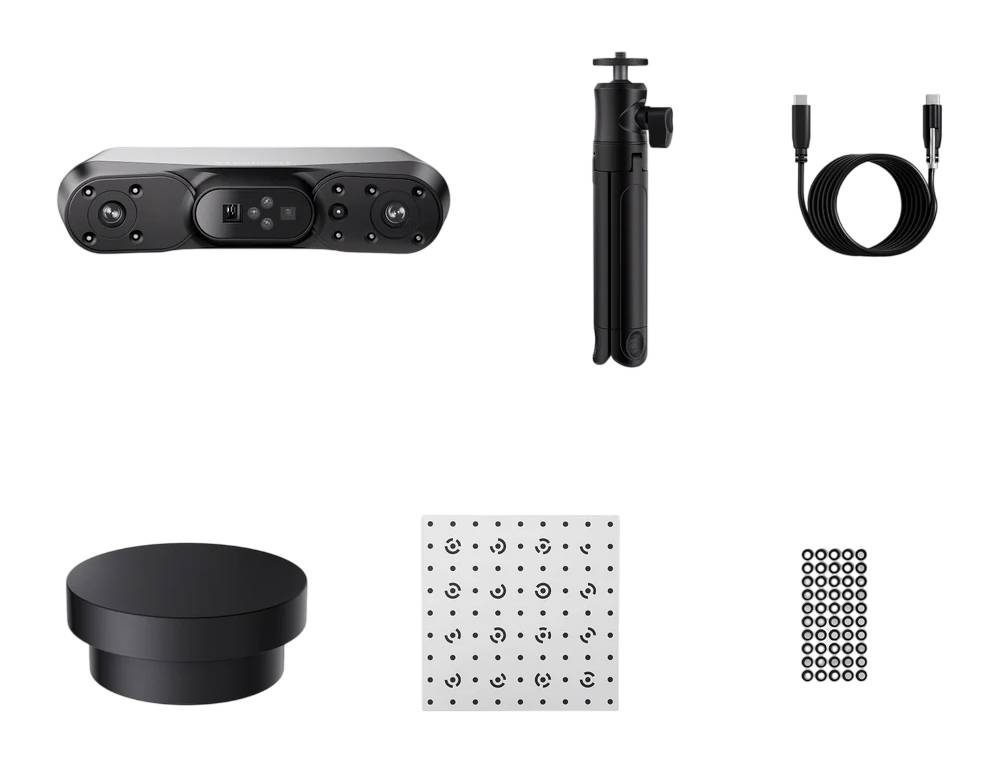

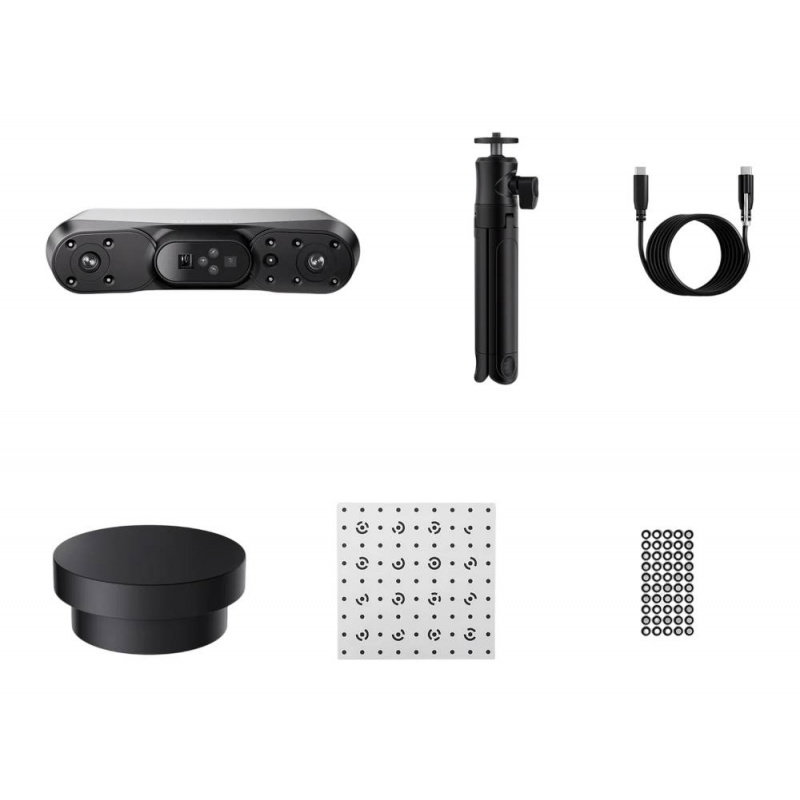

Elements included in the set.
Revopoint POP 4 Standard Edition Kit Contents
- Revopoint POP 4 3D Scanner
- Tripod
- USB Type-C - USB Type-C data cable, 2 m long
- Miniature turntable
- Calibration board
- Markers - 200 pieces
The battery holder, sun laser scanning filter and carrying case are included in the Premium Edition and are not included in the Standard Edition.
| Technical specifications of the Revopoint POP 4 3D scanner | |
|---|---|
| Scan type | handheld and stationary |
| Scanning technology | blue multiline laser, full-field near-infrared structured light and VCSEL structured light |
| Size of scanned objects | small and medium |
| Single Frame Accuracy - Line Laser | up to 0.03 mm |
| Single Frame Accuracy - Full Field Structured Light | up to 0.08 mm |
| Single Frame Accuracy - VCSEL | up to 0.10 mm at a distance of 300 mm to 500 mm and up to 0.20 mm at a distance of 500 mm to 800 mm |
| Volumetric accuracy | 0.03 mm + 0.05 mm x L (m) |
| Point spacing after merging | up to 0.05 mm |
| Working distance - multi-line laser | from 200 mm to 400 mm |
| Working Distance - Full-Field HD and Hybrid HD | from 250 mm to 500 mm |
| Working Distance - VCSEL | from 300 mm to 800 mm |
| Single capture area at shortest distance | 131 x 134 mm at 200 mm distance |
| Single capture area at the longest distance - Multi-line laser and Full-Field | 312 x 269 mm at 400 mm distance |
| Single capture area at longest distance - VCSEL | 505 x 538 mm at 800 mm distance |
| Angular field of view | 46 ° x 37° |
| Minimum scan volume | 10 x 10 x 10 mm |
| Maximum scan volume | 2 x 2 x 2 m |
| Scanning speed - multi-line laser | up to 105 fps using an NVIDIA graphics card or up to 60 fps when calculated by the processor |
| Scanning speed - full-field structured light | up to 20 fps |
| Scanning speed - VCSEL | up to 30 fps |
| Number of recorded points - multi-line laser | up to 2,000,000 points/s |
| Number of recorded points - full-field structured light | up to 5,000,000 points/s |
| RGB camera resolution | 1.3 MPx |
| Color scanning | Yes |
| Tracking methods | geometric features, markers, global markers and color |
| Scanning outside | Yes |
| Maximum illuminance - multi-line laser | up to 50,000 lux |
| Maximum illuminance - multi-line laser with external filter | up to 100,000 lux |
| Maximum illuminance - VCSEL | up to 100,000 lux |
| 3D light sources | 30 blue cross laser lines, 1 blue laser line for deep hole scanning, full-field near-infrared structured light, and near-infrared VCSEL structured light |
| Illuminating diodes | 8 - 4 infrared LEDs and 4 blue LEDs |
| White flashing diodes | 2 |
| Calculations performed by the built-in system | depth map calculation |
| Number of buttons | 4 |
| Minimum computer requirements | |
| Minimum macOS requirements - processor | Apple M1 Pro, M1 Max or M1 Ultra |
| Minimum macOS requirements - RAM | at least 16 GB |
| Windows Minimum Requirements - Processor | 13th Generation Intel Core i7 or AMD Ryzen 7 5800 |
| Windows Minimum Requirements - RAM | at least 16 GB |
| Minimum Windows requirements - graphics card | NVIDIA GeForce RTX 3060 with 8 GB of memory |
| Alternative Minimum CPU Requirements | at least 8 cores, 16 threads and a base clock speed of at least 2.4 GHz |
| Supported graphics chipsets | NVIDIA, AMD and Apple graphics chips |
| Recommended computer requirements | |
| Recommended macOS requirements - processor | Apple M3 Pro, M3 Max, M3 Ultra or better |
| Recommended macOS requirements - RAM | at least 24 GB |
| Recommended Windows Requirements - Processor | Intel Core i9 12th generation or higher |
| Windows Recommended Requirements - RAM | at least 32 GB |
| Recommended Windows requirements - graphics card | NVIDIA RTX 4060 with 8 GB of memory or better |
| Mobile device requirements | |
| Android - processor | Snapdragon 8 Gen 1, Dimensity 9000, Kirin 9000S or a system with comparable or higher performance |
| Android - RAM | at least 12 GB |
| Android - system version | Android 11 or later |
| Android - device memory | at least 128 GB |
| iPhone - supported models | models newer than iPhone X |
| iPhone - system version | iOS 14.0 or later |
| iPhone - RAM | more than 4 GB |
| iPhone - device memory | at least 64 GB |
| iPad - supported models | iPad 10th generation or newer |
| Support for multi-line laser mode on mobile devices | the mode does not support standalone operation only with a smartphone - the scanner must be connected via WiFi to a computer and the scanning interface is transmitted in real time to the mobile device |
| Independent work with a mobile device | Full-field structured light and VCSEL modes can be operated directly from a mobile device |
| Connectivity, software and power | |
| Supported operating systems | Windows 10 and Windows 11 64-bit, Android, macOS 11.0 or later, and iOS - iOS support marked by the manufacturer as Coming Soon |
| Output file formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX and Splat |
| Creating 3D print-ready models | Yes |
| WiFi | WiFi 6 |
| Bluetooth | 4.1 |
| Wired connection type | USB 3.0 Type-C - USB Type-C |
| Power requirements | DC 5V/2A |
| Scanning special objects | When scanning transparent or highly reflective surfaces, it is recommended to use a matting agent |
| User calibration | Yes |
| Supported accessories | a set of blocks with markers, Mobile Kit 4th generation and a two-axis rotary table II |
| Optional battery holder capacity | 5500 mAh |
| Approximate run time with optional battery holder | about 4 hours with average power consumption |
| Additional information and safety | |
| Accuracy measurement conditions | Accuracy values were obtained in a controlled laboratory environment - actual results may vary depending on operating conditions and how the device is operated |
| Laser class | Class 1 - avoid prolonged, direct exposure of light to the eyes |
| Flash light warning | the device uses flashing light sources that may not be suitable for people with photosensitive epilepsy |
| Dimensions | 160 x 30 x 72 mm |
| Mass | 286 g |
