Product description: 3D scanner - Revopoint INSPIRE 2 - Premium Edition
Revopoint INSPIRE 2 is a universal 3D scanner designed for accurately capturing small and medium-sized objects, technical components, models, sculptures, as well as faces and figures. It combines 11 parallel infrared laser lines with infrared structured light , enabling it to handle both detailed objects and dark or shiny surfaces. It offers single-frame accuracy of up to 0.05 mm , precision of up to 0.03 mm , and volumetric accuracy of 0.05 mm + 0.1 mm x L (m) , making it suitable for design, reverse engineering, and preparing models for 3D printing. It supports object sizes from 20 x 20 x 20 mm to 2 x 2 x 2 m , and connectivity via WiFi 6, Bluetooth 4.1, and USB Type-C facilitates collaboration with computers and mobile devices. INSPIRE 2 enables the rapid creation of 3D models with scanning speeds of up to 90 fps in laser mode and up to 18 fps in structured light mode . A built-in RGB camera captures colors, allowing for realistic model textures. INSPIRE 2 supports markerless scanning , and available tracking modes allow for adapting work to various objects and application scenarios. In addition to the features of the Standard Edition , the Premium Edition also includes a kit that facilitates mobile 3D scanning in the field.

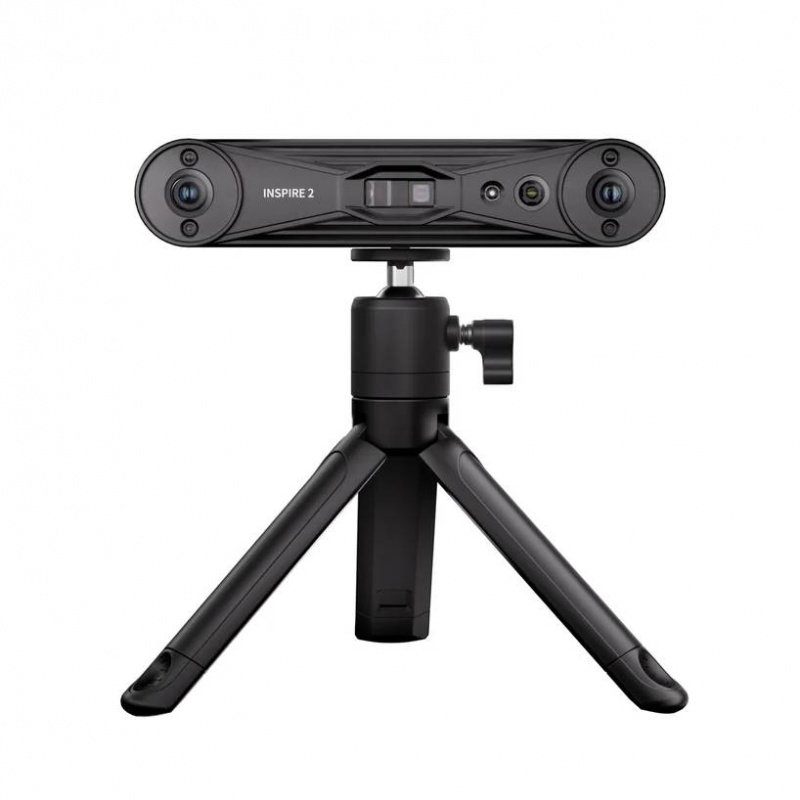

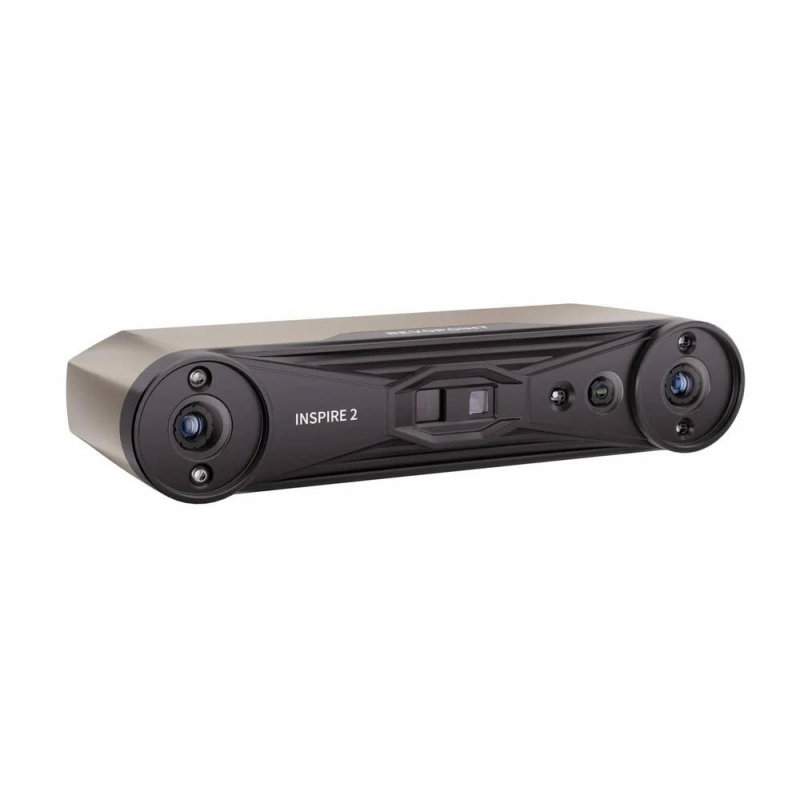

3D scanner - Revopoint INSPIRE 2 - Premium Edition.
Structured infrared light allows for quick body and face scanning without the need for markers.
3D scanning technology in Revopoint INSPIRE 2
Revopoint INSPIRE 2 utilizes two complementary scanning methods: a multi-line infrared laser and infrared structured light . Laser mode is particularly useful when working with dark, shiny, and more difficult-to-image surfaces, while structured light mode allows for quick scanning of objects with distinct geometry, faces, and silhouettes without the need for markers . This combination of technologies allows for selecting the appropriate operating mode for the type of model and the desired result quality. A projector with 1.5x and 2x optical zoom provides additional support, helping to more precisely reproduce details on objects with diverse structures. This makes INSPIRE 2 suitable for both simple hobby applications and more advanced technical tasks.
3D scanning accuracy and supported size range
INSPIRE 2 is designed for precise scanning of objects of various sizes. The device provides precision down to 0.03 mm, accuracy up to 0.05 mm , and volumetric accuracy of 0.05 mm + 0.1 mm x L (m) , which is important when mapping part dimensions and preparing models for further processing. The minimum scan volume is 20 x 20 x 20 mm , and the maximum reaches 2 x 2 x 2 m . The single capture field ranges from 130 x 129 mm at 200 mm to 293 x 257 mm at 400 mm . This allows you to conveniently adjust the scanning method to the size of the object. This makes the scanner suitable for both small components and larger utility or decorative items.
11 parallel laser lines enable scanning of dark and shiny surfaces.
You can scan various types of objects even in strong daylight up to 20,000 lux.

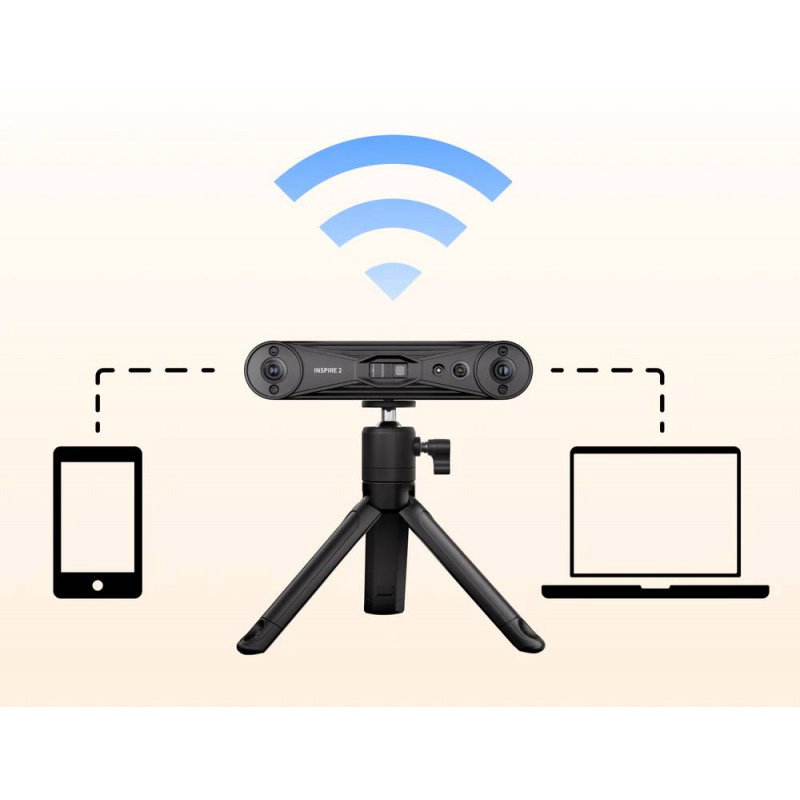

Connectivity and mobile operation of the Revopoint INSPIRE 2 3D scanner
One of the key advantages of INSPIRE 2 is its extensive communication capabilities, which streamlines both stationary and mobile workflows . The scanner supports WiFi 6, Bluetooth 4.1 , and a USB Type-C port , allowing it to work with computers, smartphones, and tablets. While mobile, scanning can be performed using a phone, while for more demanding projects, you can use a computer and preview the image on your mobile device. Its compact dimensions of 53 x 27 x 132 mm and weight of 190 g make the scanner easy to transport and convenient to take to the office, workshop, or field. The device can also be operated outdoors in lighting up to 20,000 lux , provided the manufacturer's recommendations are followed to avoid direct sunlight.
Revo Metro software and 3D scanner application possibilities
Revopoint INSPIRE 2 works with Revo Metro software, which allows you to complete the entire 3D model creation process—from scanning, through data processing, to editing and exporting the final file. Models can be saved in PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX formats, facilitating subsequent work in CAD, CAM, graphics programs, and 3D printing preparation environments. Feature, Marker, and Global Marker tracking modes allow for better adaptation of the scanner to the object type and scanning conditions. INSPIRE 2 can be used for reverse engineering, product design, object documentation, creating animation assets, and digitizing cultural heritage. It is a practical solution for users who require portability, accuracy, and broad compatibility with the subsequent design process.

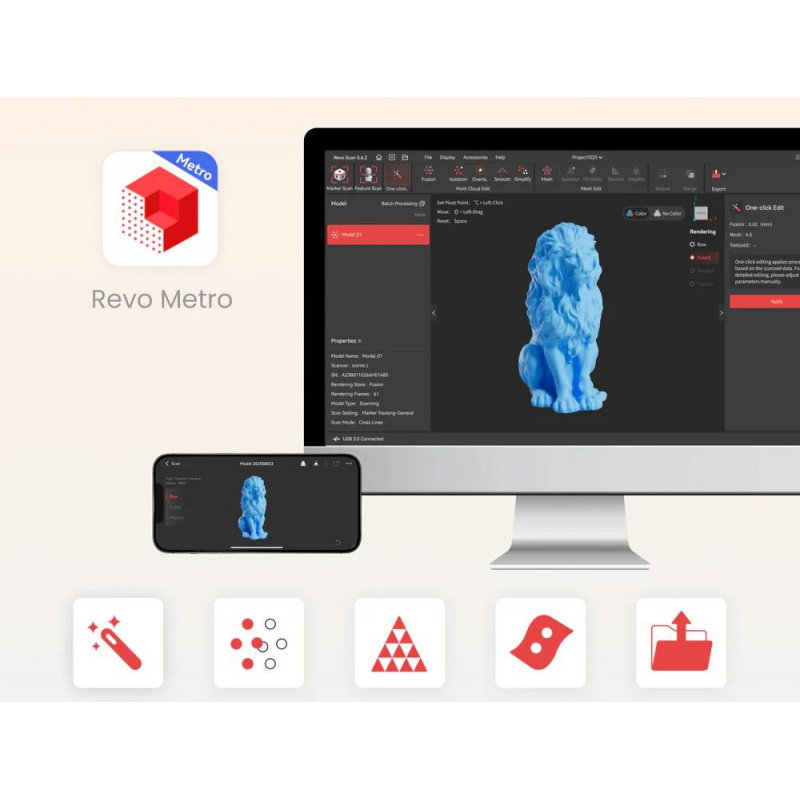

Create 3D models with the intuitive operation and capabilities of advanced Revo Metro software.

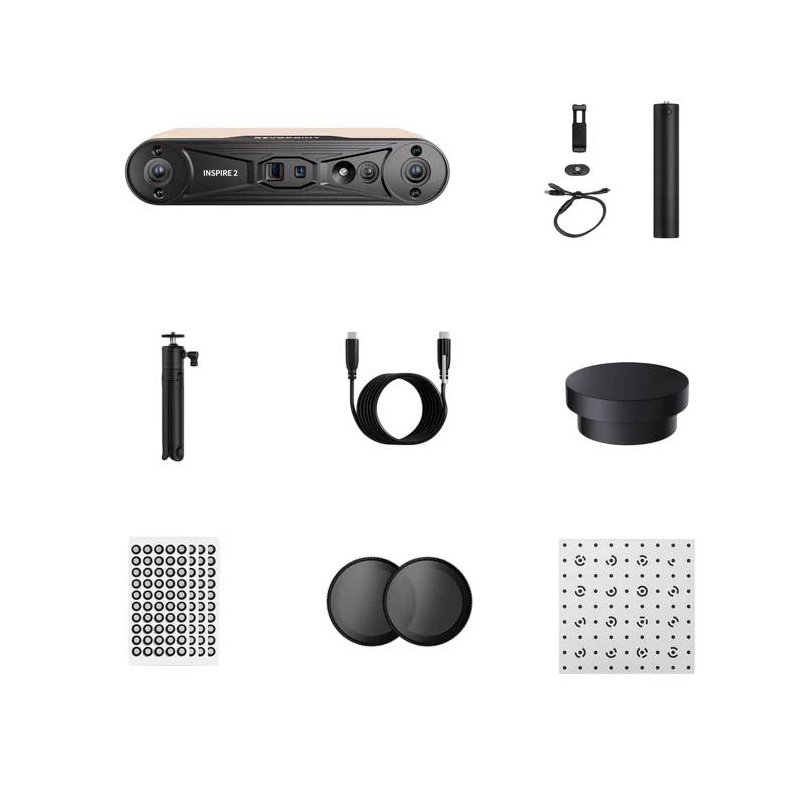

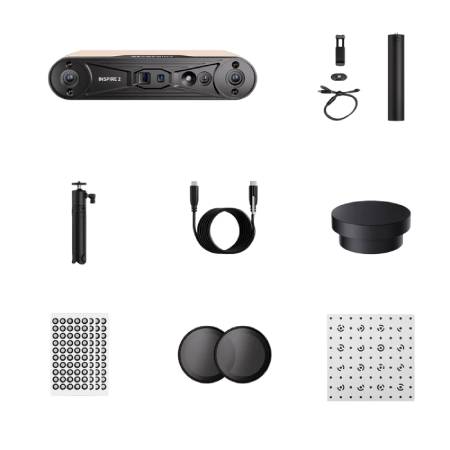

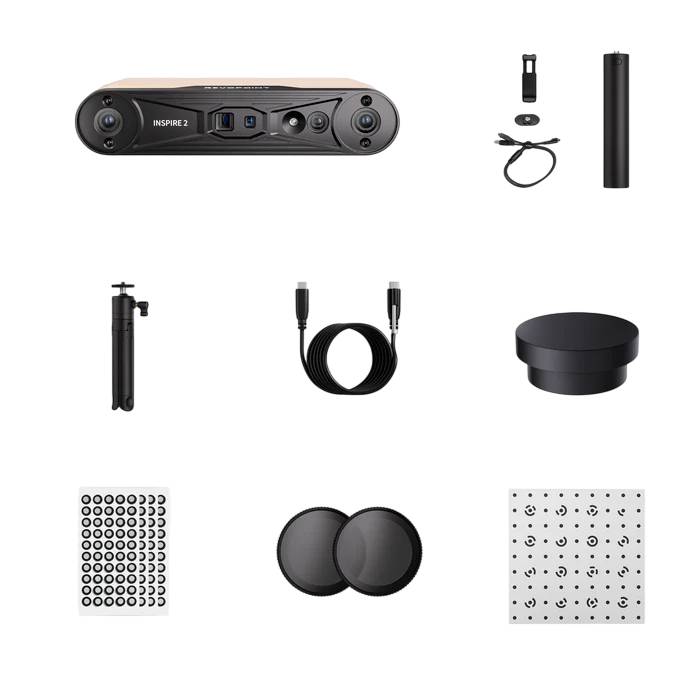

Elements included in the set.
Contents of the set
- Revopoint INSPIRE 2 3D Scanner
- Tripod
- USB Type-C - USB Type-C cable, 2 m long
- Mini rotating platform
- Reflective markers - 200 pcs.
- Filters for outdoor use
- Calibration table
- Mobile set
| Technical specifications of the Revopoint INSPIRE 2 3D scanner | |
|---|---|
| Scanner type | handheld and stationary |
| Technology | dual infrared structured light camera and infrared multi-line laser |
| Size of scanned objects | small and medium |
| Single frame precision | up to 0.03 mm |
| Single frame accuracy | up to 0.05 mm |
| Volumetric accuracy | 0.05 mm + 0.1 mm x L (m), where L is the length of the object, in marker mode |
| Minimum distance between points after merging | up to 0.1 mm |
| Working distance inside | from 200 mm to 400 mm |
| Outdoor working distance | from 150 mm to 250 mm |
| Single capture field at the smallest distance inside | 130 x 129 mm at 200 mm |
| Single capture field at greatest distance inside | 293 x 257 mm at 400 mm |
| Angular field of view | 43° x 35° |
| Minimum scan volume | 20 x 20 x 20 mm |
| Maximum scan volume | 2 x 2 x 2 m |
| Scanning speed | Structured light: up to 18 fps, multi-line laser: up to 90 fps with GPU, up to 40 fps with CPU |
| RGB camera resolution | 1280 x 800 px |
| Color scanning | Yes |
| Tracking methods | Feature, Marker, Global Marker |
| Scanning outside | Yes |
| 3D light source | Class 1 infrared light |
| Lighting | 4 infrared LEDs |
| White LED flash | 1 diode |
| Built-in processing | depth map calculation |
| Number of buttons | 1 |
| Minimum PC requirements - macOS | CPU: M1 Pro / Max / Ultra, RAM at least 16 GB |
| Minimum PC requirements - Windows | CPU: Intel i7 13th Gen. or AMD Ryzen 7 5800, RAM at least 16 GB, GPU: NVIDIA GeForce RTX 3060 8 GB |
| Recommended PC requirements - macOS | CPU: M2 Pro / Max / Ultra or M3 Pro / Max / Ultra, RAM at least 24 GB |
| Recommended PC requirements - Windows | CPU: Intel i9 12th Gen or better, RAM at least 64 GB, GPU: NVIDIA RTX 4060 8 GB or better |
| Mobile requirements - Android | Android 9.0 or later, RAM at least 8 GB, storage at least 128 GB |
| Mobile requirements - iPhone | models after iPhone X, iOS 14.0 or later, RAM above 4 GB, memory at least 64 GB |
| Mobile requirements - iPad | iPad 10. generation or newer |
| Supported operating systems | Windows 10/11, Android, iOS, macOS 11.0 or later |
| Output file formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| 3D printing-ready models | Yes |
| WiFi | 6 |
| Bluetooth | 4.1 |
| Connector type | USB Type-C |
| Power supply | DC 5V, 1A |
| User Recalibration | Yes |
| Supported accessories | large rotating platform, two-axis rotating platform, power bank, mobile kit |
| Notes on special surfaces | When scanning transparent and highly reflective surfaces, it is recommended to use a scanning spray |
| Dimensions | 53 x 27 x 132 mm |
| Mass | 190 g |
