Product description: 3D scanner - Revopoint Trackit SR - Standard Edition
The Revopoint Trackit SR is a professional 3D scanning system combining a handheld laser scanner with an optical tracker . The device utilizes a Class 2 blue laser and three operating modes : 30 cross laser lines, 17 parallel lines, and a single line for hard-to-reach details. Single-frame accuracy is 0.02 mm , and the tracking system's volumetric accuracy is 0.025 mm + 0.04 mm x L (m) . The Trackit SR supports components with a recommended size of 10 mm to 4 m and captures up to 2,000,000 points per second . The scanner operates at distances from 200 mm to 500 mm, while the tracker operates at distances from 800 mm to 2,500 mm. WiFi 6, optical tracking, and a replaceable battery allow for cable-free operation.

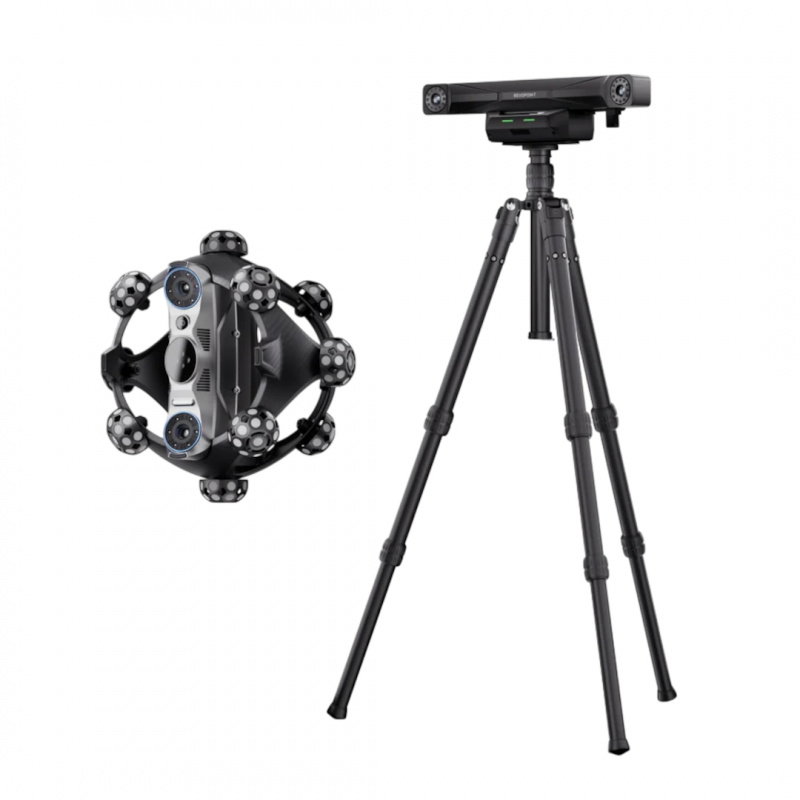

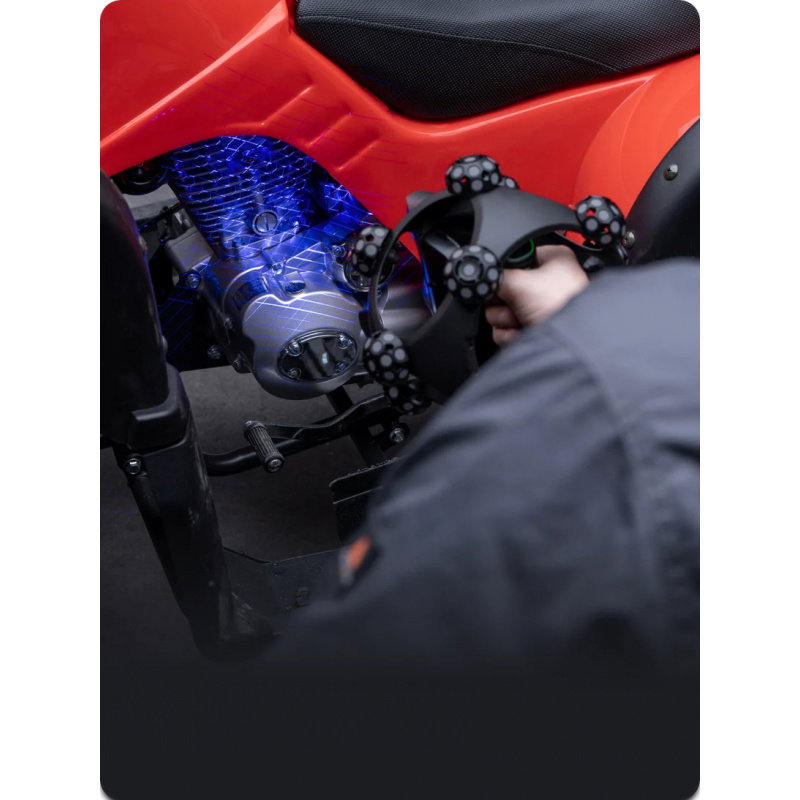

3D scanner - Revopoint Trackit SR.
Revopoint Trackit SR enables comprehensive digitization of objects ranging in size from 0.01 m to 4 m.
Key Features of the Revopoint Trackit SR System
- Optical tracking : allows you to scan without placing markers directly on the object when working with a tracker
- Three blue laser modes : allow you to adjust the scanning method to details, large surfaces and deep holes and crevices
- Single frame accuracy of 0.02 mm : allows for the reproduction of small features and complex geometry
- Volumetric accuracy of 0.025 mm + 0.04 mm x L (m) : ensures high data consistency when measuring larger components
- Speed up to 2,000,000 points/s : accelerates surface digitization and the creation of dense point clouds
- Object size range from 10 mm to 4 m : allows you to work with both small parts and larger industrial components
- WiFi 6 : allows you to wirelessly transfer scan data to your computer
- RGB camera : allows you to reproduce the color and texture of the surface in a 3D model
- Active thermal stabilization : the system achieves thermal stability in approximately 2 minutes and constantly monitors internal and ambient temperatures
- Carbon fiber construction : increases system stiffness while maintaining low weight
- Scanning dark and metallic surfaces : Blue laser captures challenging surfaces without the need for a scanning spray in many common applications
- Field scanning : the system is also designed for use outside the laboratory and can operate in strong outdoor lighting conditions
- Replaceable scanner battery : provides up to 2.5 hours of operation and facilitates mobile measurement sessions
- Automated calibration : Two-axis gimbal streamlines multi-position calibration procedure
Three blue laser modes for different measurement tasks
Trackit SR uses Three switchable blue laser scanning modes make it suitable for both detailed digitization and the rapid capture of larger elements. Fine Mode with 30 cross laser lines is ideal for accurately capturing details and complex surfaces, offering a working distance of 200 mm to 400 mm. Far Mode uses 17 parallel laser lines and operates from a distance of 250 mm to 500 mm, allowing for faster capture of large and indistinct surfaces. Deep Hole Mode with a single laser line facilitates the capture of deep holes, grooves, slots, grates, and other difficult-to-see areas.
The scanner is equipped with three different operating modes based on a blue laser, which allows you to adapt the measurement process to the specifics of each detail.
Wireless communication via the WiFi 6 module allows you to move freely around the measuring object without tangling cables and having to constantly move the workstation.
Large scanning range and high measurement accuracy

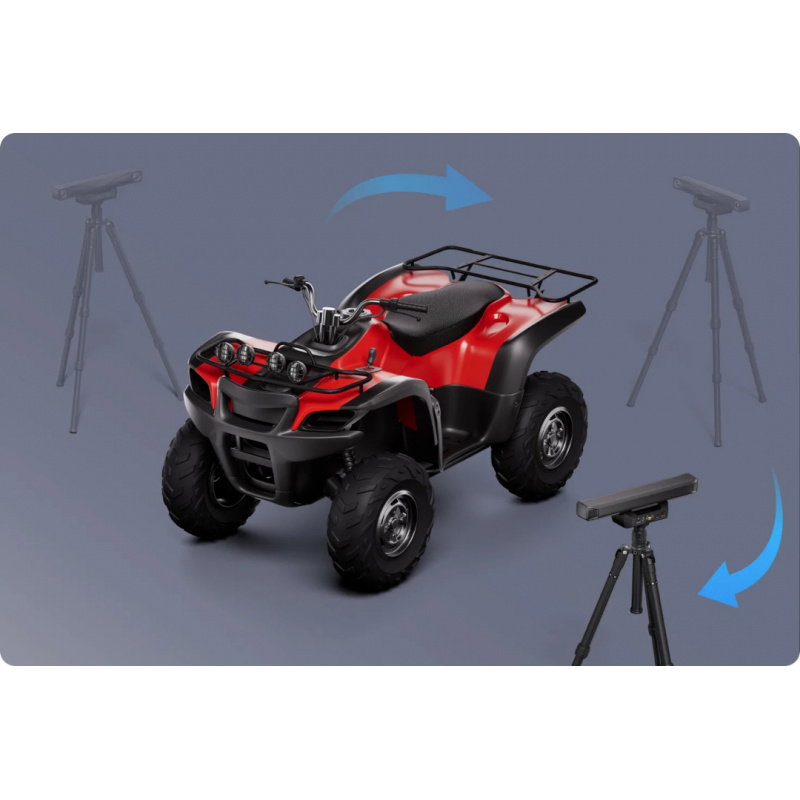

Revopoint Trackit SR is designed to scan objects with a recommended size of 10 mm to 4 m , allowing you to use a single system to digitize small mechanical parts, bodywork components, and larger structures. Single-frame accuracy is 0.02 mm , with a maximum point spacing of 0.05 mm , and the volumetric accuracy of the tracking system is 0.025 mm + 0.04 mm x L (m) . The tracker operates within a range of 800 mm to 2500 mm and provides a tracking volume of 3 m³, while the maximum tracking frame area at 2500 mm is 2075 x 1778 mm. Measurement stability is enhanced by active heating and internal and external temperature sensors, and the manufacturer recommends taking the most accurate measurements at a temperature between 20°C and 25°C.
Lightweight design, WiFi 6 and mobile operation with a 3D scanner
The Trackit SR is designed for mobile industrial measurements – the frame uses carbon fiber , and the scanner housing is made of polycarbonate. The scanner weighs 1 kg and the tracker 1.5 kg , so the entire basic measurement system is relatively easy to transport, and the Standard Edition kit is delivered in a rolling case . A Class 2 blue laser captures geometry, the tracker uses the NIR band for tracking, and an RGB camera captures information about surface color and texture . A WiFi 6 connection allows for wireless image and data transfer to a computer, and a scan preview can also be displayed on a mobile device. In standard optical tracking mode , markers on the scanned object are not required ; however, they are used during standalone scanning in Marker Scan mode and for selected multi-station procedures.

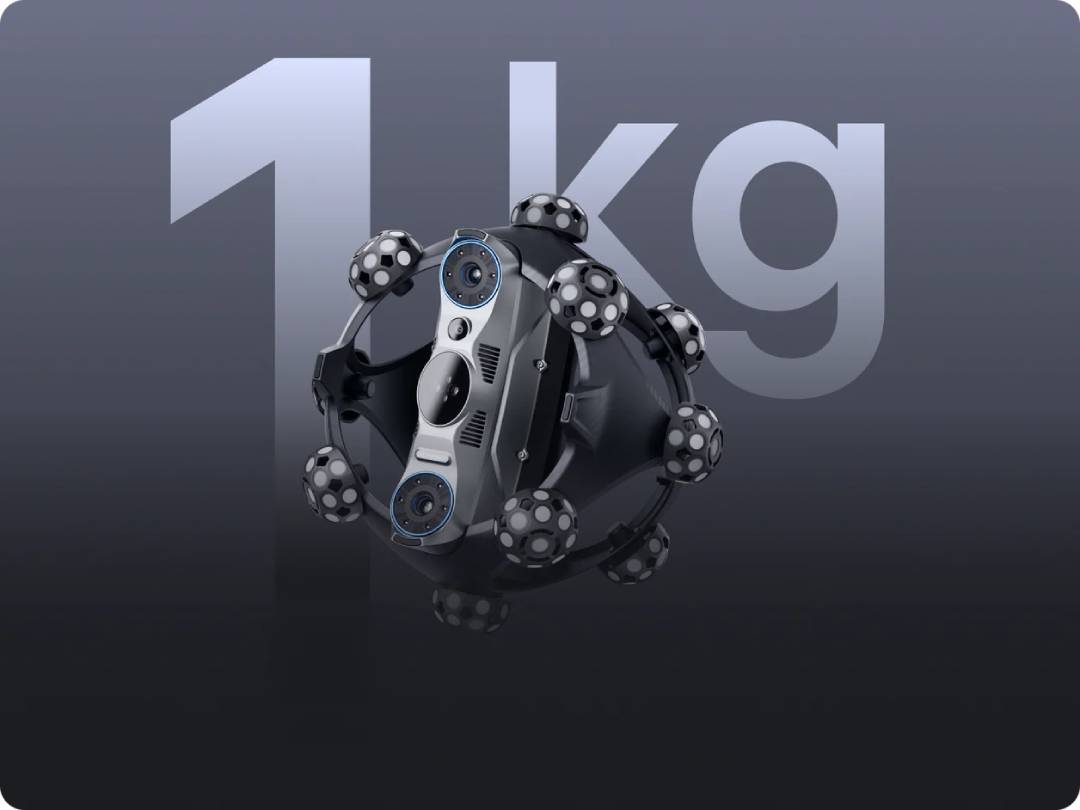

The scanner housing is based on a lightweight and ultra-rigid carbon fiber and polycarbonate frame, which ensures that the scanner weighs just 1 kg and the tracker weighs 1.5 kg.
Revo Track software enables full point cloud processing, mesh editing and easy file export in PLY, OBJ, STL, ASC, 3MF, GLTF and FBX formats.

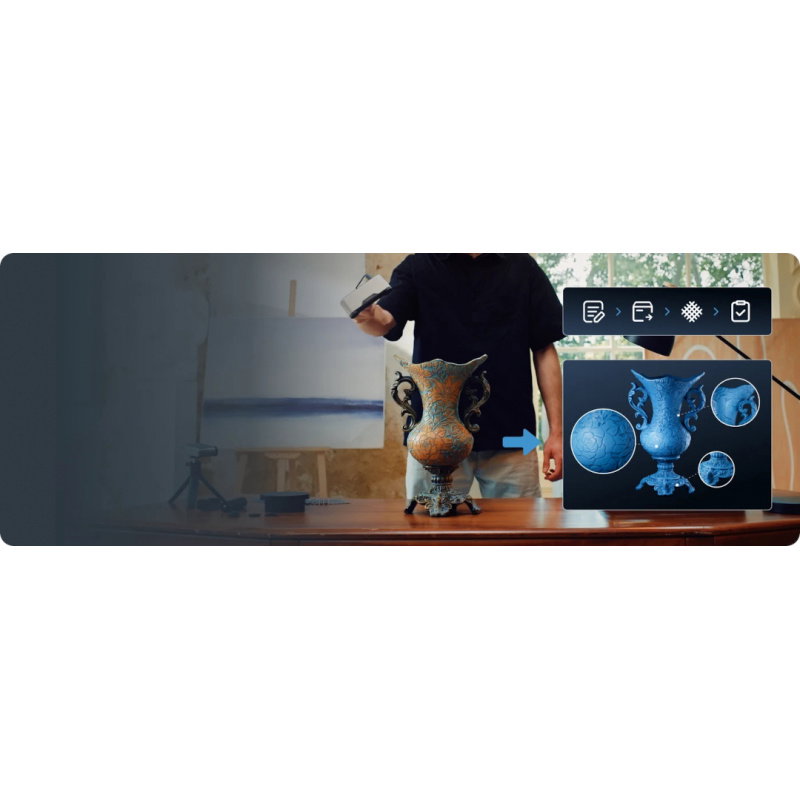

Revo Track, Revo Measure and Revo Design - 3D scanning software
The free Revo Track software handles scanning, processing, editing, data merging, and calibration of the Trackit SR system and is available for Windows and macOS. The program allows you to export models in PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX formats, making the data suitable for use in CAD applications, 3D modeling programs, and 3D printing slicers. Revo Design is also available for mesh editing, freeform and parametric modeling, and scan-to-CAD processes, while Revo Measure allows you to perform dimensional measurements, GD&T analysis, deviation analysis, and scan-to-CAD model comparisons. A Revo Measure license is not included with the Standard Edition; an annual license is included with the CMM Edition. Revo Track can also be integrated with external applications using the optional TCP remote control feature.

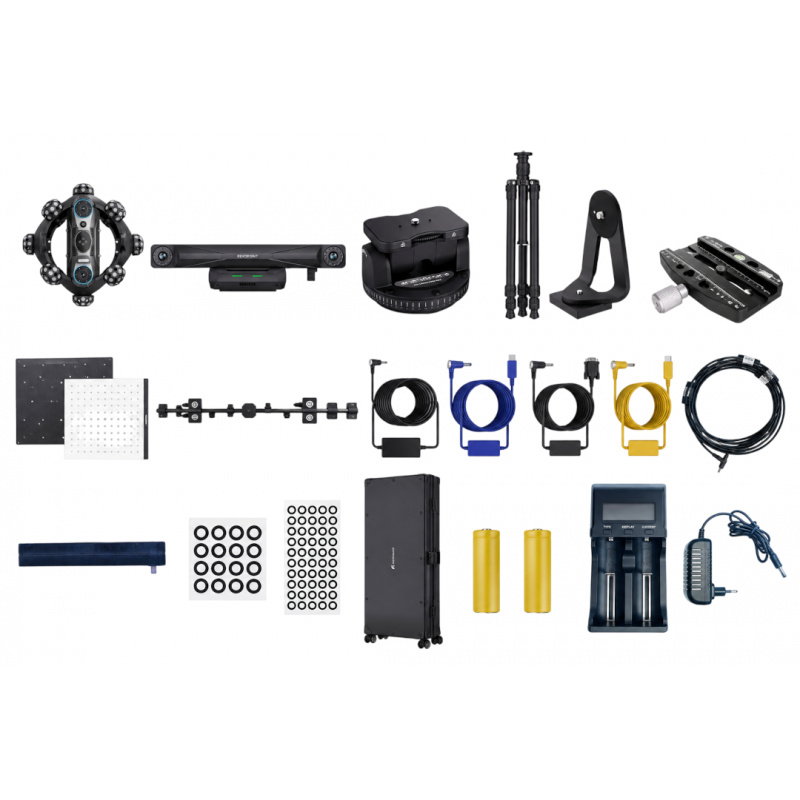

Contents of the set

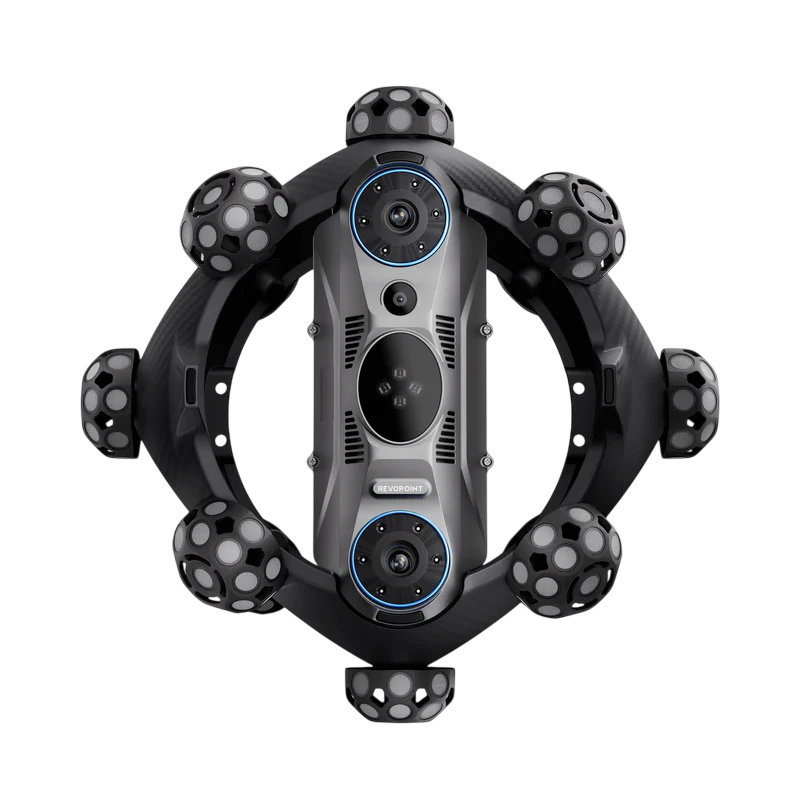

- Revopoint Trackit SR Scanner

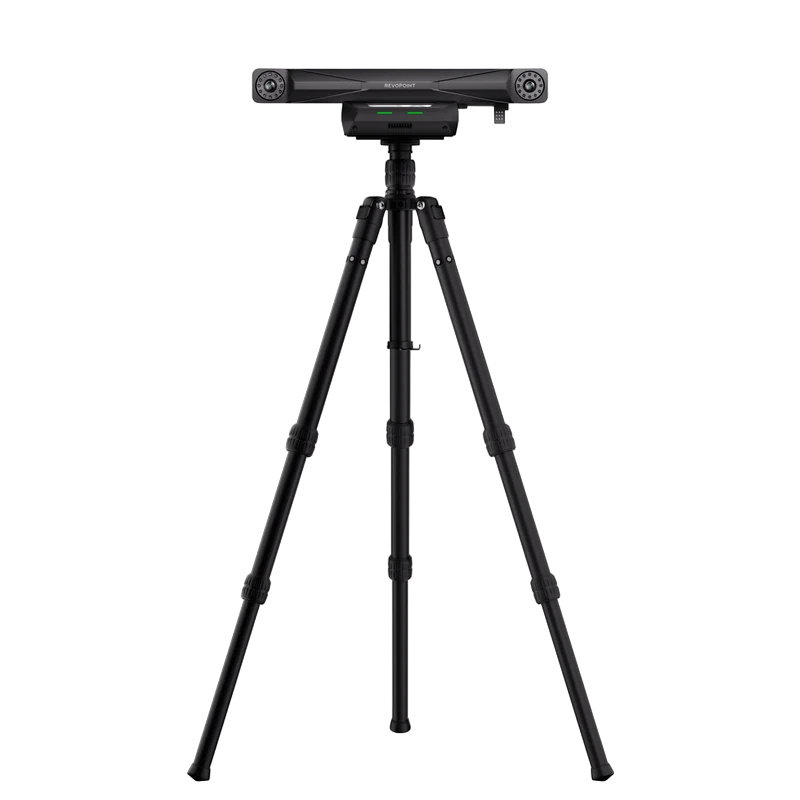

- Tracker
- Two-axis gimbal for automated calibration
- Tripod
- Gimbal Adapter Plate
- Quick-release handle
- Calibration plate
- Calibration pole
- Charger
- Tracker Cable - PC
- Scanner - PC Cable
- Cable Tracker - Scanner
- Tracker Cable - Gimbal
- Cable cover
- 20 magnetic markers
- 200 self-adhesive markers
- Transport case on wheels
- 2 batteries for the scanner
- Scanner battery charger

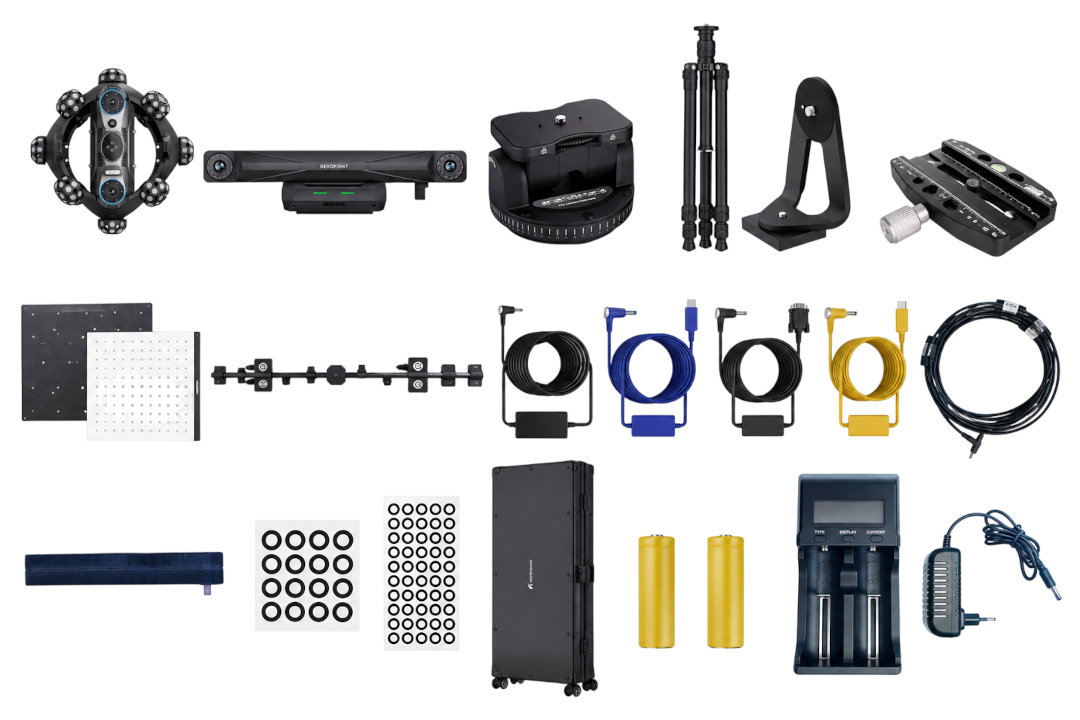

Elements included in the set.
| Technical specifications of the Revopoint Trackit SR 3D scanner | |
|---|---|
| Trackit SR Scanner | |
| Single frame accuracy | 0.02 mm |
| Acceptance Test Standard | VDI/VDE 2634 Part 3 and ISO 10360-13 |
| Distance of merged points | up to 0.05 mm |
| Scanning speed | up to 2,000,000 points/s |
| Light source - Fine Mode | 30 cross blue laser lines |
| Light Source - Far Mode | 17 parallel blue laser lines |
| Light Source - Deep Hole Mode | 1 blue laser line |
| Laser class | class 2 |
| Working distance - 30 cross lines | from 200 mm to 400 mm |
| Working distance - 17 parallel lines | from 250 mm to 500 mm |
| Working distance - single line | from 200 mm to 400 mm |
| Single shot area at closest distance | 123 x 130 mm at 200 mm |
| Single shot area at greatest distance | 330 x 325 mm at 500 mm |
| Recommended size range of scanned objects | from 10 mm to 4 m |
| Scanner wireless connectivity | WiFi 6 |
| Scanner battery life | up to 2.5 hours |
| Operating temperature | from 0°C to 30°C |
| Recommended temperature for highest accuracy | from 20°C to 25°C |
| Output formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Frame material | carbon fiber |
| Housing material | polycarbonate |
| Texture recording | RGB camera |
| Tracker | |
| Volumetric accuracy of the tracking system | 0.025 mm + 0.04 mm x L (m) |
| Tracker working distance | from 800 mm to 2500 mm |
| Minimum tracking frame area | 587 x 569 mm at 800 mm |
| Maximum tracking frame area | 2075 x 1778 mm at 2500 mm |
| Tracking volume | 3 m³ |
| Tracking Bandwidth | NIR |
| Tracker wireless connectivity | WiFi 6 |
| User Recalibration | manual calibration |
| Automated calibration | two-axis gimbal for multi-position calibration procedure |
| Supported accessories | Calibration Plate, Calibration Pole, Anchor Block, Battery Grip |
| Dimensions and weight | |
| Scanner dimensions | 250 x 250 x 177 mm |
| Scanner weight | 1 kg |
| Tracker dimensions | 441 x 111 x 103 mm |
| Tracker weight | 1.5 kg |
| Total weight of scanner and tracker | 2.5 kg |
