Product description: 3D scanner - Revopoint MetroX Pro - Standard Edition
The Revopoint MetroX Pro is a professional-grade handheld and desktop 3D scanner designed for digitizing small and medium-sized objects . It offers four scanning modes , single-frame accuracy down to 0.02 mm , precision up to 0.01 mm , and volumetric accuracy of 0.02 mm + 0.04 mm x L. In multi-line laser mode, it captures up to 2,000,000 points/s , and full-field structured light increases this to 7,000,000 points/s . The working range is 200 mm to 400 mm , and objects can have volumes from 10 x 10 x 10 mm to 1 x 1 x 1 m . The scanner is suitable for reverse engineering, quality control, 3D printing , and rapid prototyping.

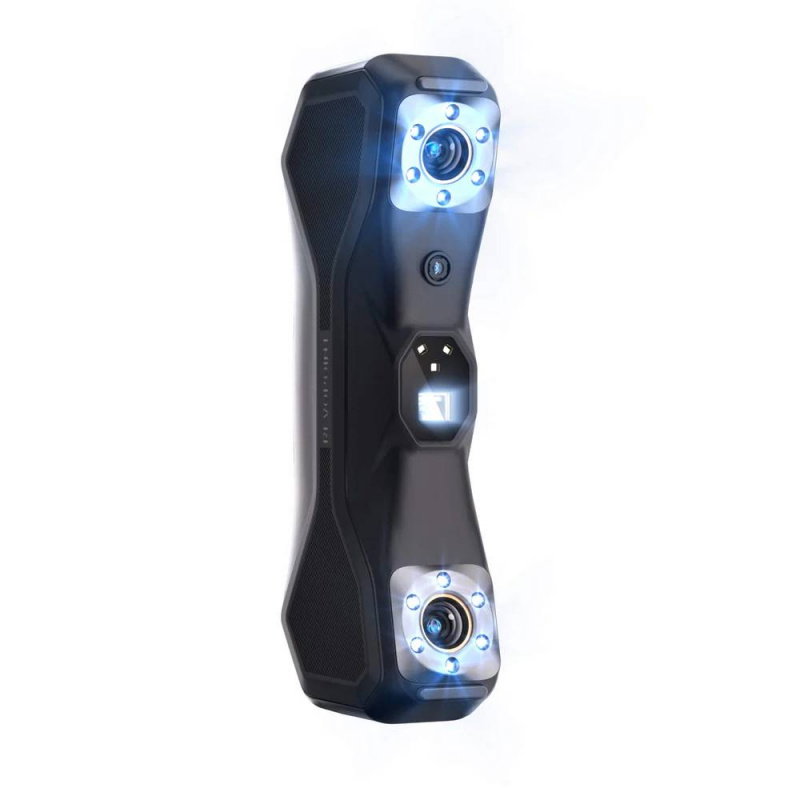

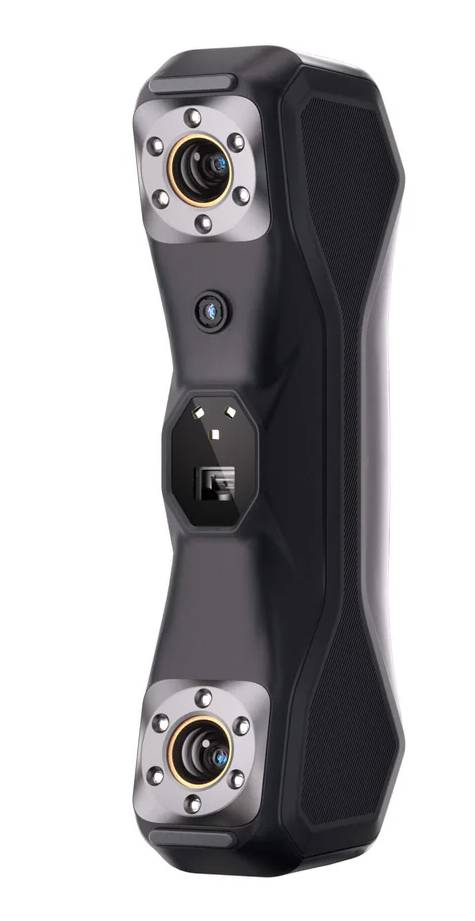

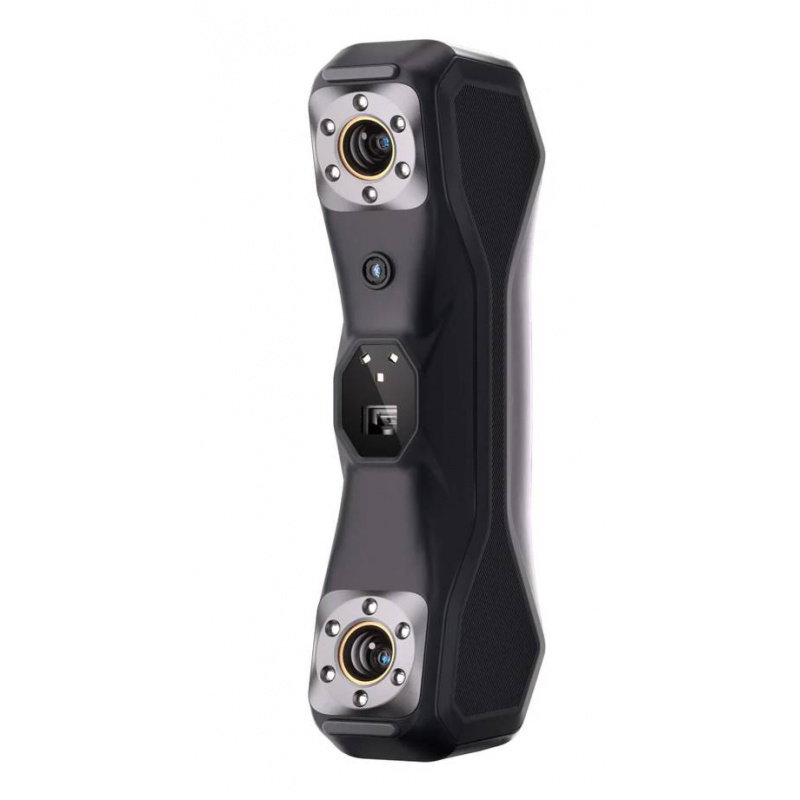

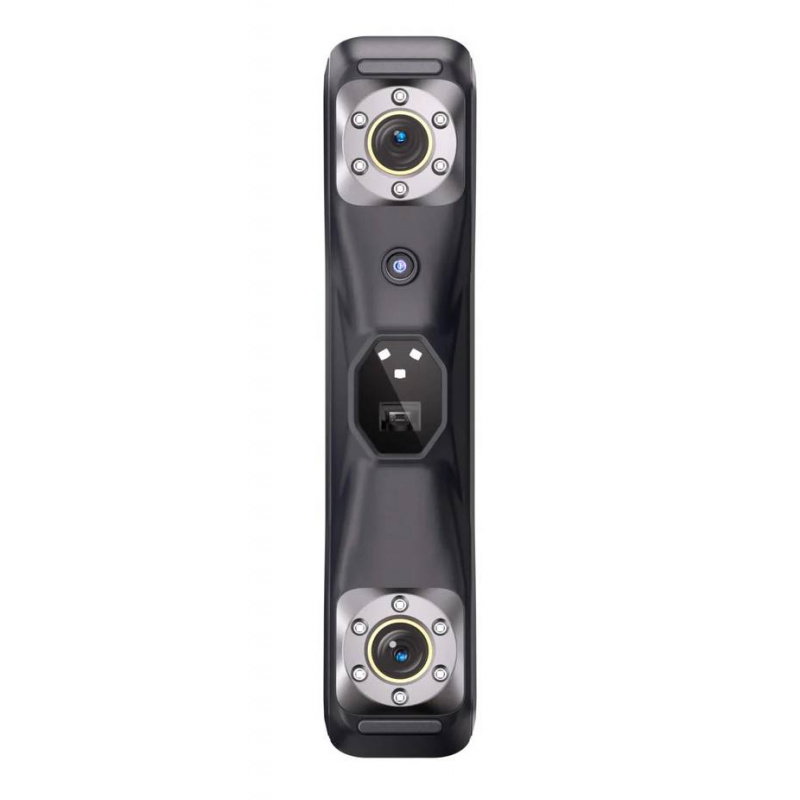

3D scanner - Revopoint MetroX Pro.
Four operating modes allow you to adjust the data acquisition method to the shape, surface and level of detail of the scanned element.

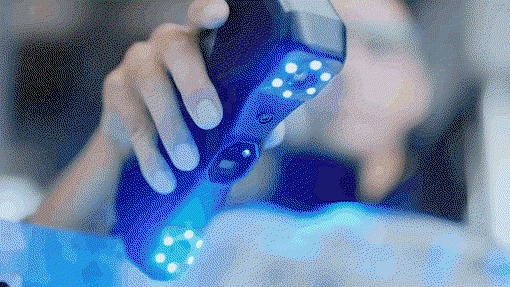

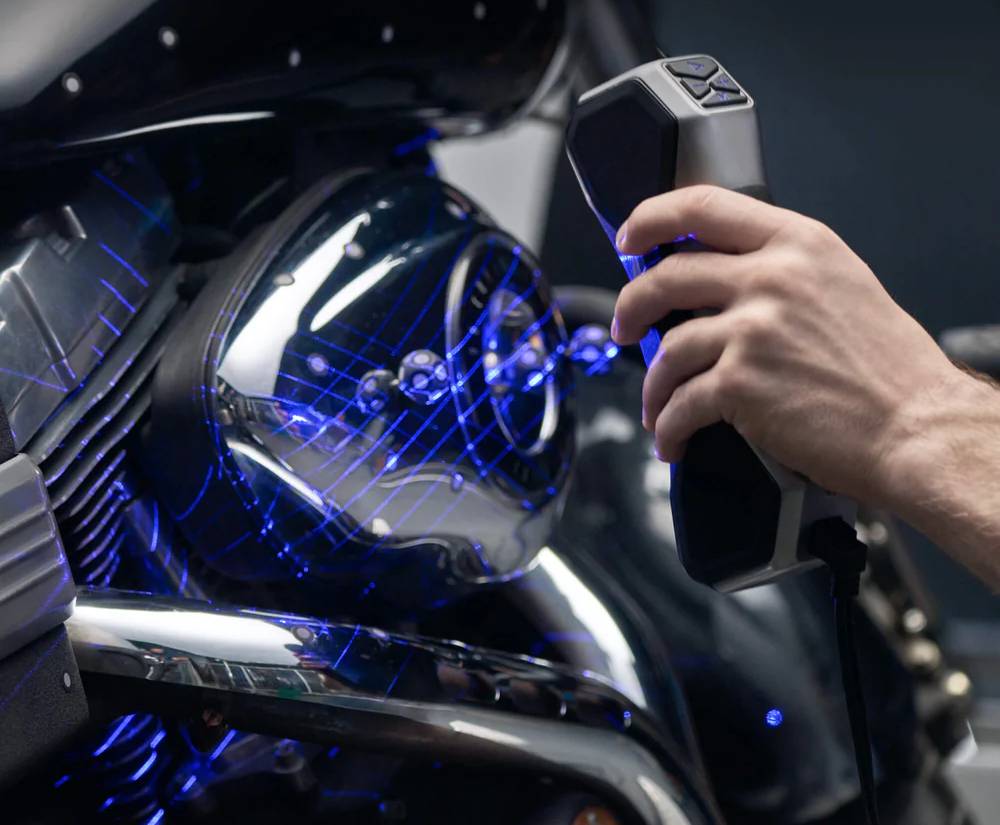

Blue laser and four scanning modes MetroX Pro

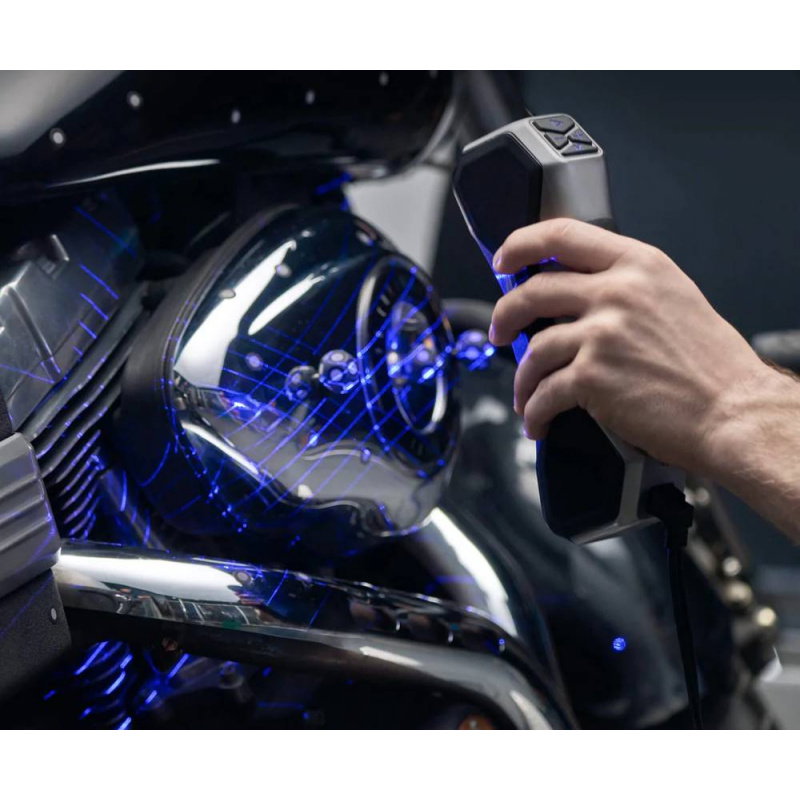

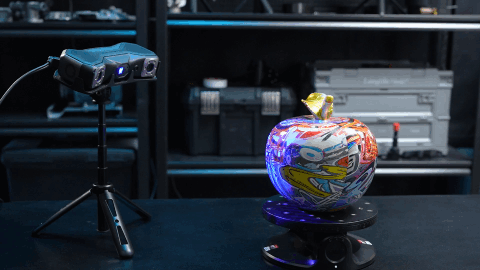

The Revopoint MetroX Pro utilizes a multi-line blue laser and full-field blue structured light , allowing you to adapt your workflow to the geometry and surface of the part being inspected. The 30-line cross mode quickly captures flat, dark, and shiny parts, while the 15-line parallel mode allows for more accurate mapping of edges, recesses, and fine details. The 62-line full-field mode is designed for fast scanning of objects with rich geometry and can operate without markers. The fourth option is Auto Turntable mode , which combines the scanner, the included two-axis turntable, and Revo Metro software. The system automatically repositions the object, making it easier to acquire data from all sides without manually rotating the model. This mode also allows you to create color scans using the RGB camera.
Precision, accuracy and speed of 3D measurements
MetroX Pro offers single-frame precision down to 0.01 mm and a resolution of 0.02 mm . Volumetric accuracy is 0.02 mm + 0.04 mm x L , where L is the length of the scanned object in meters. The maximum point spacing after merging is 0.05 mm, allowing for dense models with clearly defined edges and details. Multi-line laser mode captures up to 2,000,000 points/s , while full-field structured light mode reaches up to 7,000,000 points/s . When used with a compatible NVIDIA RTX card on Windows, scanning can be performed at up to 60 fps. The working distance ranges from 200 mm to 400 mm , and the single capture area varies from 160 x 70 mm at 200 mm to 320 x 215 mm at 400 mm. The scanner handles components ranging in size from 10 x 10 x 10 mm to 1 x 1 x 1 m , making it suitable for everything from small mechanical parts to larger housings, machine components, and design models. The 43° x 33° angular field of view helps maintain a comfortable workspace when operating the device.
The 2 MPx RGB camera allows you to create colorful models in Auto Turntable mode.
Color scanning, no spray and working with markers

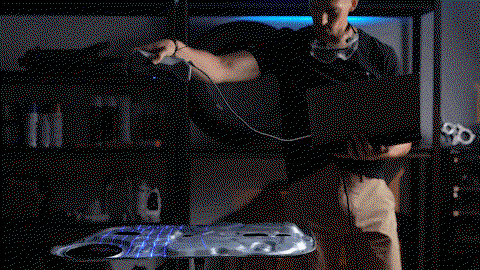

The built-in 2 MP RGB camera allows for color capture in automatic scanning mode with a dual-axis turntable . This feature allows for the creation of more realistic models for presentations, documentation, and visualizations. In other modes, the scanner focuses primarily on accurate geometry reproduction. Cross and parallel line modes allow for scanning multiple dark or glossy surfaces without the use of matting agent . However, spray is required when digitizing transparent or highly specular objects in multi-line laser modes. In Full-Field and Auto Turntable modes, the manufacturer recommends its use also for black, transparent, glossy, and highly reflective surfaces. In laser scanning modes, markers should be used, while in structured light mode, they can be omitted if the object has sufficiently distinctive geometric features . Markers should be spaced irregularly at a distance of approximately 6 cm to 7 cm, and at least five markers should be visible in each captured frame. For small objects, a two-axis rotary table or an optional set of marker blocks can be used.

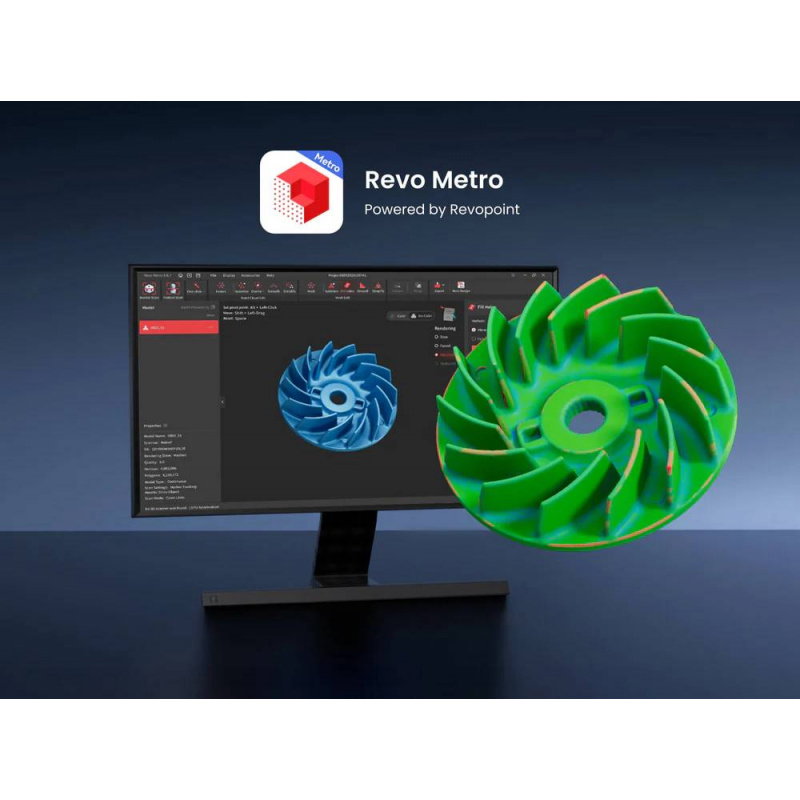

PC connection and Revo Metro software
The Revopoint MetroX Pro connects to your computer via a USB Type-C to USB Type-C cable . It's compatible with Windows 10 and Windows 11 64-bit and macOS 11.0 or later. GPU-accelerated laser scanning is currently supported by compatible NVIDIA RTX 30 and RTX 40 cards on Windows. The PC-to-Mobile Scan Streaming feature in the MetroX Pro lets you stream your scan from your computer to your phone, tablet, or secondary display using the Revo Mirror app . Your mobile device then acts as an external display, making it easier to check the coverage of the scanned object and detect missing data. The computational process itself still takes place on your computer. The free Revo Metro software is used to acquire point clouds, merge images, create a mesh, clean and edit data, and combine multiple scans. The program exports PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX files, ensuring compatibility with popular CAD programs, 3D modeling applications, and slicers. Additionally, scans can be transferred to the separately sold Revo Design and Revo Measure software, which extend the environment with scan-to-CAD, reverse engineering, and dimensional inspection capabilities.
MetroX Pro communicates with your computer via USB Type-C.

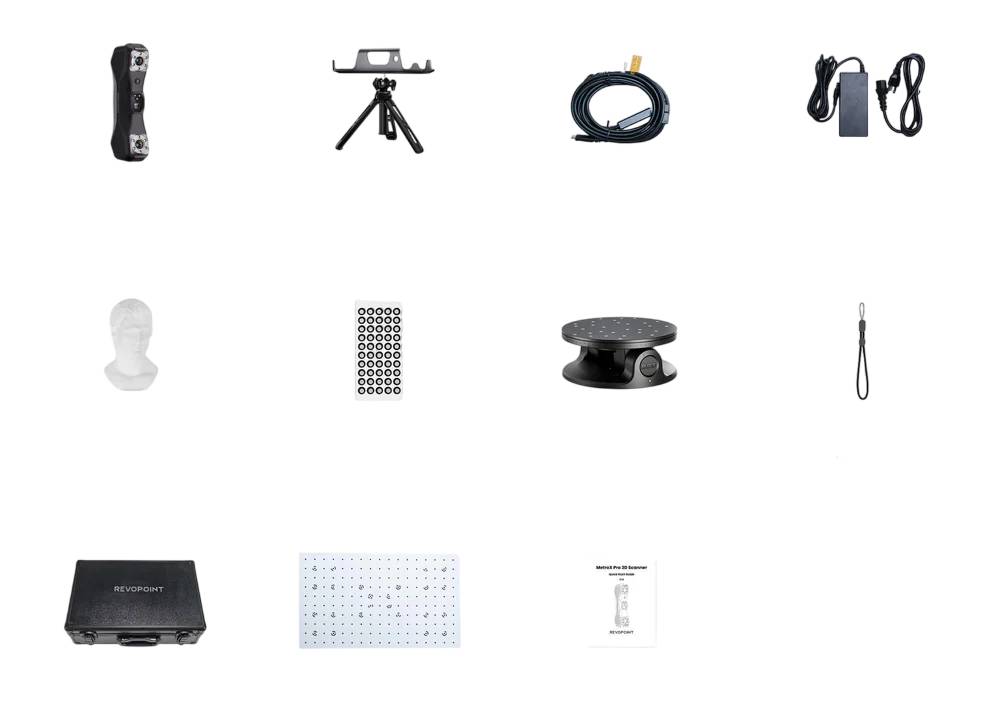

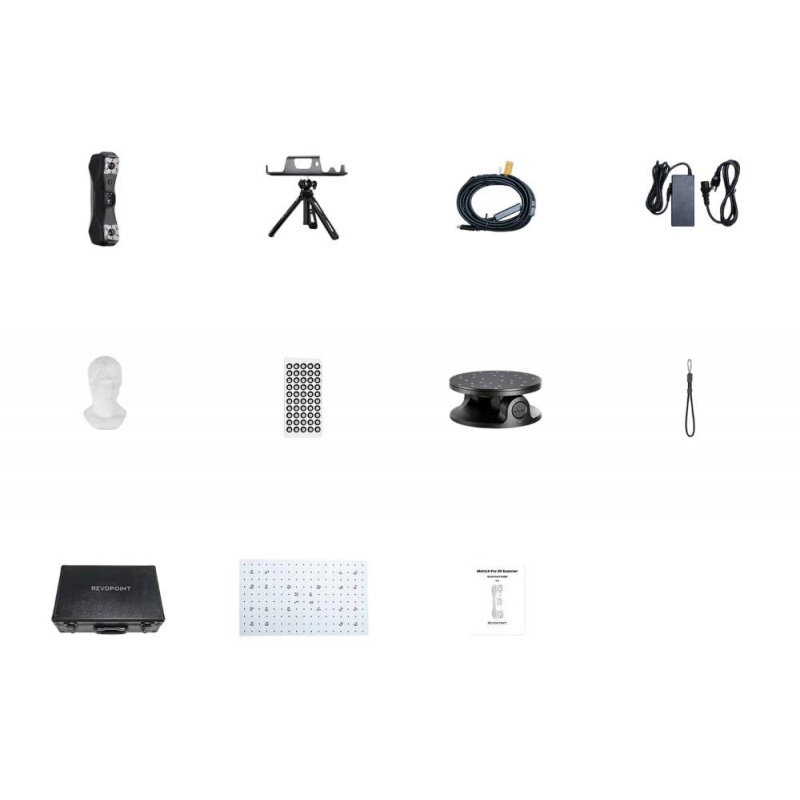

Elements included in the set.
Contents of the set
- Revopoint MetroX Pro 3D scanner
- Wrist strap
- Tripod with scanner holder
- USB Type-C - USB Type-C cable
- Charger
- Test model in the form of a bust
- Markers with a diameter of 6 mm - 500 pieces
- Two-axis rotary table
- Transport case
- Calibration plate
- Quick guide
Technical specifications and comparison of the Revopoint MetroX and MetroX Pro 3D scanners
| Parameter | Revopoint MetroX | Revopoint MetroX Pro |
|---|---|---|
| Scan type | Handheld and desktop scanning | Handheld and desktop scanning |
| Scanning technology | Multi-line blue laser and full field of blue structured light | |
| Supported object sizes | Small and medium-sized facilities | |
| Single frame precision | Up to 0.01 mm | |
| Single frame accuracy | Up to 0.02 mm | |
| Volumetric accuracy | 0.025 mm + 0.05 mm x L (m), where L is the length of the object | 0.02 mm + 0.04 mm x L (m), where L is the length of the object |
| Distance between merged points | Up to 0.05 mm | |
| Working distance | From 200 mm to 400 mm | |
| Single shot area at shortest distance | 160 x 70 mm at 200 mm distance | |
| Single shot area at greatest distance | 320 x 215 mm at 400 mm distance | |
| Angular field of view | 43° x 33° | |
| Minimum scan volume | 10 x 10 x 10 mm | |
| Maximum scan volume | 1 x 1 x 1 m | |
| Scanning speed | Multi-line laser: up to 800,000 points/s Full field structured light: up to 7,000,000 points/s | Multi-line laser: up to 2,000,000 points/s Full field structured light: up to 7,000,000 points/s |
| RGB camera resolution | 2 MPx | |
| Color scanning | Auto Turntable mode only | |
| Tracking methods | Tracking object features, markers, and global markers | |
| Scanning outside | NO | |
| Light source | Blue laser crossing lines: 14 lines Parallel blue laser lines: 7 lines Blue Structured Light Lines: 62 lines | Blue laser crossing lines: 30 lines Parallel blue laser lines: 15 lines Blue Structured Light Lines: 62 lines |
| Auxiliary lighting | 12 blue LEDs | |
| Processor | 4-core ARM processor, 2 GHz | |
| Built-in data processing | Depth data calculations | |

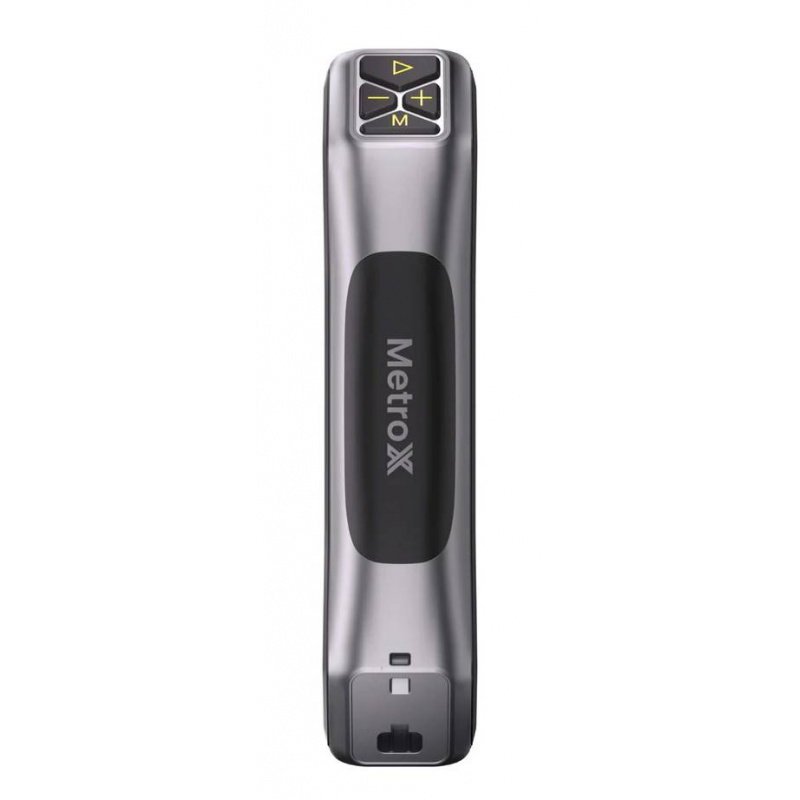

| Number of control buttons | 4 | |
| Minimum requirements for macOS | Processor: Apple M1 Pro, M1 Max or M1 Ultra RAM: at least 16 GB | Processor: Apple M2 Pro RAM: at least 16 GB |
| Minimum requirements for Windows | Processor: 13th Generation Intel Core i7 or AMD Ryzen 7 5800 RAM: at least 32 GB Graphics card: NVIDIA GeForce RTX 3060 8GB | |
| Recommended requirements for macOS | Processor: Apple M2 Pro, M2 Max, M2 Ultra, M3 Pro, M3 Max or M3 Ultra RAM: at least 24 GB | Processor: Apple M4 Pro or better RAM: at least 24 GB |
| Recommended requirements for Windows | Processor: Intel Core i9 12th generation or higher RAM: at least 64 GB Graphics card: NVIDIA RTX 4060 8 GB or better | |
| Additional processor requirements | At least 8 cores, 16 threads, and a base frequency of at least 2.4 GHz | |
| Laser line scanning acceleration | Requires a dedicated graphics card. AMD and Mac graphics cards do not currently support acceleration. | |
| Supported operating systems | Windows 10 or 11 64-bit, macOS 11.0 or later | |
| Supported file formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX | |
| 3D models ready for printing | Yes | |
| Connector type | USB Type-C | USB Type-C to USB Type-C |
| Power requirements | 12V DC, 3A | |
| Scanning special surfaces | In multi-line laser modes, transparent and mirrored surfaces require the use of a matting spray. In full-field mode, the manufacturer recommends using the spray when scanning transparent, black, mirrored, and highly reflective surfaces. | |
| User calibration | Yes | |
| Supported accessories | Two-axis rotating platform, set of blocks with markers | |
| Laser class | Class 2M | |
| Notes on precision and accuracy | Precision measures the consistency of subsequent measurements of the same object taken from a single location. Accuracy measures the correspondence of the measured value to the actual dimensions of the object. These parameters were obtained under controlled laboratory conditions, so actual results may vary depending on the environment and method of operation. | |
| Class 2M laser safety | Do not look directly at the laser source at close range or observe the beam through optical instruments such as a telescope or camera lens. Avoid placing mirrors, glass, or other surfaces that may cause strong reflections in the beam path. | |
| Flashing light warning | The device emits a flashing light that may not be suitable for people with photosensitive epilepsy. | |
| Dimensions | 209 x 88 x 44 mm | |
| Mass | 508 g | |
